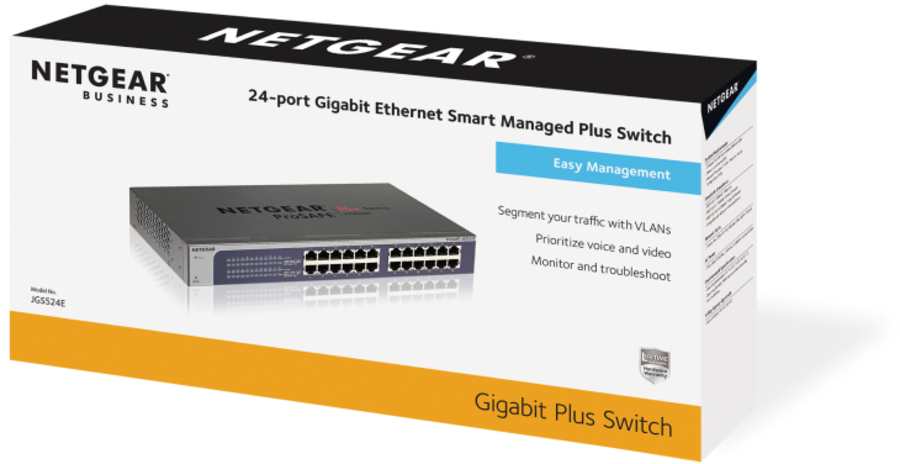

Netgear JGS524E 24-Port Gigabit Smart Managed Plus Switch
|
|
Price: $240.00
Manufacturer:
Netgear
ProSafe Plus Switch, managed, 24x10/100/1000, desktop, rack
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60544803
|
JGS524E-200NAS
|
606449098952 |
Active
|
Details
|
General Information |
|
Summary |
Today's growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. ProSafe Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locate connection problems via cable diagnostic test. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSafe Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSafe Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
24 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
Network |
|
Networking standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Rate limiting |
Yes |
|
Auto-negotiation |
Yes |
|
VLAN support |
Yes |
|
Virtual LAN features |
Port-based VLAN |
|
Number of VLANs |
100 |
|
Data transmission |
|
MAC address table |
16000 entries |
|
Switching capacity |
48 Gbit/s |
|
Forwarding rate |
35.7 Mpps |
|
Store-and-forward |
Yes |
|
Latency (1 Gbps) |
3.9 µs |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Packet buffer memory |
0.75 MB |
|
Security |
|
DHCP features |
DHCP client |
|
IGMP snooping |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Grey |
|
Housing material |
Metal |
|
LED indicators |
Activity, Link, PoE, Power, Speed, Status |
|
Performance |
|
Flash memory |
4 MB |
|
Mean time between failures (MTBF) |
243476 h |
|
Power |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Input current |
0.9 A |
|
Power consumption (max) |
13.8 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
328 mm |
|
Depth |
170 mm |
|
Height |
43 mm |
|
Weight |
1.4 kg |
|
Packaging content |
|
Cables included |
LAN (RJ-45) |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
|
Certificates |
|
Certification |
UL/cUL 60950, CB, CCC |
|
