General Information |
|
Summary |
Going Gigabit and PoE+ Just Got More Cost-Effective!
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains.

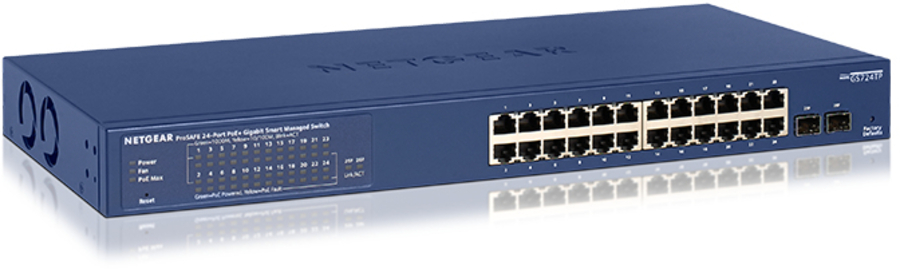

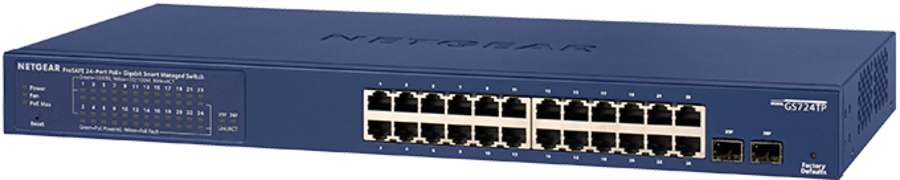

The GS724TPv2 24-Port Gigabit Switch with PoE+ and 2 SFP Ports joins the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W.
NETGEAR Smart Managed Pro Switches offer powerful Layer 2 features, great PoE functionality, and enhanced performance and usability. These switches are the ideal solution even for the most advanced small and medium
rganizations looking for the best combination of features, performance, and value: they are purposely designed for converged networks where voice, video, data are all carried on a single network platform.
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS724TPv2 supports quiet rack mounting operation with a maximum of 32.4dB even at full power and 25°C (77°F) ambient. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3/L4 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
System event log |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
24 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Combo SFP ports quantity |
2 |
|
Power connector |
DC-in jack |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Spanning tree protocol |
Yes |
|
Auto-negotiation |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
256 |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
52 Gbit/s |
|
Forwarding rate |
38.7 Mpps |
|
Store-and-forward |
Yes |
|
Latency (1 Gbps) |
3.749 µs |
|
Number of queues |
4 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9216 |
|
Packet buffer memory |
0.5 MB |
|
Security |
|
DHCP features |
DHCP client |
|
Access Control List (ACL) |
Yes |
|
Access Control List (ACL) rules |
100 |
|
IGMP snooping |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Number of multicast groups filtered |
128 |
|
Protocols |
|
Management protocols |
SNMP v1 / v2c / v3 |
|
Design |
|
Rack mounting |
Yes |
|
Form factor |
1U |
|
Product colour |
Blue |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
Number of fans |
2 fan(s) |
|
Performance |
|
Built-in processor |
Yes |
|
Processor frequency |
500 MHz |
|
Internal memory |
128 MB |
|
Flash memory |
32 MB |
|
Noise level |
32.4 dB |
|
Firmware upgradeable |
Yes |
|
Mean time between failures (MTBF) |
165589 h |
|
Power |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Power consumption (max) |
225 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
24 |
|
Total Power over Ethernet (PoE) budget |
192 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
440 mm |
|
Depth |
257 mm |
|
Height |
43 mm |
|
Weight |
3.7 kg |
|
Packaging content |
|
Cables included |
AC |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
|
Rack mount kit |
Yes |
|
Certificates |
|
Certification |
CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
