General Information |
|
Summary |

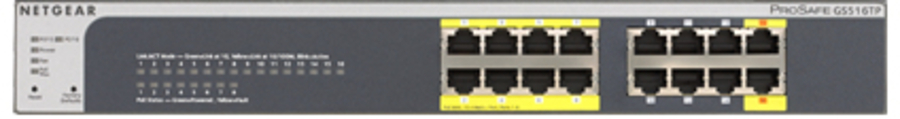

Switches with Essential L2 Features for SMB Networks
NETGEAR Smart Managed Switches offer powerful L2 and L2+/Layer 3 Lite features, better PoE functionality, and enhanced performance and usability. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. These switches are optimized for network efficiency, operational cost savings, and ease of management. This series of switches offers 8 to 52 port configurations both in Fast Ethernet and Gigabit Ethernet with PoE options. All switches come with Gigabit SFP ports for fiber connectivity. These switches are the ideal solution for businesses looking for the best combination of features, performance, and value. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2+/L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Traffic classification |
Yes |
|
ARP inspection |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
16 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
Gigabit Ethernet (copper) ports quantity |
16 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u |
|
10G support |
No |
|
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Rate limiting |
Yes |
|
Spanning tree protocol |
Yes |
|
Auto-sensing |
Yes |
|
VLAN support |
Yes |
|
Virtual LAN features |
Tagged VLAN |
|
Number of VLANs |
256 |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
32000 Gbit/s |
|
Store-and-forward |
Yes |
|
Number of queues |
4 |
|
Number of static routes |
32 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Security |
|
DHCP features |
DHCP client |
|
Access Control List (ACL) |
Yes |
|
Access Control List (ACL) rules |
480 |
|
IGMP snooping |
Yes |
|
Authentication |
Guest VLAN, MAC-based authentication, Port-based authentication |
|
Multicast features |
|
Multicast support |
Yes |
|
Protocols |
|
Management protocols |
SNMP V1, V2, V3 |
|
Design |
|
Product colour |
Black, Grey |
|
LED indicators |
Yes |
|
Number of fans |
1 fan(s) |
|
Performance |
|
Noise level |
24.6 dB |
|
Mean time between failures (MTBF) |
479350 h |
|
Power |
|
Power supply included |
Yes |
|
Power consumption (max) |
92.1 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) ports quantity |
8 |
|
Power over Ethernet (PoE) power per port |
15.4 W |
|
Total Power over Ethernet (PoE) budget |
76 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Heat dissipation |
84 BTU/h |
|
Weight & dimensions |
|
Width |
328 mm |
|
Depth |
169 mm |
|
Height |
43 mm |
|
Weight |
2.21 kg |
|
Packaging content |
|
Cables included |
AC |
|
Rack mount kit |
Yes |
|
Packaging data |
|
Resource CD |
Yes |
