General Information |
|
Summary |

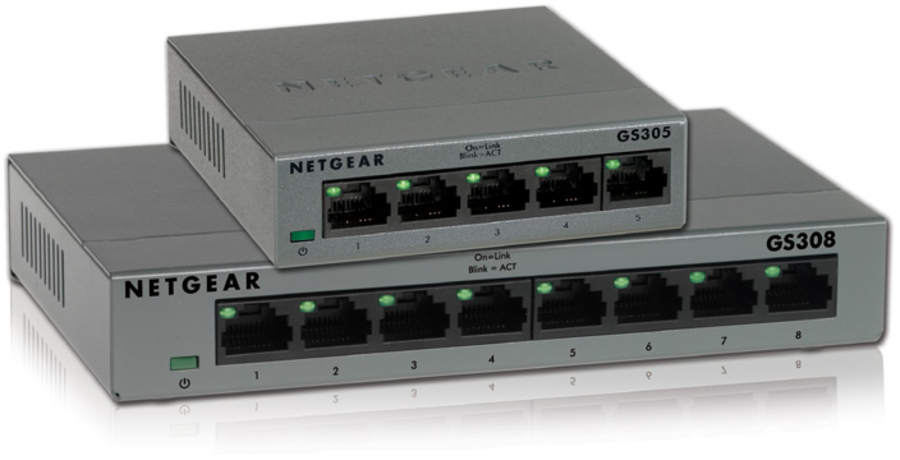

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Fanless design for silent operation
- Desktop, wall-mountable or rack-mountable (GS324, GS348) |
|
Management features |
|
Switch type |
Unmanaged |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
Gigabit Ethernet (copper) ports quantity |
5 |
|
Power connector |
DC-in jack |
|
Network |
|
Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
|
Flow control support |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Cable length detection |
Yes |
|
Data transmission |
|
MAC address table |
2048 entries |
|
Switching capacity |
10 Gbit/s |
|
Latency (1 Gbps) |
2.6 µs |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9216 |
|
Packet forwarding rate (1 Gbps) |
1448000 pps |
|
Design |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
Wall mountable |
Yes |
|
On/off switch |
No |
|
Performance |
|
Buffer size |
128 KB |
|
Plug and Play |
Yes |
|
Mean time between failures (MTBF) |
3670230 h |
|
Power |
|
Number of power supply units |
1 |
|
Output voltage |
5 V |
|
Output current |
0.7 A |
|
Power consumption (max) |
2.34 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Heat dissipation |
8 BTU/h |
|
Weight & dimensions |
|
Width |
101 mm |
|
Depth |
94 mm |
|
Height |
29 mm |
|
Weight |
240 g |
