General Information |
|
Summary |

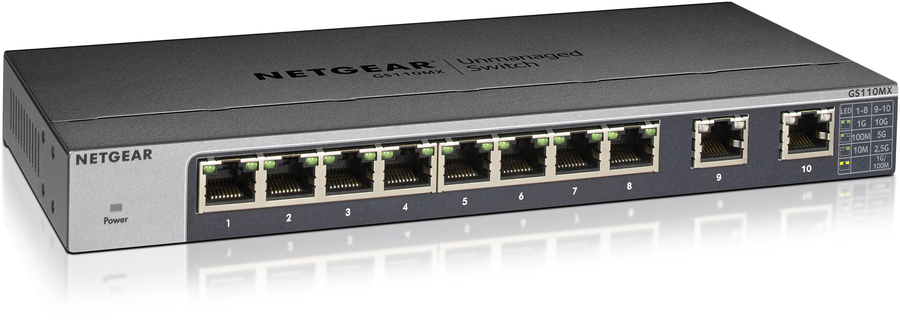

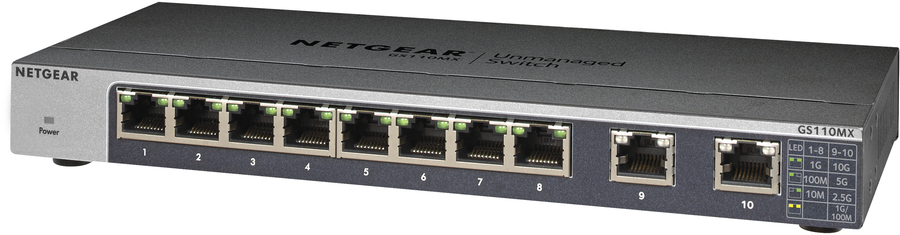

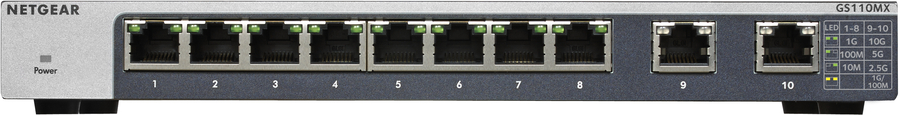

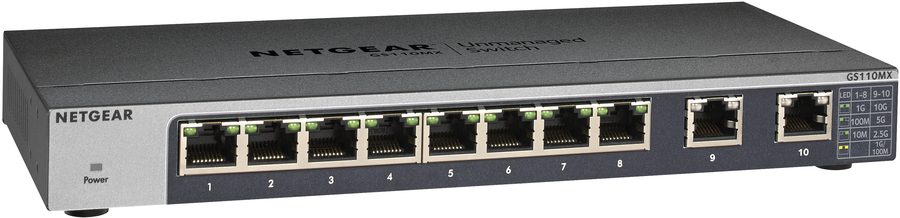

The GS110EMX and GS110MX come with 8 Gigabit Ethernet ports and 2 uplink 10-Gigabit/Multi-Gigabit (5-speed) ports that provide either 100 Megabit, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity.
The two uplink ports automatically detects which speed is needed by the connected device and provides the adequate speed. Moreover these two Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle.
The GS110MX and GS110EMX offer flexible mounting options - they can be mounted in a rack, on a wall or can be used as a desktop switch. Moreover the compact and fanless design make the GS110MX and GS110EMX ideal for any home or business environment. |
|
Management features |
|
Switch type |
Unmanaged |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
10 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
Gigabit Ethernet (copper) ports quantity |
8 |
|

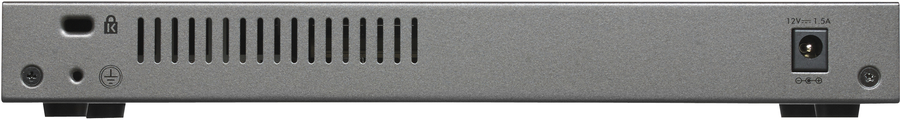

Power connector |
DC-in jack |
|
Network |
|
Networking standards |
IEEE 802.1p, IEEE 802.3az, IEEE 802.3x |
|
10G support |
Yes |
|
Cable types supported |
Cat5, Cat5e, Cat6, Cat6a, Cat7 |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
VLAN support |
No |
|
Data transmission |
|
MAC address table |
16000 entries |
|
Switching capacity |
56 Gbit/s |
|
Forwarding rate |
41.664 Mpps |
|
Latency (10-100 Mbps) |
7 µs |
|
Latency (1 Gbps) |
4 µs |
|
Latency (10 Gbps) |
3 µs |
|
Number of queues |
8 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
10240 |
|
Packet buffer memory |
0.128 MB |
|
Security |
|
Queue scheduling algorithms |
Weighted Round Robin (WRR) |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Link, Power, Speed |
|
Wall mountable |
Yes |
|
Number of fans |
0 fan(s) |
|
Safety |
UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 |
|
Electromagnetic compatibility |
Class B |
|
Performance |
|
Noise level |
0 dB |
|
Power |
|
Output voltage |
12 V |
|
Output current |
1.5 A |
|
Power consumption (typical) |
4.8 W |
|
Power consumption (max) |
13.2 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 3000 m |
|
Heat dissipation |
45.14 BTU/h |
|
Weight & dimensions |
|
Width |
236 mm |
|
Depth |
102 mm |
|
Height |
27 mm |
|
Weight |
740 g |
|
Packaging content |
|
Quick start guide |
Yes |
|
Rack mount kit |
Yes |
|
Packaging data |
|
Wall mounting kit |
Yes |
|
AC adapter included |
Yes |
|
Rubber feet |
Yes |
|
Certificates |
|
Certification |
47 CFR FCC Part 15, SubpartB, Class B
ICES-003:2016 Issue 6, Class B
ANSI C63.4:2014
N 55032:2012 +AC:2013 / CISPR 32:2012 / AS/NZS CISPR 32:2013, Class B
EN 55032:2015 +AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class B
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55024:2010 +A1:2015 |
