General Information |
|
Summary |
More Capabilities beyond Plug-and-play Connectivity
Today's growing businesses are both placing more demands on and relying more on their network. Companies are putting more applications and demands on their Ethernet Infrastructure. Using VoIP phones and IP cameras require more than simple plug-and-play connectivity. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing easy to use visibility and limited configuration capabilities. To provide more insight into the network behavior, ProSafe Plus Switches offer traffic monitoring for users to observe traffic behavior. Additionally, if there are connectivity issues, these switches offer a cable diagnostic test capability that can identify and even locate problems in the cables. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, as a means of improving security or managing collision domains, ProSafe Smart Switches offer VLAN technology. ProSafe Plus Switches offering these monitoring and confi guration capabilities at a slight cost premium over unmanaged switches, delivering great value to the end user. |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|

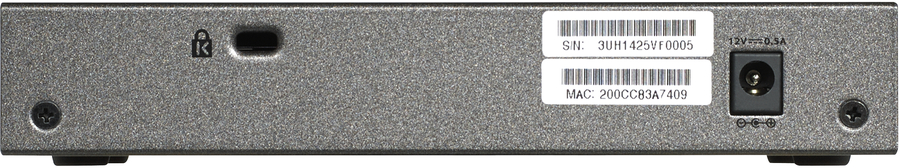

Power connector |
DC-in jack |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
Broadcast storm control |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
32 |
|
Data transmission |
|
MAC address table |
4000 entries |
|
Switching capacity |
16 Gbit/s |
|
Jumbo frames support |
Yes |
|
Security |
|
DHCP features |
DHCP client |
|
MAC address filtering |
Yes |
|
Design |
|
Product colour |
Black |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
158 mm |
|
Depth |
101 mm |
|
Height |
29 mm |
|
Weight |
510 g |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR |
