Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3/L4 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Cloud-managed |
Yes |
|

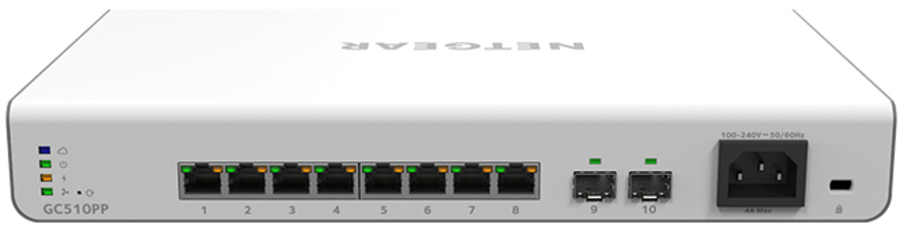

Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
2 |
|
Installed SFP+ modules quantity |
0 |
|
Console port |
RJ-45 |
|
Power connector |
AC-in jack |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Policy-based routing |
Yes |
|
Flow control support |
Yes |
|
Broadcast storm control |
Yes |
|
Spanning tree protocol |
Yes |
|
Auto-negotiation |
Yes |
|
VLAN support |
Yes |
|
Virtual LAN features |
Voice VLAN |
|
Security |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
Design |
|
Product colour |
Grey |
|
LED indicators |
Yes |
|
Performance |
|
Mean time between failures (MTBF) |
381503 h |
|
Power |
|
Power supply included |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Input current |
4 A |
|
Power consumption (typical) |
10.3 W |
|
Power consumption (max) |
200 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
8 |
|
Total Power over Ethernet (PoE) budget |
195 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Weight & dimensions |
|
Width |
314 mm |
|
Depth |
188 mm |
|
Height |
44 mm |
|
Weight |
2.23 kg |
