General Information |
|
Summary |

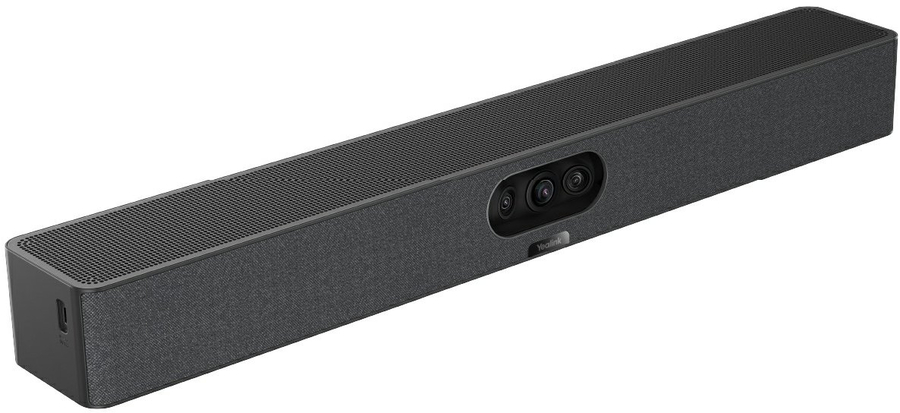

Leading Platform Collaboration Bar for focus rooms 1x A25 allinone Collaboration bar, power adapter, wallmount bracket and cables; 1x CTP25 touch console, PD power adapter, Desktop stand and cables; Includs 2year hardware warranty. |
|
Camera |
|
Camera type |
Triple camera |
|
Horizontal field of view (wide) |
151° |
|
Horizontal field of view (tele) |
84.4° |
|
Vertical field of view (wide) |
81° |
|
Vertical field of view (tele) |
53.1° |
|
Privacy camera |
Yes |
|
Privacy type |
Privacy cover |
|
Video |
|
Maximum video resolution |
3840 x 2160 pixels |
|
Maximum frame rate |
30 fps |
|
HD type |
4K Ultra HD |
|
Video formats supported |
H.264 |
|
Picture-in-Picture |
Yes |
|
Design |
|
Product colour |
Black |
|
Mounting type |
Table/Ceiling |
|
Ports & interfaces |
|
HDMI ports quantity |
1 |
|
USB 2.0 ports quantity |
1 |
|
USB 2.0 Type-C ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Line-out |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
10 - 95% |
|
Packaging content |
|
Power supply included |
Yes |
|
Cables included |
HDMI, LAN (RJ-45), USB |
|
Mounting kit |
Yes |
|
AC adapter included |
Yes |
|
Packaging content |
• MeetingBar A25
• Power adapter
• HDMI cable x1
• Network cable x1
• USB A to C cable x1
• Wall Mount x1
• CTP25 |
|
Performance |
|
Wi-Fi |
Yes |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
|
Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.1 |
|
Auto framing |
Yes |
|
Auto-tracking |
Yes |
|
Tracking modes |
Presenter mode |
|
Firmware upgradeable |
Yes |
|
Cable lock slot |
Yes |
|
Audio |
|
Built-in microphone |
Yes |
|
Number of microphone arrays |
8 |
|
Microphone frequency response |
100 - 20000 Hz |
|
Microphone sensitivity |
-38 dB |
|
Microphone Total Harmonic Distortion (THD) |
5% |
|
Built-in speaker(s) |
Yes |
|
Sound pressure level (max) |
110 dB |
|
Speaker frequency range |
100 - 16000 Hz |
|
Microphone pick-up range |
5 m |
|
Supported sample rates |
32 kHz |
|
Audio codecs |
ARES, G.722.1C, G.722.1, G.722, G.711 (PCMA/PCMU), G.729 |
|
Weight & dimensions |
|
Width |
570 mm |
|
Depth |
80 mm |
|
Height |
65 mm |
|
Weight |
3.81 kg |
