General Information |
|
Summary |

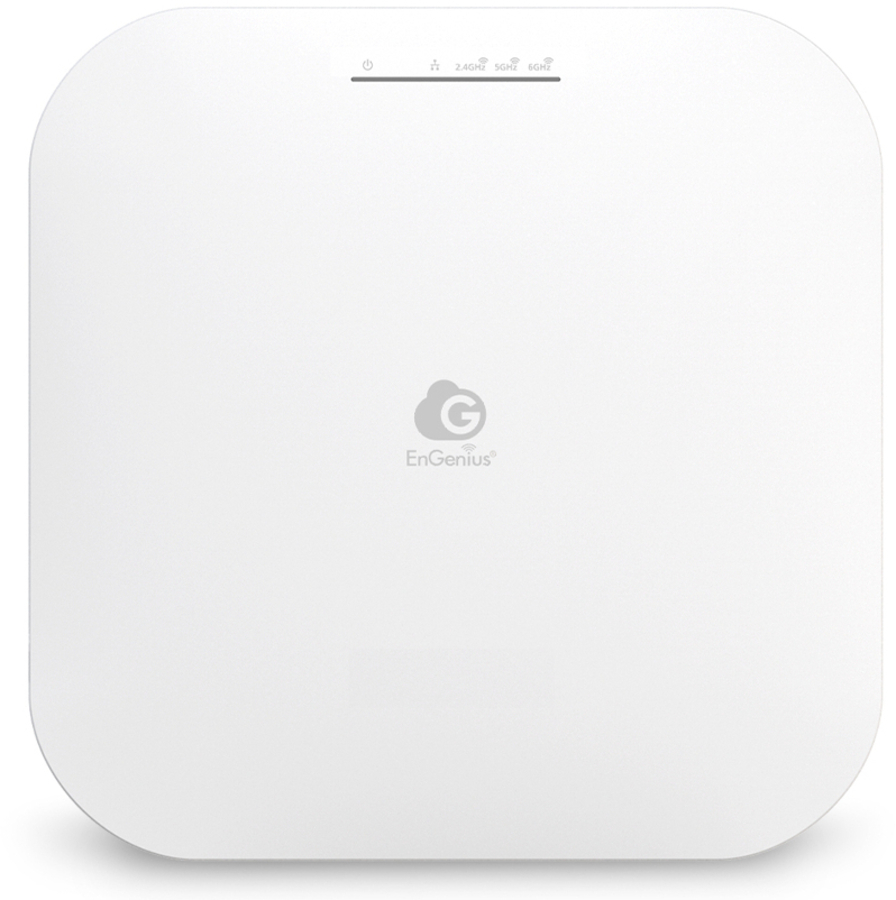

EnGenius Cloud Managed Wi-Fi 7 2x3x3 Access Point ECW516L is a cost-effective model designed for small businesses. It support tri-concurrent 802.11be architecture, delivering speeds up to 700 Mbps on the 2.4GHz, 4,300 Mbps on the 5GHz, and 8,700 Mbps on the 6GHz band, providing high-performance connectivity. With seamless integration into the EnGenius Cloud platform, it offers easy management and robust security through WPA3, making it an ideal solution for businesses seeking enterprise-grade performance at an affordable price.
|
|
Features |
|
2.4 GHz |
Yes |
|
5 GHz |
Yes |
|
6 GHz |
Yes |
|
Maximum data transfer rate |
8700 Mbit/s |
|
Maximum data transfer rate (2.4 GHz) |
700 Mbit/s |
|
Maximum data transfer rate (5 GHz) |
4300 Mbit/s |
|
Maximum data transfer rate (6 GHz) |
8700 Mbit/s |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
Frequency band |
2.4 - 7.125 GHz |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u |
|
Number of users |
128 user(s) |
|
MIMO |
Yes |
|
MIMO type |
Multi User MIMO |
|
Security |
|
Security algorithms |
802.1x RADIUS, WPA2-AES, WPA3 |
|
Service Set Identifier (SSID) features |
Multiple SSIDs |
|
Number of SSID supported |
8 |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
1 |
|
USB 2.0 ports quantity |
0 |
|
DC-in jack |
Yes |
|
Power |
|
Power over Ethernet (PoE) |
Yes |
|
DC voltage range |
12 V |
|
Input current |
2 A |
|
Power consumption (max) |
20.7 W |
|
Design |
|
Placement |
Ceiling, Table, Wall |
|
Product colour |
White |
|
LED indicators |
LAN, Power |
|
Antenna |
|
Antenna type |
Internal |
|
Antenna direction type |
Omni-directional |
|
Antenna features |
Integrated antenna |
|
Antennas quantity |
8 |
|
Antenna gain level (max) |
5 dBi |
|
Performance |
|
Built-in processor |
Yes |
|
Processor model |
ARM Cortex-A53 |
|
Processor frequency |
2000 MHz |
|
Flash memory |
1000 MB |
|
Internal memory |
4000 MB |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), UKCA |
|
Weight & dimensions |
|
Width |
205 mm |
|
Depth |
205 mm |
|
Height |
33 mm |
|
Packaging data |
|
Package width |
247 mm |
|
Package depth |
247 mm |
|
Package height |
87 mm |
|
Package weight |
870 g |
|
Packaging content |
|
Mounting kit |
Yes |
|
Operational conditions |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 80 °C |
|
Storage relative humidity (H-H) |
0 - 90% |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
Master (outer) case width |
460 mm |
|
Master (outer) case length |
520 mm |
|
Master (outer) case height |
270 mm |
|
Master (outer) case gross weight |
13 kg |
|
Products per master (outer) case |
10 pc(s) |
