General Information |
|
Summary |
Product Highlights

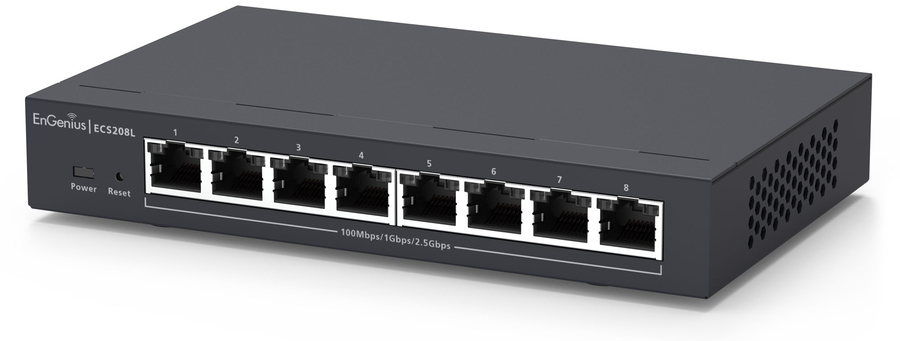

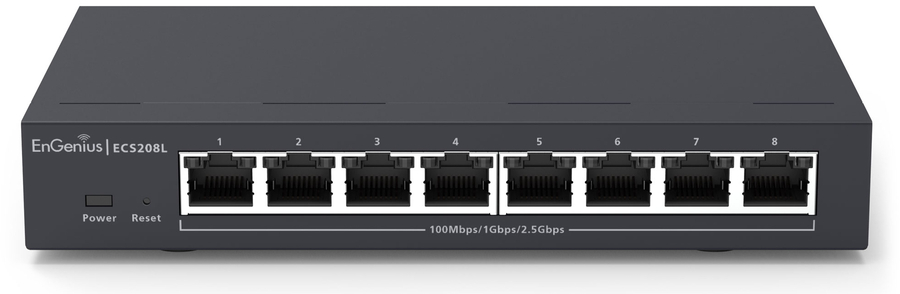

EnGenius Cloud Lite ECS208L is a small compact 8-port Layer 2 switch supporting 2.5G per port and a 40 Gbps switching capacity for multi-gigabit speeds over existing cable runs to improve overall network performance. This switch offers flexible management options, allowing users to choose between cloud, on-premises, and local management. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Cloud-managed |
Yes |
|
Ports & interfaces |
|

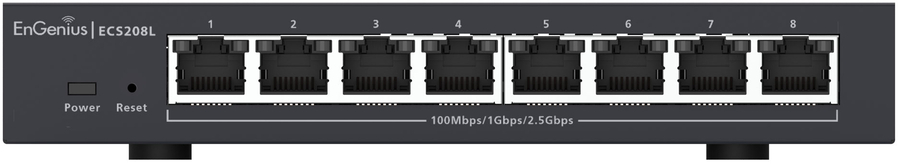

Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
|

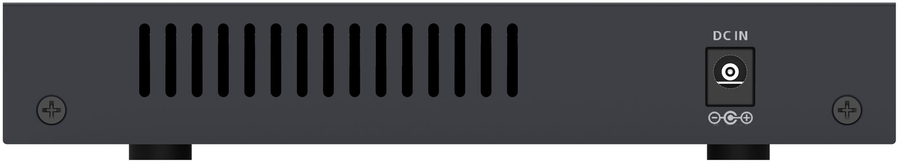

Power connector |
DC-in jack |
|
Network |
|
Networking standards |
IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
VLAN support |
Yes |
|
Virtual LAN features |
Tagged VLAN, Voice VLAN |
|
Data transmission |
|
MAC address table |
4000 entries |
|
Switching capacity |
40 Gbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
12000 |
|
Security |
|
IGMP snooping |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Stackable |
Yes |
|
Product colour |
Black |
|
Reset button |
Yes |
|
LED indicators |
Yes |
|
Performance |
|
Flash memory |
32 MB |
|
Power |
|
Power source |
DC |
|
Power supply included |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
105 mm |
|
Depth |
170 mm |
|
Height |
27 mm |
|
Packaging content |
|
Quick start guide |
Yes |
|
Rack mount kit |
Yes |
|
Packaging data |
|
Package width |
200 mm |
|
Package depth |
167 mm |
|
Package height |
90 mm |
|
Package weight |
570 g |
|
Logistics data |
|
Master (outer) case net weight |
5.7 kg |
|
Master (outer) case width |
415 mm |
|
Master (outer) case length |
470 mm |
|
Master (outer) case height |
205 mm |
|
Master (outer) case gross weight |
6.15 kg |
|
Products per master (outer) case |
10 pc(s) |
