General Information |
|
Summary |

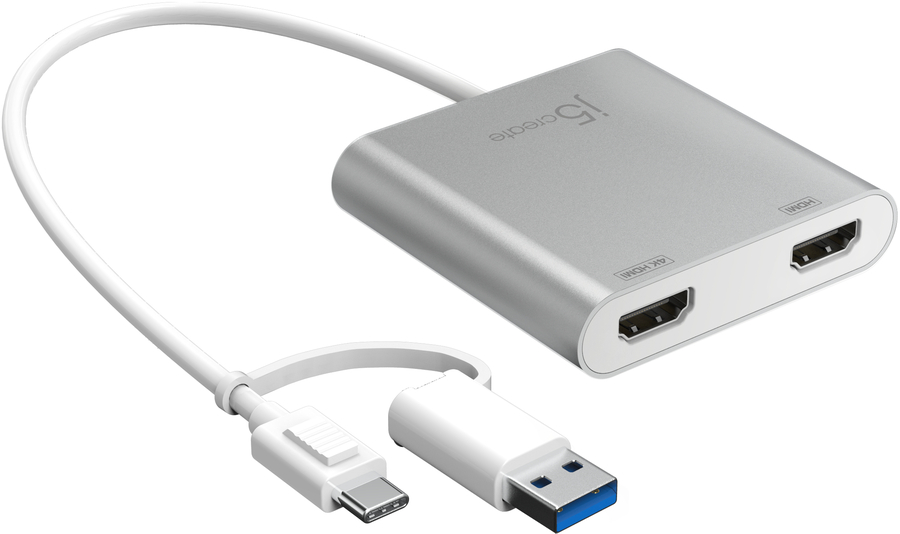

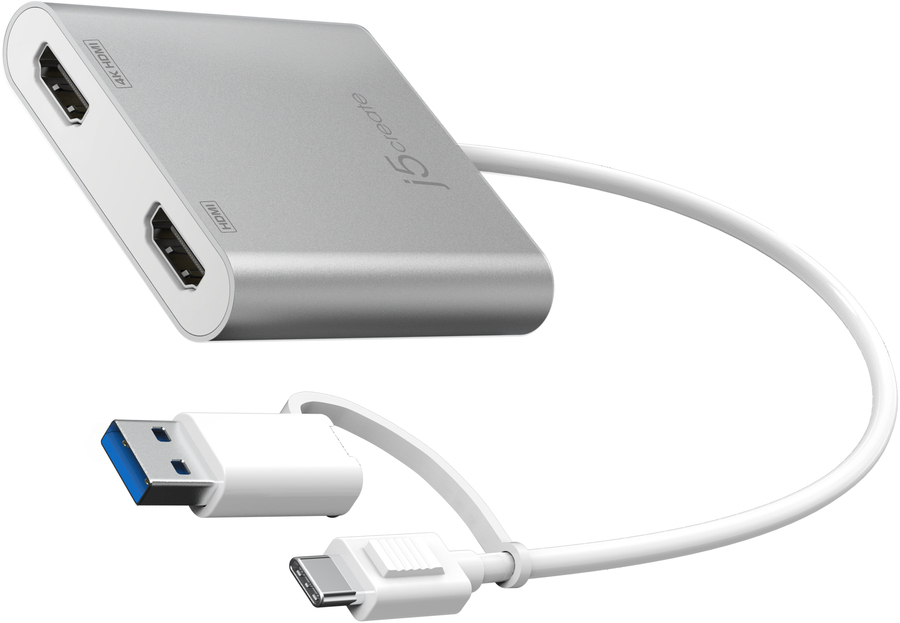

The JCA365 USB-C® to Dual HDMI™ Multi-Monitor Adapter acts as an external video card for your MacBook® or Windows® laptops. It allows you to add two additional displays through your USB-C® port, boosting your productivity by giving you more screen space to work from. One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 2048 x 1152.
Simply install the driver for the USB-C® to Dual HDMI™ Multi-Monitor Adapter by plugging-in the adapter and then connect your monitors using HDMI™ cables for a dual-display workstation! |
|
Performance |
|
USB version |
3.2 Gen 1 (3.1 Gen 1) |
|
DVI output |
No |
|
HDMI output |
Yes |
|
DisplayPort output |
No |
|
Number of displays supported |
2 |
|
USB connector type |
USB Type-A, USB Type-C |
|
USB connector gender |
Male |
|
USB connector form factor |
Straight |
|
HDMI ports quantity |
2 |
|
Maximum resolution |
3840 x 2160 pixels |
|
Refresh rate at maximum resolution |
30 Hz |
|
Supported graphics resolutions |
2048 x 1152, 3840 x 2160 |
|
Mirror display mode |
Yes |
|
Extended display mode |
Yes |
|
Current |
0.29 A |
|
Design |
|
Product colour |
Silver |
|
Housing material |
Aluminium |
|
Integrated USB cable |
Yes |
|
Cable type |
USB-C/USB 3.0 |
|
Power |
|
Power consumption (max) |
1.46 W |
|
Output voltage |
5 V |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1, Yes |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes |
|
Minimum processor family |
Core i3, Core i5, Core i7 |
|
Minimum processor speed |
1.8 GHz |
|
Minimum RAM |
4 GB |
|
Weight & dimensions |
|
Width |
68 mm |
|
Depth |
15 mm |
|
Height |
61 mm |
|
Weight |
84 g |
|
USB cable length |
0.2 m |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 65 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Storage relative humidity (H-H) |
0 - 85% |
|
Packaging data |
|
Package width |
145 mm |
|
Package depth |
95 mm |
|
Package height |
25 mm |
|
Package weight |
114.5 g |
|
Packaging content |
|
Cables included |
USB Type-C |
|
Quick installation guide |
Yes |
|
Manual |
Yes |
|
Packaging content |
1 x USB-C® to Dual HDMI™ Multi-Monitor Adapter (JCA365)
1 x Quick Installation Guide (QIG) |
|
Technical details |
|
Warranty period |
2 year(s) |
|
Logistics data |
|
Products per master (outer) case |
20 pc(s) |
|
Master (outer) case GTIN (EAN/UPC) |
24712795086410 |
|
Master (outer) case width |
225 mm |
|
Master (outer) case length |
321 mm |
|
Master (outer) case height |
180 mm |
|
Master (outer) case gross weight |
2.91 kg |
|
Country of origin |
Taiwan |
|
Export Control Classification Number (ECCN) |
EAR99 |
