General Information |
|
Summary |

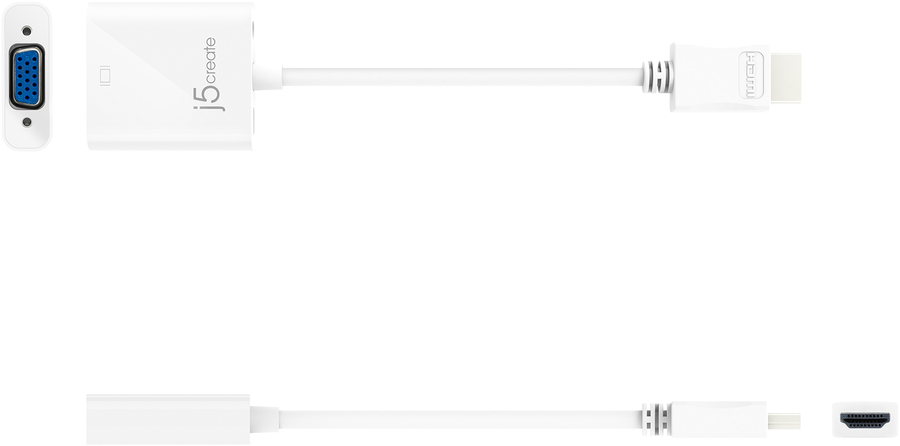

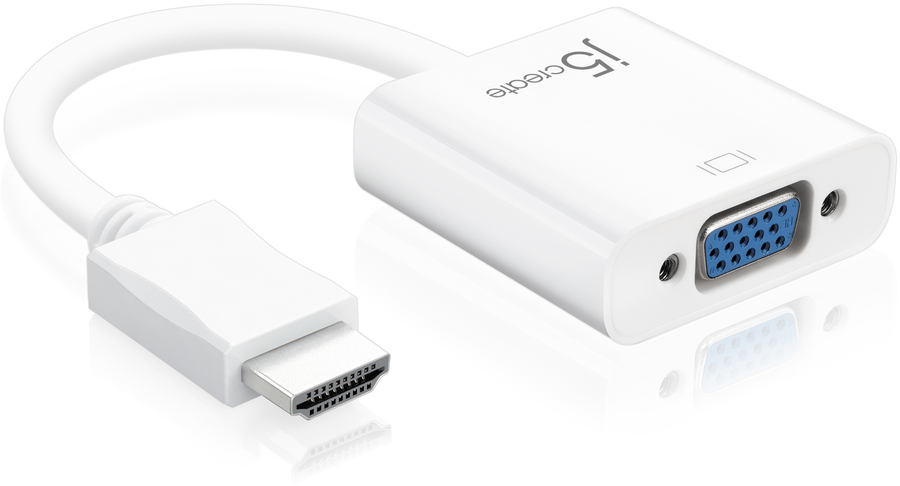

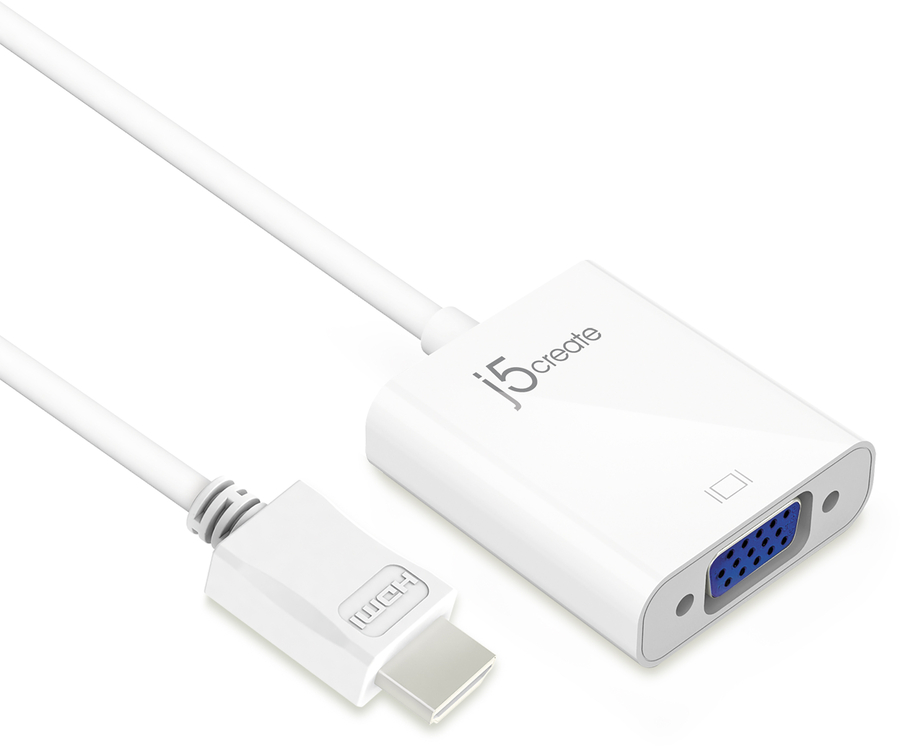

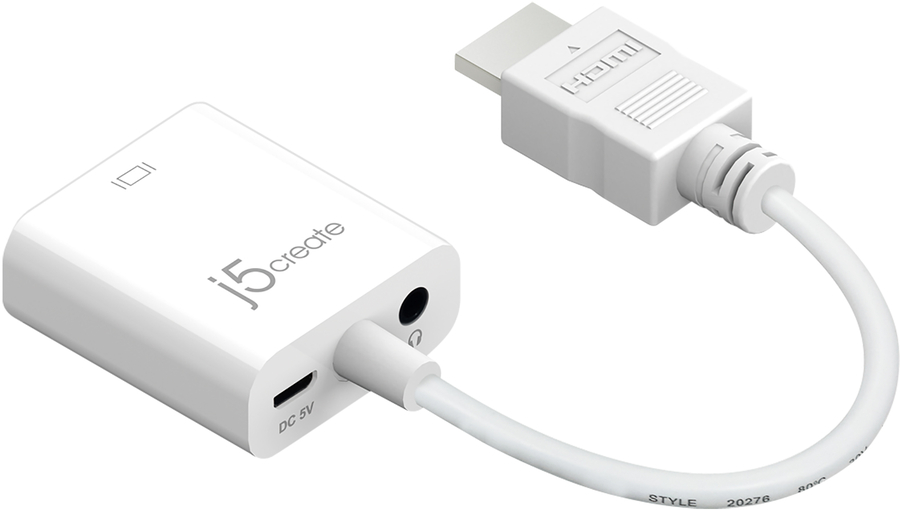

The JDA213 HDMI™ to VGA adapter allows you to connect the HDMI™ output from your laptop, Ultrabook™, desktop, tablet, Blu-ray™, DVD player, digital set-top box, digital camera, video camera, or gaming console equipment to the VGA input of a monitor or projector by converting the HDMI™ video signal from the output device into a VGA output and separate 2-channel analog audio. The adapter supports resolutions including high definition 1080p, up to 1920x1200, which eliminates the expense of upgrading a VGA display for the sake of compatibility. The adapter can also increase your productivity by extending your computer's desktop onto a secondary monitor, doubling available workspace. This adapter has a high quality, compact design for long-term durability and a minimal footprint.
Once you’ve experienced multiple monitors, you’ll never want to go back to a single monitor again. |
|
Features |
|
Cable length |
0.1 m |
|
Connector 1 |
HDMI |
|
Connector 2 |
VGA |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
HDMI version |
1.4 |
|
Maximum resolution |
1920 x 1080 pixels |
|
Data transfer rate |
2.7 Gbit/s |
|
Maximum refresh rate |
60 Hz |
|
Voltage rating |
5 V |
|
Product colour |
White |
|
Plug and Play |
Yes |
|
Country of origin |
Taiwan |
|
Windows operating systems supported |
Windows 10, Yes |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Weight & dimensions |
|
Weight |
32.4 g |
|
Width |
40 mm |
|
Depth |
14 mm |
|
Height |
45 mm |
|
Packaging data |
|
Package width |
120 mm |
|
Package depth |
97 mm |
|
Package height |
25 mm |
|
Package weight |
79 g |
|
Package type |
Box |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Packaging content |
1 x JDA213 HDMI™ to VGA adapter |
|
Logistics data |
|
Quantity per box |
1 pc(s) |
|
Export Control Classification Number (ECCN) |
EAR99 |
|
Warranty period |
2 year(s) |
|
Master (outer) case width |
280 mm |
|
Master (outer) case length |
210 mm |
|
Master (outer) case height |
145 mm |
|
Master (outer) case gross weight |
1.78 kg |
|
Products per master (outer) case |
20 pc(s) |
|
Master (outer) case GTIN (EAN/UPC) |
24712795081941 |
|
Other features |
|
Material |
Plastic |
|
Supported resolutions |
1920*1080P @ 60Hz |
|
Cable colour |
White |
|
Connector type |
HDMI to VGA adapter |
|
Power consumption |
150 mA |
|

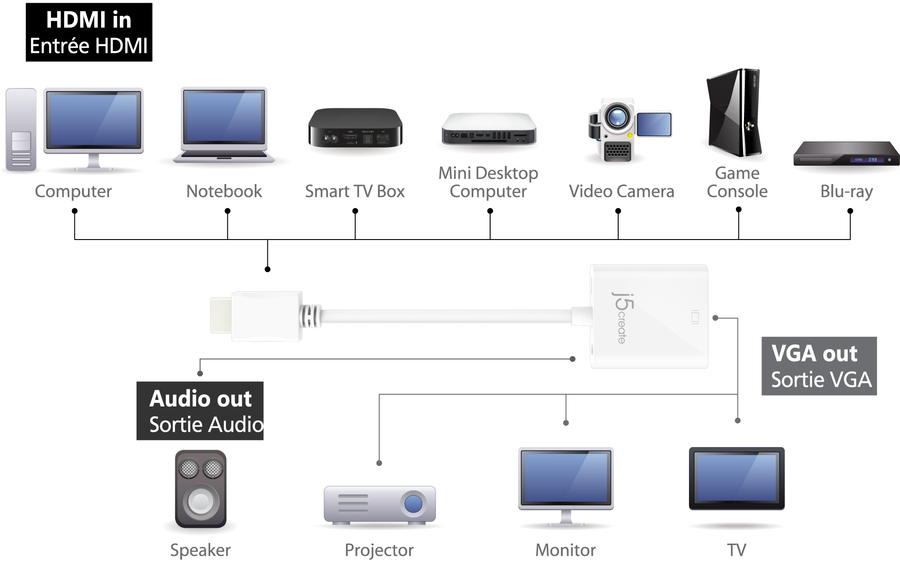

Compatible products |
• Desktop, laptop, Ultrabook™ (PC and Mac®)
• DVD players and Blu-ray™ players
• Smart TV box
• Digital camera
• Gaming consoles (PS3™ and Xbox™)
• Projector
• Display monitor
• TV |
|
Technical details |
|
Box contents |
1 x JDA213 HDMI™ to VGA adapter |
