General Information |
|
Summary |

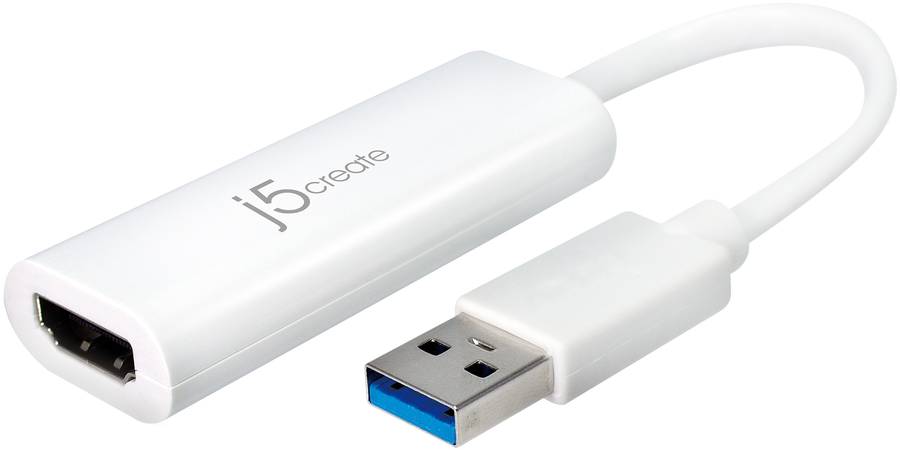

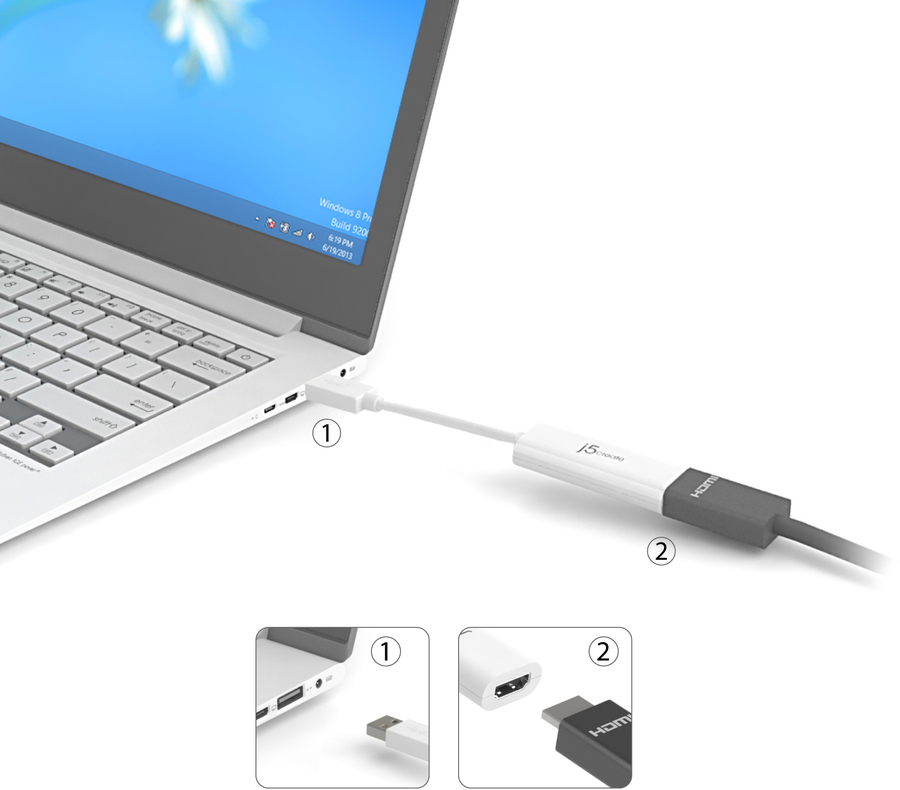

The JUA254 USB™ to HDMI™ Multi-Monitor Adapter works as an external video card, instantly allowing users to attach additional displays via HDMI™ connection without the hassle of a lengthy setup or having to install additional hardware. The USB™ 3.0 Display Adapter can support up to four displays running on the same computer, turning your workstation into a fully-functioning, multi-display powerhouse. This USB™ adapter works as an external video card, instantly allowing additional displays without the hassle of opening the computer casing and installing an external graphics card. You can have a second monitor with an extended display, a mirrored display, a rotational display (rotation mode not available for Mac®), or make it your primary monitor. Now enjoy true 1080p HD resolution through any Windows® or Mac® computer with a USB™ 3.0 port. These adapters are also backwards compatible with USB™ 2.0 resolutions and playback, which are ideal for office applications. The simple plug-and-play function allows you to connect your computer to a second monitor or projector within seconds to create a new visual environment on Windows® 10. |
|
Performance |
|
USB version |
3.2 Gen 1 (3.1 Gen 1) |
|
DVI output |
No |
|
HDMI output |
Yes |
|
DisplayPort output |
No |
|
Number of displays supported |
1 |
|
USB connector type |
USB Type-A |
|
USB connector gender |
Male |
|
HDMI ports quantity |
1 |
|
Maximum resolution |
2048 x 1152 pixels |
|
Maximum resolution (HDMI) |
2048 x 1152 pixels |
|
Supported video modes |
1080p |
|
Output colour depth |
32 bit |
|
Mirror display mode |
Yes |
|
Extended display mode |
Yes |
|
Current |
0.18 A |
|
Design |
|
Product colour |
White |
|
Housing material |
Acrylonitrile butadiene styrene (ABS) |
|
Integrated USB cable |
Yes |
|
Cable type |
USB 3.0 |
|
Power |
|
Power consumption (max) |
0.93 W |
|
Output voltage |
5 V |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
|
Weight & dimensions |
|
Width |
68.3 mm |
|
Depth |
15 mm |
|
Height |
26 mm |
|
Weight |
25 g |
|
USB cable length |
0.08 m |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Packaging data |
|
Package width |
120 mm |
|
Package depth |
97 mm |
|
Package height |
25 mm |
|
Package weight |
73.5 g |
|
Packaging content |
|
Quick installation guide |
Yes |
|
Batteries included |
No |
|
Packaging content |
1 x JUA254 USB™ to HDMI™ Multi-Monitor Adapter, 1 x Quick Installation Guide |
|
Technical details |
|
Warranty period |
2 year(s) |
|
Logistics data |
|
Products per master (outer) case |
20 pc(s) |
|
Master (outer) case GTIN (EAN/UPC) |
24712795081071 |
|
Master (outer) case width |
225 mm |
|
Master (outer) case length |
321 mm |
|
Master (outer) case height |
180 mm |
|
Master (outer) case gross weight |
2.16 kg |
|
Products per shipping (inner) case |
5 pc(s) |
|
Shipping (inner) case width |
10.5 cm |
|
Shipping (inner) case length |
15 cm |
|
Shipping (inner) case height |
16 cm |
|
Country of origin |
Taiwan |
|
Export Control Classification Number (ECCN) |
EAR99 |
