General Information |
|
Summary |

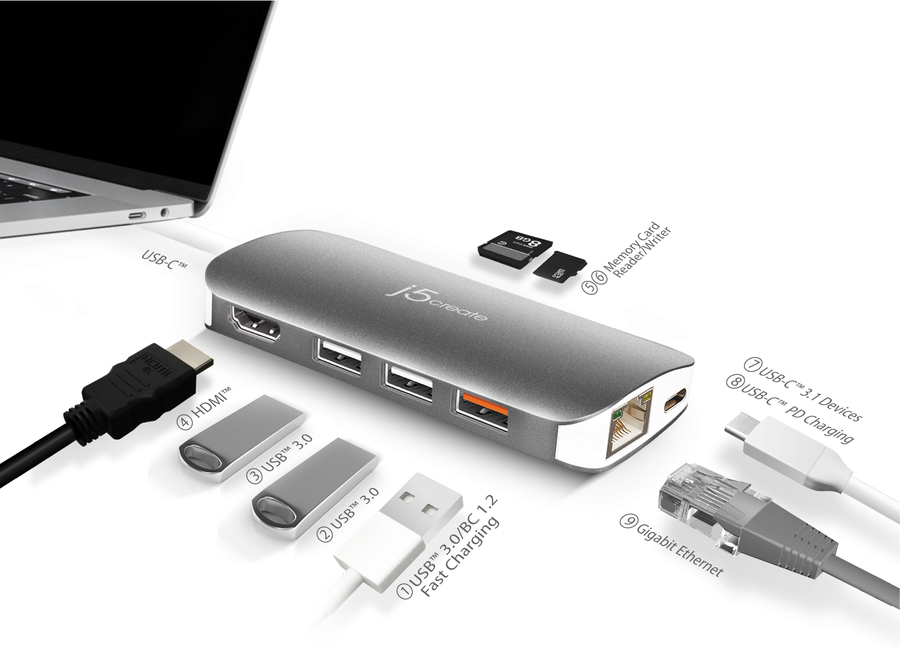

This pocket-sized multi-adapter provides all the ports you need for maximum productivity. It has 9 functions in 1 sleek adapter. It allows you to connect your laptop to a 4K monitor. It also connects to an ultrawide monitor. The USB-C™ multi-adapter gives you 2 USB™ Type-A ports for additional peripherals and 1 USB™ Type-A port with BC 1.2 to fast-charge your mobile device.

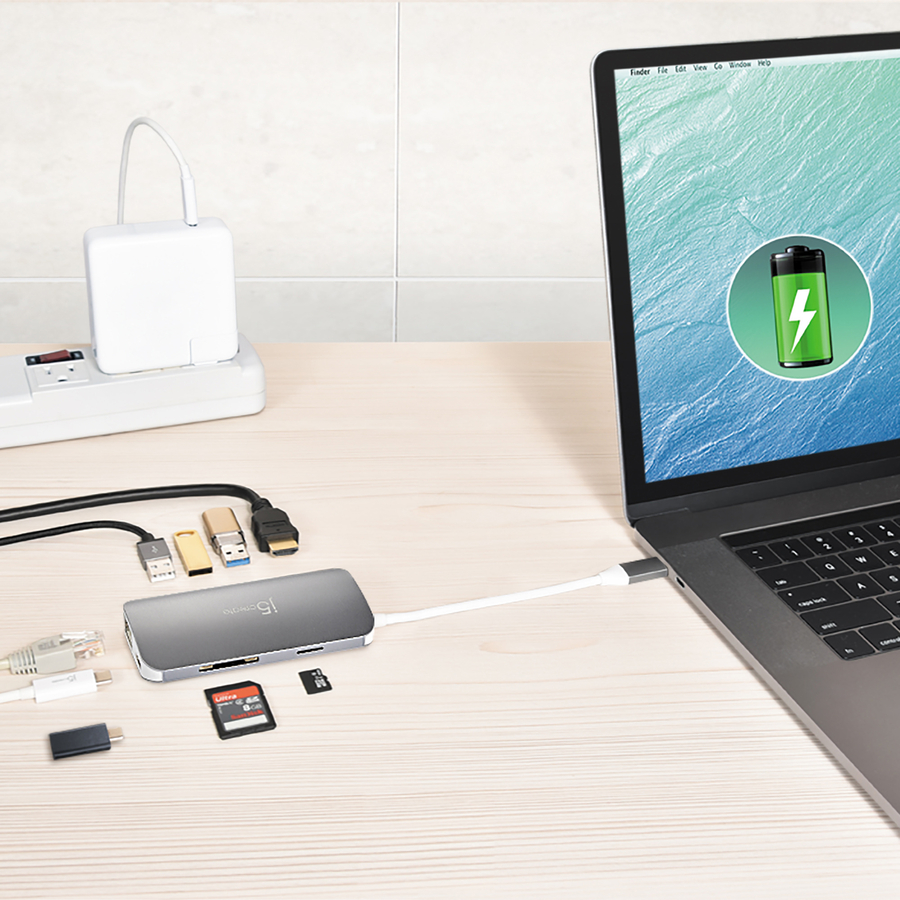

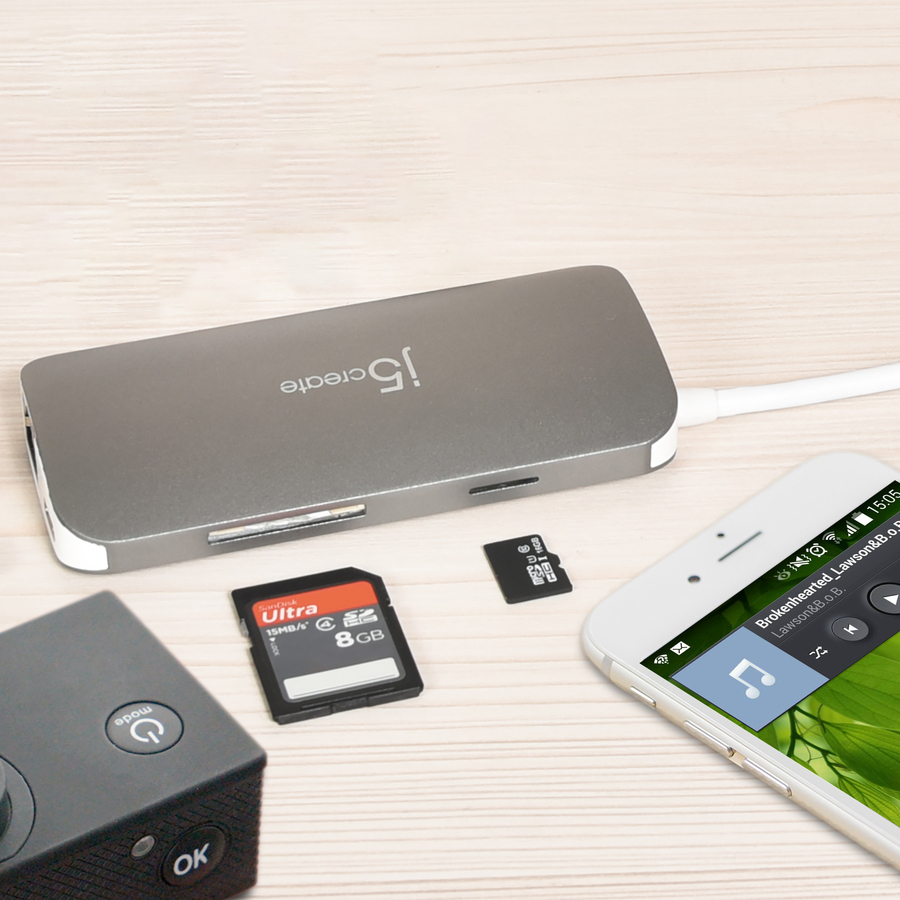

With USB-C® Power Delivery 3.0, the adapter offers both upstream and downstream charging when connected to a USB-C® power adapter. It also provides direct access to a wired network and to your SD™ & microSD™ memory cards.
The JCD383 is perfect for small workspaces, home offices and for on-the-go! |
|
Ports & interfaces |
|
Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
|
HDMI ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
Network |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Performance |
|
Product colour |
Silver, White |
|
Card reader integrated |
Yes |
|
Compatible memory cards |
MicroSD (TransFlash), SD |
|
Hub interfaces |
HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|
Plug and Play |
Yes |
|
Housing material |
Aluminium |
|
Country of origin |
Taiwan |
|
Power |
|
Power supply |
2.4 W |
|
Output voltage |
5.06 V |
|
Output current |
0.49 A |
|
Software |
|
Windows operating systems supported |
Windows 10 |
|
Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, MacOS, Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Weight & dimensions |
|
Width |
50 mm |
|
Depth |
16.5 mm |
|
Height |
105 mm |
|
Weight |
77 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
145 mm |
|
Package depth |
95 mm |
|
Package height |
25 mm |
|
Package weight |
126 g |
|
Packaging content |
|
Cables included |
USB Type-C |
|
Quick start guide |
Yes |
|
Packaging content |
1 x JCD383 USB-C™ 9-in-1 Multi Adapter, 1 x Quick Installation Guide |
|
Technical details |
|
Master (outer) case GTIN (EAN/UPC) |
24712795081903 |
|
Warranty period |
2 year(s) |
|
Box contents |
1 x JCD383 USB-C™ 9-in-1 Multi Adapter, 1 x Quick Installation Guide |
|
Logistics data |
|
Products per master (outer) case |
20 pc(s) |
|
Master (outer) case width |
225 mm |
|
Master (outer) case length |
321 mm |
|
Master (outer) case height |
180 mm |
|
Master (outer) case gross weight |
3.13 kg |
|
Products per shipping (inner) case |
5 pc(s) |
|
Export Control Classification Number (ECCN) |
EAR99 |
|
Shipping (inner) case width |
10.5 cm |
|
Shipping (inner) case length |
15 cm |
|
Shipping (inner) case height |
16 cm |
|
Other features |
|
Cable length |
0.137 m |
|
Maximum operating temperature |
40 °C |
