General Information |
|
Summary |

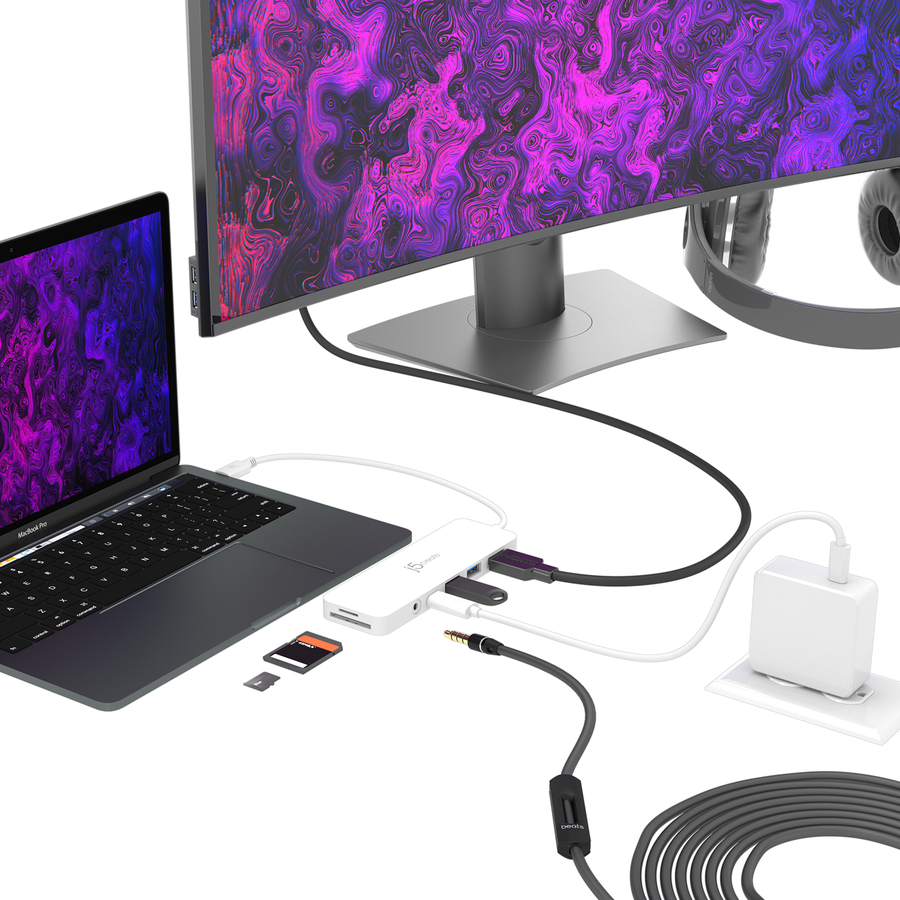

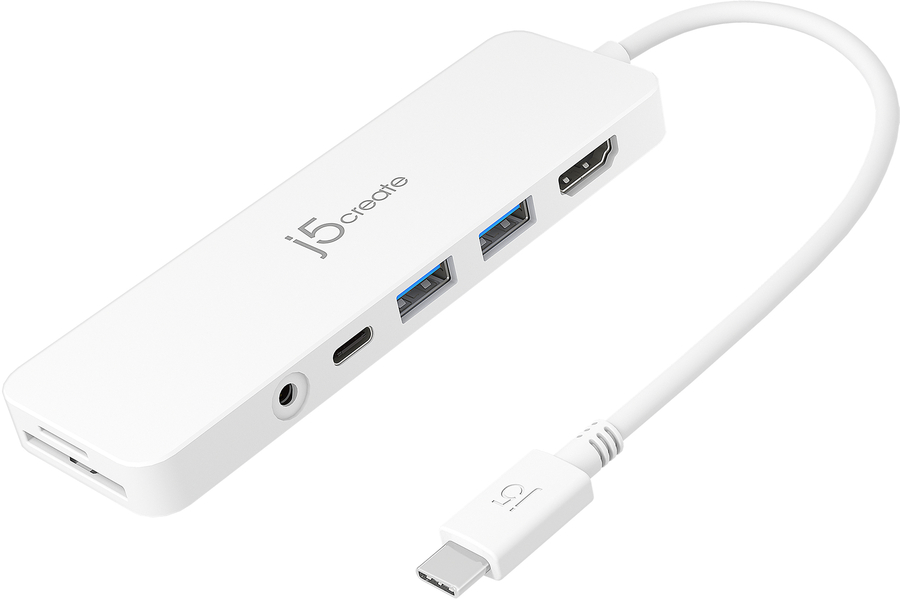

Our USB-C® Multi-Port Hub with Power Delivery provides extra connectivity for your computer. This pocket-sized multi-adapter with 2 USB™ 3.1 Type-A ports allows you to connect an external keyboard, mouse, or USB™ flash drive. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. The HDMI™ port allows you to mirror or extend your screen and directly output 4K UHD @ 30 Hz or Full HD 1080p video to an HDTV, monitor, or projector.
Equipped with a USB-C® Power Delivery 3.0 charging port. It offers charging up to 60W when connected to a USB-C® power adapter. The hub also provides direct access to your SD™ & microSD™ memory cards. The audio/mic combo jack allows you to connect your headphone set or speakers. |
|
Ports & interfaces |
|
Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
HDMI ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery revision |
3.0 |
|
USB Power Delivery up to |
60 W |
|
Combo headphone/mic port |
Yes |
|
Performance |
|
Product colour |
White |
|
Card reader integrated |
Yes |
|
Compatible memory cards |
MicroSD (TransFlash), SD |
|
HD type |
4K Ultra HD |
|
Maximum refresh rate |
30 Hz |
|
Hub interfaces |
3.5mm, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
|
Plug and Play |
Yes |
|
Housing material |
Acrylonitrile butadiene styrene (ABS) |
|
Country of origin |
Taiwan |
|
Power |
|
Input current |
3 A |
|
Power supply type |
USB |
|
Output voltage |
5 V |
|
Output current |
0.38 A |
|
Power consumption (typical) |
1.96 W |
|
Software |
|
Windows operating systems supported |
Windows 10 |
|
Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes |
|
Linux operating systems supported |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-17 - 68 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Storage relative humidity (H-H) |
0 - 85% |
|
Weight & dimensions |
|
Width |
39 mm |
|
Depth |

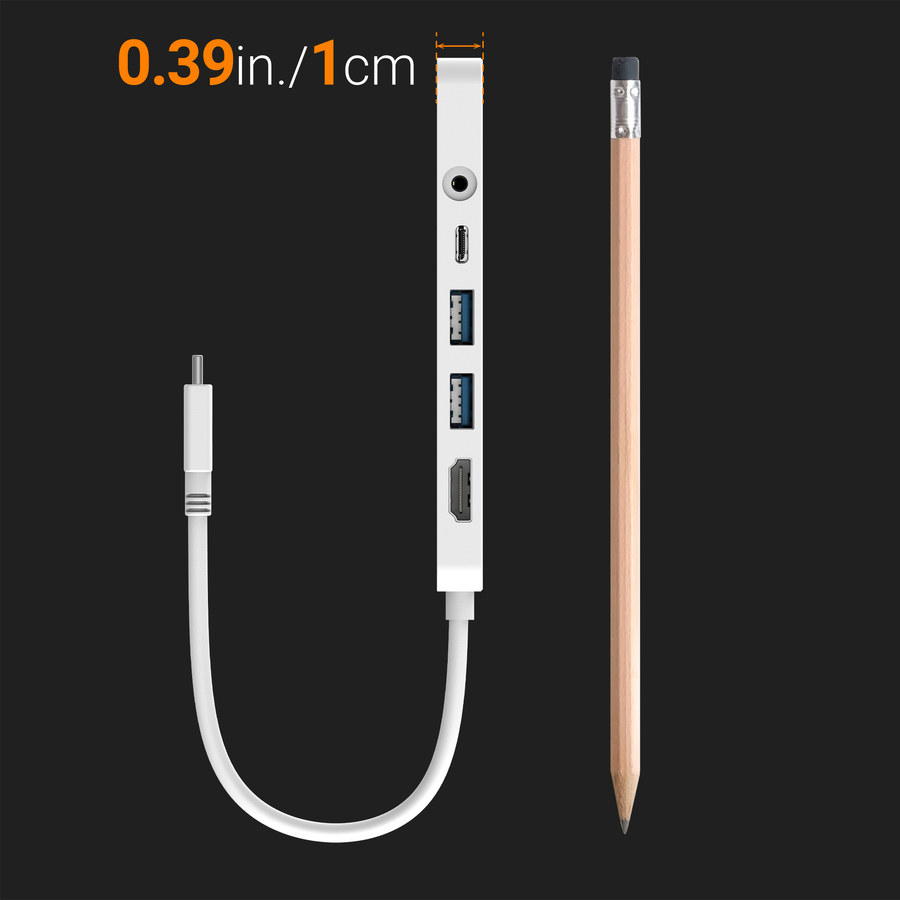

11 mm |
|
Height |
122 mm |
|
Weight |
51.5 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
193 mm |
|
Package depth |
125 mm |
|
Package height |
25 mm |
|
Package weight |
100 g |
|
Packaging content |
|
Cables included |
USB Type-C |
|
Quick start guide |
Yes |
|
Packaging content |
1 x JCD373 USBxC MultixPort Hub with Power Delivery, 1 x Quick Installation Guide |
|
Other features |
|
Cable length |
0.15 m |
|
Maximum operating temperature |
40 °C |
|
Technical details |
|
Warranty period |
2 year(s) |
