General Information |
|
Summary |

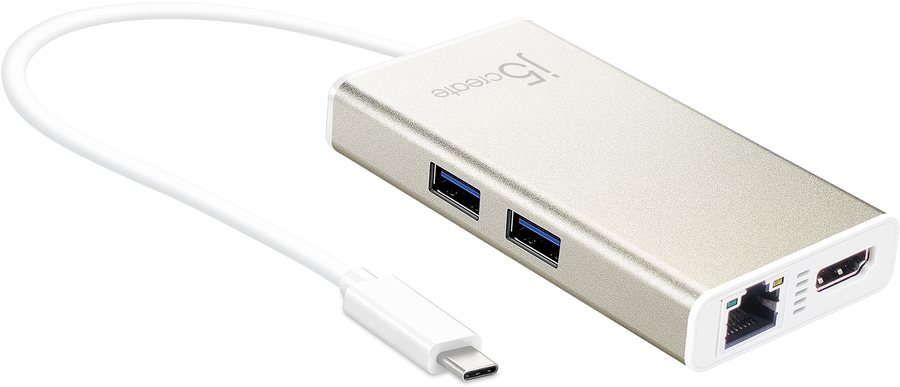

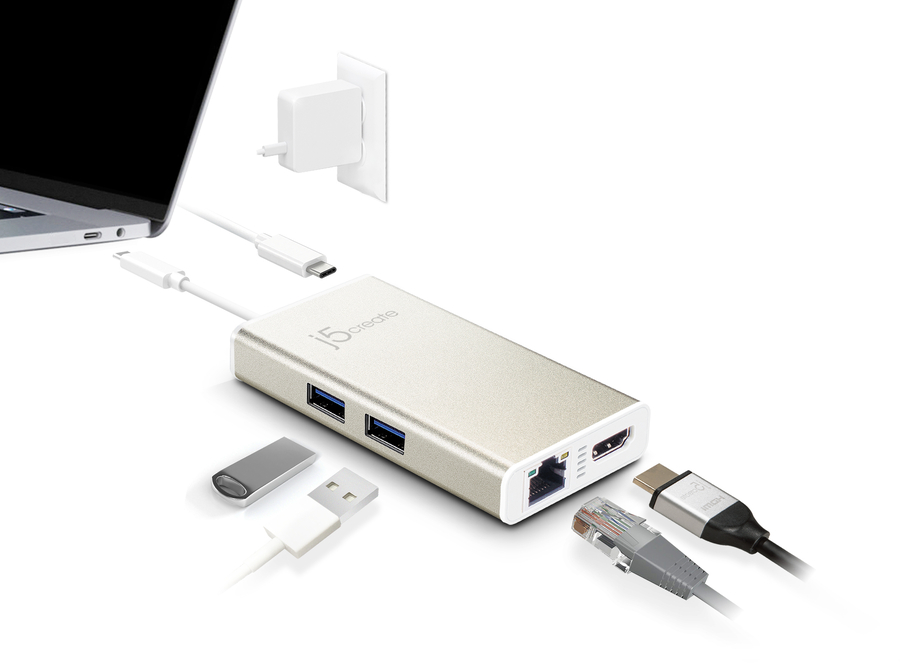

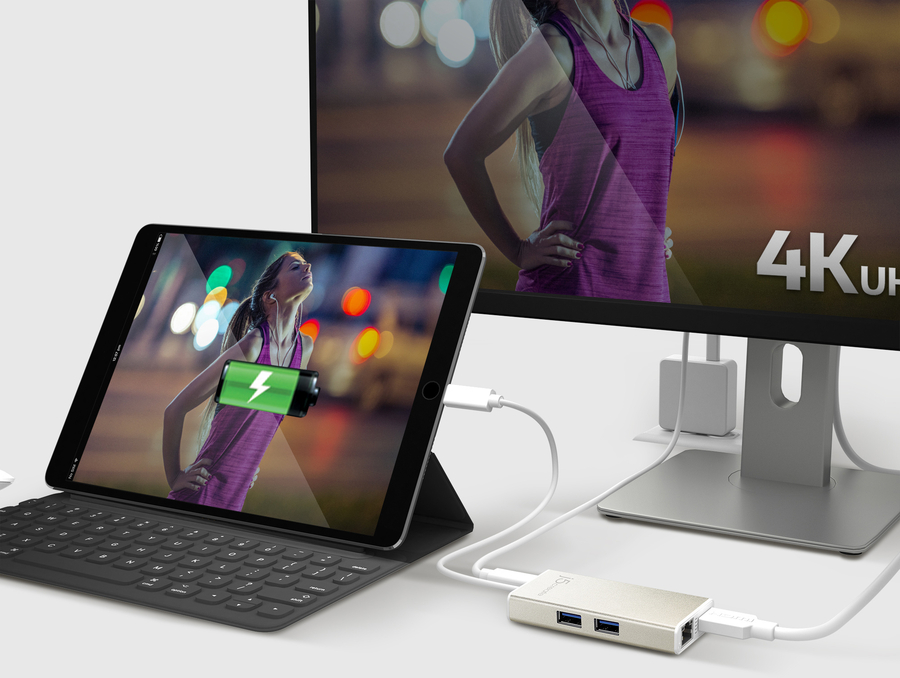

Add extra functionality to your laptop with the JCA374 USB-C® Multi-Adapter. This device allows you to add two additional USB™ peripherals, a 4K or 1080p HDMI™ display, and Gigabit Ethernet through your USB-C® port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB™ Power Delivery 2.0, it supports upstream streaming ensuing your connected laptop powered up while in use. |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
USB Type-C |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
HDMI ports quantity |
1 |
|
Microphone in |
No |
|
Headphone outputs |
0 |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery revision |
3.0 |
|
USB Power Delivery up to |
60 W |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Performance |
|
Product colour |
Gold, White |
|
Card reader integrated |
No |
|
Colour name |
Metallic Champagne |
|
Data transfer rate |
5 Gbit/s |
|
Housing material |
Aluminium |
|
Country of origin |
Taiwan |
|
Compatibility |
Macbook™ Pro 2016 & Newer
Surface Pro™ 7
Surface Go™
Surfacebook™ 2 |
|
Graphics |
|
Maximum resolution |
3840 x 2160 pixels |
|
Power |
|
Output voltage |
5 V |
|
Output current |
0.22 A |
|
Power consumption (typical) |
1.15 W |
|
USB cable length |
0.1 m |
|
Software |
|
Windows operating systems supported |
Yes |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Other operating systems supported |
ChromeOS |
|
Control unit |
|
Operating temperature (remote control) (T-T) |
0 - 40 °C |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 37 °C |
|
Storage temperature (T-T) |
-10 - 65 °C |
|

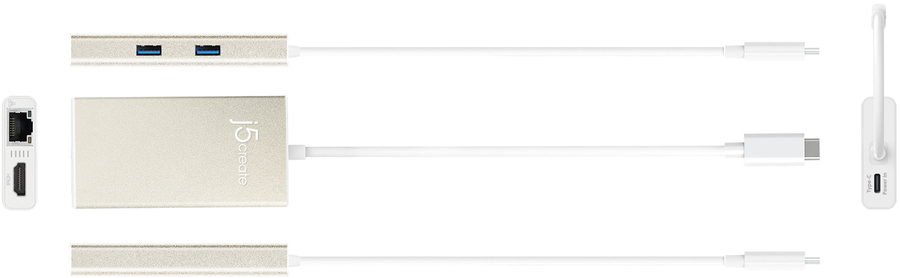

Weight & dimensions |
|
Width |
50.5 mm |
|
Depth |
96.5 mm |
|
Height |
15 mm |
|
Weight |
73.5 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
193 mm |
|
Package depth |
125 mm |
|
Package height |
25 mm |
|
Package weight |
153.5 g |
|
Packaging content |
|
Quick start guide |
Yes |
|
Packaging content |
1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide |
|
Drivers included |
Yes |
|
Technical details |
|
Master (outer) case GTIN (EAN/UPC) |
24712795081033 |
|
Warranty period |
2 year(s) |
|
Box contents |
1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide |
|
Logistics data |
|
Products per master (outer) case |
30 pc(s) |
|
Master (outer) case width |
280 mm |
|
Master (outer) case length |
430 mm |
|
Master (outer) case height |
235 mm |
|
Master (outer) case gross weight |
5.64 kg |
|
Products per shipping (inner) case |
10 pc(s) |
|
Export Control Classification Number (ECCN) |
EAR99 |
|
Shipping (inner) case width |
21.2 cm |
|
Shipping (inner) case length |
26.9 cm |
|
Shipping (inner) case height |
13 cm |
|
Shipping (inner) case net weight |
1.54 kg |
|
Other features |
|
Cable length |
0.1 m |
|
Cable type |
USB-C |
|
Compatible operating systems |
Windows® 10 / 8.1
macOS® 10.10 and later
Chrome OS™ |
|
Special features |

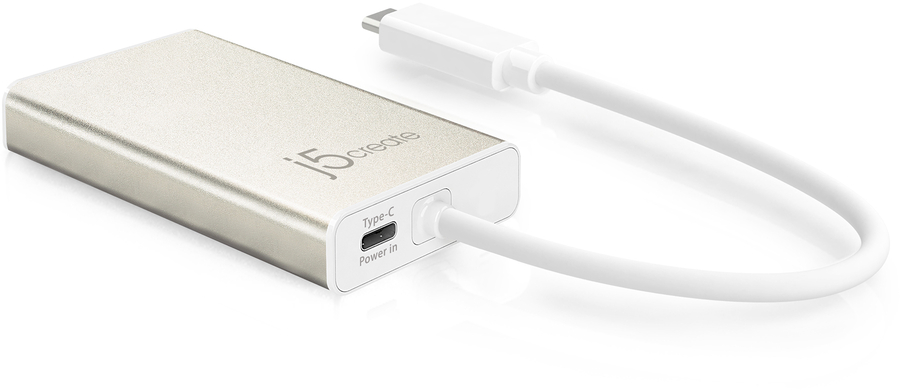

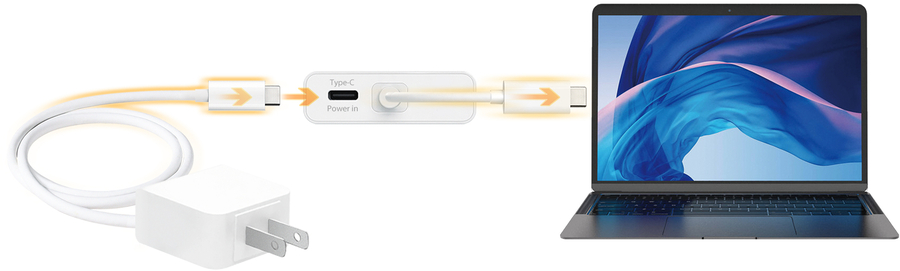

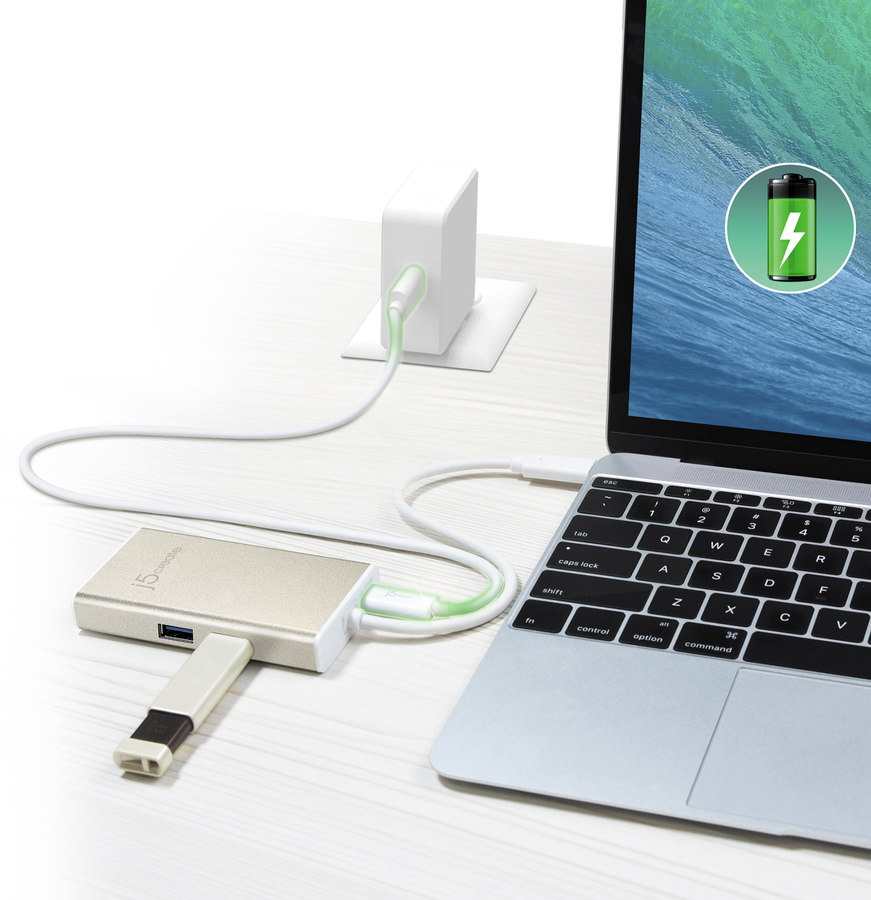

Power your laptop with up to 60W pass-through charging, Backwards compatible with USB™ 2.0 and 1.1 hosts and devices |
|
Voltage |
5 V |
|
USB ports quantity |
3 |
