General Information |
|
Summary |

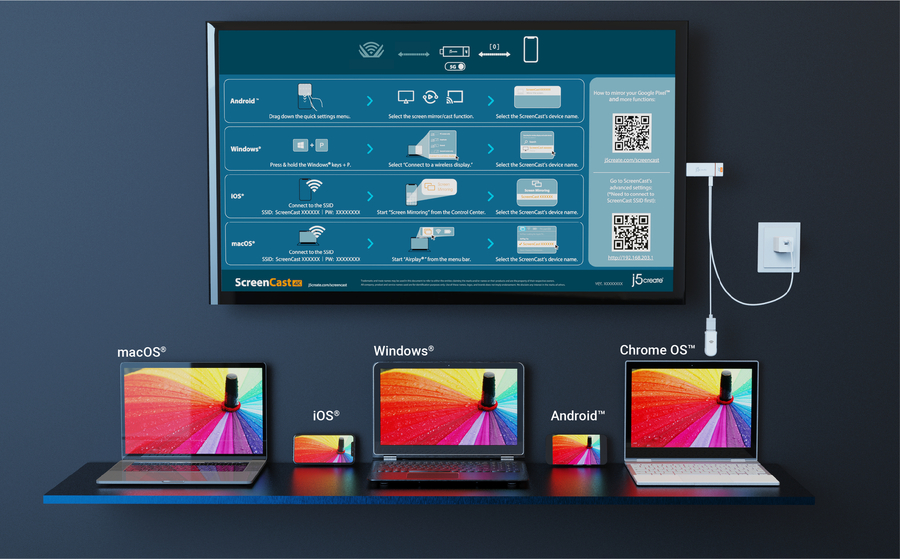

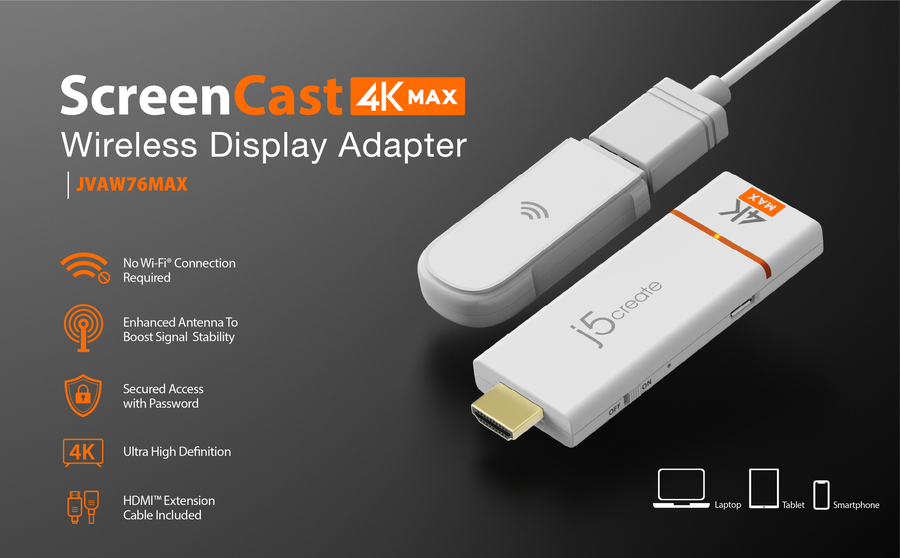

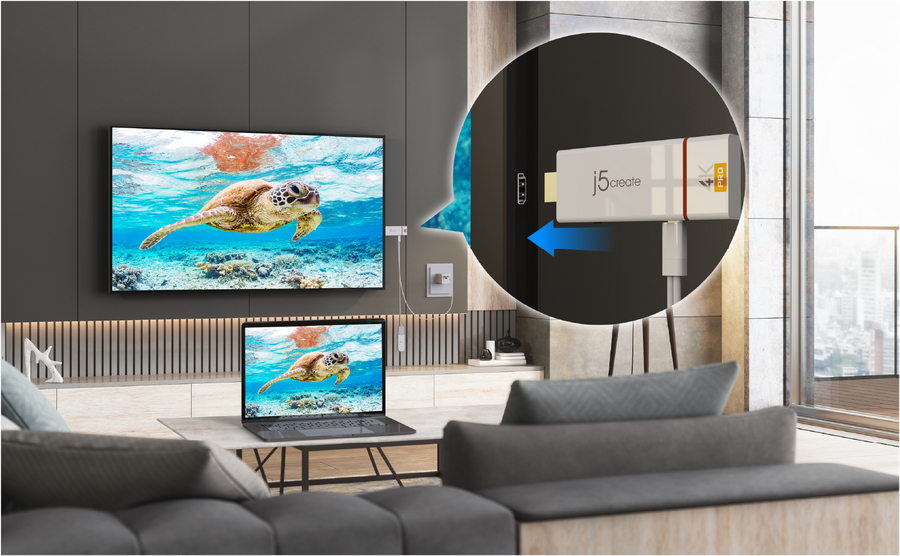

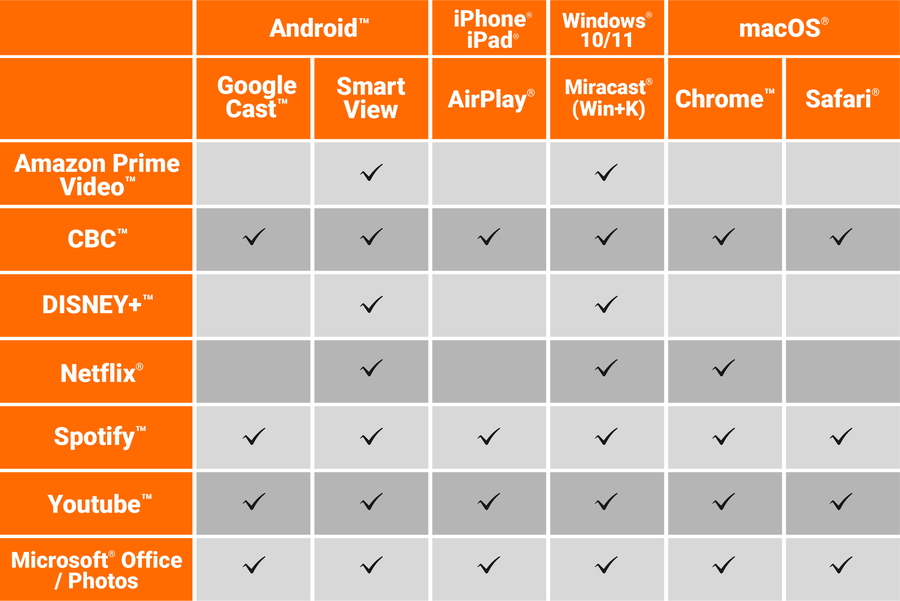

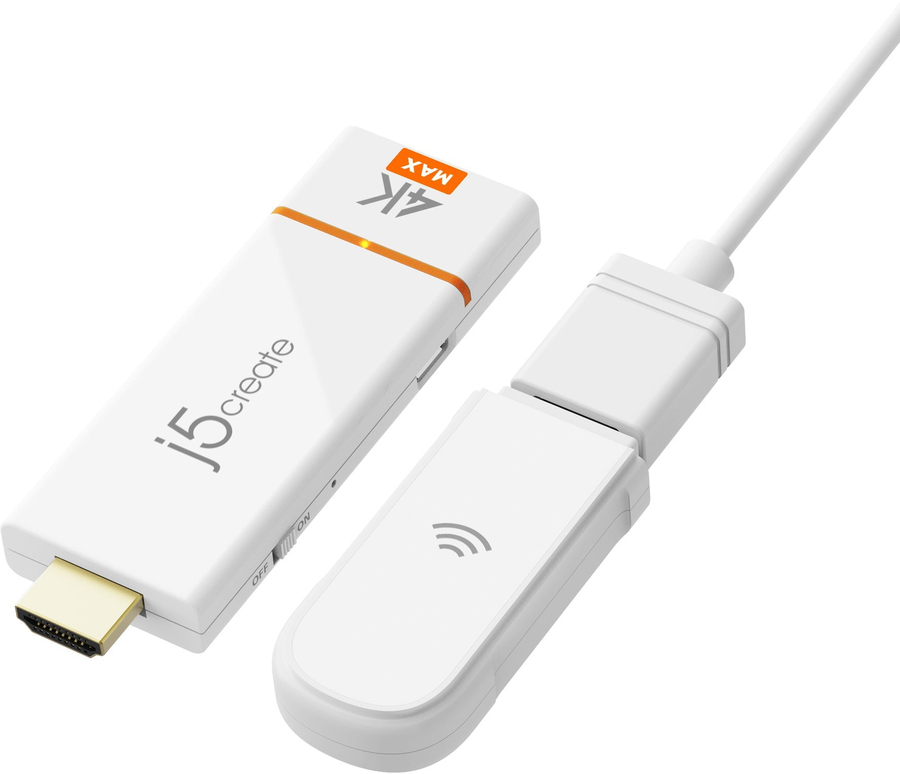

Wirelessly display content from a phone, tablet, or laptop onto a bigger screen with the ScreenCast 4K Max Wireless Display Adapter. Cast to TVs, projectors, and monitors. With its support of multiple wireless display standards (Miracast™, AirPlay®, and Chromecast™), this wireless display adapter is compatible with mobile devices you already own, including Windows®, macOS®, iOS®, Android™ and other cast compatible laptops, tablets, and mobile phones. In addition to its compact design, the ScreenCast 4K Max Wireless Display Adapter features an external antenna for enhanced signal coverage, making it perfect for home use and travel. The JVAW76MAX adds more features for business or education scenarios, such as Point-to-Point mode (use your Windows® device, Mac®, iPad®, or iPhone® without setting up a Wi-Fi® connection). A customizable background image gives you the ability to better express your corporate identity. Includes a Miracast™ pin code feature for additional security. |
|
Features |
|
Full HD |
Yes |
|
Form factor |
Dongle |
|
Device interface |
HDMI |
|
USB port |
Yes |
|
HDMI version |
1.4 |
|
USB version |
2.0 |
|
USB ports quantity |
1 |
|
Supported video modes |
720p, 1080p, 2160p |
|
Product colour |
White |
|
Plug and Play |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 40 °C |
|
Storage temperature (T-T) |
-20 - 50 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Storage relative humidity (H-H) |
0 - 85% |
|
Software |
|
Windows operating systems supported |
Yes |
|
Mac operating systems supported |
Yes |
|
Logistics data |
|
Country of origin |
Taiwan |
|
Products per shipping (inner) case |
5 pc(s) |
|
Shipping (inner) case length |
21.8 cm |
|
Shipping (inner) case width |
10.3 cm |
|
Shipping (inner) case height |
16.5 cm |
|
Products per master (outer) case |
20 pc(s) |
|
Master (outer) case gross weight |
3.5 kg |
|
Master (outer) case length |
435 mm |
|
Master (outer) case width |
230 mm |
|
Master (outer) case height |
190 mm |
|
Quantity per pack |
1 pc(s) |
|
Export Control Classification Number (ECCN) |
EAR99 |
|
Technical details |
|
Master (outer) case GTIN (EAN/UPC) |
24712795089459 |
|
Warranty period |
2 year(s) |
|
Weight & dimensions |
|
Width |
32 mm |
|
Depth |
11 mm |
|
Height |
95 mm |
|
Weight |
79.5 g |
|
Package width |
155 mm |
|
Package depth |
95 mm |
|
Package height |
40 mm |
|
Package weight |
134 g |
|
Packaging content |
|
Cables included |
USB |
|
AC adapter included |
Yes |
