General Information |
|
Summary |

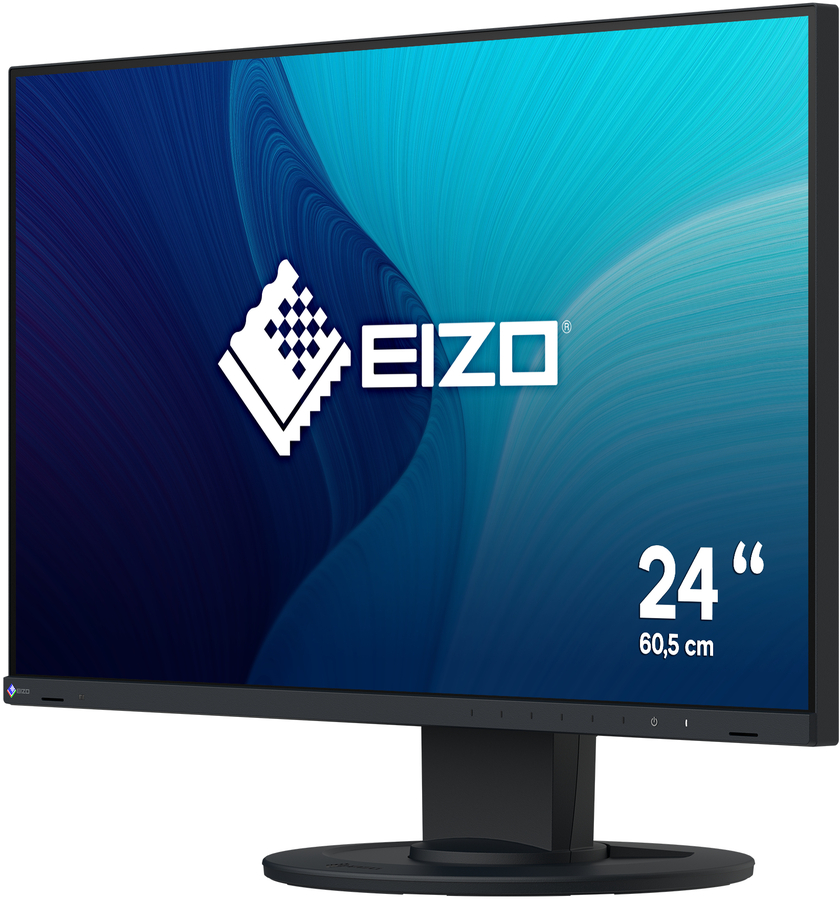

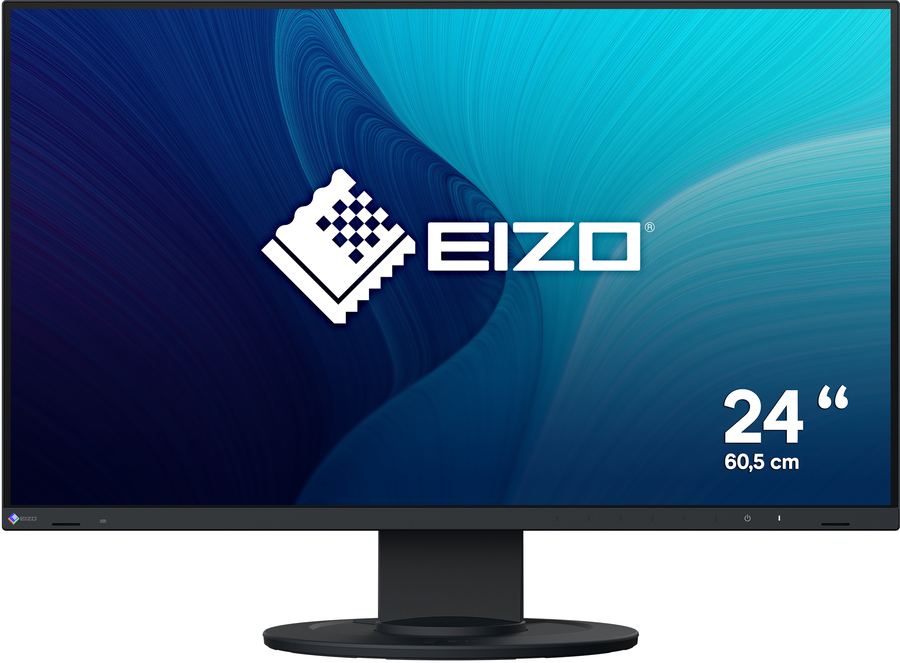

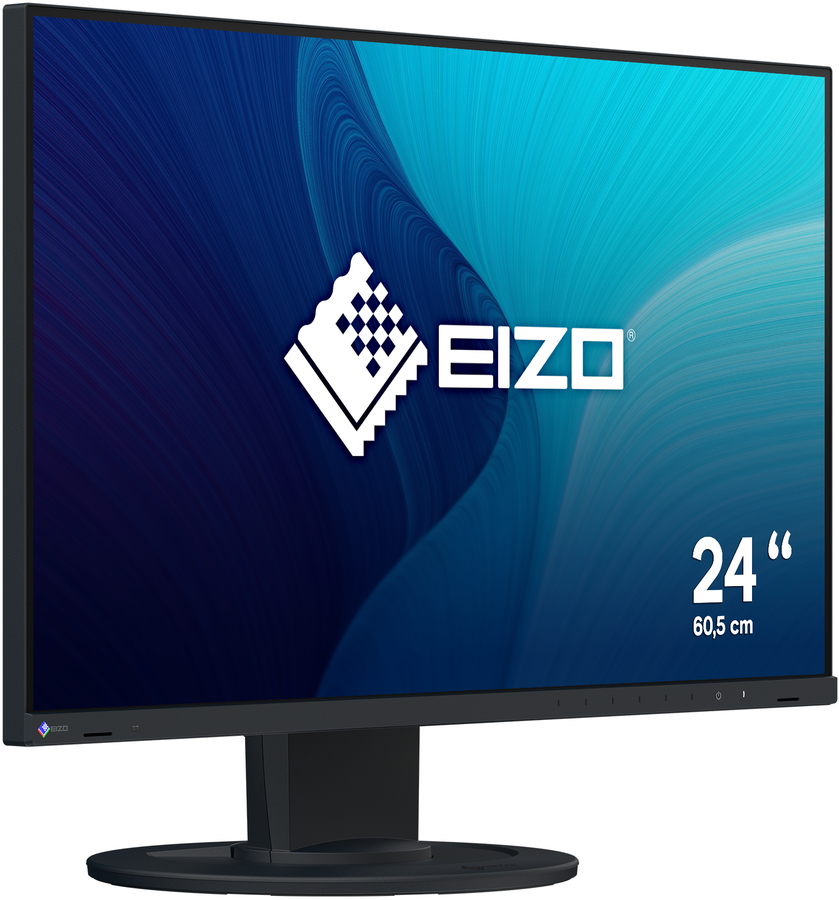

The 23.8-inch EV2400R monitor is specially designed for energy-efficient use in everyday office life and meets both important sustainability requirements and basic workplace needs. It combines the popular 16:9 screen format with advanced energysaving features and typically consumes only 8 watts, which reduces the CO2 footprint and energy costs. Its special Eco Mode activates the Auto EcoView and EcoView Optimizer functions to automatically adjust screen brightness to ambient light and image content, reducing power consumption by up to 60%. The EV2400R is also certified to global sustainability standards and its housing is made from over 50% recycled plastic. With up to 350 cd/m² brightness and 1500:1 contrast, the monitor offers clear image reproduction. It also features eye-friendly features such as anti-glare and flicker-free display. With a 100 Hz refresh rate, moving image content is displayed smoothly. DisplayPort and HDMI inputs, 4 USB downstream ports, and a versatile, ergonomic stand make the EV2400R fully office-ready.
|
|
Display |
|
Display diagonal |
60.5 cm (23.8") |
|
Display resolution |
1920 x 1080 pixels |
|
Native aspect ratio |
16:9 |
|
Display technology |
LCD |
|
Touchscreen |
No |
|
HD type |
Full HD |
|
Panel type |
IPS |
|
Response time |
5 ms |
|
Screen shape |
Flat |
|
Contrast ratio (typical) |
1500:1 |
|
Maximum refresh rate |
100 Hz |
|
Display number of colours |
16.7 million colours |
|
LED backlight |
Yes |
|
Backlight type |
W-LED |
|
Display brightness (typical) |
350 cd/m² |
|
Response time measurement type |
GTG (Gray to Gray) |
|
Anti-glare screen |
Yes |
|
Supported graphics resolutions |
1920 x 1080 (HD 1080), 1680 x 1050 (WSXGA+), 1280 x 1024 (SXGA), 1024 x 768 (XGA), 800 x 600 (SVGA), 720 x 400, 640 x 480 (VGA) |
|
Viewing angle, horizontal |
178° |
|
Viewing angle, vertical |
178° |
|
Pixel pitch |
0.275 x 0.275 mm |
|
Pixel density |
93 ppi |
|
Viewable size, horizontal |
52.7 cm |
|
Viewable size, vertical |
29.6 cm |
|
Digital horizontal frequency |
31 - 114 kHz |
|
Digital vertical frequency |
59 - 100 Hz |
|
Display diagonal (metric) |
60.5 cm |
|
Colour gamut standard |
sRGB |
|
Performance |
|
NVIDIA G-SYNC |
No |
|
AMD FreeSync |
No |
|
Flicker-free technology |
Yes |
|
Low Blue Light technology |
Yes |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
Built-in camera |
No |
|
Number of speakers |
2 |
|
RMS rated power |
2 W |
|
Design |
|
Market positioning |
Office |
|
Product colour |
Black |
|
Feet colour |
Black |
|

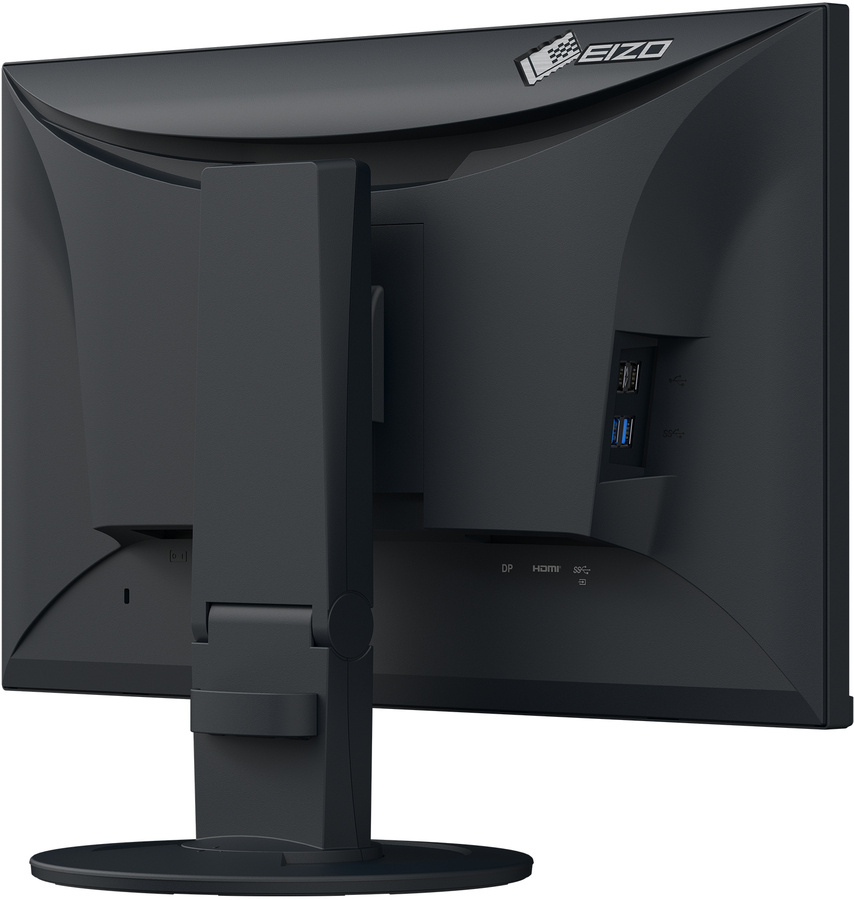

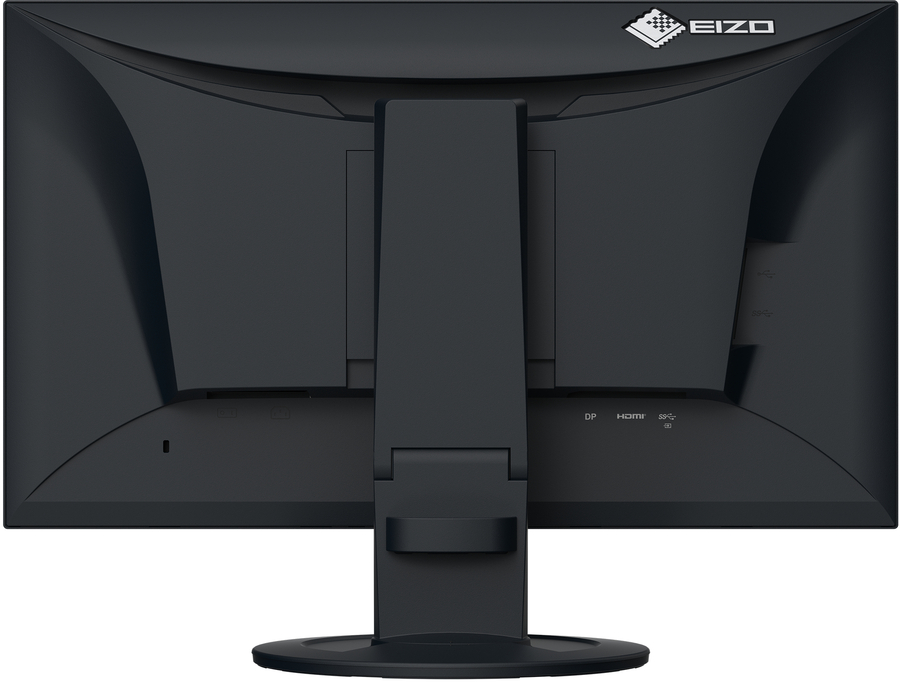

Ports & interfaces |
|
Built-in USB hub |
Yes |
|
HDMI |
Yes |
|
Headphone out |
No |
|
USB hub version |
2.0 / 3.2 Gen 1 (3.1 Gen 1) |
|
USB upstream port type |
USB Type-B |
|
Number of upstream ports |
1 |
|
Number of USB Type-B upstream ports quantity |
1 |
|
USB Type-A downstream ports quantity |
4 |
|
HDMI ports quantity |
1 |
|
DisplayPorts quantity |
1 |
|
HDCP |
Yes |
|
HDCP version |
1.3/1.4 |
|

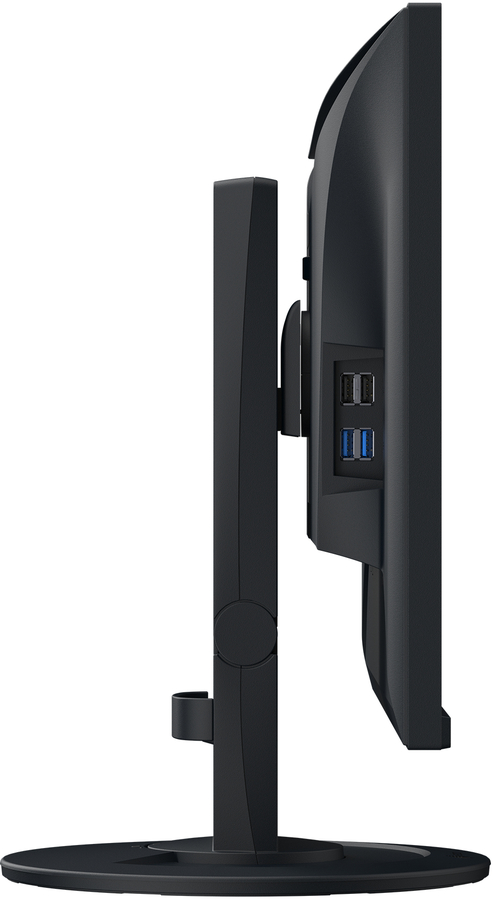

Ergonomics |
|
VESA mounting |
Yes |
|
Height adjustment |
Yes |
|
Panel mounting interface |
100 x 100 mm |
|
Adjustable height (max) |
14 cm |
|
Pivot |
Yes |
|
Pivot angle |
-90 - 90° |
|
Swivelling |
Yes |
|
Swivel angle range |
0 - 344° |
|
Tilt adjustment |
Yes |
|
Tilt angle range |
-5 - 35° |
|
On Screen Display (OSD) |
Yes |
|
On Screen Display (OSD) languages |
German, English, French, Italian, Swedish |
|
Power |
|
Energy efficiency class (SDR) |
B |
|
Energy consumption (SDR) per 1000 hours |
8 kWh |
|
Power consumption (typical) |
8 W |
|
Power consumption (standby) |
0.37 W |
|
Power consumption (max) |
43 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Energy efficiency scale |
A to G |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 35 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width (with stand) |
537.8 mm |
|
Depth (with stand) |
233 mm |
|
Height (with stand) |
333.6 mm |
|
Weight (with stand) |
5.6 kg |
|
Width (without stand) |
537.8 mm |
|
Depth (without stand) |
57 mm |
|
Height (without stand) |
317.5 mm |
|
Weight (without stand) |
3.5 kg |
|
Packaging content |
|
Stand included |
Yes |
|
Cables included |
DisplayPort, USB Type-A to USB Type-B, AC |
|
Quick start guide |
Yes |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO |
|
Sustainability compliance |
Yes |
|
Other features |
|
Automatic brightness control |
Yes |
|
Warranty period |
5 year(s) |
|
Look-up table (LUT) bit depth |
10 |
|
Compliance certificates |
CB, CCC, CE, RoHS, TÜV mark, UKCA, WEEE |
|
Certification |
CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including
ISO 9241-307), TCO Certified generation 10, TÜV/Low
Blue Light Content, TÜV/Flicker Free, RCM, cTÜVus,
FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA
ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EPEAT 2018 Gold (US), EPEAT Climate + |
|
Logistics data |
|
Harmonized System (HS) code |
85285210 |
