General Information |
|
Summary |
Get game-changing performance with the PNY GeForce RTX™ 5060, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI. |
|
Processor |
|
Graphics processor family |
NVIDIA |
|
Graphics processor |
GeForce RTX 5060 |
|
Maximum resolution |
7680 x 4320 pixels |
|
CUDA |
Yes |
|
Processor frequency |
2280 MHz |
|
Parallel processing technology support |
Not supported |
|
CUDA cores |
3840 |
|
Processor boost clock speed |
2535 MHz |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
8 GB |
|
Graphics card memory type |
GDDR7 |
|
Memory bus |
128 bit |
|
Memory bandwidth (max) |
448 GB/s |
|
Ports & interfaces |
|
Interface type |
PCI Express x8 5.0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|

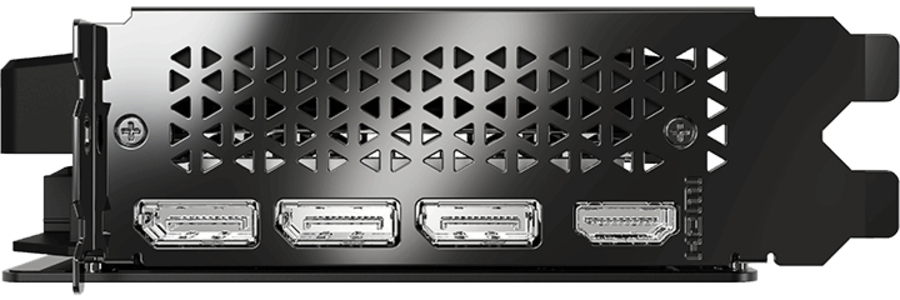

DisplayPorts quantity |
3 |
|
HDMI version |
2.1b |
|
DisplayPort version |
2.1b |
|
Performance |
|
TV tuner integrated |
No |
|
Dual Link DVI |
No |
|
NVIDIA G-SYNC |
Yes |
|
Design |
|
Cooling type |
Active |
|
Number of fans |
2 fan(s) |
|
Number of slots |
2 |
|
Product colour |
Black |
|
Power |
|
Minimum system power supply |
550 W |
|

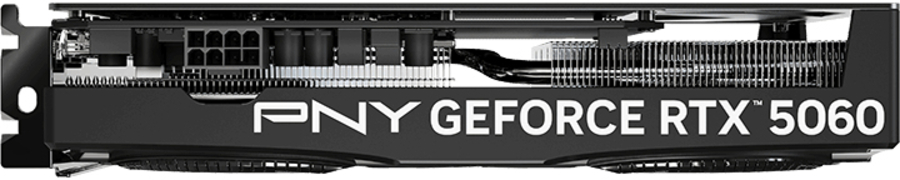

Supplementary power connectors |
1x 8-pin |
|
Thermal Design Power (TDP) |
145 W |
|
System requirements |
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Linux operating systems supported |
Yes |
|
Weight & dimensions |
|
Length |
120 mm |
|
Depth |
200 mm |
|
Height |
39.8 mm |
|
Packaging data |
|
Package width |
382 mm |
|
Package depth |
194 mm |
|
Package height |
72 mm |
|
Package type |
Box |
|
Packaging content |
|
Quick installation guide |
Yes |
