Grandstream GWN7670WM WiFi 7 Wall Mount Access Point
|
|
Price: $129.00
Manufacturer:
Grandstream
2.4/5 GHz, Wi-Fi 7, Bluetooth 5.3, 1x WAN/LAN, PoE+
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60546035
|
GWN7670WM
|
6947273705567 |
Active
|
Details
|
General Information |
|
Summary |
The GWN7670WM is a new generation enterprise-grade 802.11be IN-Wall Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.
State-of-the-Art Wi-Fi 7 Connectivity
The GWN7670WM is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.

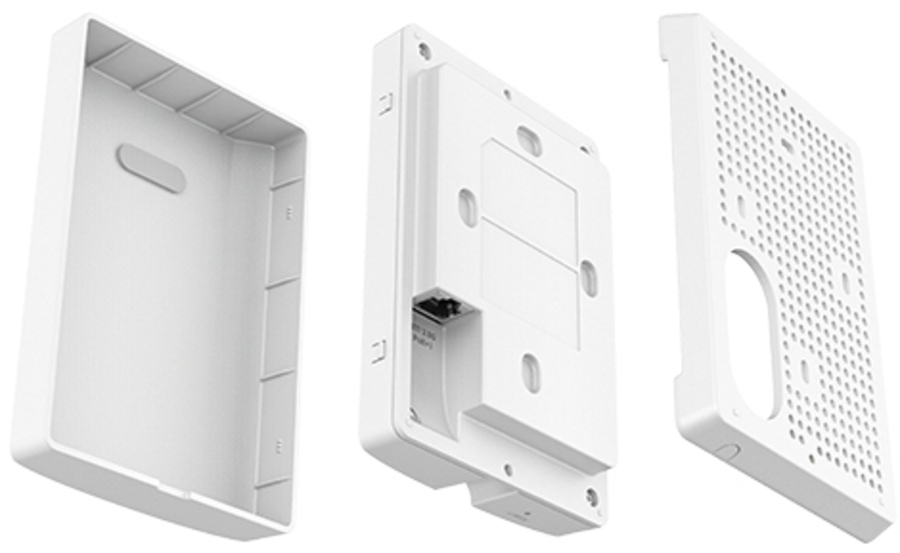

Designed for Seamless Wall Mounting
The GWN7670WM provides clean design and a paintable shell, allowing it to easily match any environment and integrate into any space.
Ideal for Environments with Medium User Density
The GWN7670WM provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it ideal for environments with medium user density.
Twice as Fast as Wi-Fi 6
Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity
Easy and Free Management
Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.
Free Network Management Options
GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.
GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.
Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface. |
|
Features |
|
2.4 GHz |
Yes |
|
5 GHz |
Yes |
|
6 GHz |
No |
|
Maximum data transfer rate |
3600 Mbit/s |
|
Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
|
Maximum data transfer rate (5 GHz) |
2882 Mbit/s |
|
Ethernet LAN data rates |
2500 Mbit/s |
|
Number of simultaneously connected devices (max) |
256 |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Bluetooth Low Energy (BLE) |
Yes |
|
MIMO |
Yes |
|
Wi-Fi Multimedia (WMM)/(WME) |
Yes |
|
VLAN support |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Security |
|
Security algorithms |
WEP, WPA, WPA-Enterprise, WPA2-Enterprise, WPA2-PSK, WPA3 |
|
Number of SSID supported |
32 |
|
Management features |
|
Web-based management |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
1 |
|
USB 2.0 ports quantity |
0 |
|
WAN connection |
Ethernet (RJ-45) |
|
Power |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) type supported |
PoE+ |
|
Power consumption (max) |
15.5 W |
|
Design |
|
Placement |
In-wall |
|
Product colour |
White |
|
Reset button |
Yes |
|
LED indicators |
Yes |
|
Antenna |
|
Antenna type |
Internal |
|
Antennas quantity |
5 |
|
Antenna gain level (max) |
4 dBi |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
34.1 mm |
|
Height |
106 mm |
|
Weight |
473 g |
|
Packaging data |
|
Package weight |
600 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Mounting kit |
Yes |
|
Quick start guide |
Yes |
|
Operational conditions |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-30 - 60 °C |
|
