General Information |
|
Summary |

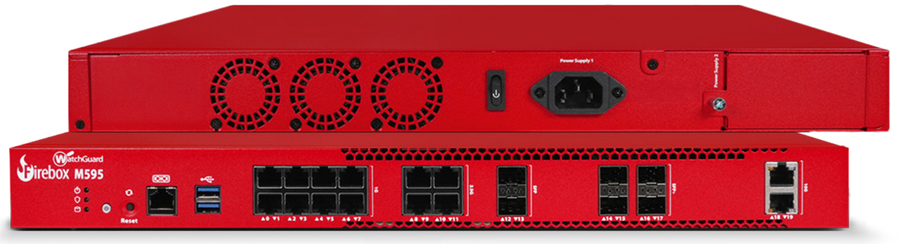

Firebox M595
Supports 43 Gbps firewall throughput, 1,200 VPN tunnels, and advanced threat protection for enterprise agility in high-demand environments.
Enterprise-Class Security with Room to Grow
With 7.2 Gbps UTM throughput, 4.8 Gbps HTTPS inspection, and capacity for up to 1,200 users, the Firebox M595 is built for demanding enterprise environments. Its performance and scalability make it a future-ready choice for distributed networks. |
|
Data transmission |
|
Firewall throughput |
7.2 Gbit/s |
|
Firewall (UDP 1518) throughput |
43 Gbit/s |
|
VPN (IMIX) throughput |
3500 Mbit/s |
|
VPN (UDP 1518) throughput |
19.8 Gbit/s |
|
IPS/IDS throughput |
9400 Mbit/s |
|
Gateway antivirus throughput |
7.6 Gbit/s |
|
WSM license quantity |
4 license(s) |
|
Branch Office VPN |
1200 |
|
Mobile VPN IPSec |
1200 |
|
Maximum firewall connections per second |
212000 |
|
HTTPS encryption |
Yes |
|
Performance |
|
Concurrent connections |
15000000 |
|
Syslog |
Yes |
|
Mean time between failures (MTBF) |
311912 h |
|
Network |
|
Networking standards |
IEEE 802.3ad, IEEE 802.1Q |
|
Number of users |
850 user(s) |
|
Static route |
Yes |
|
Dynamic routing |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|
DHCP server |
Yes |
|
DHCP client |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Security |
|
Security algorithms |
HTTPS, IPSec, SSL/TLS, SNMPv2, SNMPv3, FIPS 140-3 |
|
DDoS protection |
Yes |
|
Protocols |
|
Routing protocols |
BGP, OSPF, RIP |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
14 |
|
Ethernet LAN data rates |
2500,10000 Mbit/s |
|
Serial ports quantity |
1 |
|
SFP module slots quantity |
2 |
|
SFP+ module slots quantity |
4 |
|
Design |
|
Rack mounting |
Yes |
|
Form factor |
1U |
|
Built-in fan |
Yes |
|
Power |
|
AC input voltage |
90-264 V |
|
Power consumption (max) |
171 W |
|
Certificates |
|
Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
|
Compliance certificates |
WEEE, RoHS, REACH, CB |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
440 mm |
|
Depth |
310 mm |
|
Height |
44 mm |
|
Weight |
4.9 kg |
|
Packaging data |
|
Package width |
552.5 mm |
|
Package height |
508 mm |
|
Package depth |
185.8 mm |
|
Package weight |
6.93 kg |
