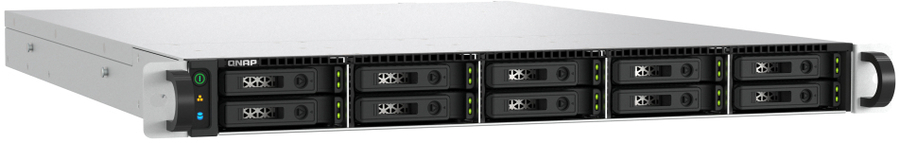

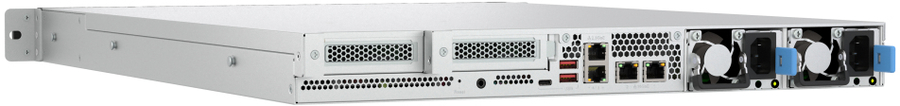

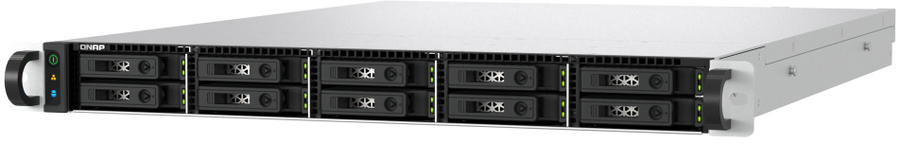

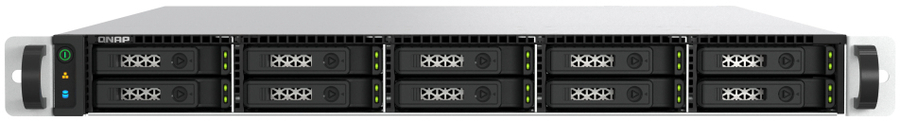

TS-h1077AFU
SATA-based all-flash NAS. Compact 1U rackmount. Powered by ZFS for data integrity.
The TS-h1077AFU is ideal for teams managing virtual machines, databases, or remote backups across branch offices; media professionals working with high-resolution content in fast-paced editing environments; and MSPs deploying reliable storage infrastructure for client workloads. With all-flash performance and High Availability (HA) support, the TS-h1077AFU forms a dual-NAS failover cluster that ensures uninterrupted core services—delivering the stability and resilience required for mission-critical workloads. |
|
Storage |
|
Storage drives installed |
No |
|
Total installed storage capacity |
0 TB |
|
Number of storage drives installed |
0 |
|
Number of storage drives supported |
10 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
RAID support |
Yes |
|
Supported storage drive interfaces |
Serial ATA II |
|
Storage drive sizes supported |
2.5,3.5" |
|
Total installed system drives capacity |
5 GB |
|
RAID levels |
0, 1, 5, 6, 10, 50, 60, JBOD |
|
Online RAID migration |
Yes |
|
Online RAID expansion |
Yes |
|
RAID rebuild |
Yes |
|
Hot-swap drive bays |
Yes |
|
Supported file systems |
FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
|
Auto-rebuild |
Yes |
|
Bad block scan |
Yes |
|
Disk roaming |
Yes |
|
Processor |
|
Processor family |
AMD Ryzen™ 7 |
|
Processor manufacturer |
AMD |
|
Processor boost frequency |
5.3 GHz |
|
Processor cores |
8 |
|
Processor threads |
16 |
|
On-board graphics card model |
AMD Radeon Graphics |
|
Memory |
|
Internal memory |
32 GB |
|
Internal memory type |
DDR5 |
|
ECC |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
2500,10000 Mbit/s |
|
DHCP server |
Yes |
|
Jumbo frames support |
Yes |
|
Wake-on-LAN ready |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
USB port |
Yes |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
Design |
|
Chassis type |
Rack (1U) |
|
Product colour |
Black, Grey |
|
LED indicators |
Yes |
|
Performance |
|
Type |
NAS |
|
Device class |
Small & Medium Business |
|
Backup function |
Yes |
|
Buzzer |
Yes |
|
Software |
|
Operating system installed |
QNAP QTS |
|
Operating system version |
5.2.7 |
|
Power |
|
Power supply location |
Built-in |
|
Power supply unit (PSU) capacity |
3520 W |
|
Number of power supply units |
2 |
|
AC input voltage |
100 - 240 V |
|
Weight & dimensions |
|
Width |
430 mm |
|
Depth |
580 mm |
|
Height |
44 mm |
|
Weight |
9.43 kg |
|
Package width |
561 mm |
|
Package depth |
763 mm |
|
Package height |
170 mm |
|
Package weight |
12.4 kg |
|
Packaging content |
|
Package type |
Box |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Other features |
|
Warranty period |
5 year(s) |
