General Information |
|
Summary |
Are you looking for a two-socket scalable server that powers data analytics and supports hybrid cloud workloads? The HPE ProLiant Compute DL380 Gen12 is a scalable 2U 2P server that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by Intel Xeon 6 processors with up to 144 cores and up to 8 TB of memory as well as 36 EDSFF E3.S drives, the HPE ProLiant Compute DL380 Gen12 is an ideal hybrid cloud platform for enterprise applications and workloads. The HPE ProLiant Compute DL380 Gen12 is engineered for your future, with next-level security, optimized performance and efficiencies, and automated, AI-driven productivity.
What is new supporting point:
Intel Xeon 6 processors that support up to 144 cores, up to 8 TB of DDR5 memory at speeds up to 6400 MT/s, and up to 2x average higher performance for general compute versus previous generations.
Optional front accessible boot device for quicker access.

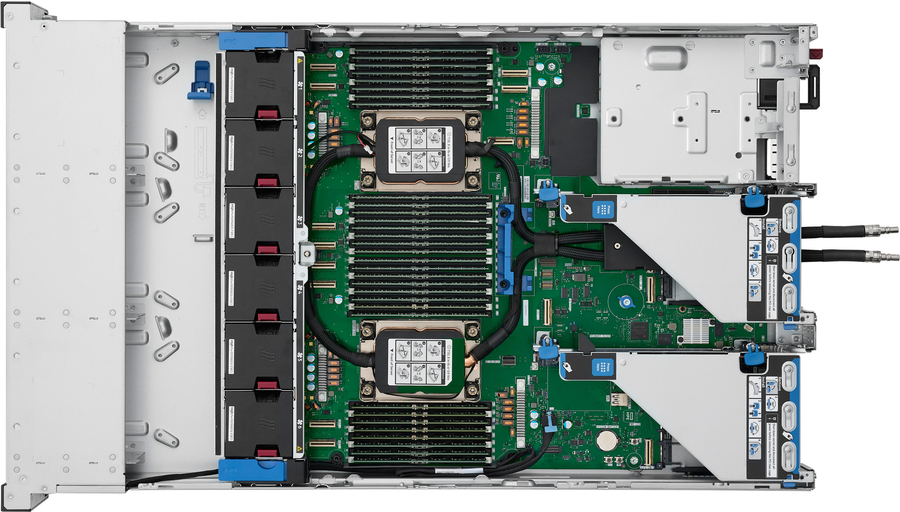

Choice of two cooling options — air cooling or direct liquid cooling (DLC) for performance and energy efficiency to support sustainability initiatives.
Up to 36 EDSFF E3.S NVMe drives.
Up to three double-wide (DW) or eight single-wide (SW) GPUs.
HPE Integrated Lights-Out 7 (iLO 7) server management software with streamlined manageability through a redesigned GUI, Redfish API, and increased security via the patented secure enclave technology. |
|
Processor |
|
Processor family |
Intel® Xeon® |
|
Processor manufacturer |
Intel |
|
Processor frequency |
3.2 GHz |
|
Processor cache |
72 MB |
|
Number of processors installed |
1 |
|
Processor cache type |
L3 |
|
Memory |
|
Internal memory |
128 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory clock speed |
6400 MHz |
|
Memory layout (slots x size) |
4 x 32 GB |
|
Storage |
|
Optical drive type |
No |
|
Supported RAID controllers |
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device |
|
Network |
|
LAN controller |
Broadcom BCM5719 |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
Expansion slots |
Up to 8 PCIe Gen5, and 2 OCP 3.0 (front or rear), for detailed descriptions reference the QuickSpecs |
|
Design |
|
Chassis type |
Rack (2U) |
|
Performance |
|
Management platform |
HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management (optional subscription available). Refer to theiLO 7 User Guide |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Power |
|
Power supply |
1000 W |
|
Power supply type |
2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
|
Number of main power supplies |
2 |
|
Other features |
|
Security features |
HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit. For full security features refer to the QuickSpecs. |
|
Number of processors supported |
1 |
|
Standard fans |
6x High Performance Fan |
|
Storage drive type |
None ship standard, 8 SFF supported |
