General Information |
|
Summary |

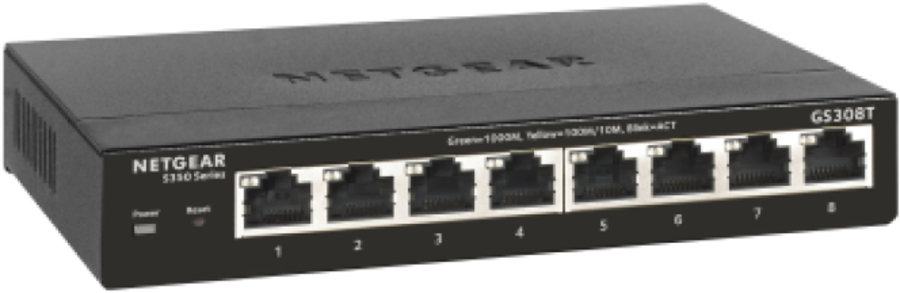

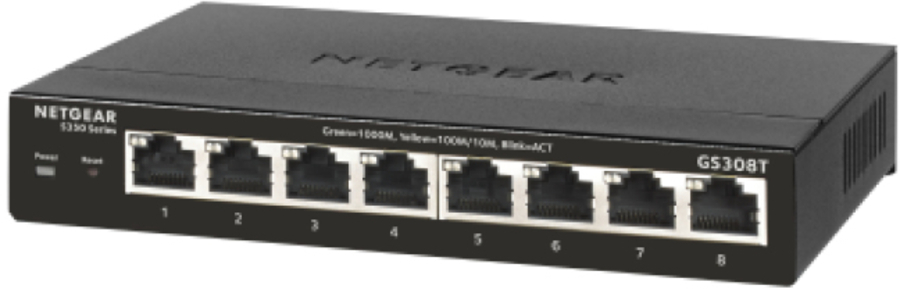

S350 Smart Switches (GS308T)
8-Port Gigabit Ethernet Smart Switch
Experience advanced configuration & control with an easy-to-use GUI interface that offers refined control for secure setup, access, and SNMP management. Comes with a modern desktop design for simple and stylish for use in any room or office. Built to last: every NETGEAR network switch is rigorously tested for reliability, quality, and performance. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|

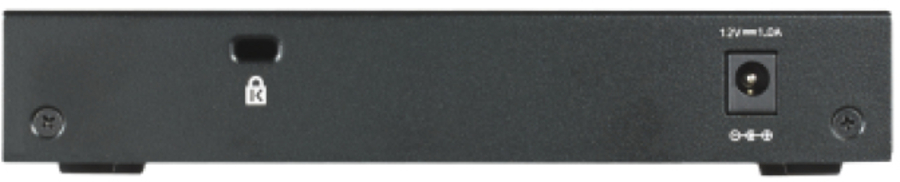

Power connector |
DC-in jack |
|
Network |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
Link aggregation |
Yes |
|
Spanning tree protocol |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
64 |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
16 Gbit/s |
|
Store-and-forward |
Yes |
|
Number of queues |
8 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
10000 |
|
Packet buffer memory |
0.5 MB |
|
Security |
|
DHCP features |
DHCP client, DHCP snooping |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Protocols |
|
Management protocols |
SNMP v1, v2c, v3 |
|
Multicast protocols |
IGMP |
|
Design |
|
Rack mounting |
No |
|
Stackable |
No |
|
Product colour |
Black |
|
Reset button |
Yes |
|

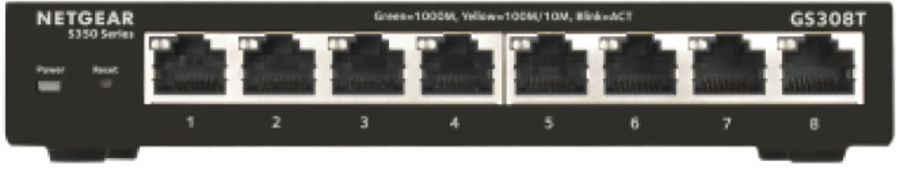

LED indicators |
Activity, Link, Power |
|
Performance |
|
Built-in processor |
Yes |
|
Processor frequency |
500 MHz |
|
Internal memory |
128 MB |
|
Flash memory |
32 MB |
|
Power |
|
DC input voltage |
12 V |
|
Input current |
1 A |
|
Power consumption (max) |
6.4 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Heat dissipation |
22.02 BTU/h |
|
Weight & dimensions |
|
Width |
158 mm |
|
Depth |
101 mm |
|
Height |
30 mm |
|
Weight |
410 g |
|
Packaging content |
|
Cables included |
AC |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
|
Packaging data |
|
Package type |
Box |
|
Package width |
226 mm |
|
Package depth |
270 mm |
|
Package height |
64 mm |
|
Package weight |
750 g |
|
Certificates |
|
Certification |
CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
|
Logistics data |
|
Master (outer) case width |
214 mm |
|
Master (outer) case length |
474 mm |
|
Master (outer) case height |
312 mm |
|
Master (outer) case gross weight |
6.11 kg |
|
Products per master (outer) case |
6 pc(s) |
