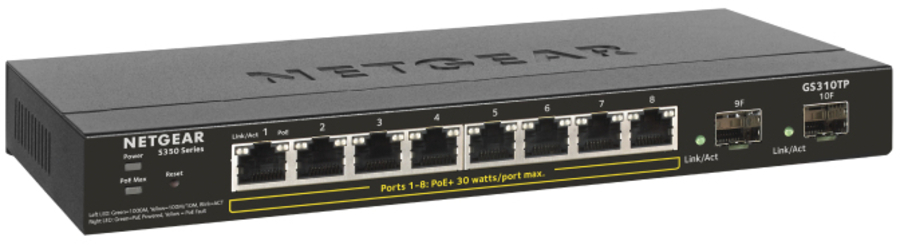

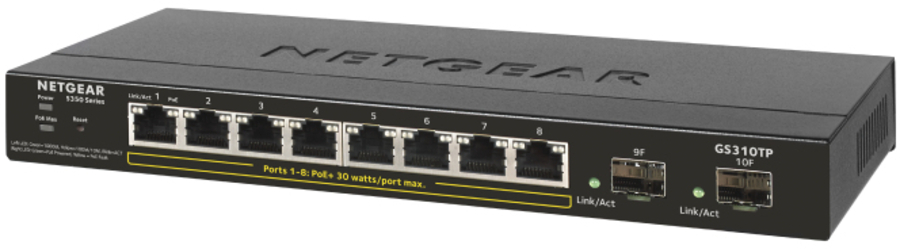

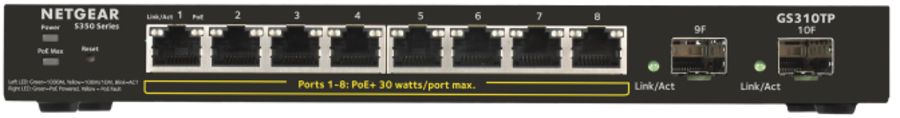

Netgear GS310TP S350 8-Port Gigabit PoE+ Smart Managed Switch
|
|
Price: $220.00
Manufacturer:
Netgear
8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch with 2 SFP Ports, PoE+, VLAN
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60546546
|
GS310TP-100NAS
|
606449135497 |
Active
|
Details
|
General Information |
|
Summary |
S350 Smart Switches (GS310TP)
8-Port Gigabit Ethernet PoE+ Smart Switch with 2 Dedicated SFP Ports (55W)
Experience advanced configuration & control with an easy-to-use GUI interface that offers refined control for secure setup, access, and SNMP management. Comes with a modern desktop design for simple and stylish for use in any room or office. Built to last: every NETGEAR network switch is rigorously tested for reliability, quality, and performance.
Connectivity, Security and Affordability for Your Smart Business
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Managed Pro Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost.
Designed for Converged Networks
NETGEAR Smart Managed Pro S350 series consists of five switch models, including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, and 24-port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Advanced features such as L2/L3/L4 Access Control Lists (ACLs), Quality of Service (QoS), Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) will ensure a high-speed and highly secured network environment for your business.
Dynamic VLAN Assignment
IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network.
Robust Security Features
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users. Features include: 802.1x authentication, DHCP filtering, ACL filtering.
Comprehensive QoS Features
Advanced controls for optimized network performance and better delivery of mission-critical traffics such as voice and video. Features include: Port-based or 802.1p-based prioritization, Port-based ingress and egress rate limiting.
Auto-VoIP, Auto-Voice and Auto-Video
Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimize broadcast streams
Protected Ports
Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
Advanced per port PoE controls
Remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, secure access door locks, IoT devices…)
DHCP Snooping
Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses to have access to the network.
Dual Firmware Images
Dual firmware image for transparent firmware updates / configuration changes with minimum service interruption. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
System event log |
Yes |
|
MIB support |
RFC1213, RFC1643, RFC1493 |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
SFP module slots quantity |
2 |
|
Power connector |
DC-in jack |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Rate limiting |
Yes |
|
Spanning tree protocol |
Yes |
|
Auto-negotiation |
Yes |
|
VLAN support |
Yes |
|
Virtual LAN features |
Voice VLAN |
|
Number of VLANs |
64 |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
20 Gbit/s |
|
Jumbo frames support |
Yes |
|
Security |
|
DHCP features |
DHCP client |
|
Access Control List (ACL) |
Yes |
|
Access Control List (ACL) IPv4 entries |
100 |
|
IGMP snooping |
Yes |
|
Security algorithms |
802.1x RADIUS, EAP, HTTPS, SSL/TLS |
|
Loop protection |
Yes |
|
Authentication |
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
|
Password protection |
Yes |
|
Authentication type |
HWTACACS+, IEEE 802.1x |
|
Multicast features |
|
Multicast support |
Yes |
|
Number of multicast groups filtered |
256 |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
Number of fans |
0 fan(s) |
|
Performance |
|
Built-in processor |
Yes |
|
Processor frequency |
500 MHz |
|
Memory type |
DDR-SDRAM |
|
Internal memory |
128 MB |
|
Flash memory |
32 MB |
|
Firmware upgradeable |
Yes |
|
Mean time between failures (MTBF) |
1081119 h |
|
Power |
|
Power consumption (max) |
69.3 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
8 |
|
Total Power over Ethernet (PoE) budget |
55 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
263 mm |
|
Depth |
101 mm |
|
Height |
30 mm |
|
Weight |
610 g |
|
Packaging content |
|
Quick start guide |
Yes |
|
User guide |
Yes |
|
Manual |
Yes |
|
Certificates |
|
Certification |
CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI |
|
