General Information |
|
Summary |

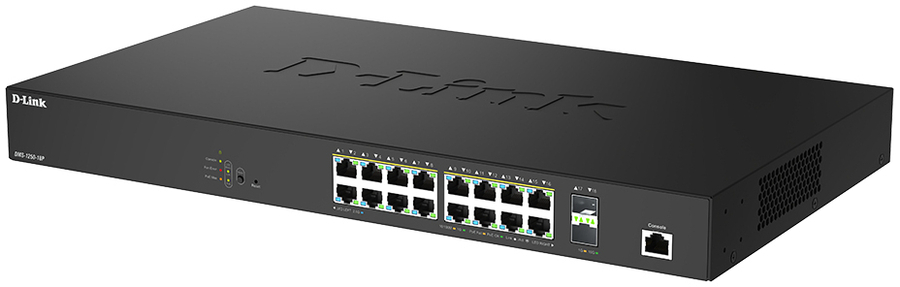

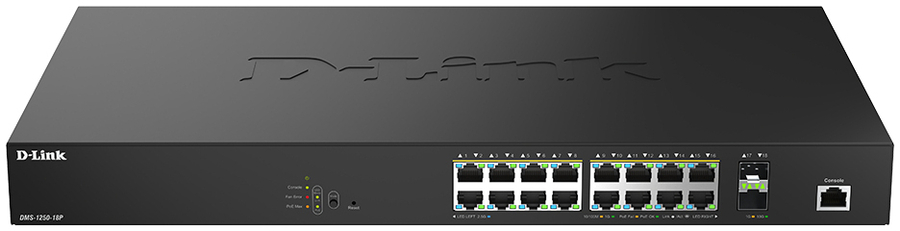

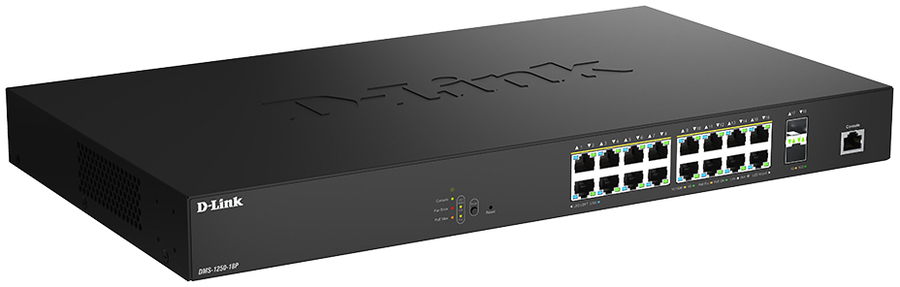

The DMS-1250 Series is D-Link’s newest family of Multi-Gigabit Ethernet smart switches. It provides multi-Gigabit connectivity, Power over Ethernet (PoE) capability, multiple management interfaces and advanced layer 2 features. The DMS-1250 Series provides a high-performace solution to expand your network and adapts to your business needs.
Highlights
Multi-Gigabit Ethernet Connection Delivers fast 2.5 Gbps performance using existing cabling, suitable for Wi-Fi 6 network deployments
10G Uplink Connections
Two 10-Gigabit Ethernet or SFP+ uplink ports allow for additional connections to a storage device or uplink network
Power over Ethernet
PoE+ (30W) or PoE++ (90W) options to simultaneously power multiple types of PoE devices with various power draw requirements |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Traffic classification |
Yes |
|
ARP inspection |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
16 |
|
Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
|
SFP+ module slots quantity |
2 |
|
Power connector |
AC-in jack |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Rate limiting |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Spanning tree protocol |
Yes |
|
Active link detection |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
4096 |
|
Data transmission |
|
MAC address table |
16000 entries |
|
Switching capacity |
120 Gbit/s |
|
Forwarding rate |
89.29 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
12000 |
|
Packet buffer memory |
12 MB |
|
Security |
|
DHCP features |
DHCP server, DHCP snooping |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
MAC address filtering |
Yes |
|
Loop protection |
Yes |
|
Password protection |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Stackable |
Yes |
|
Product colour |
Black |
|
LED indicators |
Yes |
|
Number of fans |
3 fan(s) |
|
Performance |
|
Internal memory |
512 MB |
|
Flash memory |
32 MB |
|
Power |
|
Power source |
AC |
|
Power supply included |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Power consumption (max) |
443.84 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) ports quantity |
16 |
|
Power over Ethernet (PoE) power per port |
370 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Width |
440 mm |
|
Depth |
250 mm |
|
Height |
44 mm |
|
Weight |
3.52 kg |
