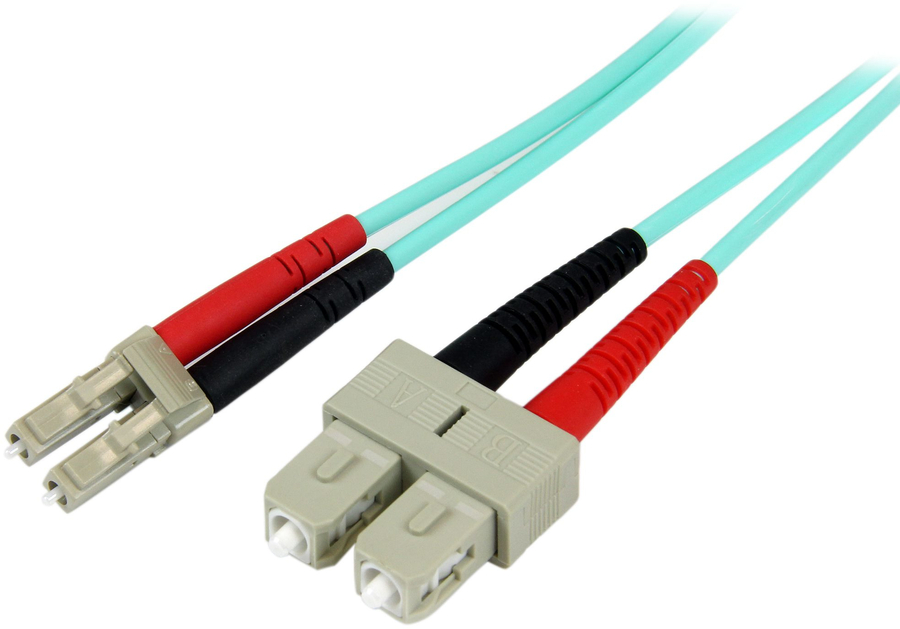

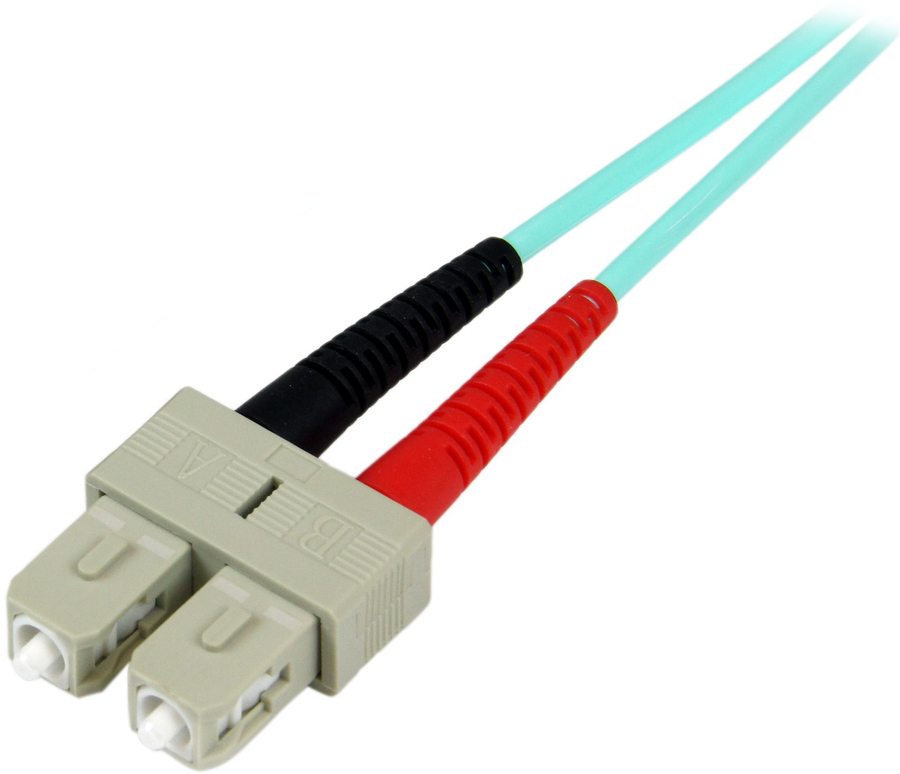

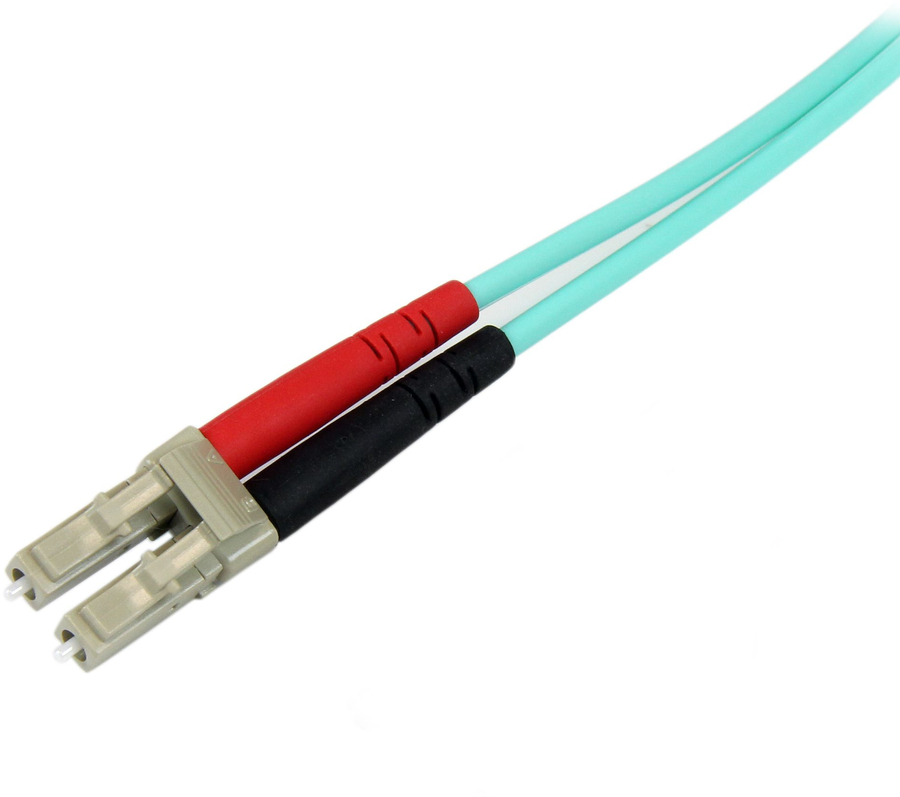

StarTech 10-Foot OM3 Multimode Duplex Fibre Optic Cable LC/SC Aqua
|
|
Price: $31.00
Manufacturer:
StarTech
StarTech 3m (10ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125, 100G, LSZH Fiber Jumper Cord
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60546910
|
A50FBLCSC3
|
65030928410 |
Active
|
Details
|
General Information |
|
Summary |
Perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment, this high speed 10 Gigabit Multimode Duplex Fiber Cable is terminated with LC and SC connectors, and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds. Suited for a broad range of environments, A50FBLCSC3 is housed in a flame retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, taking safety to a new level by ensuring minimal smoke, toxicity and corrosion in the event of a fire – making it the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration. |
|
Features |
|
Cable length |
3 m |
|
Connector 1 |
LC |
|
Connector 2 |
SC |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Aqua colour |
|
Jacket material |
Low smoke zero halogen (LSZH) |
|
Fibre optic type |
OM3 |
|
Cable shape |
Round |
|
Connector polish type |
UPC |
|
Full duplex |
Yes |
|
Core diameter |
50 µm |
|
Cladding diameter |
125 µm |
|
Wavelengths supported |
850,950,953,1050,1150,1250,1260,1280,1300 nm |
|
Data transfer rate |
100 Gbit/s |
|
Certificates |
|
Compliance certificates |
RoHS, CE |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Weight & dimensions |
|
Cable diameter |
2.9 mm |
|
Weight |
26 g |
|
Bending radius |
6 cm |
|
Packaging data |
|
Package width |
220 mm |
|
Package depth |
200 mm |
|
Package height |
9 mm |
|
Package weight |
59 g |
|
Logistics data |
|
Master (outer) case width |
410 mm |
|
Master (outer) case length |
410 mm |
|
Master (outer) case height |
450 mm |
|
Products per master (outer) case |
200 pc(s) |
|
