General Information |
|
Summary |
More performance and silence

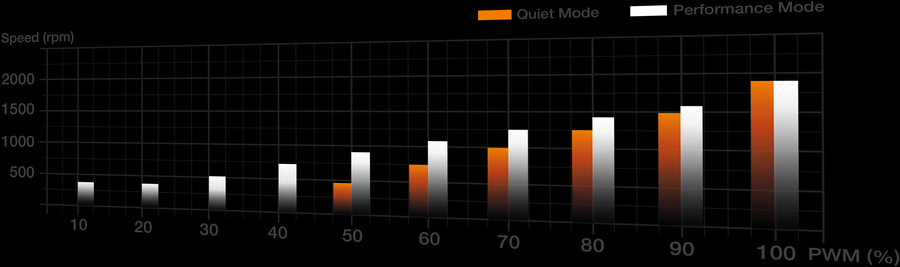

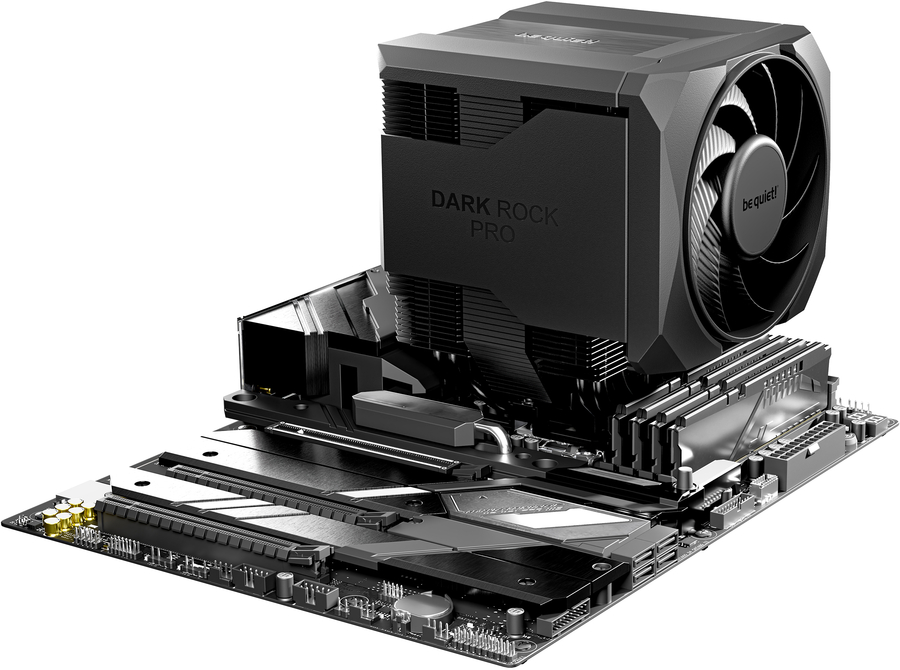

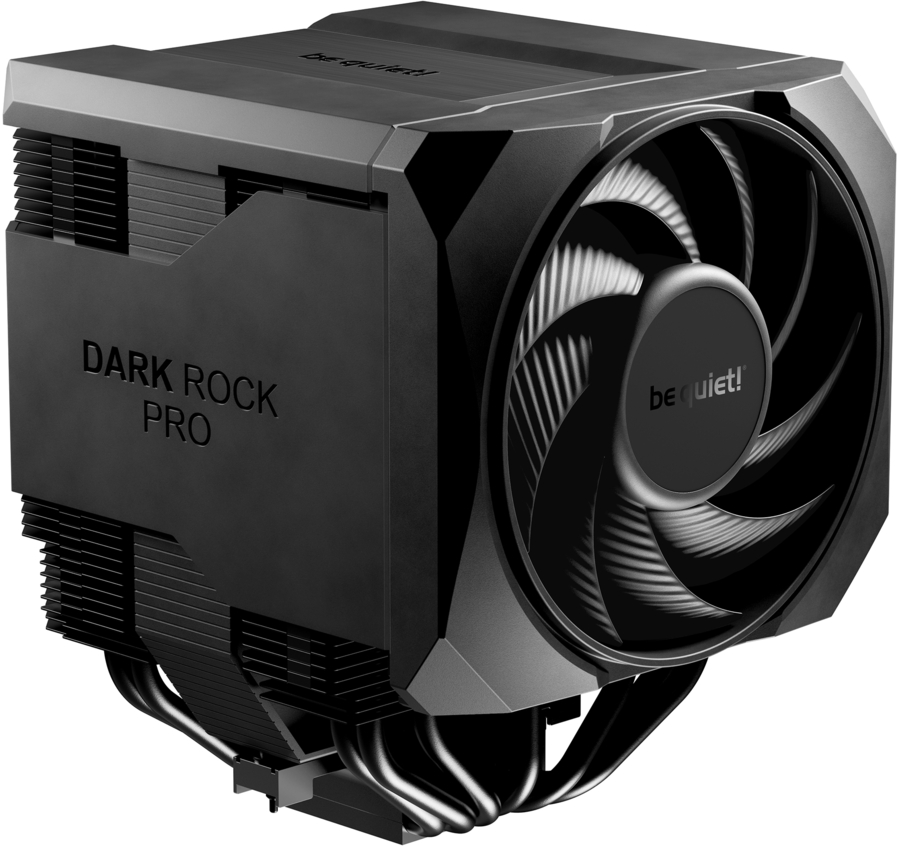

Dark Rock Pro 6 offers extremely high cooling performance and virtually inaudible operation. Excellent for heavily overclocked systems and demanding workstations. Using semi-passive quiet and performance modes, it is designed for users who demand consistently top performance yet still expect virtually inaudible operation at all times. |
|
Performance |
|
Suitable location |
Chipset |
|
Type |
Air cooler |
|
Fan diameter |
120/135 mm |
|
Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
|
Rotational speed (max) |
2000 RPM |
|
Noise level (low speed) |
11.9 dB |
|
Noise level (high speed) |
32.4 dB |
|
Maximum airflow |
79.48 cfm |
|
Airflow |
135.04 m³/h |
|
Maximum air pressure |
2.25 mmH2O |
|
Pulse-width modulation (PWM) support |
Yes |
|
Bearing type |
Fluid Dynamic Bearing (FDB) |
|
Quantity per pack |
1 pc(s) |
|
Mean time between failures (MTBF) |
300000 h |
|
Design |
|
Product colour |
Black |
|
Radiator material |
Copper |
|
Number of fans |
2 fan(s) |
|
Fins material |
Aluminium |
|
Number of heat pipes |
7 |
|
Fan connector |
4-pin |
|
Power |
|
Rated voltage |
12 V |
|
Fan power consumption |
4.8 W |
|
Rated current |
0.15 A |
|
Thermal Design Power (TDP) |
300 W |
|

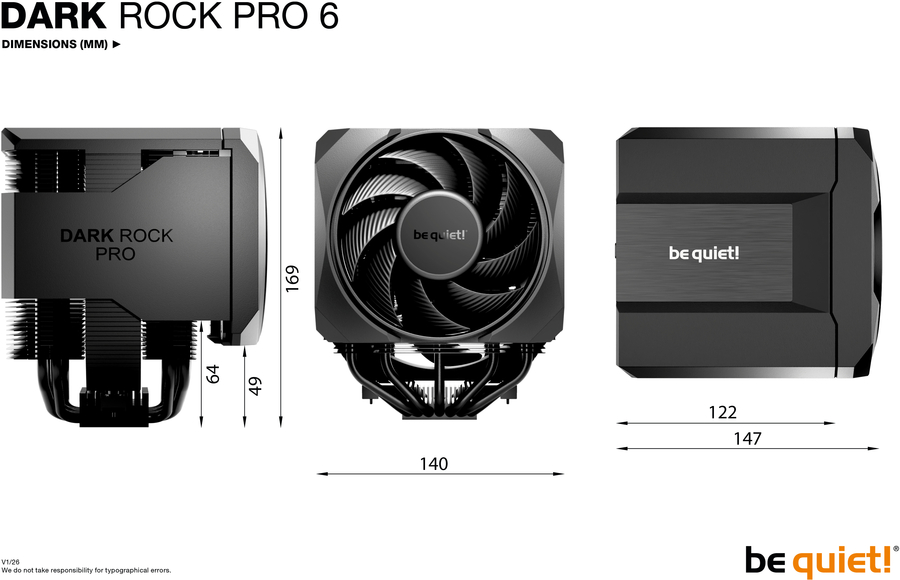

Weight & dimensions |
|
Width |
140 mm |
|
Radiator width |
14 cm |
|
Radiator depth |
12.2 cm |
|
Radiator height |
16.9 cm |
|
Depth |
147 mm |
|
Height |
169 mm |
|
Weight |
1.34 kg |
|
Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
|
Fan 2 dimensions (W x D x H) |
135 x 135 x 25 mm |
|
Heat pipes diameter |
6 mm |
|
Cable length |
0.12 m |
|
Package width |
193 mm |
|
Package depth |
212 mm |
|
Package height |
224 mm |
|
Package weight |
2.09 kg |
|
Technical details |
|
Sustainability certificates |
Triman |
|
Warranty period |
3 year(s) |
|
Compliance certificates |
CE, UKCA, UL, RCM, RoHS, WEEE |
|
Certificates |
|
Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
|

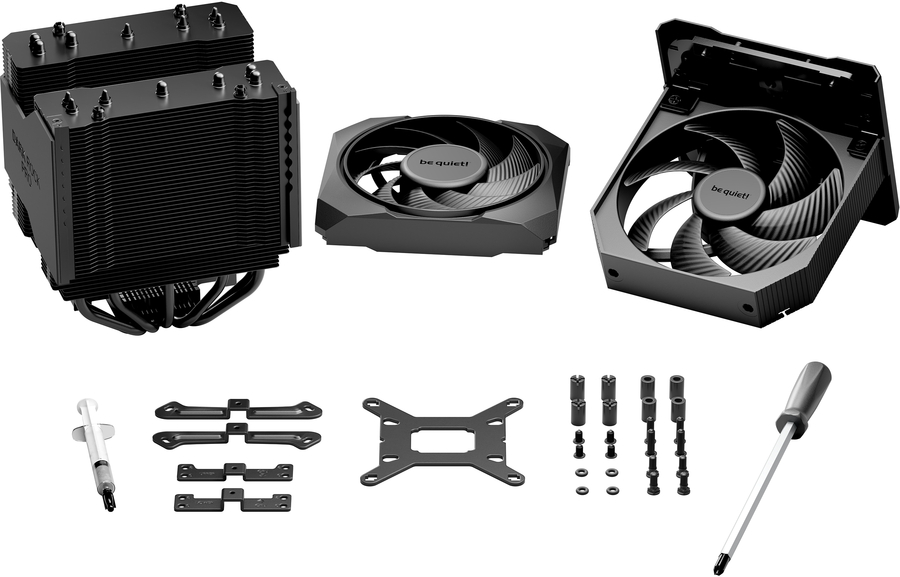

Packaging content |
|
Mounting kit |
Yes |
|
Manual |
Yes |
|
Other features |
|
Thermal grease |
Yes |
|
Logistics data |
|
Products per shipping (inner) case |
8 pc(s) |
|
Shipping (inner) case width |
41.2 cm |
|
Shipping (inner) case length |
45.2 cm |
|
Shipping (inner) case height |
48.6 cm |
|
Shipping (inner) case gross weight |
17.9 kg |
