General Information |
|
Summary |
Driverless Dual 4K on Mac without the Thunderbolt 4 cost
This universal USB4/Thunderbolt dock lets IT teams deploy high-performance dual-display workstations with secure networking and simple, driverless setup.
Standardize Your Docking Strategy
Simplify mixed-device environments with a single USB4 docking station that works seamlessly across Mac and Windows. Native USB4 support on the latest MacBook Pro, MacBook Air, and business laptops makes it easier than ever to consolidate and eliminate compatibility gaps.

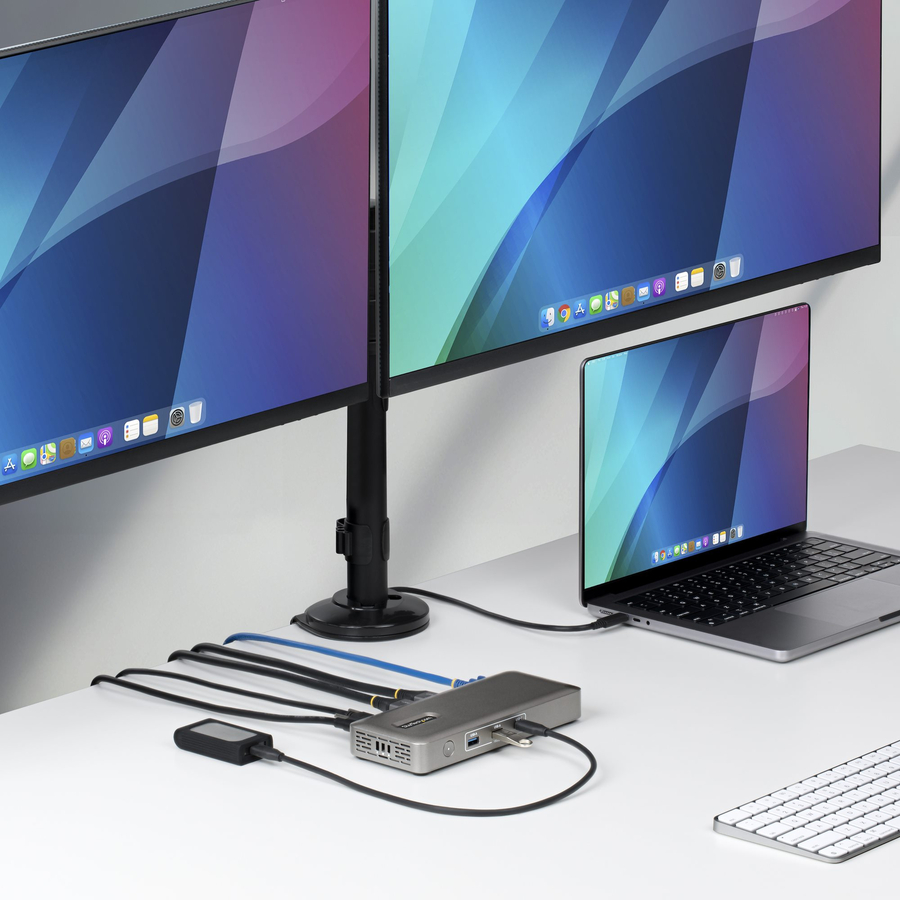

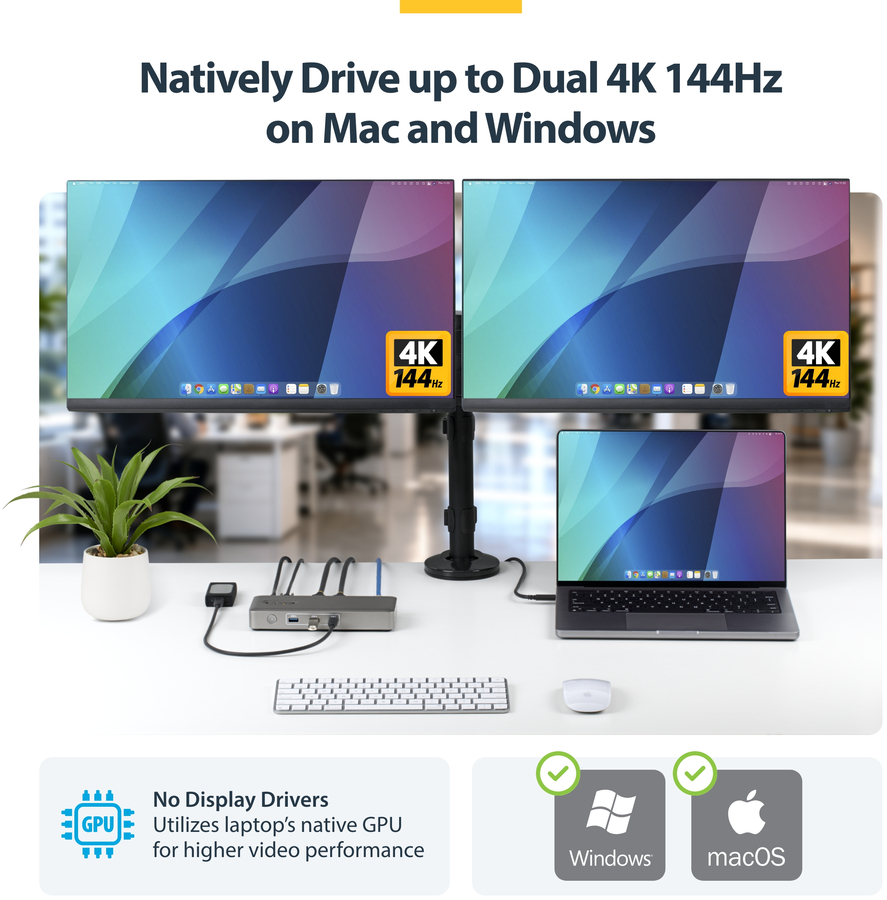

Dual 4K on Mac Without Compromise
Unlock true driverless dual 4K video on macOS without investing in costly Thunderbolt 4 docks. Deliver consistent multi-display performance across teams while maintaining the flexibility IT needs for modern deployments.

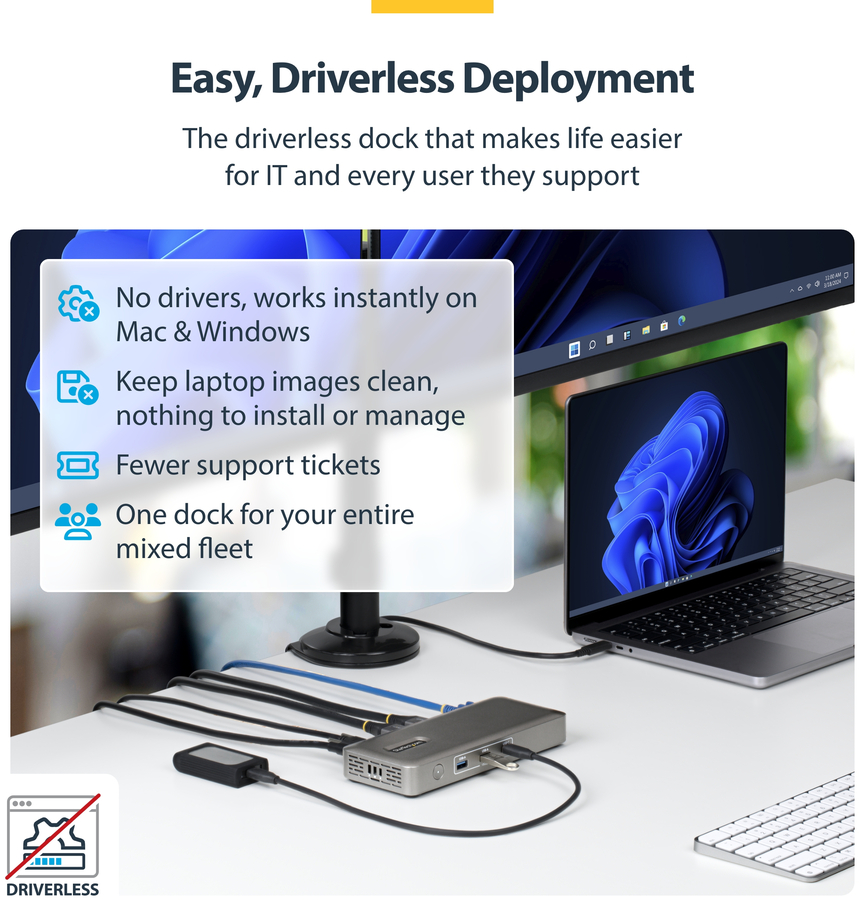

Built for Fast, Low-Touch Deployments
Reduce setup time and avoid OS-specific workarounds with plug-and-play performance. This dock helps minimize help desk tickets and ensures predictable behavior in hot-desking and shared workspace environments.
Performance That Scales With Your Workspace

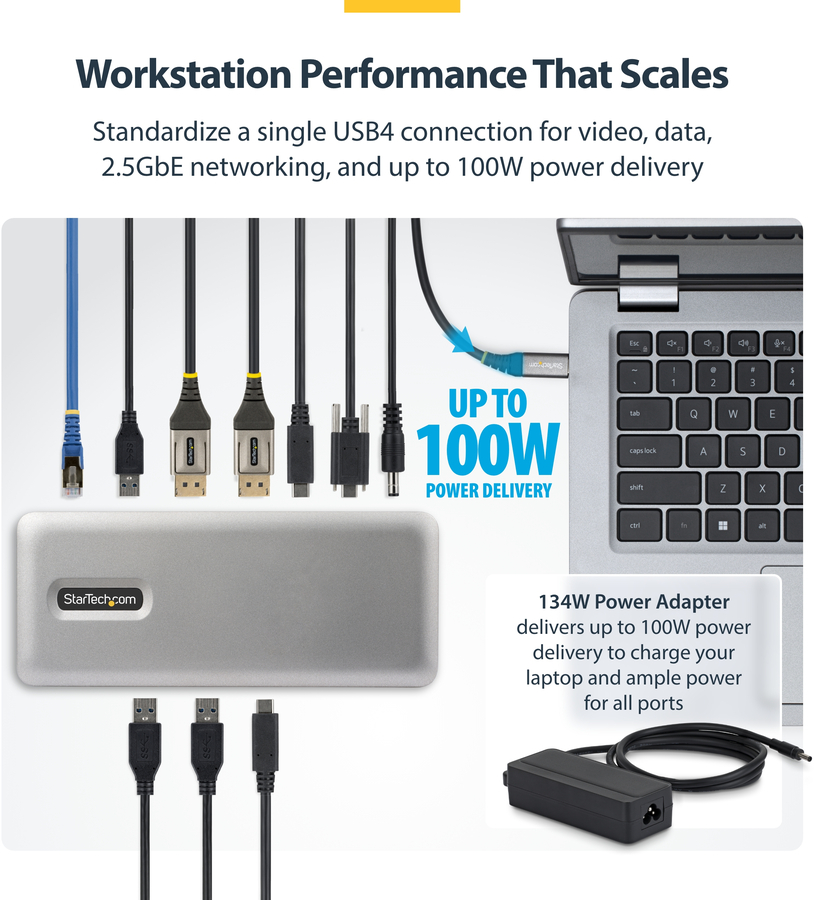

Support demanding workflows with dual 4K 144Hz or single 8K 60Hz video, 2.5GbE network speeds, and 100W laptop charging through one connection. Enable advanced IT features like PXE Boot and Wake-on-LAN for easier remote management.
Designed for Real-World IT Environments

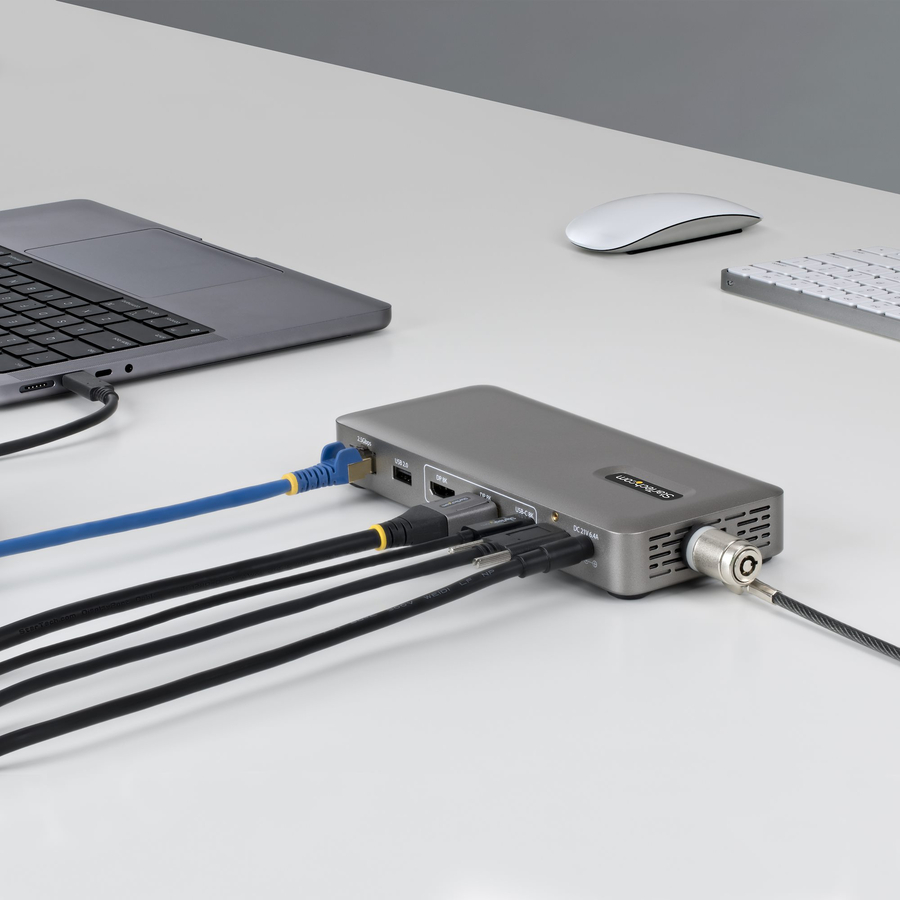

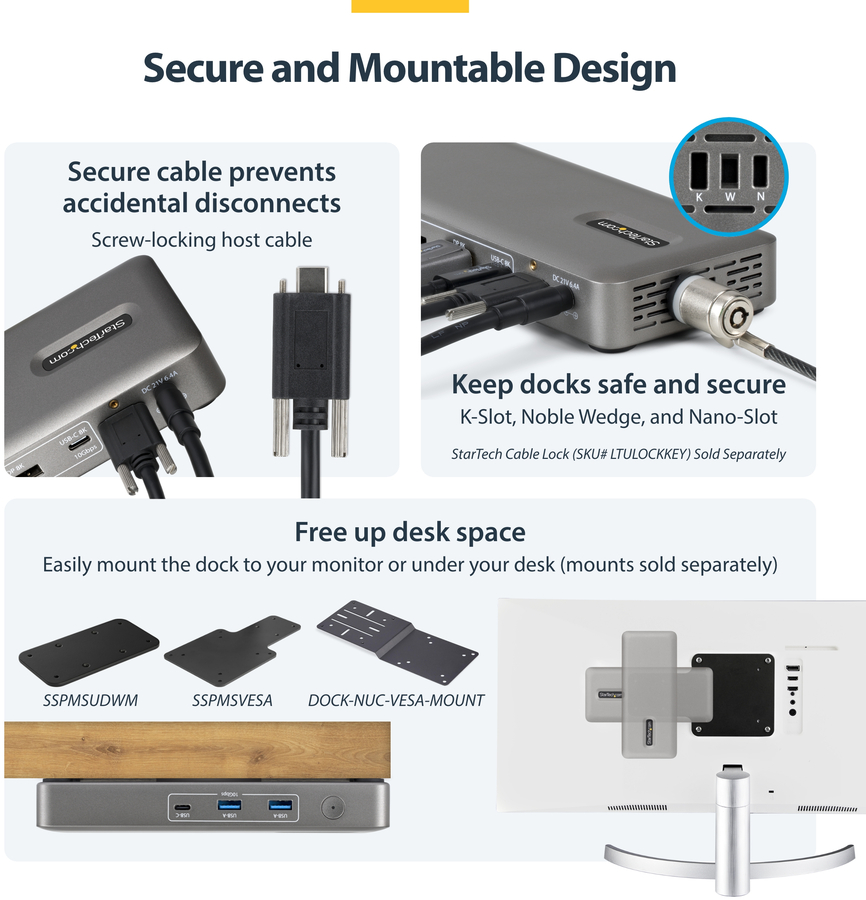

Integrated lock slots and VESA or surface mounting options deter theft and tampering. The included locking USB-C host cable prevents accidental disconnections, or lost and missing cables in hot-desk and meeting spaces. Keep critical systems connected, organized, and protected in high-traffic environments. This hub also features a housing made from 75% post-consumer recycled (PCR) plastic, and the product ships in FSC Mix packaging made from responsibly sourced materials to help align your IT infrastructure with your organization's sustainability goals. |
|

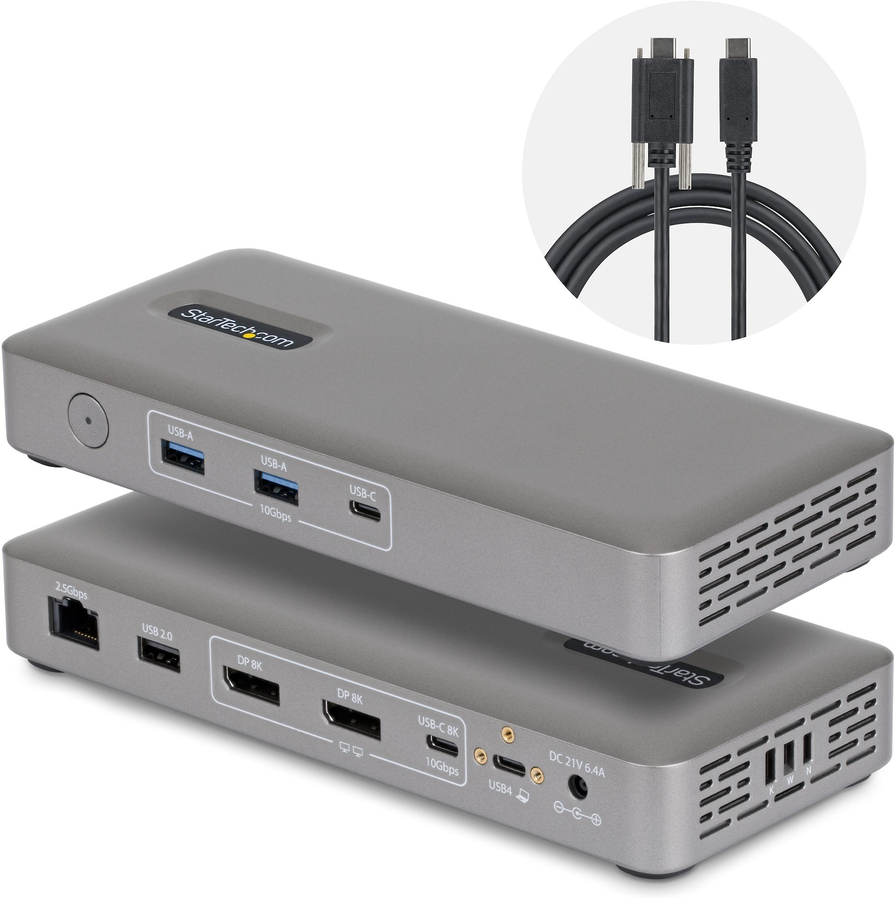

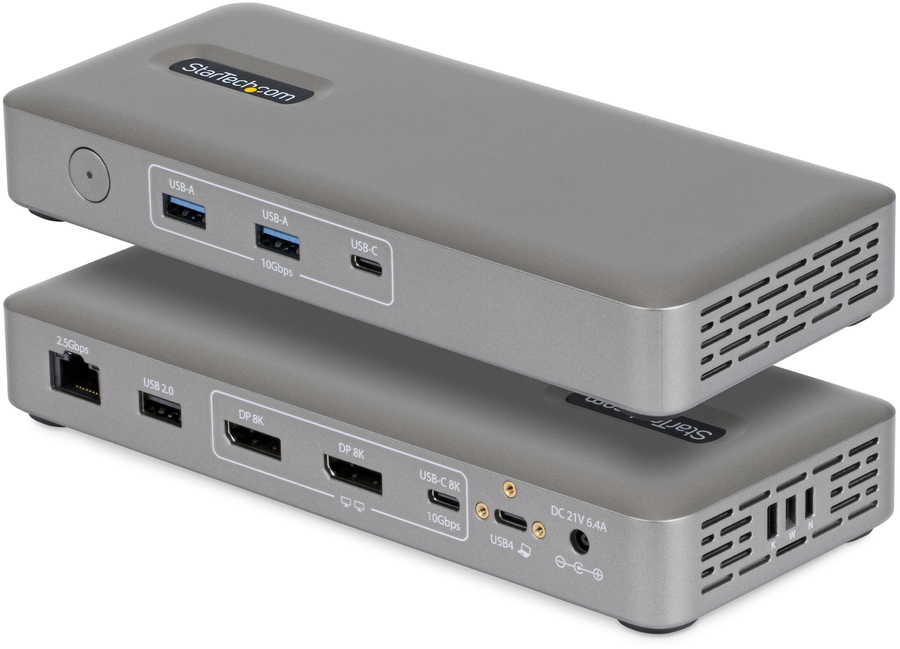

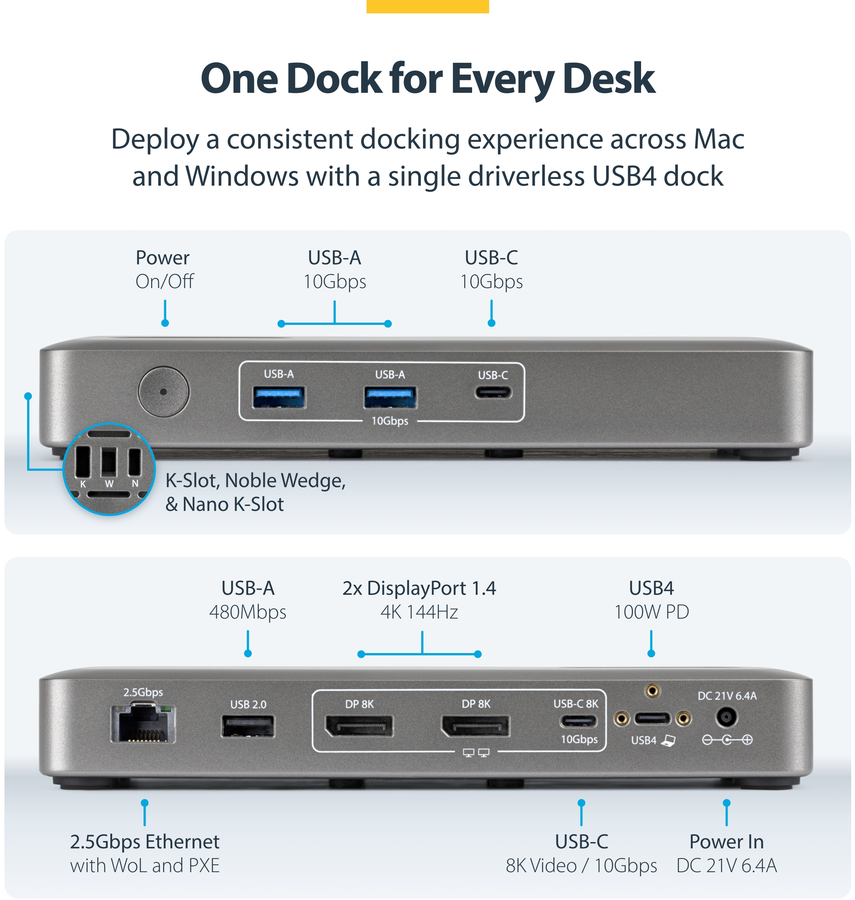

Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
USB4 |
|
USB 2.0 ports quantity |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
HDMI ports quantity |
0 |
|
Microphone in |
No |
|
Headphone outputs |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
|
DisplayPorts quantity |
2 |
|
DC-in jack |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
Wake-on-LAN ready |
Yes |
|
Full duplex |
Yes |
|
Performance |
|
Product colour |
Grey |
|
Card reader integrated |
No |
|
Data transfer rate |
10 Gbit/s |
|
HD type |
8K Ultra HD |
|
Maximum digital resolution |
7680 x 4320 pixels |
|
Maximum refresh rate |
240 Hz |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington, Nano, Noble, Wedge |
|
On/off switch |
Yes |
|
LED indicators |
Power |
|
UASP support |
Yes |
|
Housing material |
Plastic |
|
Mean time between failures (MTBF) |
45663 h |
|
Power |
|
Power source type |
DC |
|
AC input voltage |
100 - 240 V |
|
Input current |
2.5 A |
|
Output voltage |
21 V |
|
Output current |
6.4 A |
|
Power consumption (typical) |
134.4 W |
|
Compatible power plug types |
US |
|
USB cable length |
1 m |
|
Software |
|
Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
|
Mac operating systems supported |
Mac OS 26 Tahoe, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
|
Linux operating systems supported |
Ubuntu 24.04 LTS |
|
Other operating systems supported |
ChromeOS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Weight & dimensions |
|
Width |
80 mm |
|
Depth |
190 mm |
|
Height |
28.5 mm |
|
Weight |
300 g |
|
Packaging data |
|
Package width |
275 mm |
|
Package depth |
123 mm |
|
Package height |
87 mm |
|
Package weight |
1.1 kg |
|

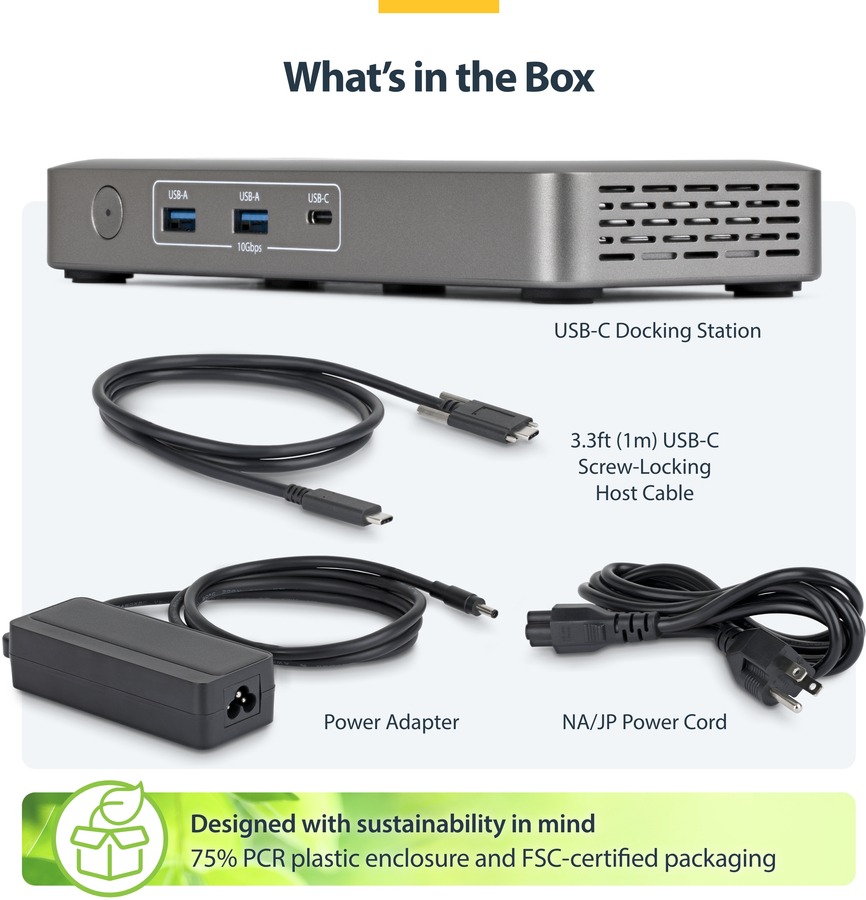

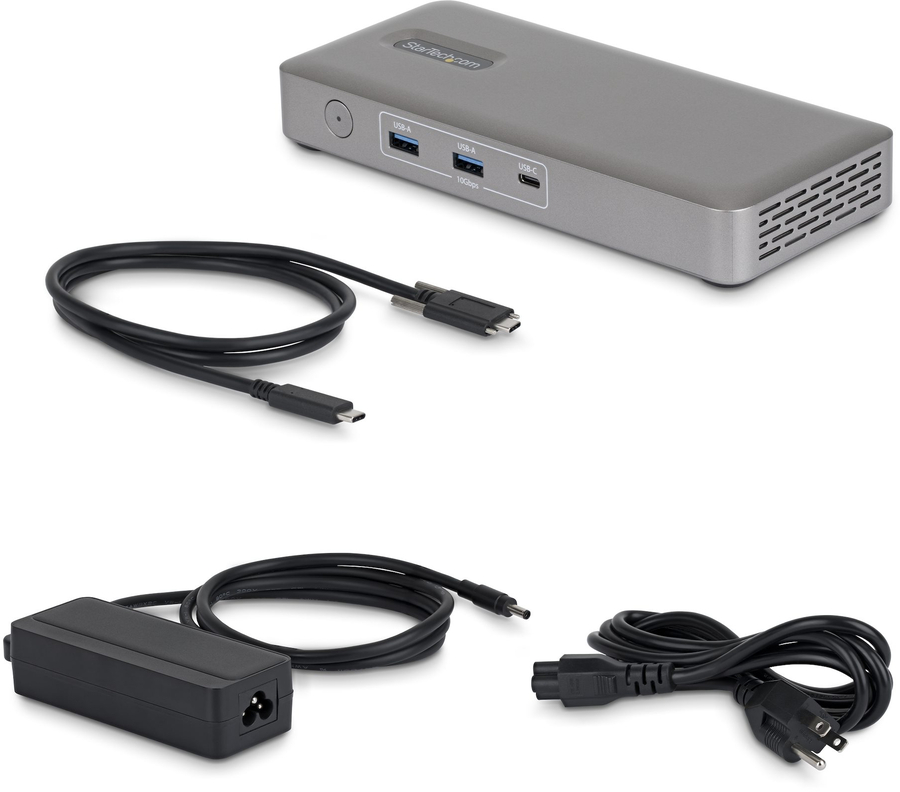

Packaging content |
|
Cables included |
USB |
|
AC adapter included |
Yes |
|
Manual |
Yes |
|
Technical details |
|
Compliance certificates |
Federal Communications Commission (FCC), RoHS |
|
Logistics data |
|
Products per master (outer) case |
5 pc(s) |
|
Master (outer) case width |
500 mm |
|
Master (outer) case length |
320 mm |
|
Master (outer) case height |
210 mm |
|
Other features |
|
Chipset |
Intel - JHL8140, Infineon - CYPD5235-96BZXI, Parade - FL5500, Realtek - RTL8156B |
