General Information |
|
Summary |
Unlock UHBR20 Bandwidth for Next-Gen Resolutions, High Refresh Rates, and Uncompressed 10K/8K 60Hz video

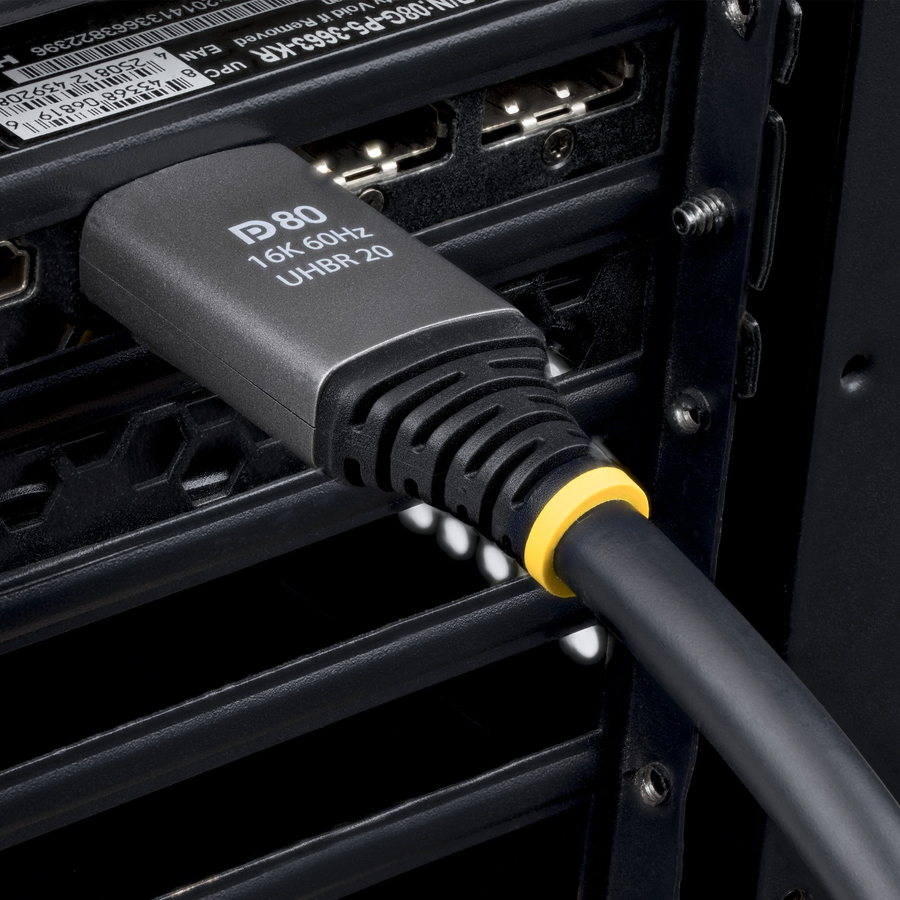

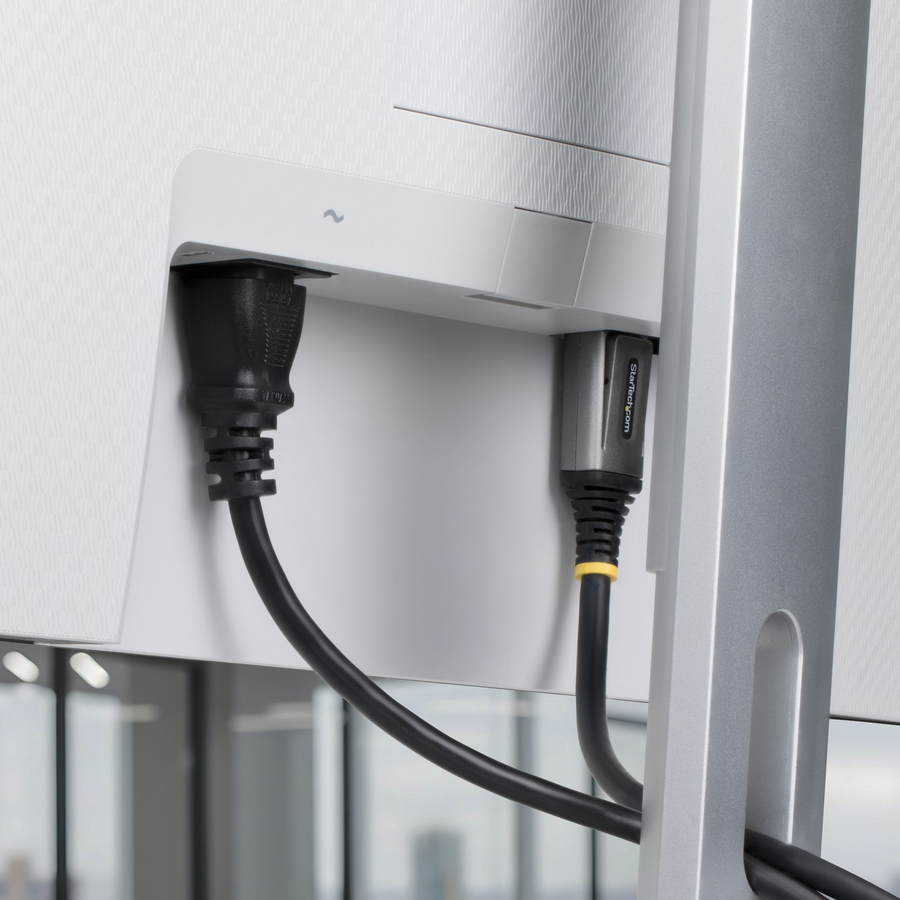

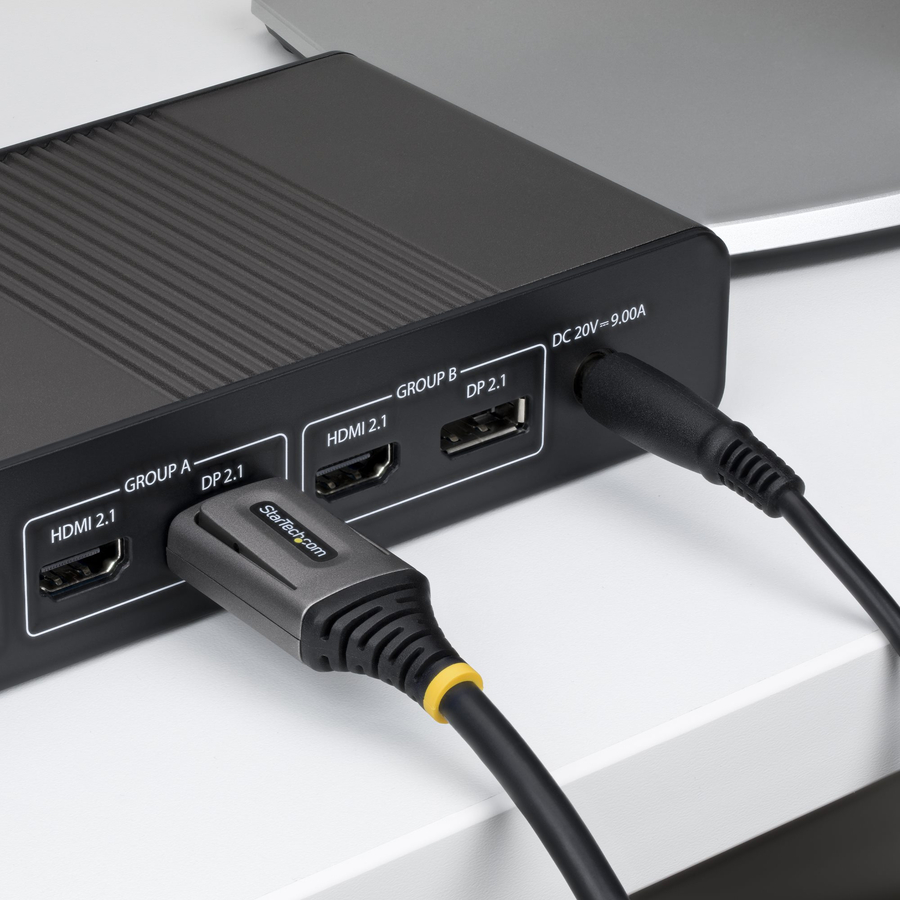

Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP80 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design

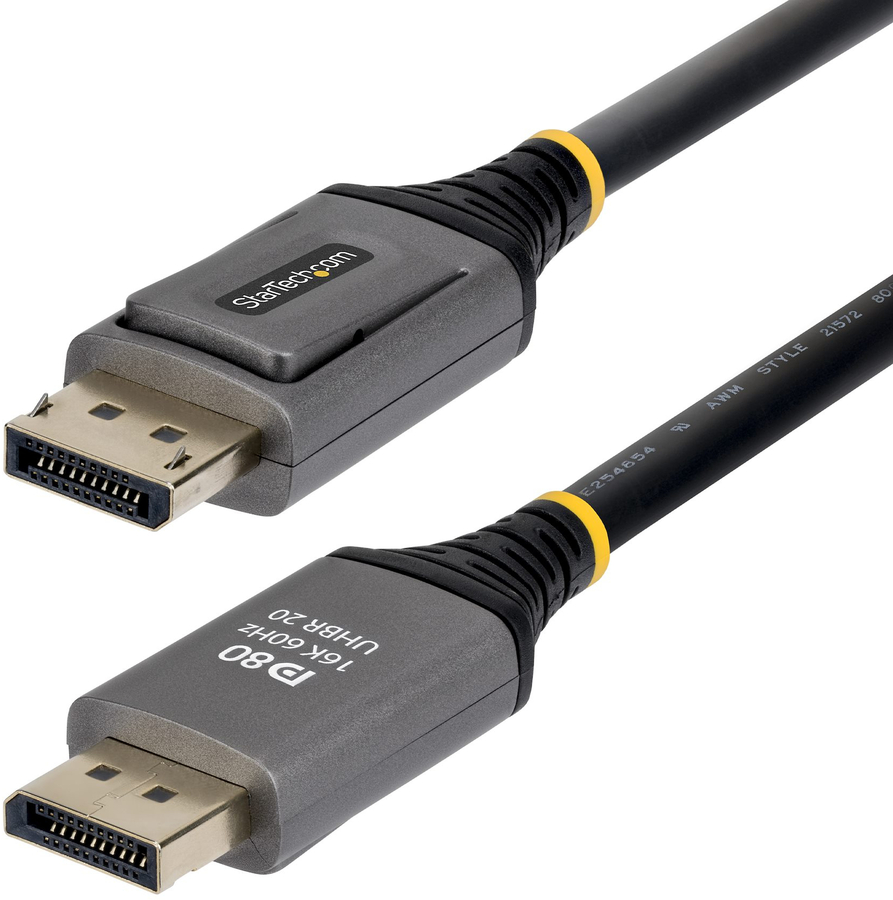

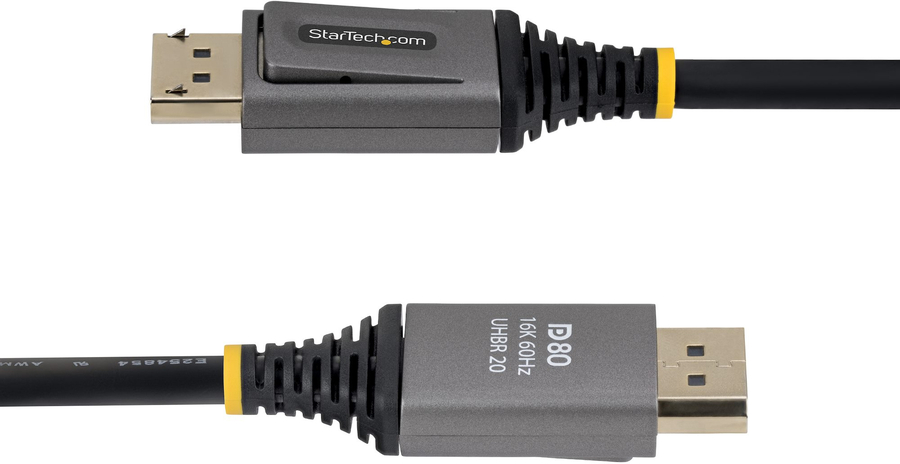

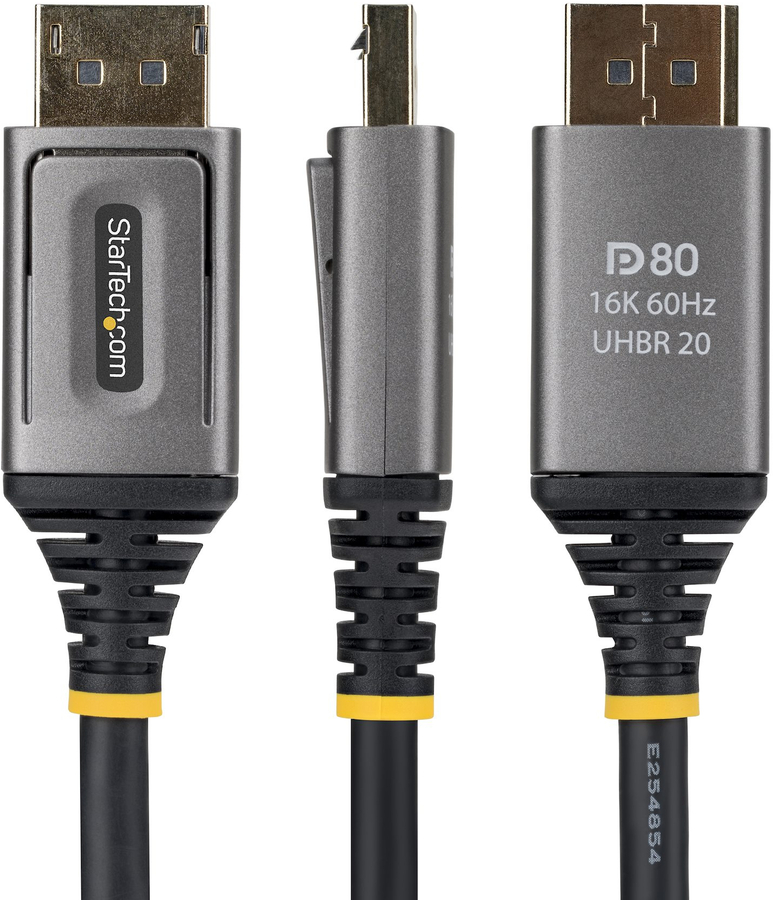

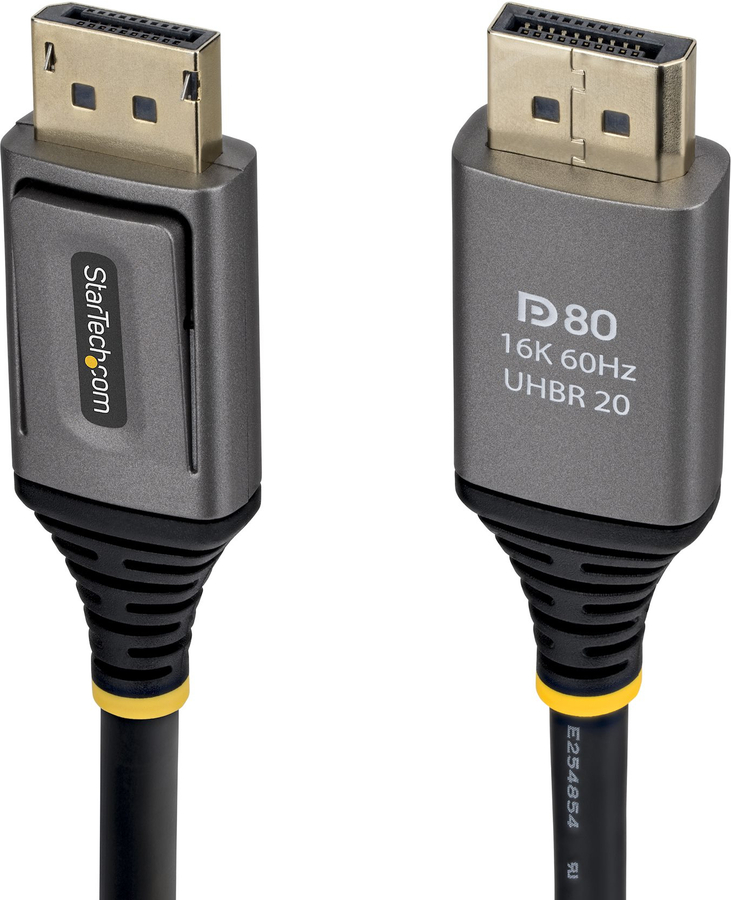

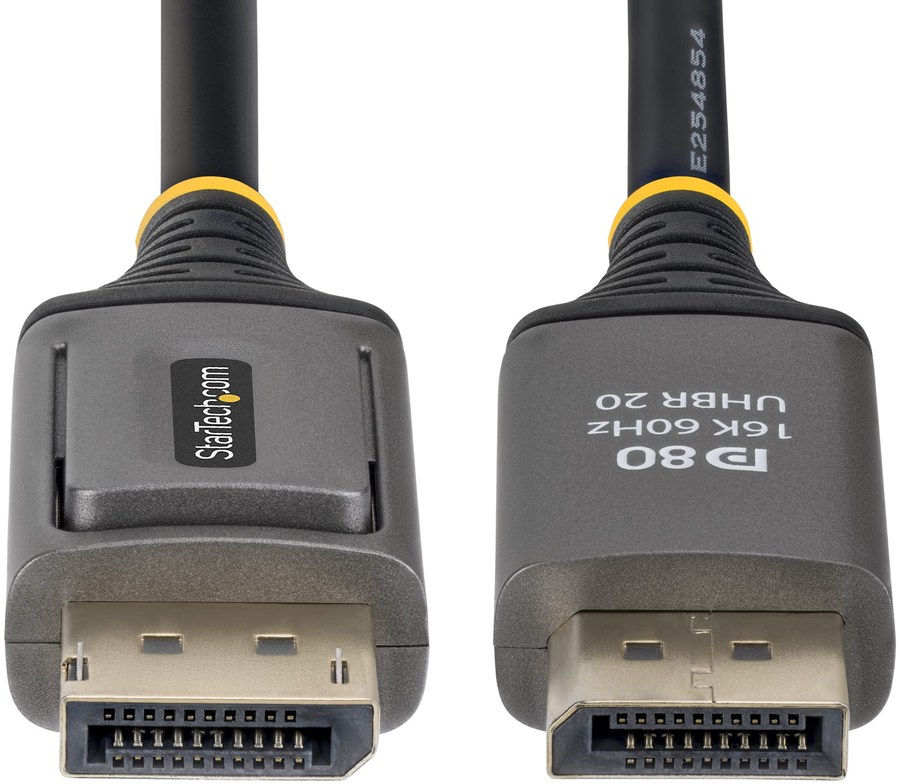

This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP80 DisplayPort cable supports the following DP 2.1 features:
• UHBR20 supports high refresh rates including uncompressed 5K 144Hz and 4K 240Hz
• DSC-compressed video up to 16K 60Hz / 10K 144Hz / 8K 240Hz 4:4:4 8-bit
• Uncompressed video resolutions up to 10K 60Hz / 8K 60Hz / 4K 240Hz 4:4:4 8-bit
• High-Bandwidth Digital Content Protection (HDCP) 2.3 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance. |
|
Features |
|
Cable length |
1.5 m |
|
Connector 1 |
DisplayPort |
|
Connector 2 |
DisplayPort |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Maximum resolution |
15360 x 8640 pixels |
|
Product colour |
Black |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Connector contacts plating |
Nickel |
|
DisplayPort version |
2.1 |
|
Supported graphics resolutions |
10240 x 4320, 7680 x 4320, 5120 x 2880, 4096 x 2160, 15360 x 8640 |
|
Maximum refresh rate |
240 Hz |
|
HDCP |
Yes |
|
HDCP version |
2.3 |
|
Display Stream Compression (DSC) |
Yes |
|
Display Stream Compression (DSC) version |
1.2a |
|
Cable shielding |
Aluminum mylar foil |
|
Jacket material |
Thermoplastic elastomer (TPE) |
|
Connector housing material |
Acrylonitrile butadiene styrene (ABS) |
|
High Dynamic Range (HDR) supported |
Yes |
|
Data transfer rate |
80 Gbit/s |
|
Colour sampling |
4:4:4 |
|
Cable type |
Round cable |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 85% |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Weight & dimensions |
|
Cable diameter |
8.2 mm |
|
Weight |
171 g |
|
Packaging data |
|
Package width |
172 mm |
|
Package depth |
202 mm |
|
Package height |
38 mm |
|
Package weight |
236 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Master (outer) case width |
540 mm |
|
Master (outer) case length |
400 mm |
|
Master (outer) case height |
230 mm |
|
Products per master (outer) case |
30 pc(s) |
