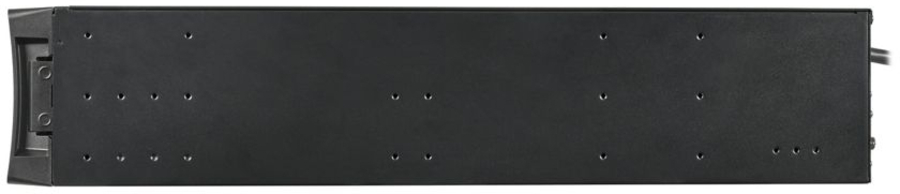

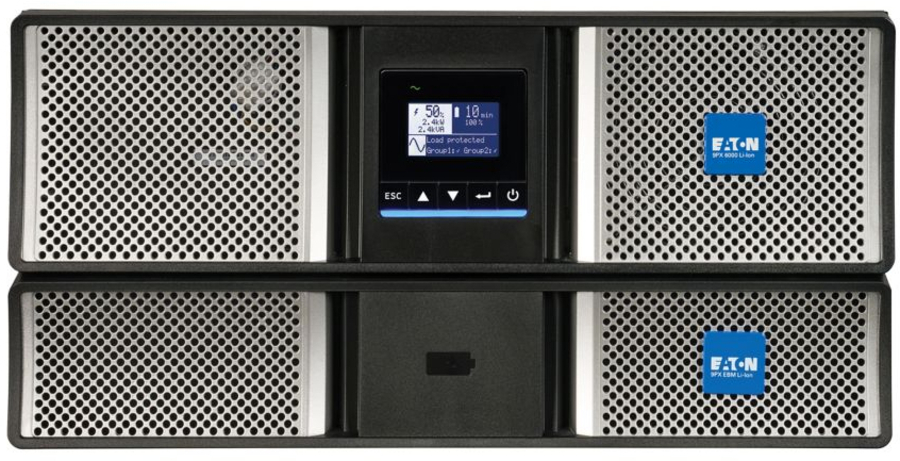

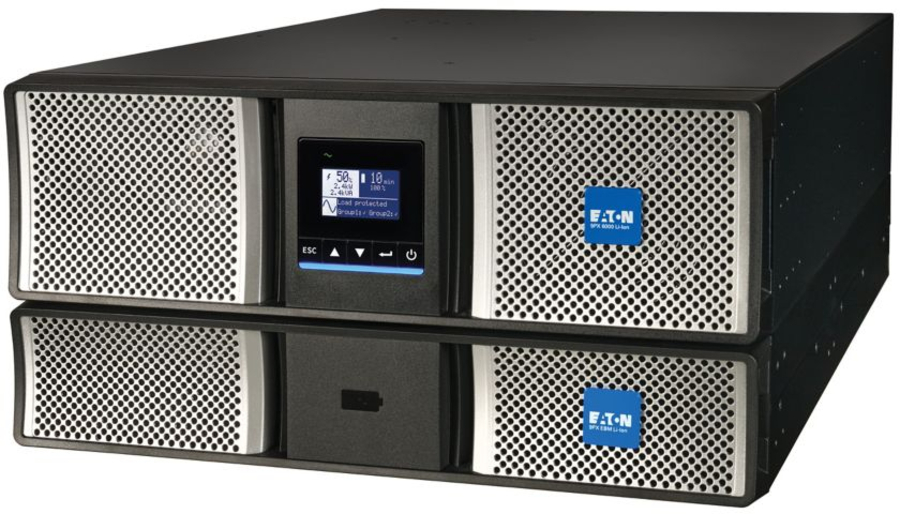

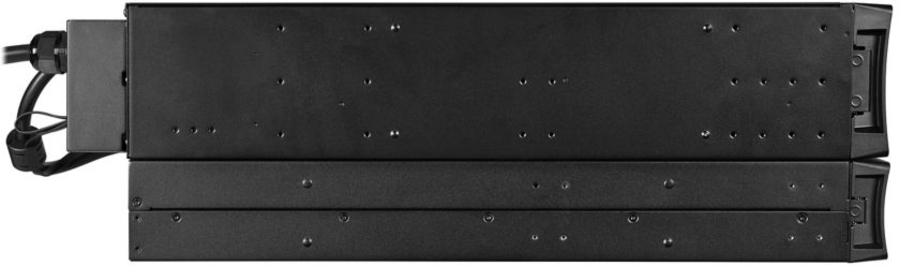

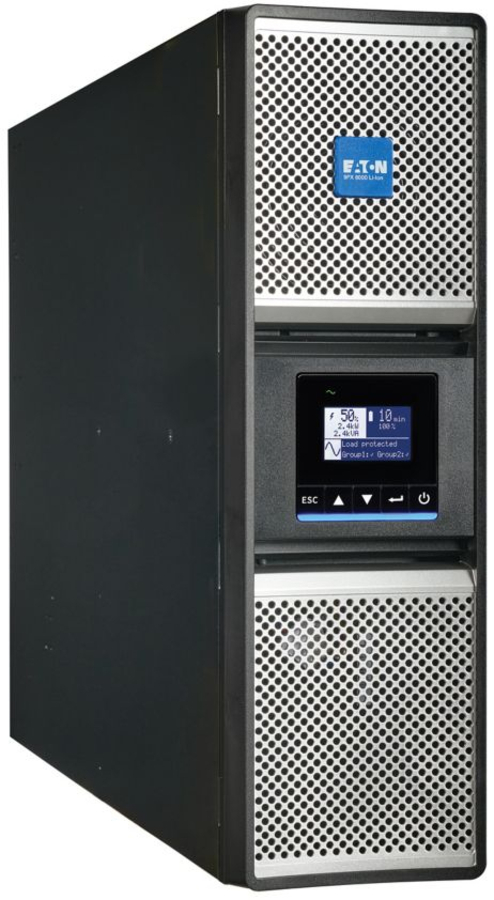

Eaton 9PX Gen 2 6000VA 5400-Watt Rack/Tower UPS

Home :: Power Equipment :: Surge Protection & UPS ::

Price: $12423.00

Manufacturer: Eaton

6 kVA, 5400W, 200-240V, 50/60Hz, 1155 BTU/h, 43 dB, Li-Ion

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
60548717	9PX6KG2-L	786689972769	Active

Details

General Information
Summary	Eaton 9PX G2 UPS Featuring advanced technology upgrades and customer-centric feature enhancements, Eaton’s 9PX G2 online double-conversion UPS builds on the highly successful 9PX platform to create a best-in-class power management solution. Industry-leading hardware technology and Brightlayer software allow end users and service providers to deploy distributed edge applications with confidence, simplify fleet management and proactively monitor all critical equipment More power in less space Using wide-bandgap (WBG) technology, the 9PX G2 UPS maximizes usable output power and allows you to support more devices. Rack size is also reduced for several models. 11 kVA models offer full 11 kW output in only 4U! Enhanced battery management Lithium-ion (LiFePO4) batteries offer longer lifespan (8-10 years), longer runtime, faster recharge and lighter weight compared to VRLA. Eaton’s battery management system (BMS) monitors lithium-ion battery health and proactively alerts which UPS or EBM battery pack requires replacement soon. For VRLA models, Eaton’s new ABM+ technology offers predictive battery replacement analytics, allowing the UPS to proactively alert the user of battery health and remaining service life based on actual usage and conditions. ABM+ prevents unexpected downtime caused by waiting too long and unnecessary expense caused by replacing too soon. Best-in-class efficiency With up to 97% online efficiency, the 9PX G2 is the most efficient UPS in its class, reducing energy costs and TCO. All models are certified to the latest ENERGY STAR standards. Metered load segments help optimize energy use Maximum power reliability With true online double conversion, up to 10 lithium-ion or 12 VRLA extended battery modules (EBMs) for increased runtime, hot-swappable batteries, internal bypass and optional 0U maintenance bypass, the 9PX G2 UPS is perfect for preventing costly downtime of critical equipment. High-visibility control panel A high-contrast LCD that tilts up to 45 degrees for optimal viewing makes local management easy. The LCD displays key data like load, efficiency, runtime and alarms. A large color LED status bar below the LCD helps you diagnose the UPS from a distance, even in dark and crowded data centers Simplified fleet management Monitor and manage your UPS fleet remotely to maintain uptime and improve operational efficiency. For smaller environments, you can connect using a web browser and receive email alerts. For larger deployments in multiple locations, the 9PX G2 UPS integrates smoothly via SNMP with digital solutions from our Brightlayer portfolio. Certified cybersecurity The included cybersecure network management card (NETWORK-M3) complies with UL and IEC cybersecurity standards and provides zero-trust architecture, zero-touch provisioning and a user-configurable firewall. Remote firmware upgrade capability keeps your UPS fleet updated with the latest features and security Ready for virtualization, HCI and AI Brightlayer software enables intelligent coordination with virtualized, hyperconverged and generative AI infrastructures, including complex orchestrations during blackouts and other power events to extend runtime and preserve data.
Features
UPS topology	Double-conversion (Online)
Output power capacity	6 kVA
Output power	5400 W
Waveform	Sine
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Output voltage regulation	±1%
Response time	0 ms
Heat dissipation	1155 BTU/h
Efficiency	99%
Efficiency (On-line mode)	96.5%
Input power factor	0.99
Output voltage Total Harmonic Distortion (THD)	1%
Input current Total Harmonic Distortion (THD)	5%
Noise level	43 dB
Surge protection	Yes

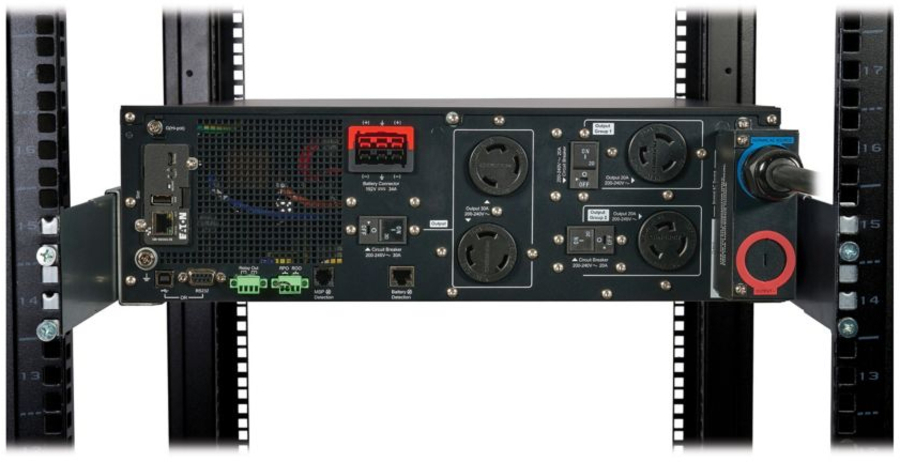

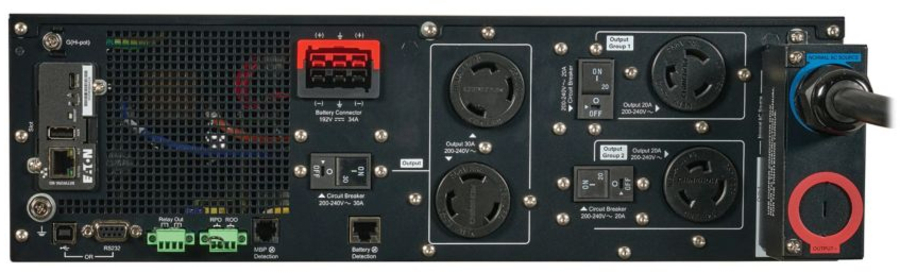

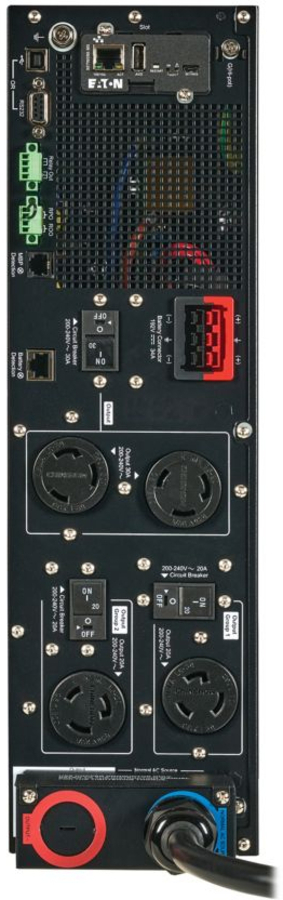

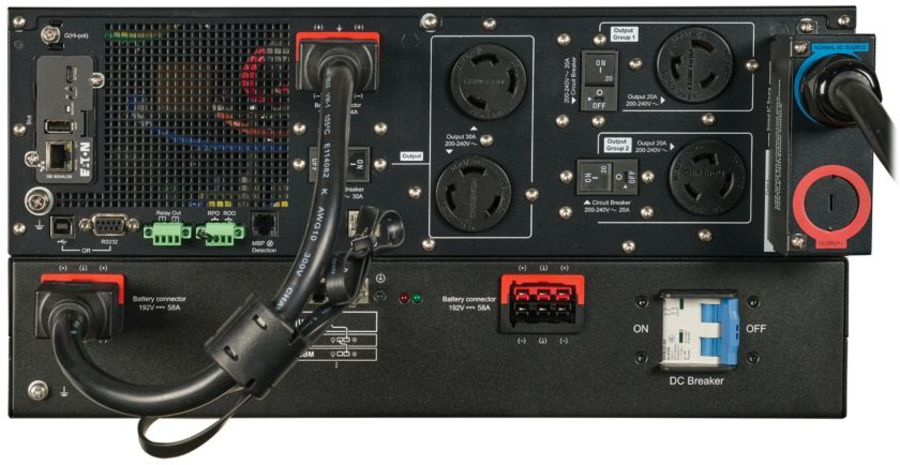

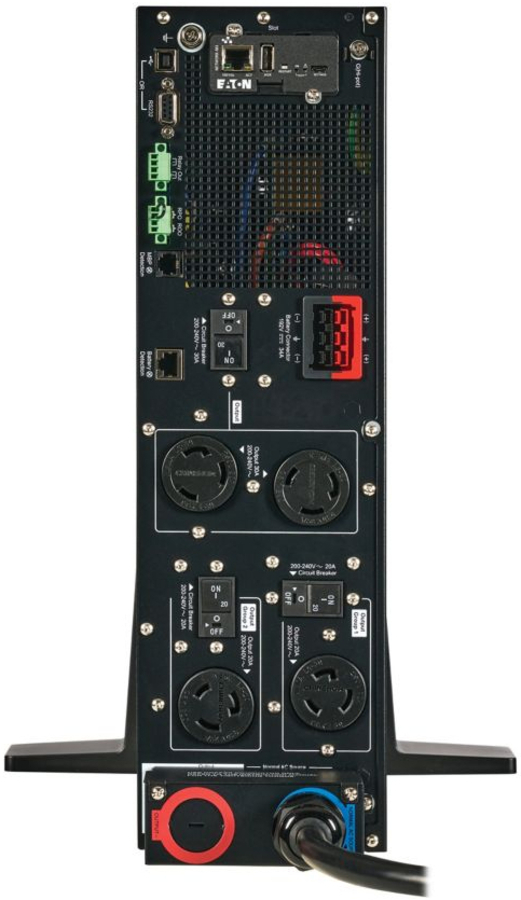

Ports & interfaces
AC outlet types	NEMA L6-30R, NEMA L6-20R

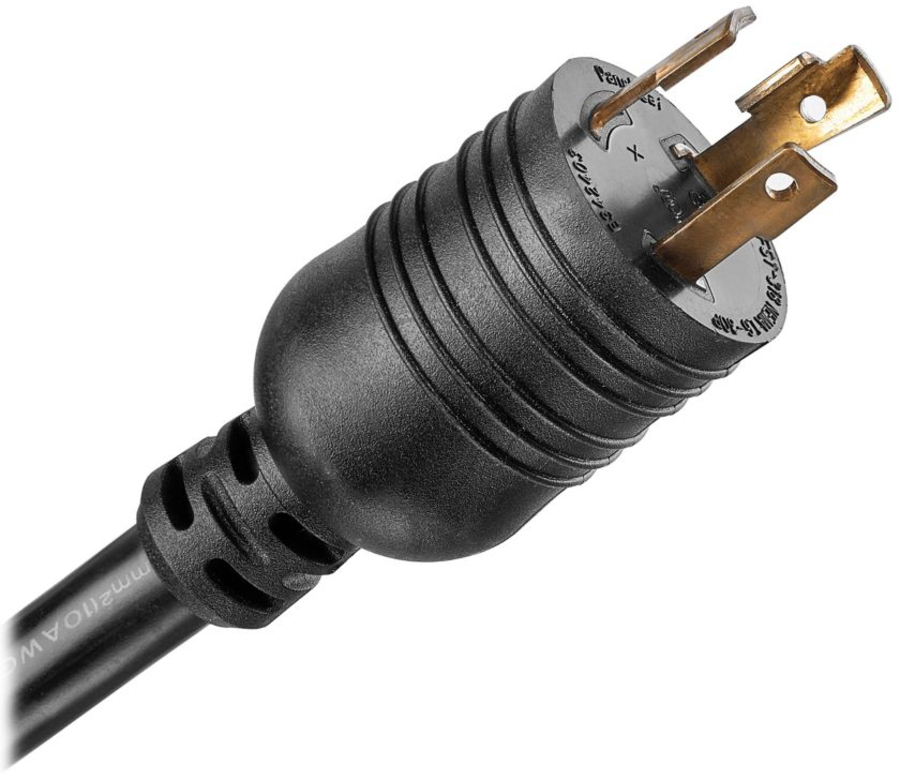

Power plug	NEMA L6-30P
AC outlets quantity	4 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
USB port type	USB Type-B
Serial interface type	RS-232
Serial ports quantity	1
RS-232 ports	1
Network card slot	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	6 Ah
Battery voltage	192 V
Typical backup time at full load	7.2 min
Typical backup time at half load	14.4 min
Hot-swap battery	Yes
Cold start	Yes
Design

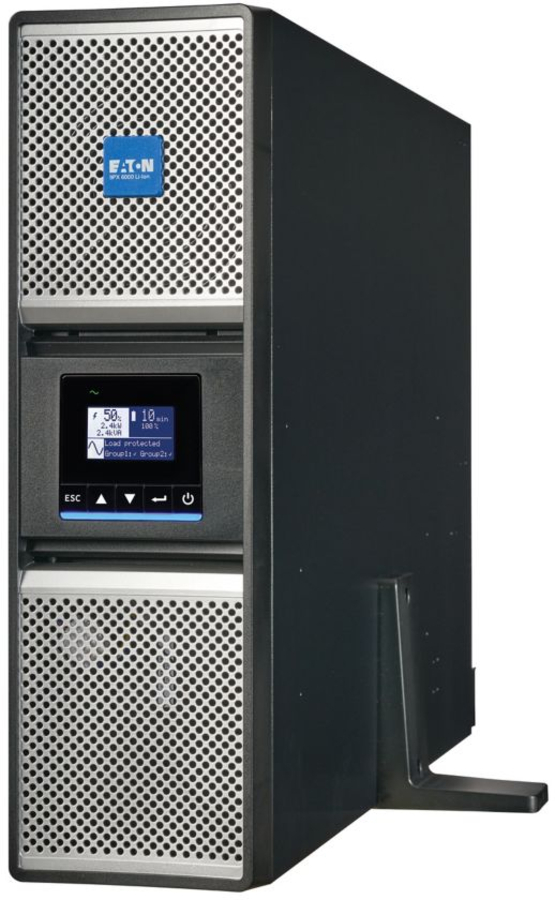

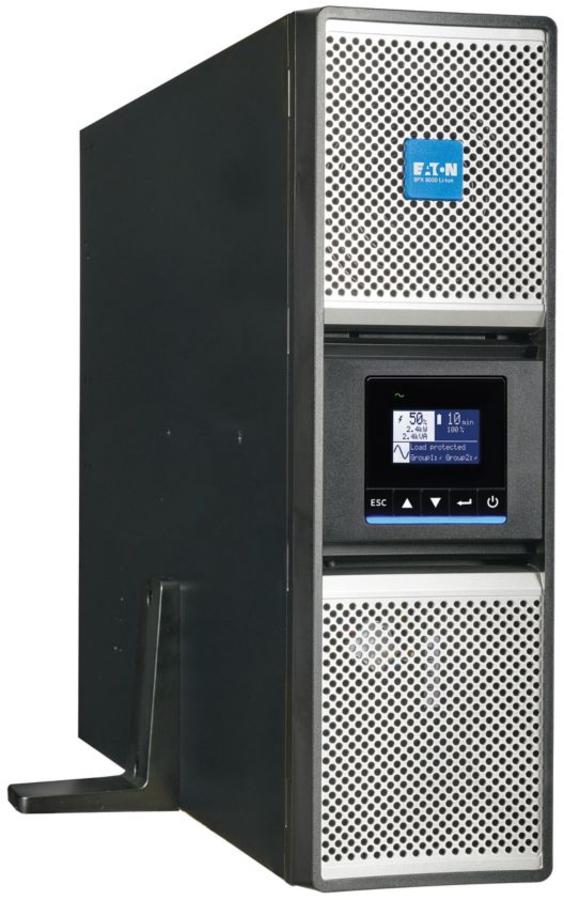

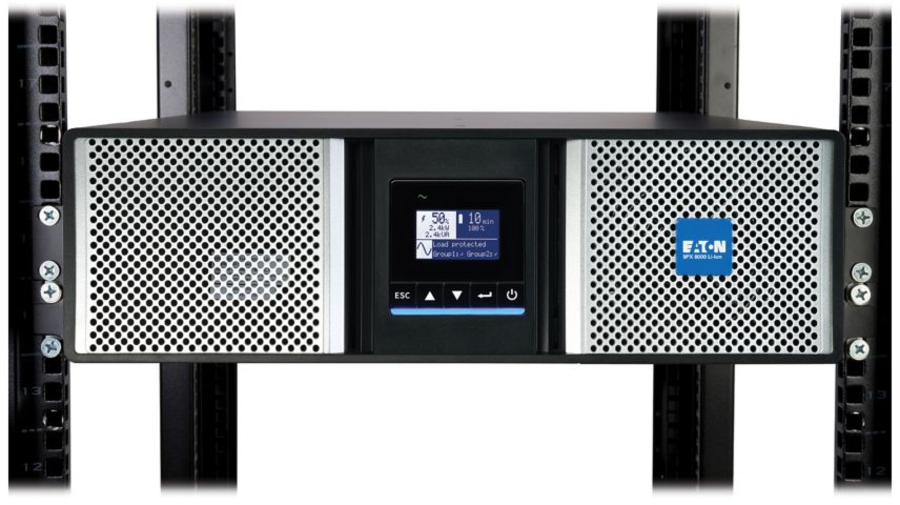

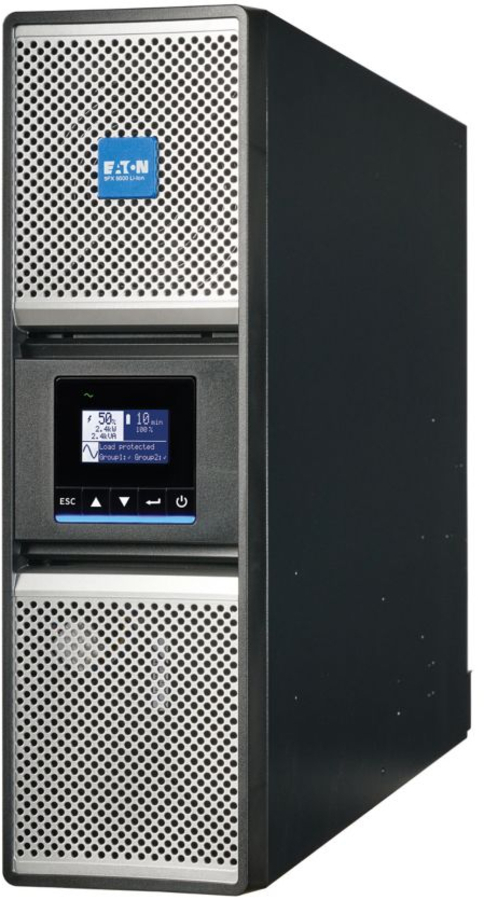

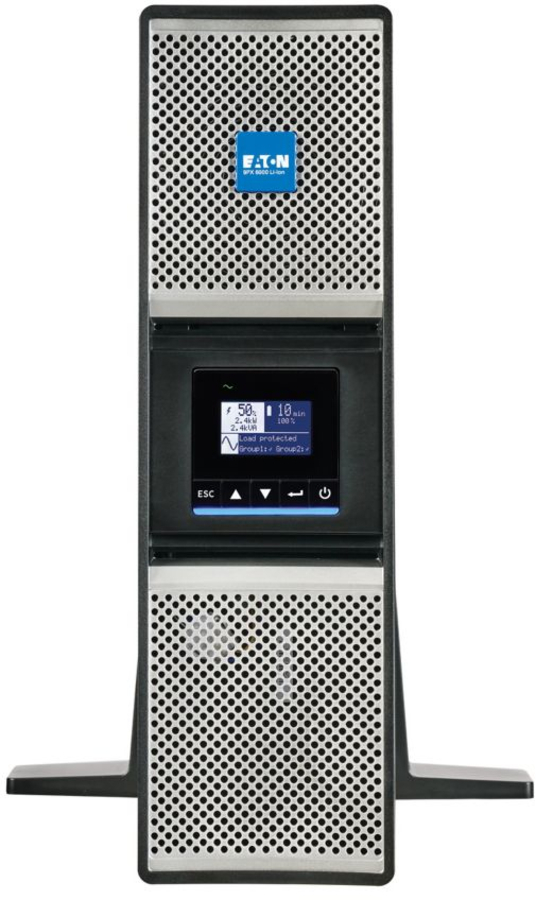

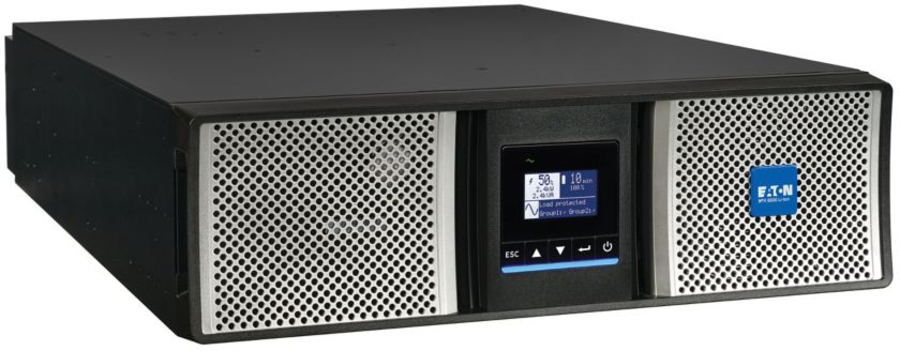

Form factor	Rackmount/Tower
Product colour	Black, Silver
Rack capacity	3U
Cable length	3 m
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Certificates
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE, cULus, Norma Oficial Mexicana (NOM)
Packaging content
Rack mount kit	Yes
Cables included	RS-232, USB cable
Management card included	Yes
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	439.4 mm
Depth	685.8 mm
Height	129.5 mm
Weight	35.2 kg
