General Information |
|
Summary |
Enterprisegrade 48port, Layer 3 Etherlighting PoE+++ switch with Stacking support and highcapacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
48 |
|
Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
|
2.5G Ethernet (copper) ports quantity |
32 |
|
10G Ethernet (copper) ports quantity |
16 |
|
Console port |
RJ-45 |
|
QSFP28 ports quantity |
2 |
|
SFP28 ports quantity |
4 |
|
Power connector |
AC-in jack |
|
Network |
|
Networking standards |
IEEE 802.1x |
|
10G support |
Yes |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Broadcast storm control |
Yes |
|
Rate limiting |
Yes |
|
Ethernet LAN data rates |
10,100,1000,2500,5000,10000 Mbit/s |
|
IPv4 routes |
512 |
|
VLAN support |
Yes |
|
Virtual LAN features |
Voice VLAN |
|
Number of VLANs |
1000 |
|
Data transmission |
|
MAC address table |
32000 entries |
|
Switching capacity |
680 Gbit/s |
|
Throughput |
340 Gbit/s |
|
Forwarding rate |
506 Mpps |
|
Static route |
Yes |
|
Jumbo frames support |
Yes |
|
Packet buffer memory |
8 MB |
|
Security |
|
DHCP features |
DHCP guarding, DHCP relay, DHCP snooping, DHCP server |
|
Access Control List (ACL) IPv4 entries |
256 |
|
IGMP snooping |
Yes |
|
Loop protection |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|

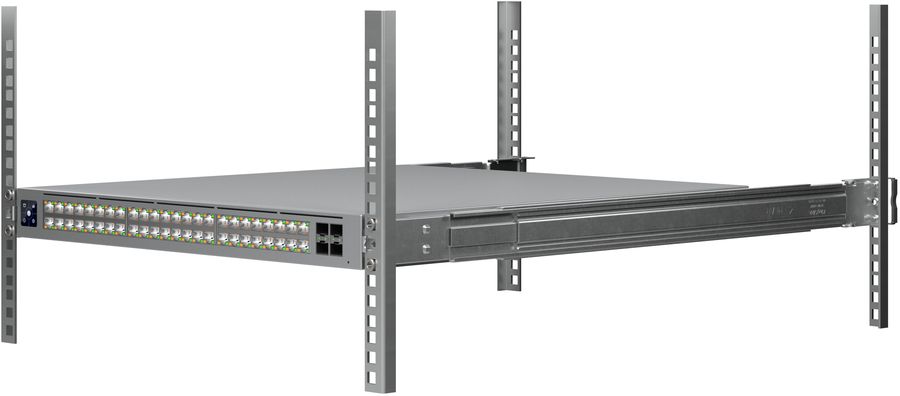

Rack mounting |
Yes |
|
Form factor |
1U |
|
Product colour |
Grey |
|
Housing material |
SGCC |
|
Reset button |
Yes |
|
LED indicators |
System, Link, Status |
|
Redundant fans support |
Yes |
|
Display type |
LCM |
|
Number of fans |
4 fan(s) |
|
Stacking |
Yes |
|
Power |
|
Power source |
AC |
|
Power supply included |
Yes |
|
Redundant power supply (RPS) support |
Yes |
|
Number of power supply units |
2 |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Power consumption (max) |
2400 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) type supported |
PoE+, PoE++ (4PPoE), PoE+++ |
|
Power over Ethernet (PoE+++) ports quantity |
48 |
|
Total Power over Ethernet (PoE) budget |
2150 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 40 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Heat dissipation |
853 BTU/h |
|
Weight & dimensions |
|
Width |
442 mm |
|
Depth |
496 mm |
|
Height |
44 mm |
|
Weight |
9.5 kg |
|
Packaging content |
|
Cables included |
Power |
|
Rack mount kit |
Yes |
|
Packaging data |
|
Rack rails |
Yes |
|
Mounting brackets included |
Yes |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
