General Information |
|
Summary |

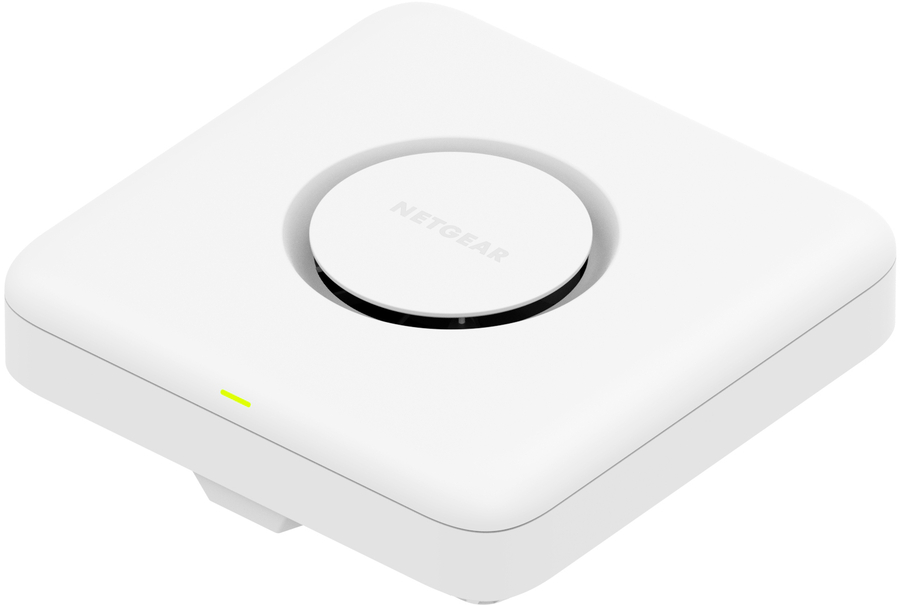

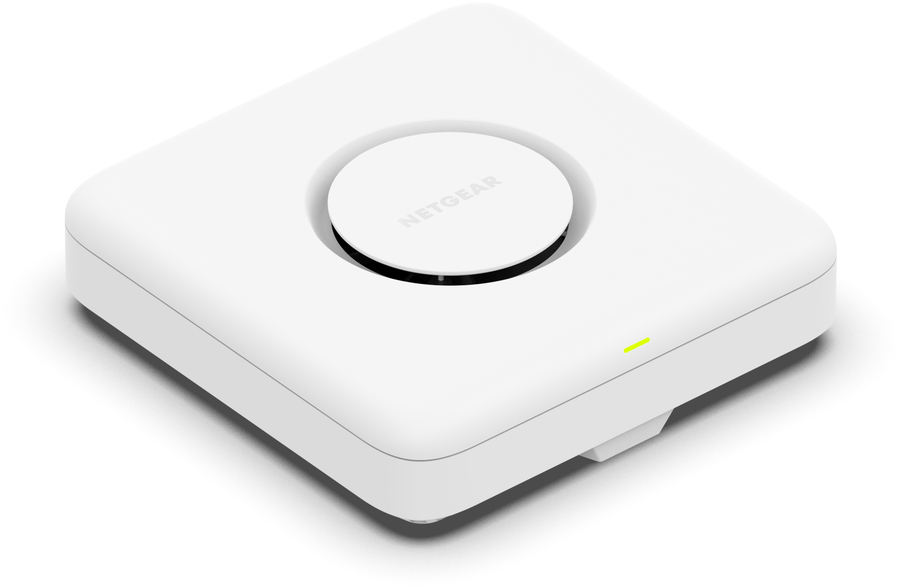

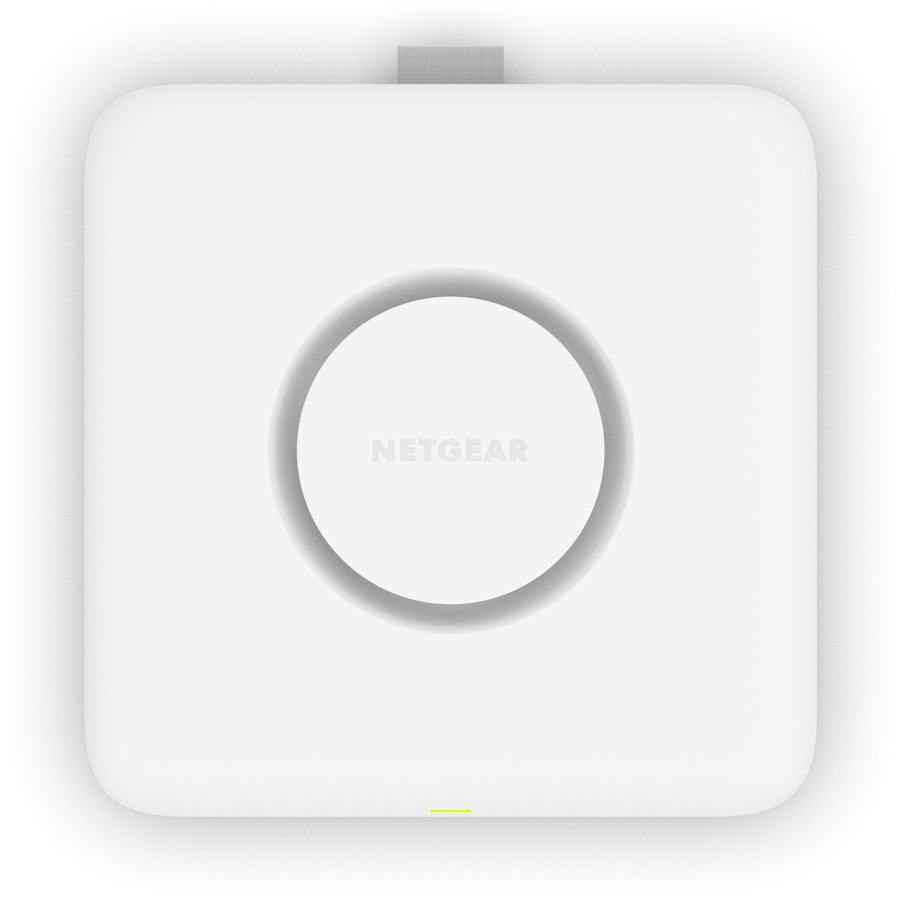

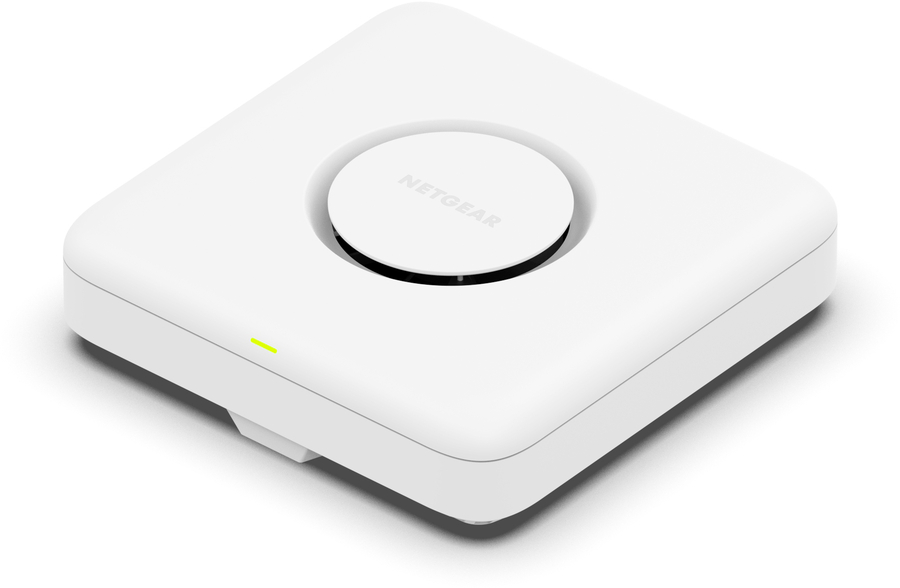

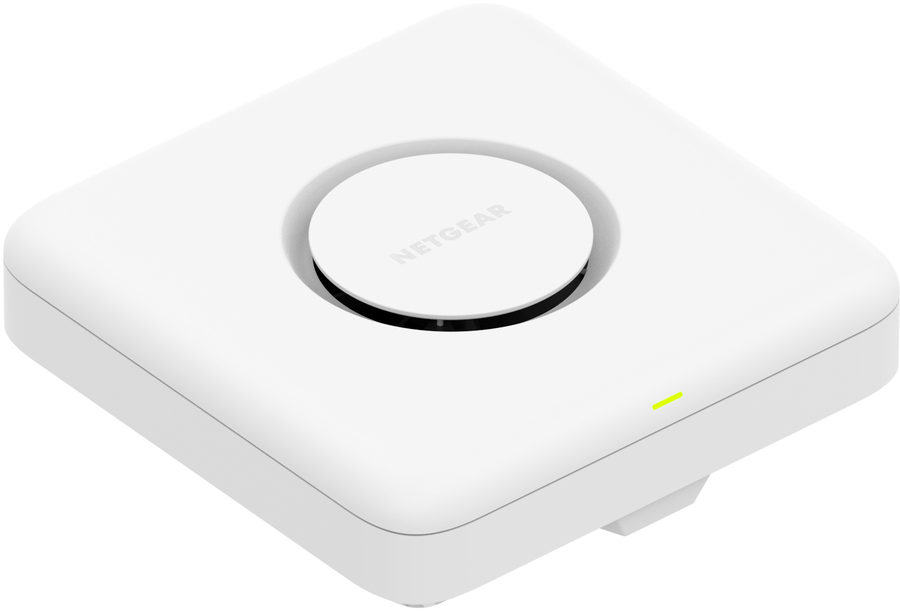

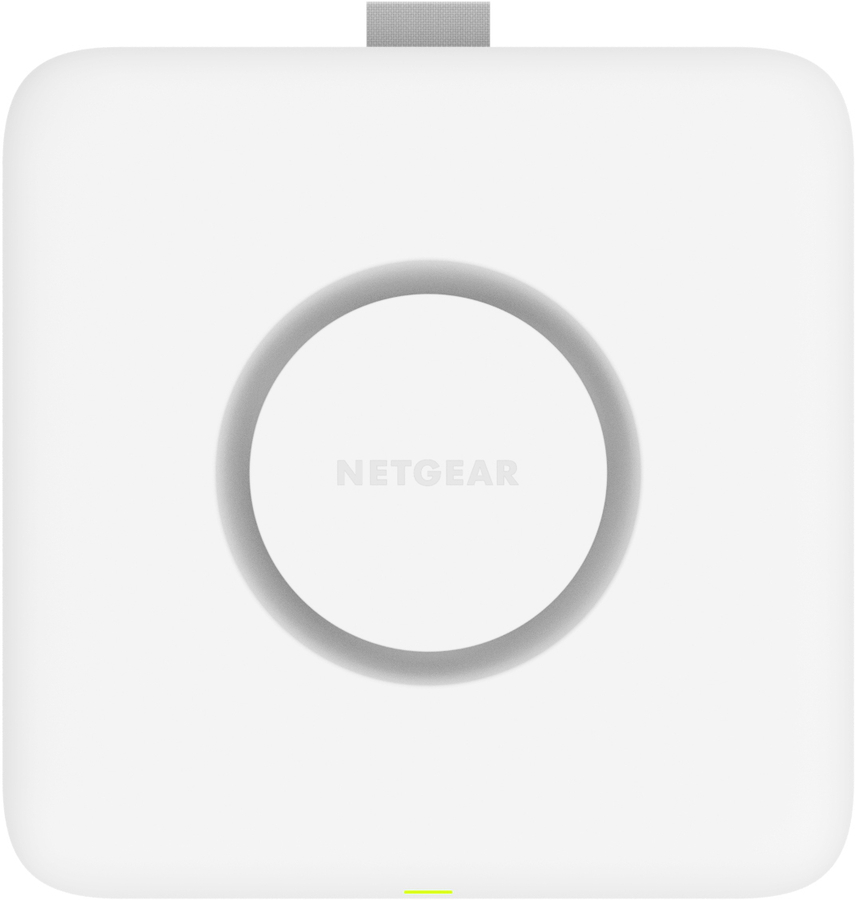

1PT INSIGHT MANAGED WIFI 7 TRI-BAND |
|
Features |
|
2.4 GHz |
Yes |
|
5 GHz |
Yes |
|
6 GHz |
Yes |
|
Maximum data transfer rate |
11530 Mbit/s |
|
Maximum data transfer rate (2.4 GHz) |
1147 Mbit/s |
|
Maximum data transfer rate (5 GHz) |
5765 Mbit/s |
|
Maximum data transfer rate (6 GHz) |
11530 Mbit/s |
|
Ethernet LAN data rates |
10000 Mbit/s |
|
Throughput data rate |
18400 Mbit/s |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
|
MIMO |
Yes |
|
MIMO type |
Multi User MIMO |
|
Wi-Fi Multimedia (WMM)/(WME) |
Yes |
|
VLAN support |
Yes |
|
Band steering |
Yes |
|
BeamForming |
Yes |
|
Security |
|
Security algorithms |
802.1x RADIUS, SSL/TLS, WPA, WPA2, WPA3 |
|
MAC address filtering |
Yes |
|
Service Set Identifier (SSID) features |
SSID broadcast |
|
Number of SSID supported |
8 |
|
Auto Wireless Distribution System (WDS) |
Yes |
|
Access Control List (ACL) |
Yes |
|
Management features |
|
Web-based management |
Yes |
|

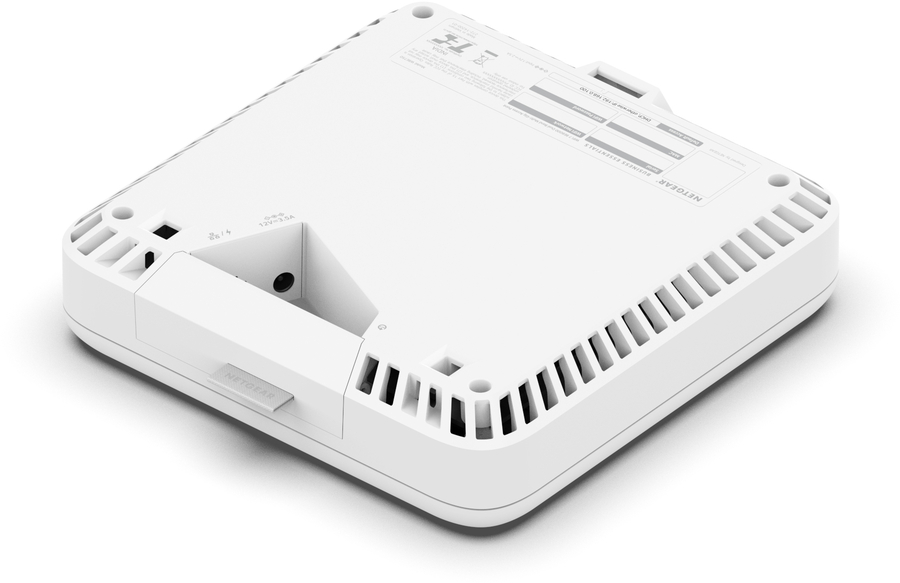

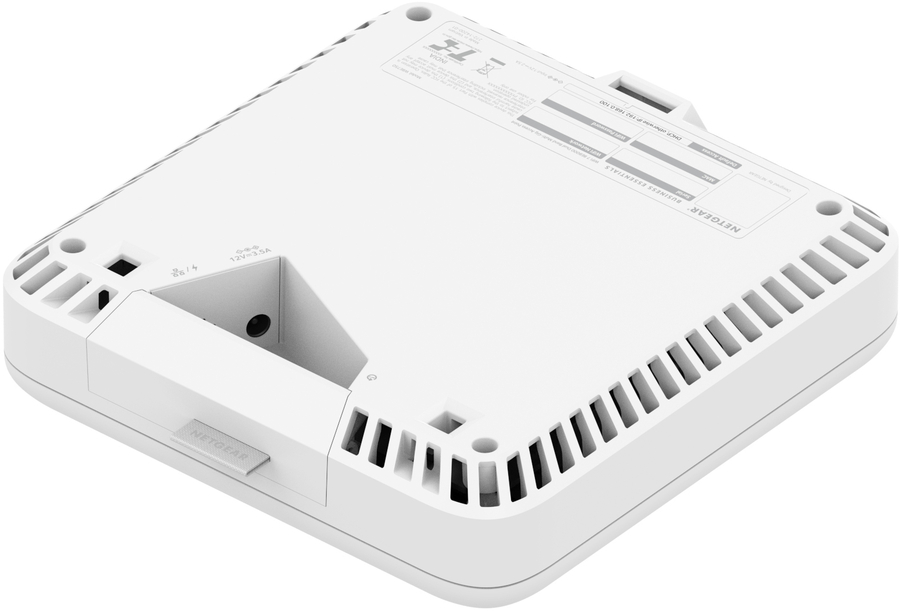

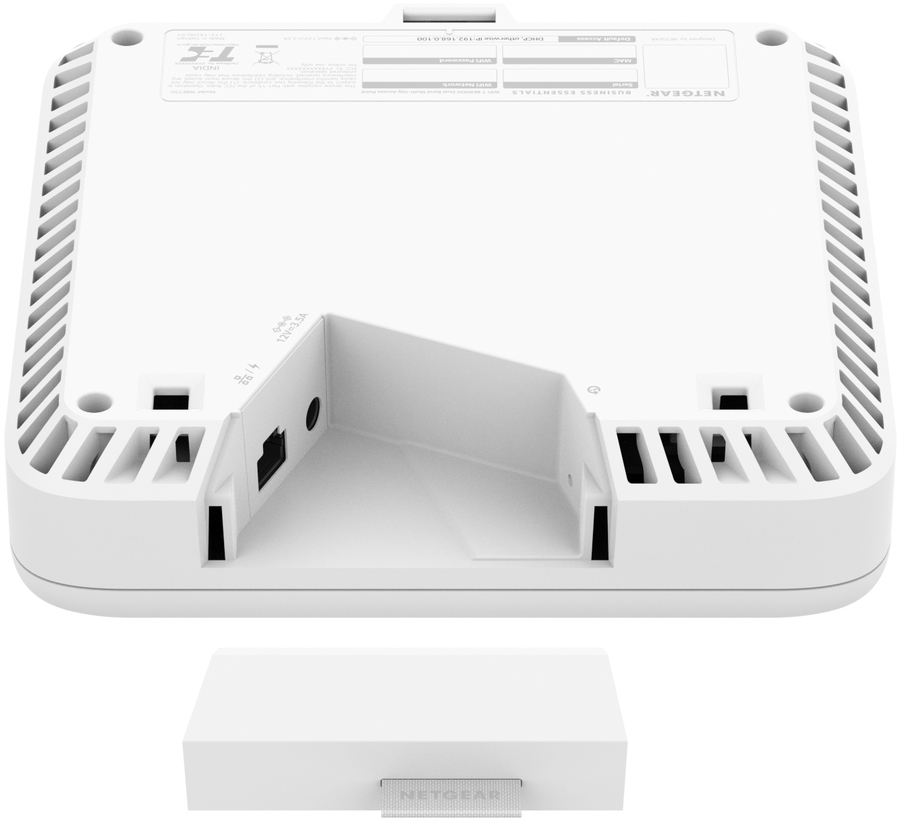

Ports & interfaces |
|

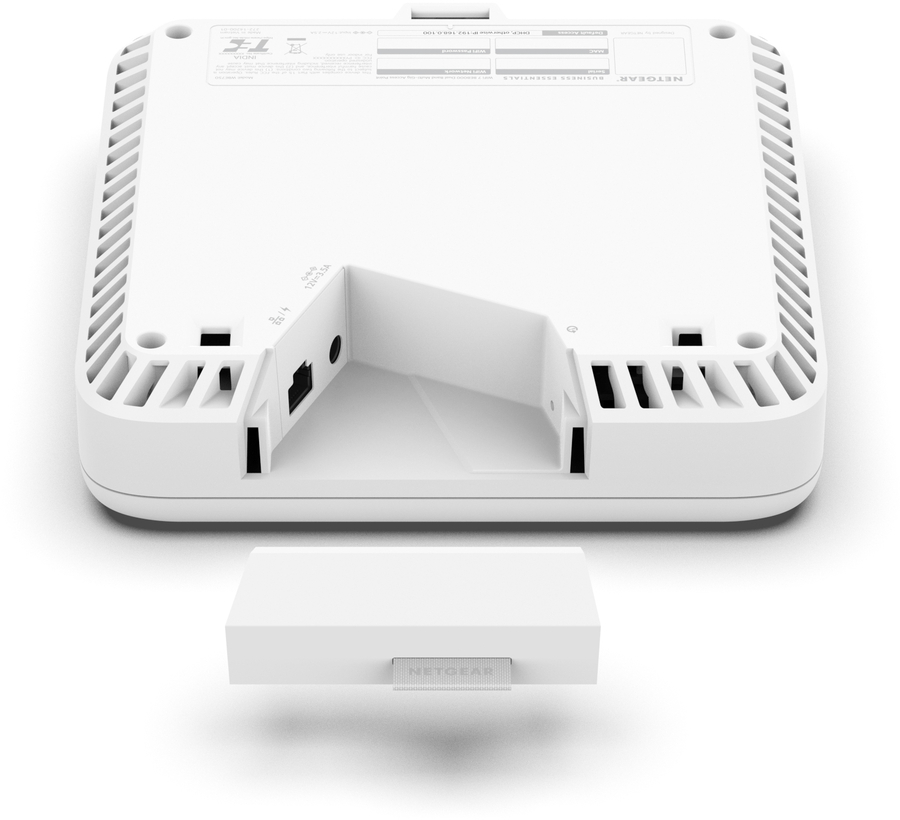

Ethernet LAN (RJ-45) ports |
1 |
|
DC-in jack |
Yes |
|
Power |
|
Power over Ethernet (PoE) |
Yes |
|
DC voltage range |
12 V |
|
Input current |
3.5 A |
|
Design |
|

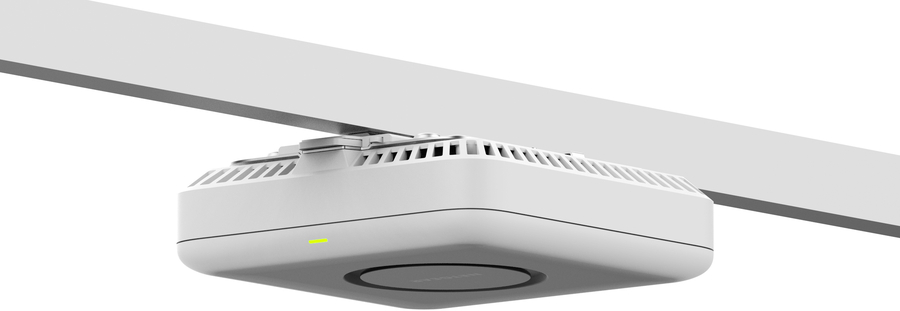

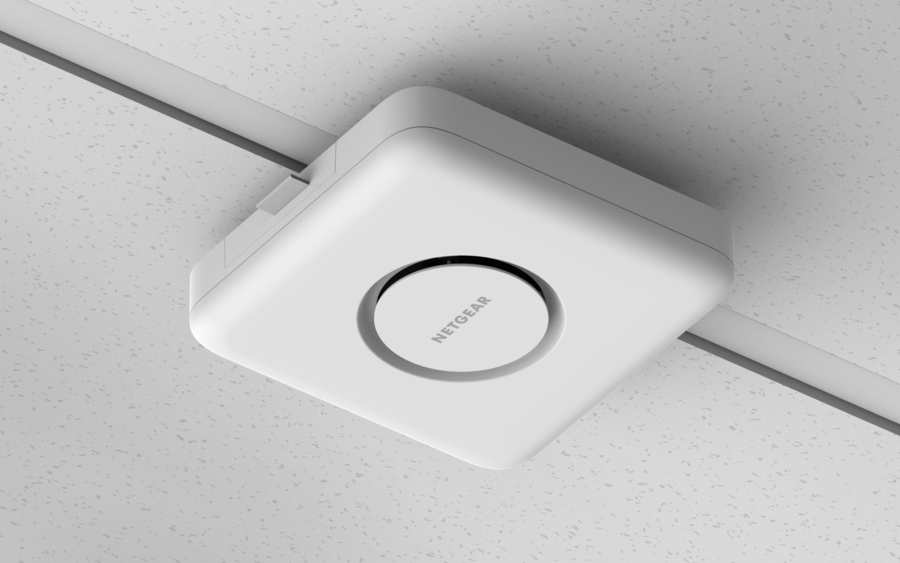

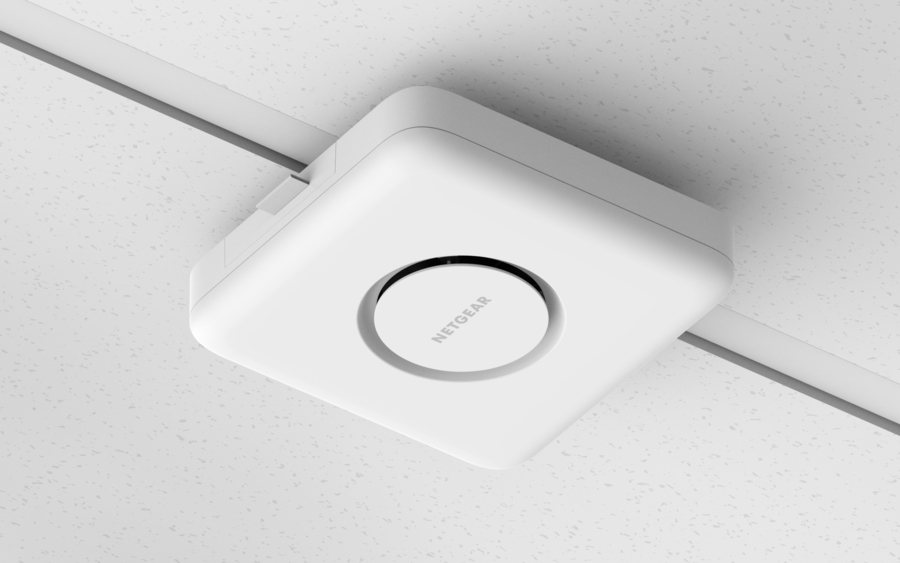

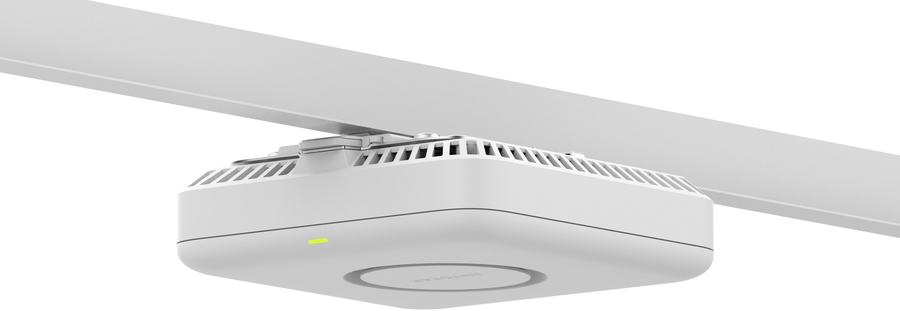

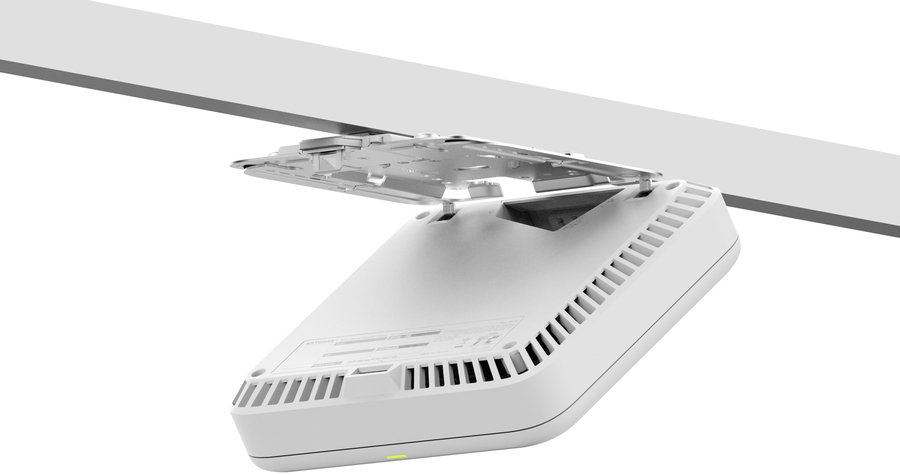

Placement |
Ceiling, Wall |
|
Product colour |
White |
|
LED indicators |
Yes |
|
Antenna |
|
Antenna type |
Internal |
|

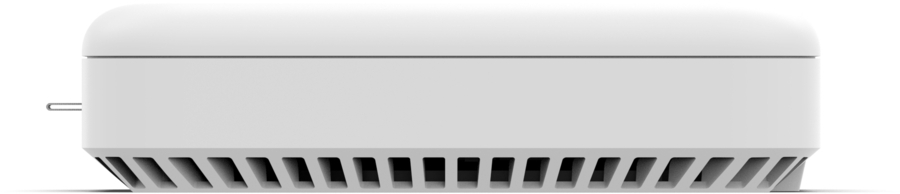

Weight & dimensions |
|
Width |
266.6 mm |
|
Depth |
268.3 mm |
|

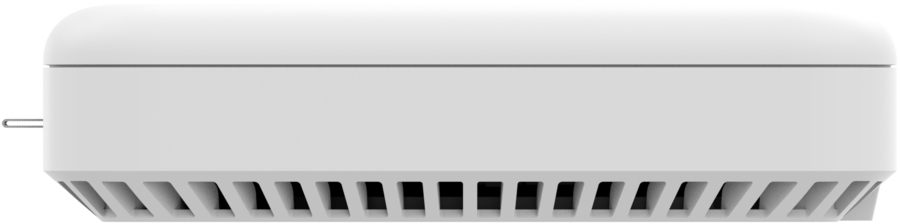

Height |
55.5 mm |
|
Weight |
2.31 kg |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|

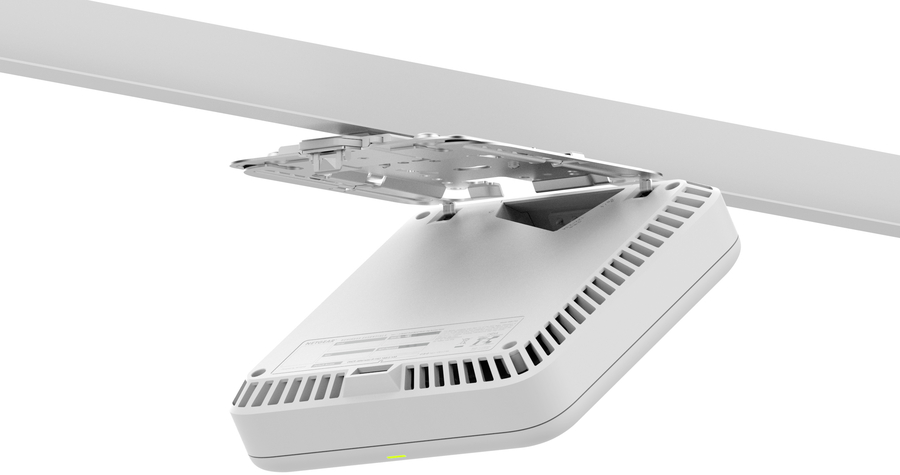

Mounting kit |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
