General Information |
|
Summary |
To Be Future-Ready
The AI era is upon us. Are you ready for the transformation in work and everyday life? Let's work together with the Modern AM273Q AI Series to embrace the next-level AI experience with faster, power-saving, AI-enabled processors.
MSI AI Engine
MSI AI Engine automatically detects user scenarios and adjusts performance, sound effects, and display mode accordingly, eliminating the need for manual adjustments.
Windows Studio Effects
Using AI to enhance videos with features like background effects, eye contact correction, automatic framing, and voice focus for professional and engaging video conferencing.
Eye-Q Check
With Eye-Q check, you can self-access your eye health while working long hours, preventing eye problems from escalating.
WQHD (2560 x 1440)
WQHD (2560 x 1440) resolution expands your workspace, providing sharper readability, vivid 3D effects, and enhanced aesthetics for a better user experience.
Built for Sustainability
The MSI All-in-One PCs blend business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. Our commitment extends to incorporating sustainable materials in both our product design and packaging, protecting the earth through our actions. By utilizing sustainable materials such as PCR plastics, recycled pulp from FSC™-certified forests, more active management of substances used in manufacturing processes, and the continued use of renewable energy in production processes, we ensure the products' durability and a commitment to a greener world.
The MSI All-in-One PCs embody sustainable value and heightened productivity. |
|
Display |
|
Display diagonal |
68.6 cm (27") |
|
Display resolution |
2560 x 1440 pixels |
|
Touchscreen |
No |
|
HD type |
Wide Quad HD |
|
Display brightness |
300 cd/m² |
|
Panel type |
IPS |
|
Pixel pitch |
0.2331 x 0.2331 mm |
|
Tilt angle range |
-4 - 20° |
|
Processor |
|
Processor family |
Intel Core Ultra 7 |
|
Processor manufacturer |
Intel |
|
Processor model |
155H |
|
Processor generation |
Intel® Core™ Ultra (Series 1) |
|
Processor cores |
16 |
|
Processor threads |
22 |
|
Processor boost frequency |
4.8 GHz |
|
Performance cores |
6 |
|
Efficient cores |
8 |
|
Low Power Efficient-cores |
2 |
|
Performance-core Max Turbo Frequency |
4.8 GHz |
|
Efficient-core Max Turbo Frequency |
3.8 GHz |
|
Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
|
Performance-core base frequency |
1.4 GHz |
|
Efficient-core base frequency |
0.9 GHz |
|
Low Power Efficient-core Base Frequency |
700 MHz |
|
Processor cache |
24 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
28 W |
|
Maximum turbo power |
115 W |
|
Neural processor unit (NPU) |
|
Neural processor unit (NPU) |
Intel AI Boost |
|
Sparsity support |
Yes |
|
Windows Studio effects support |
Yes |
|
AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
|
Memory |
|
Internal memory |
16 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory slots |
2 |
|
Memory slots type |
SO-DIMM |
|
Memory clock speed |
5600 MHz |
|
Memory layout (slots x size) |
2 x 8 GB |
|
Memory form factor |
DIMM/SO-DIMM |
|
Storage |
|
Total storage capacity |
1 TB |
|
Storage media |
SSD |
|
Optical drive type |
No |
|
Total SSDs capacity |
1 TB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
1 TB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Card reader integrated |
Yes |
|
Graphics |
|
Discrete graphics card |
No |
|
Discrete graphics card model |
Not available |
|
On-board graphics card |
Yes |
|
On-board graphics card model |
Intel Arc Graphics |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel Arc Graphics |
|
Audio |
|
Built-in speaker(s) |
Yes |
|
Number of speakers |
2 |
|
RMS rated power |
3 W |
|
Audio chip |
Realtek ALC256 |
|

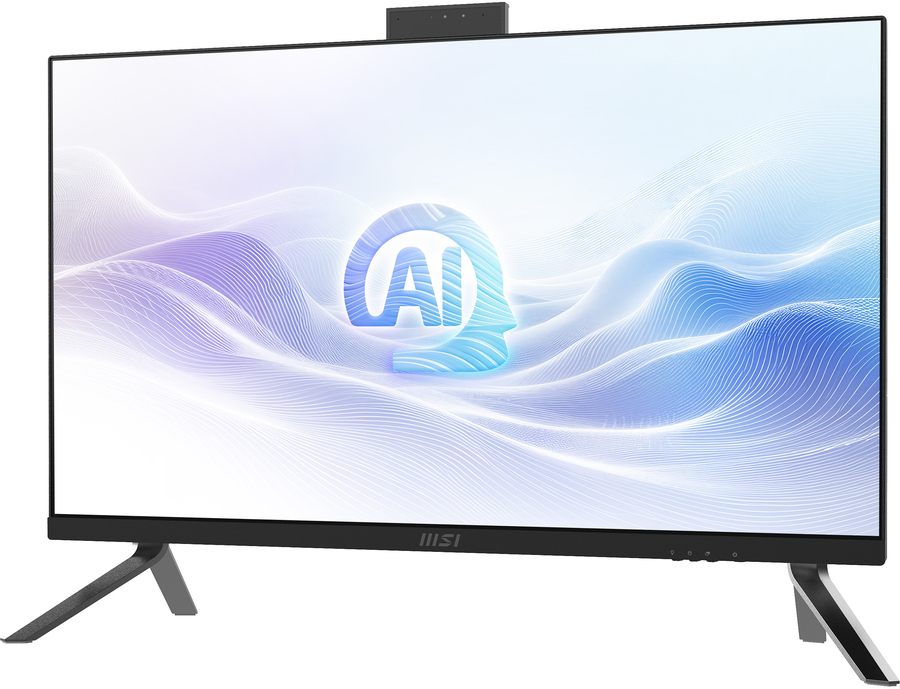

Camera |
|
Built-in camera |
Yes |
|
Total megapixels |
2 MP |
|
Camera HD type |
Full HD |
|
Network |
|
Wi-Fi |
Yes |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Ethernet LAN |
No |
|
Bluetooth |
Yes |
|
Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
|
WLAN controller manufacturer |
Intel |
|
WLAN controller model |
Intel Wi-Fi 6E AX211 |
|
Ethernet LAN data rates |
2500 Mbit/s |
|
Bluetooth version |
5.3 |
|

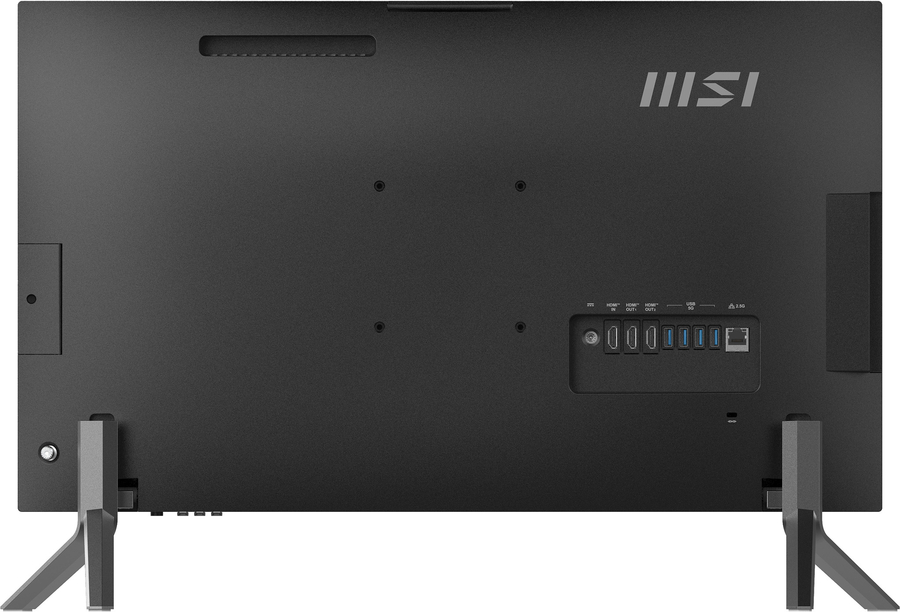

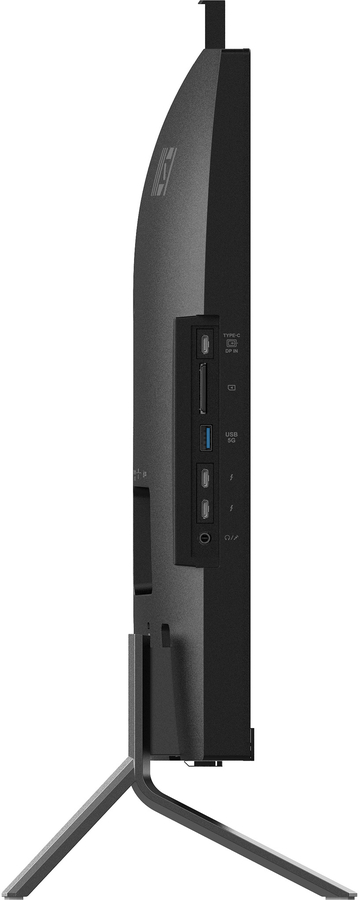

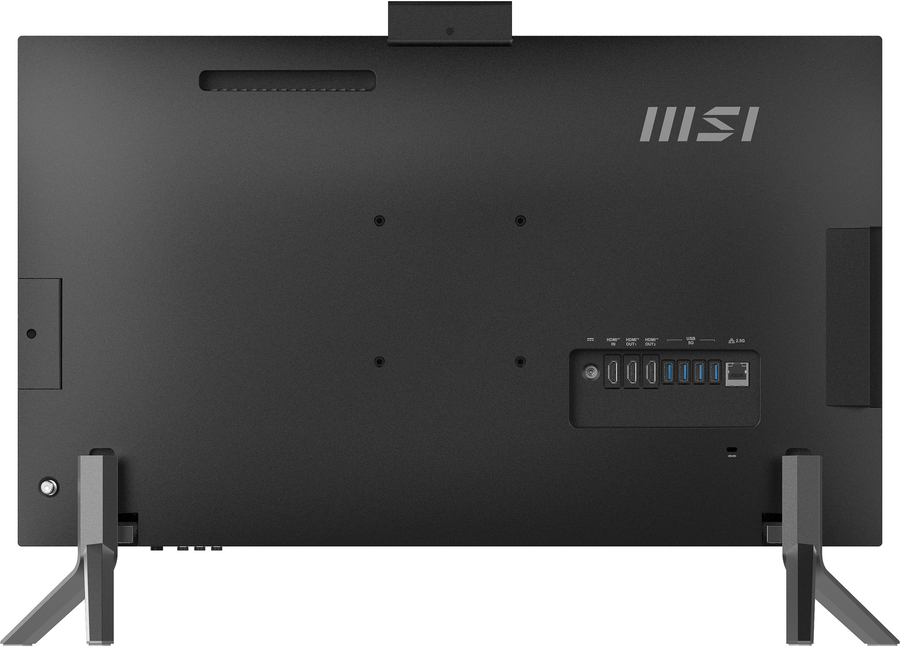

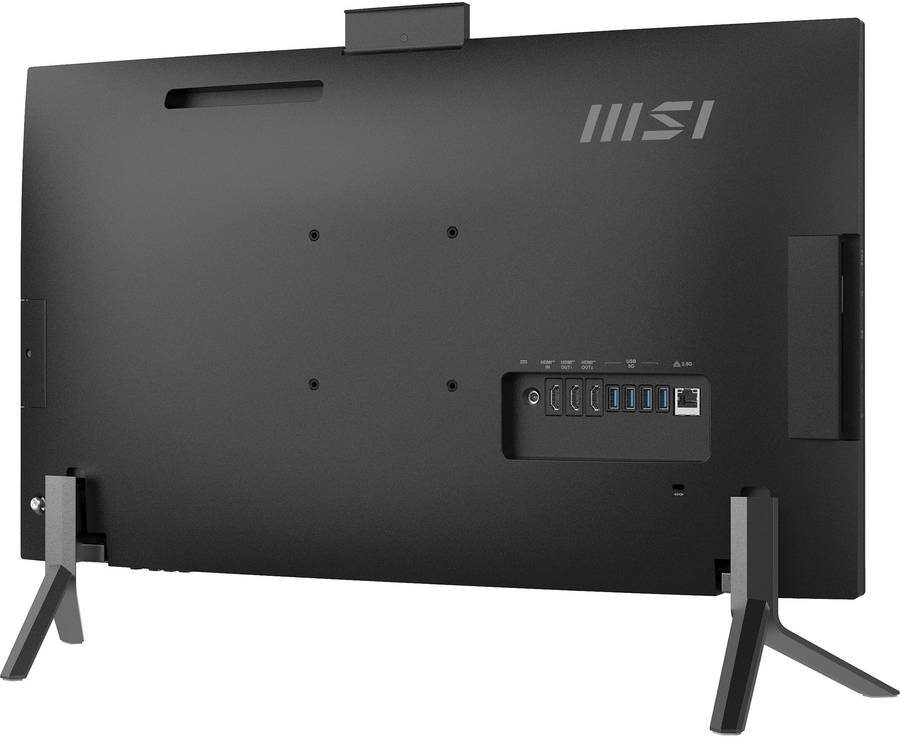

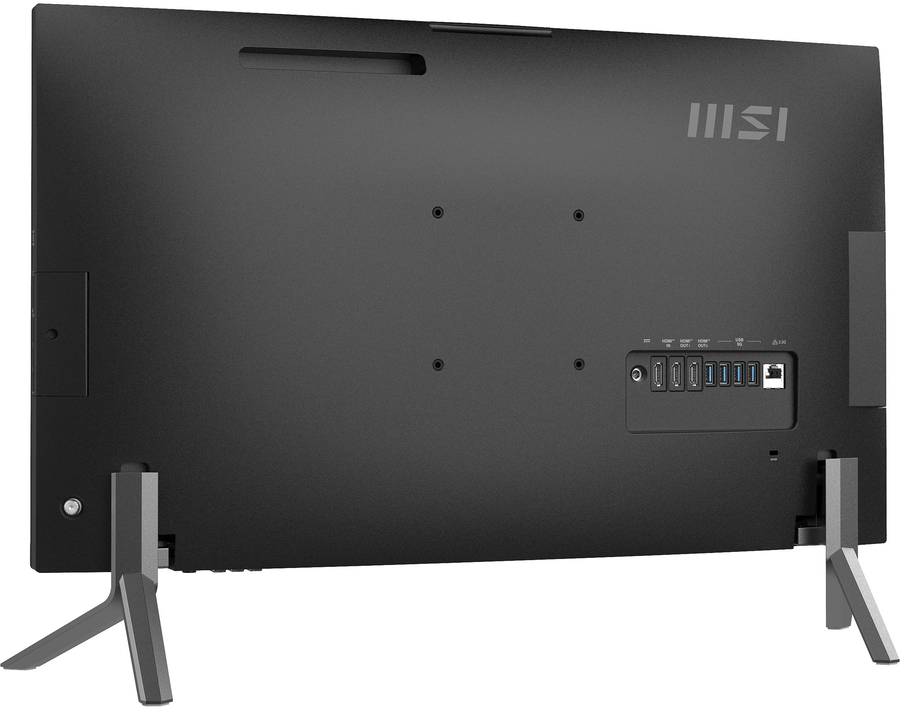

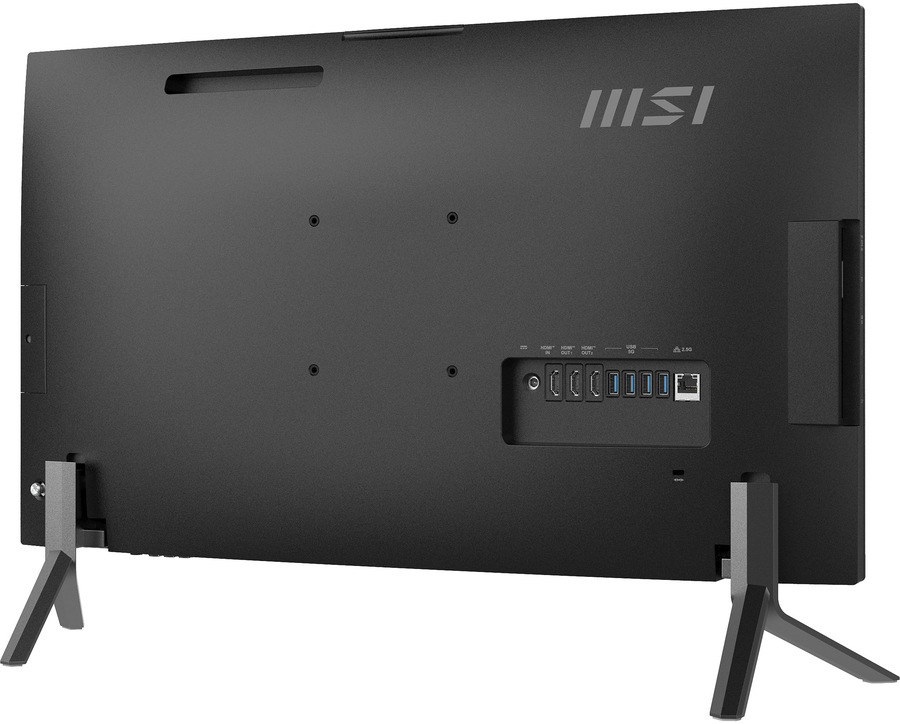

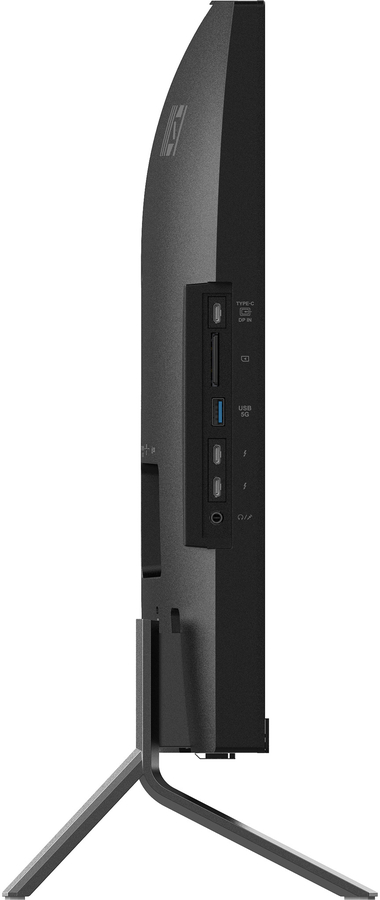

Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
USB4 Gen 3x2 ports quantity |
0 |
|
HDMI ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
HDMI version |
2.0 |
|
Combo headphone/mic port |
Yes |
|
Design |
|
Product colour |
Black |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Product type |
All-in-One PC |
|
Motherboard chipset |
Intel SoC |
|
Trusted Platform Module (TPM) |
Yes |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Processor special features |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Power |
|
AC adapter power |
120 W |
|
Weight & dimensions |
|
Width (with stand) |
638.1 mm |
|
Depth (with stand) |
180.7 mm |
|
Height (with stand) |
433.1 mm |
|
Weight (with stand) |
5 kg |
|
Package width |
700 mm |
|
Package depth |
217 mm |
|
Package height |
473 mm |
|
Package weight |
9.6 kg |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Storage relative humidity (H-H) |
0 - 90% |
|
Certificates |
|
Certification |
CB/CE |
