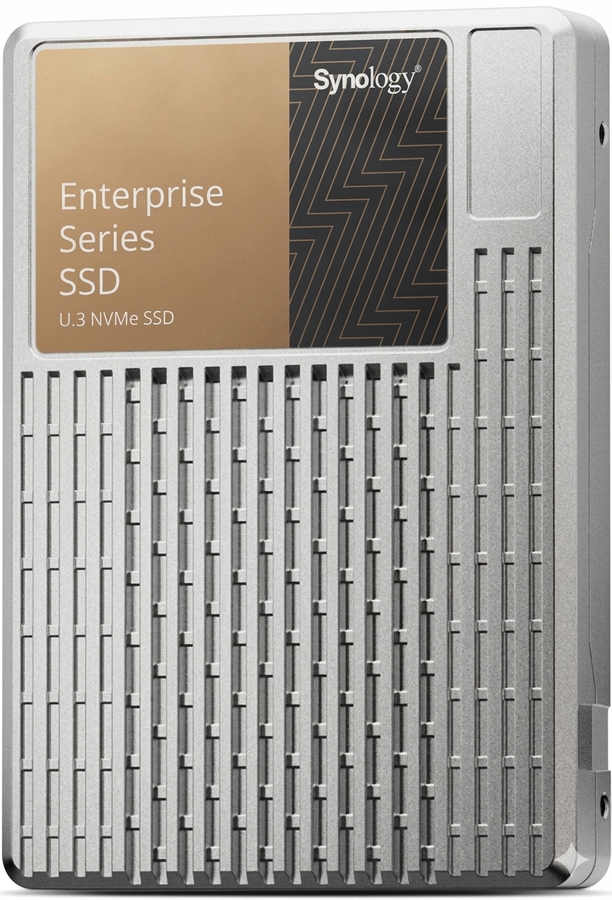

Synology SPU7200D 7680GB Dual-Port U.3 NVMe Enterprise SSD
|
|
Price: $13307.00
Manufacturer:
Synology
7.68 TB, 2.5", NVMe, PCIe 4.0 x4, U.3, 7000/4000 MB/s, AES-256, TCG Opal, TBW 14016 TB, 0°C to 70°C, Silver
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60549035
|
SPU7200D-7680G
|
4711174725717 |
Active
|
Details
|
General Information |
|
Summary |
Dual-port U.3 SSDs designed for the active-active architecture of Synology PAS systems
Built for PAS7700
Built for the Synology PAS7700 active-active NVMe all-flash system, the SPU7200D dual-port U.3 SSD ensures uninterrupted access and optimized performance through multipathing. It features certified SED security with crypto erase and PSID recovery, while integration with Synology DSM Enterprise delivers detailed drive analytics and one-click firmware updates.
High performance and endurance
SPU7200D drives deliver over 1,250,000/140,000 4K random read/write IOPS1 for consistently fast performance. With up to 14,016 TBW2 endurance, they are built for demanding, always-on workloads.
Advanced security and data sanitization
Certified self-encrypting drives
TCG Opal compliance ensures robust data-at-rest protection without compromising performance. Confidentiality is maintained even if the device is physically removed, making it ideal for sensitive workloads and high-availability environments.
Physical security ID (PSID)
PSID support allows secure erasure and reset of locked drives without the original encryption key. This hardware-based feature enables complete data sanitization and helps meet regulatory requirements for data protection.
Crypto erase
Instantly sanitize stored data by deleting the encryption key. This renders all information permanently unreadable and unrecoverable, supporting safe redeployment or decommissioning.
Data integrity safeguards
The SPU7200D provides full end-to-end data protection, including power loss protection to safeguard data integrity during unexpected shutdowns. Built-in capacitors ensure that cached data is safely written to NAND flash in the event of power failure, preventing data loss.
Advanced drive analytics
The SPU7200D series integrates tightly with Synology DSM Enterprise to deliver continuous insights into drive health and workload performance. With real-time alerts, endurance tracking, and usage analysis, administrators can plan maintenance effectively, replace drives at the right time, and ensure reliable system operation.
One-click firmware updates
Automatic firmware updates notifications and one-click installation through Synology DSM Enterprise minimize maintenance workload and reduce the chance of oversights.
5-year warranty
At Synology, we are committed to product innovation and quality. SPU7200D drives are backed by a 5-year limited warranty that includes technical support and hardware replacement services to maximize your return on investment. |
|
Features |
|
SSD capacity |
7.68 TB |
|
SSD form factor |
2.5" |
|
Interface |
U.3 |
|
NVMe |
Yes |
|
Memory type |
3D TLC NAND |
|
Component for |
NAS |
|
Hardware encryption |
Yes |
|
Security algorithms |
256-bit AES, TCG Opal 2.0 |
|
Random read (4KB) |
1250000 IOPS |
|
Random write (4KB) |
130000 IOPS |
|
PCI Express interface data lanes |
x4 |
|
PCI Express CEM revision |
4.0 |
|
Power loss protection |
Yes |
|
Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^10 bits read |
|
Mean time between failures (MTBF) |
2500000 h |
|
SSD interface |
PCI Express 4.0 |
|
TBW rating |
14016 |
|
Power |
|
Operating voltage |
12 V |
|
Power consumption (read) |
15.1 W |
|
Power consumption (write) |
15 W |
|
Power consumption (idle) |
5.58 W |
|
Weight & dimensions |
|
Width |
70 mm |
|
Depth |
100 mm |
|
Height |
15 mm |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Certificates |
|
Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
|
Other features |
|
Product colour |
Silver |
|
Warranty period |
5 year(s) |
|
Compliance certificates |
Federal Communications Commission (FCC), CE, EAC, BSMI, VCCI, KC, RoHS, UKCA |
|
Compatible products |
Synology PAS7700 |
|
Sequential read/write |
Yes |
|
Sequential reading |
7000 MB/s |
|
Sequential writing speed |
3200 MB/s |
|
Technical details |
|
Doesn't contain |
Lead, Mercury, Cadmium |
|
