Processor |
|
Processor manufacturer |
Intel |
|
Compatible processor series |
Intel Atom® |
|
Processor number of cores supported |
8 |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
64 GB |
|
Memory channels |
Dual-channel |
|
Memory voltage |
1.2 V |
|
ECC сompatibility |
Non-ECC |
|
Supported memory clock speeds |
1600,1866,2133,2400 MHz |
|
Maximum RDIMM memory |
128 GB |
|
Storage controllers |
|
Supported storage drive interfaces |
SATA III |
|
Graphics |
|
Parallel processing technology support |
Not supported |
|
On-board graphics card model |
Aspeed AST2500 |
|
On-board graphics card memory |
64 MB |
|
Internal I/O |
|
USB 2.0 connectors |
1 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
|
Number of SATA III connectors |
4 |
|
ATX Power connector (24-pin) |
Yes |
|
Number of chassis fan connectors |
4 |
|
TPM connector |
Yes |
|

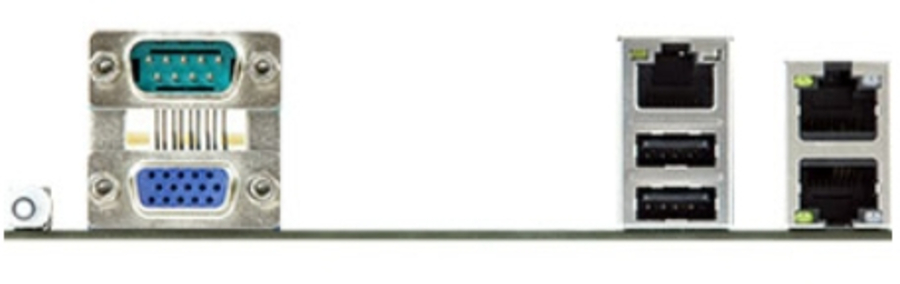

Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
3 |
|
VGA (D-Sub) ports quantity |
1 |
|
HDMI ports quantity |
0 |
|
IPMI LAN (RJ-45) port |
Yes |
|
PS/2 ports quantity |
0 |
|
Serial ports quantity |
1 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
LAN controller |
Marvell 88E1543, Realtek RTL8211E |
|
Wake-on-LAN ready |
Yes |
|
Features |
|
Component for |
Workstation |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
Intel |
|
PC health monitoring |
Fan, Temperature, Voltage |
|
Expansion slots |
|
PCI Express x8 (Gen 2.x) slots |
0 |
|
PCI Express x8 (Gen 3.x) slots |
1 |
|
PCI Express x16 (Gen 2.x) slots |
0 |
|
PCI Express x16 (Gen 3.x) slots |
0 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
128 Mbit |
|
ACPI version |
1.1 |
|
System Management BIOS (SMBIOS) version |
2.3.1 |
|
Operational conditions |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
244 mm |
|
Other features |
|
Supported DIMM module capacities |
4GB, 8GB, 16GB, 32GB |
|
Supported UDIMM clock speeds |
1600,1866,2133,2400 MHz |
|
Maximum UDIMM memory |
64 GB |
|
Supported LRDIMM module capacity |
8GB, 16GB, 32GB, 64GB |
|
Supported LRDIMM clock speeds |
1600,1866,2133,2400 MHz |
|
Supported RDIMM clock speeds |
1600,1866,2133,2400 MHz |
|
Number of DIMM slots |
4 |
|
Number of processors supported |
1 |
