TP-Link Litewave LS1005G 5-Port Gigabit Unmanaged Desktop Switch
|
|
Price: $18.00
Manufacturer:
TP-Link
LS1005G, IEEE 802.3i/802.3u/ 802.3ab/802.3x, 5x 1G RJ-45, 10 Gbps, 7.4 Mpps, 90x72x23 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60549393
|
LS1005G
|
845973085469 |
Active
|
Details
|
General Information |
|
Summary |
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

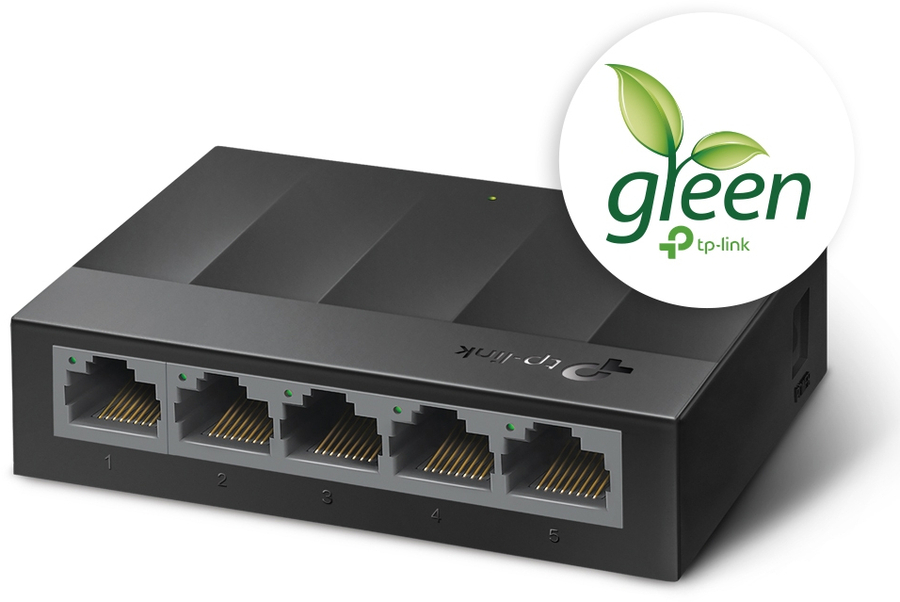

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

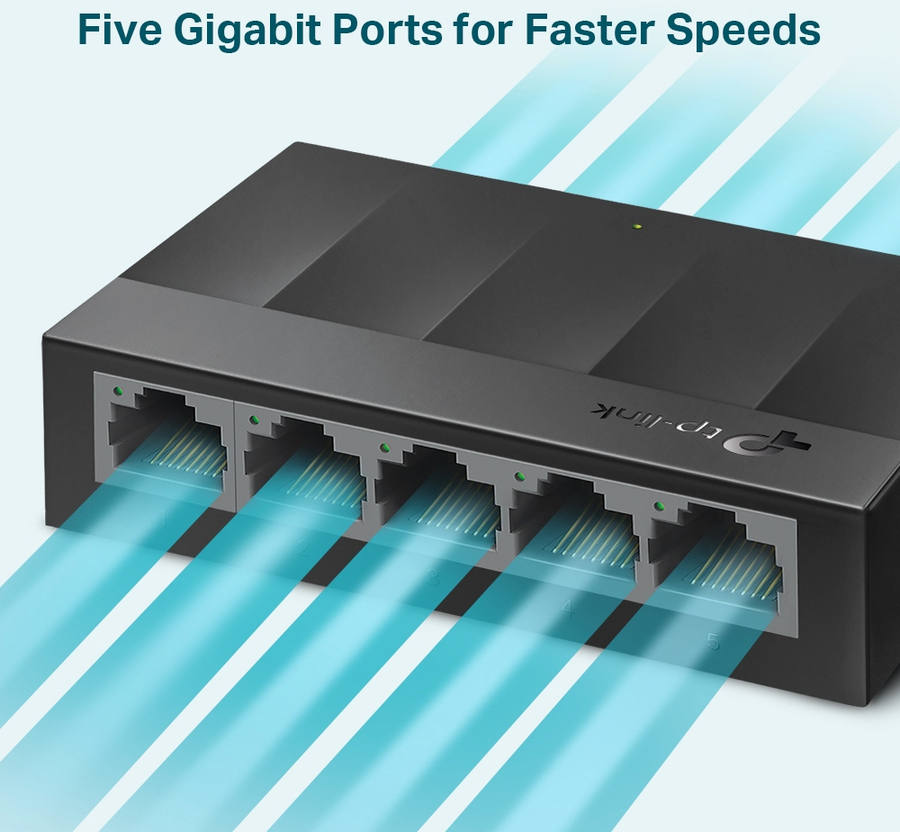

Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses. |
|
Management features |
|
Switch type |
Unmanaged |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
Network |
|
Networking standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|
10G support |
No |
|
Flow control support |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Auto-negotiation |
Yes |
|
Data transmission |
|
MAC address table |
2000 entries |
|
Switching capacity |
10 Gbit/s |
|
Forwarding rate |
7.4 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
16000 |
|
Packet buffer memory |
1.5 MB |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
LED indicators |
Yes |
|
International Protection (IP) code |
IP20, IP40 |
|
Wall mountable |
Yes |
|
Power |
|
Power supply included |
Yes |
|
DC input voltage |
5 V |
|
Input current |
0.6 A |
|
Power consumption (max) |
3.7 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Heat dissipation |
12.617 BTU/h |
|
Weight & dimensions |
|
Width |
90 mm |
|
Depth |
72 mm |
|
Height |
23 mm |
|
Packaging content |
|
Quick start guide |
Yes |
|
Packaging data |
|
Package type |
Box |
|
Certificates |
|
Certification |
CE, FCC, RoHS |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
