General Information |
|
Summary |
Stunning Contrast from Production to Post

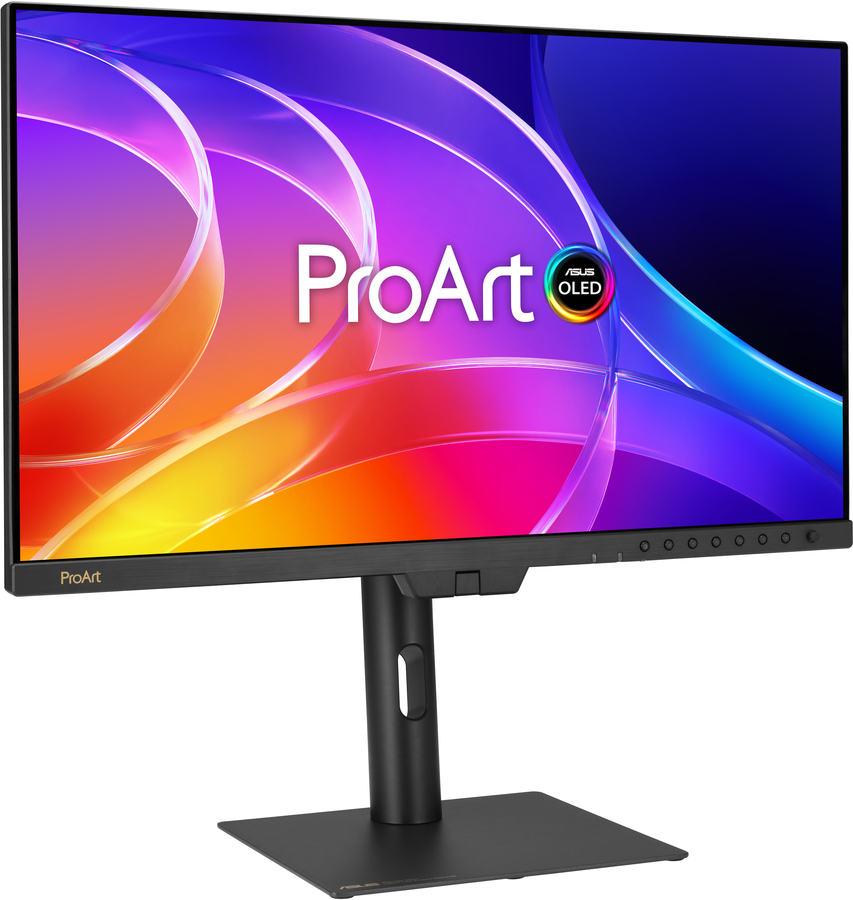

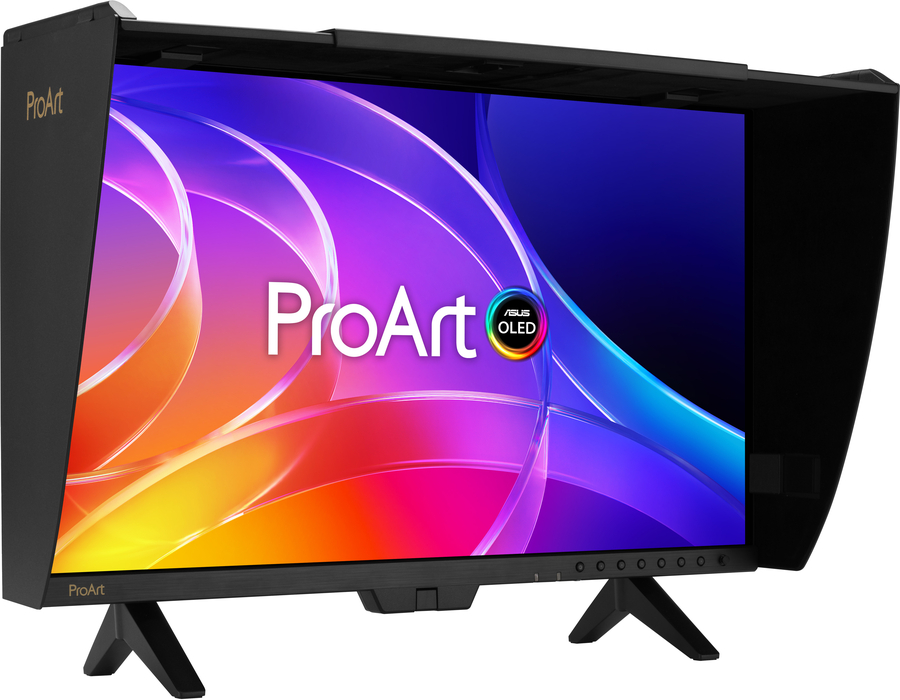

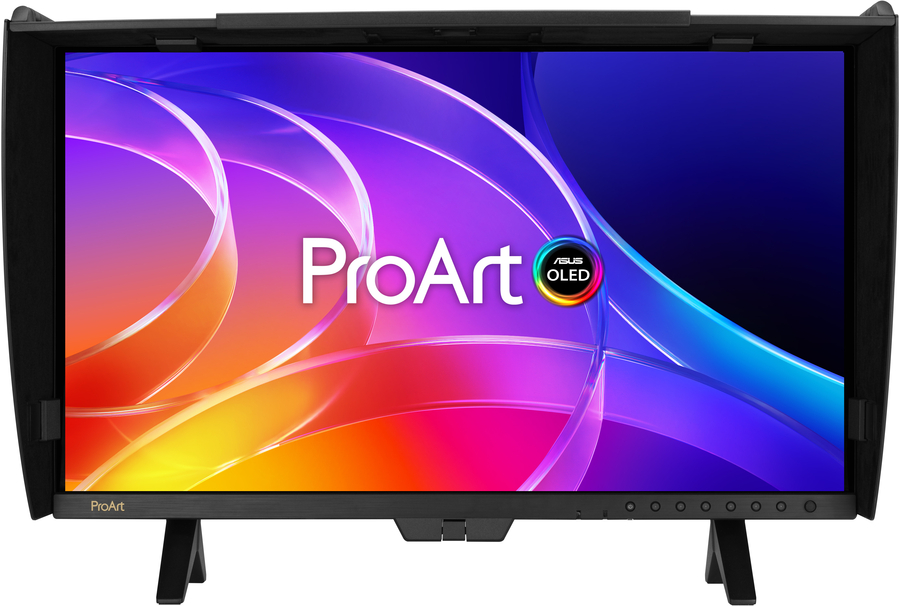

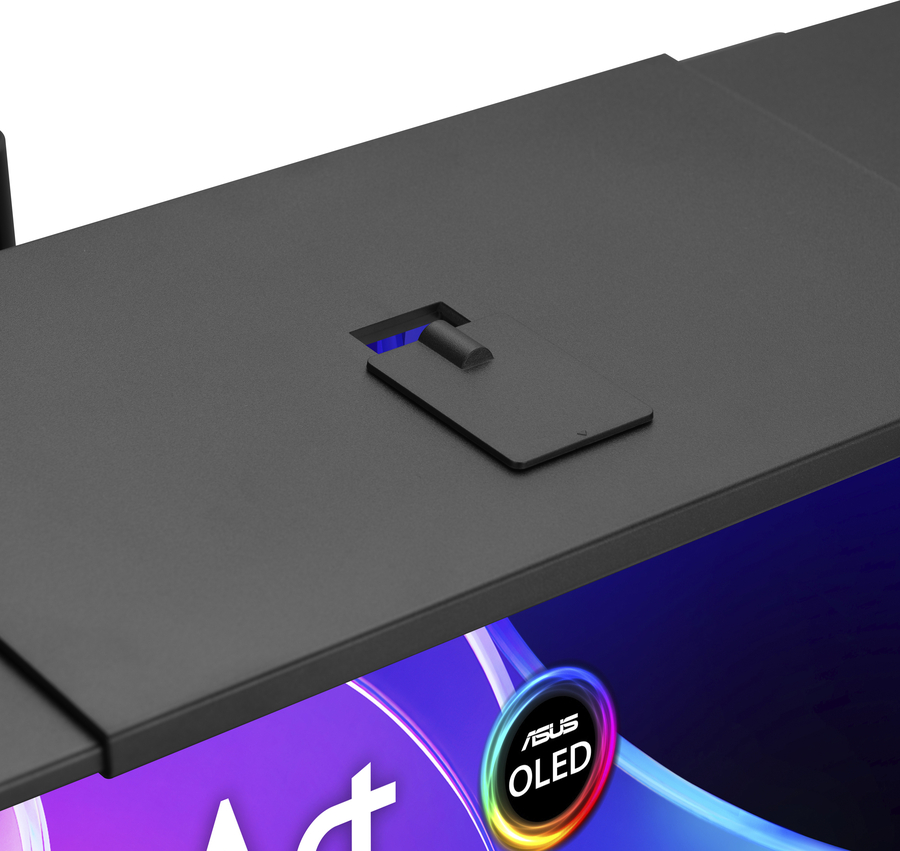

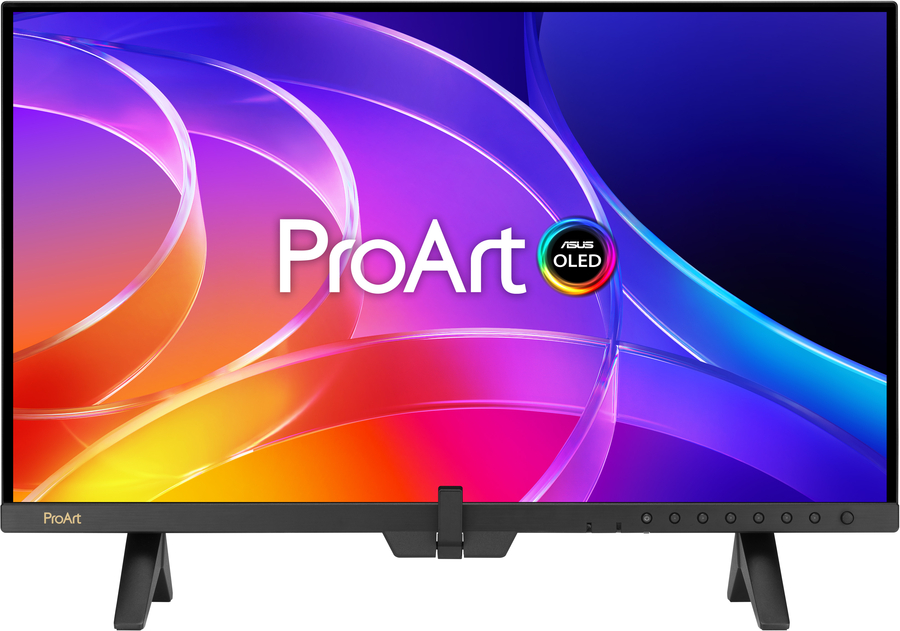

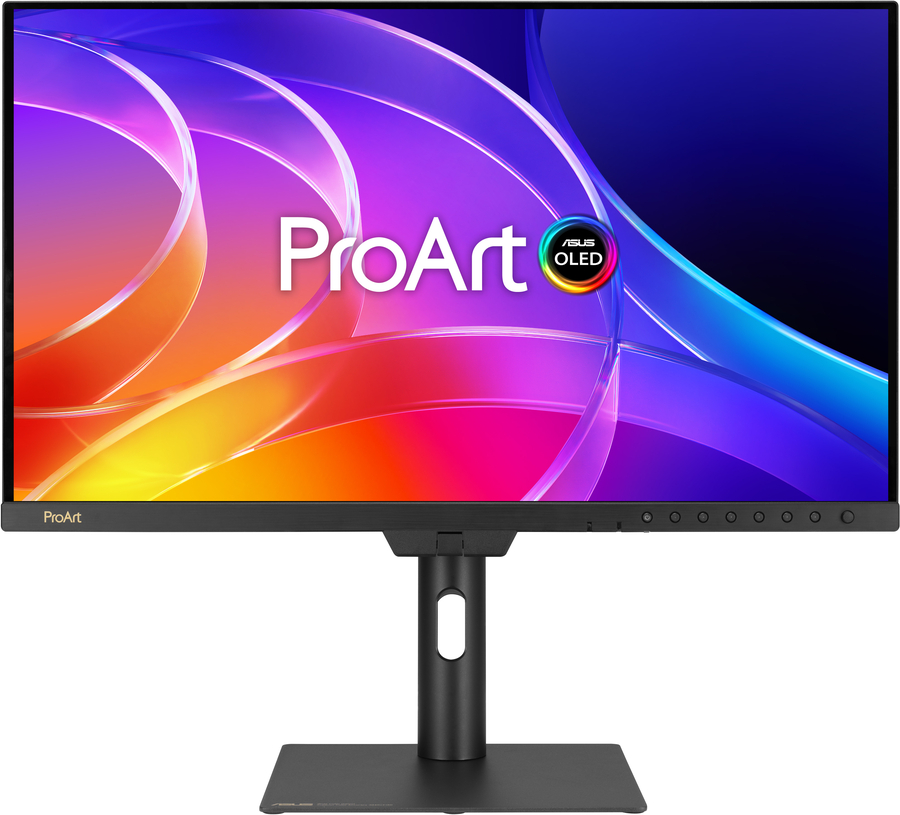

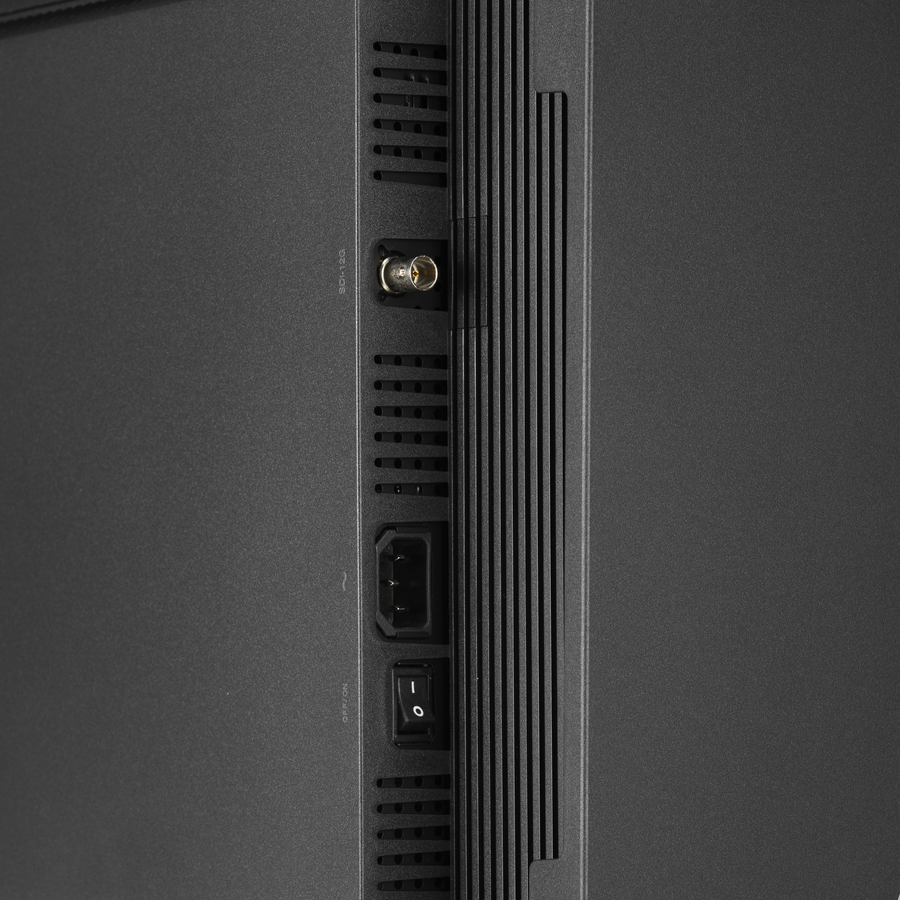

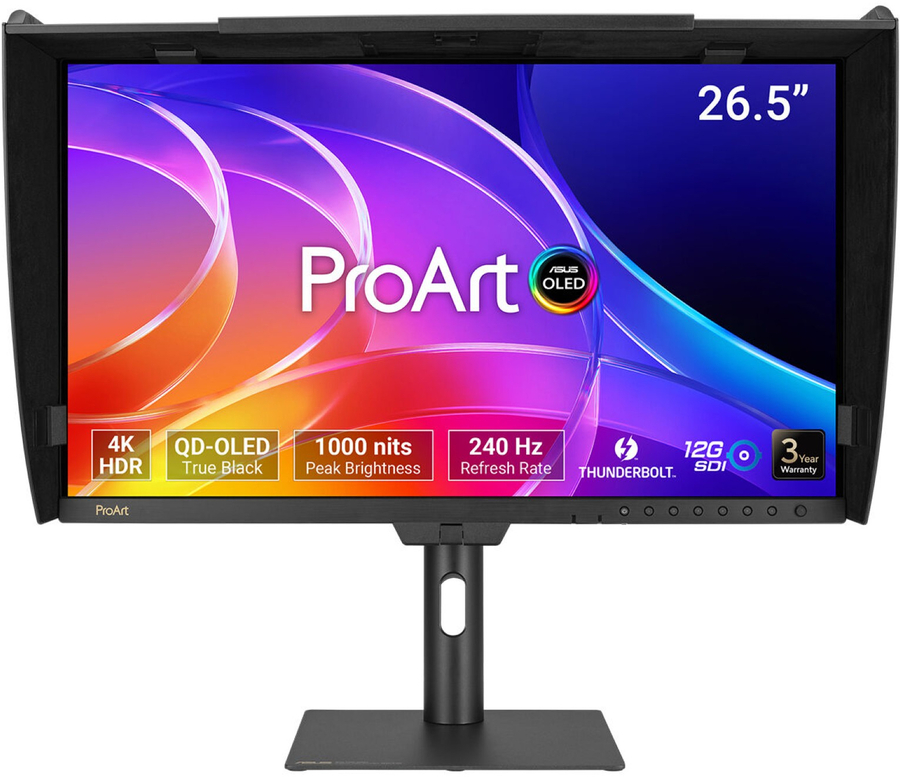

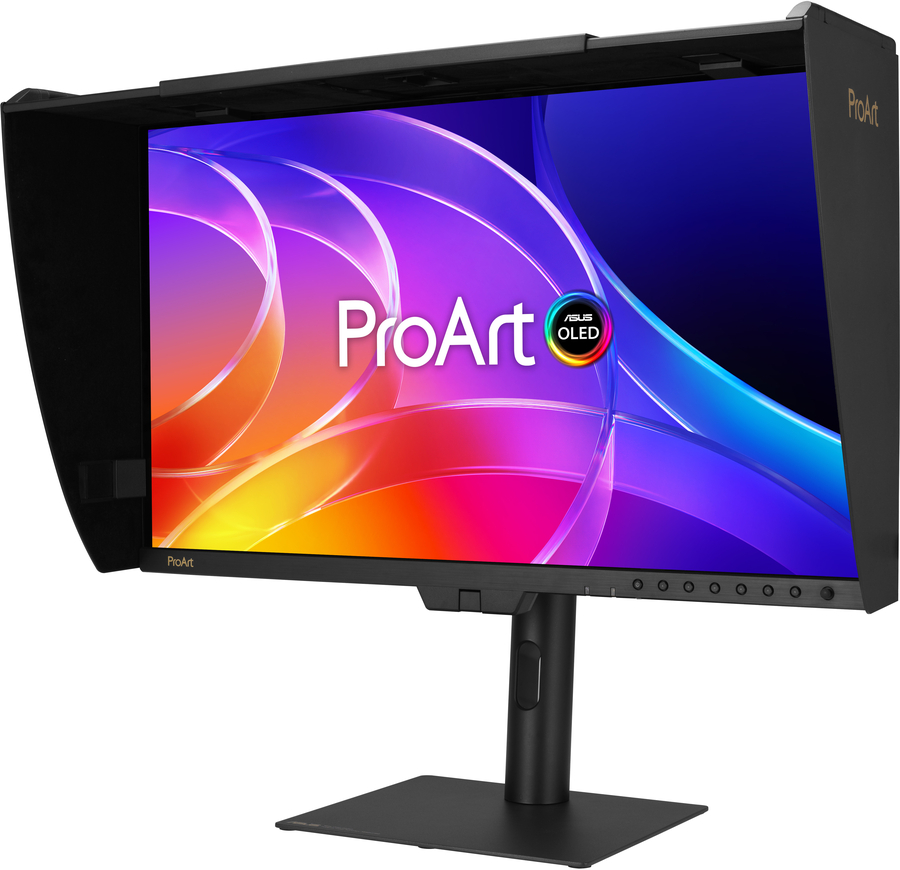

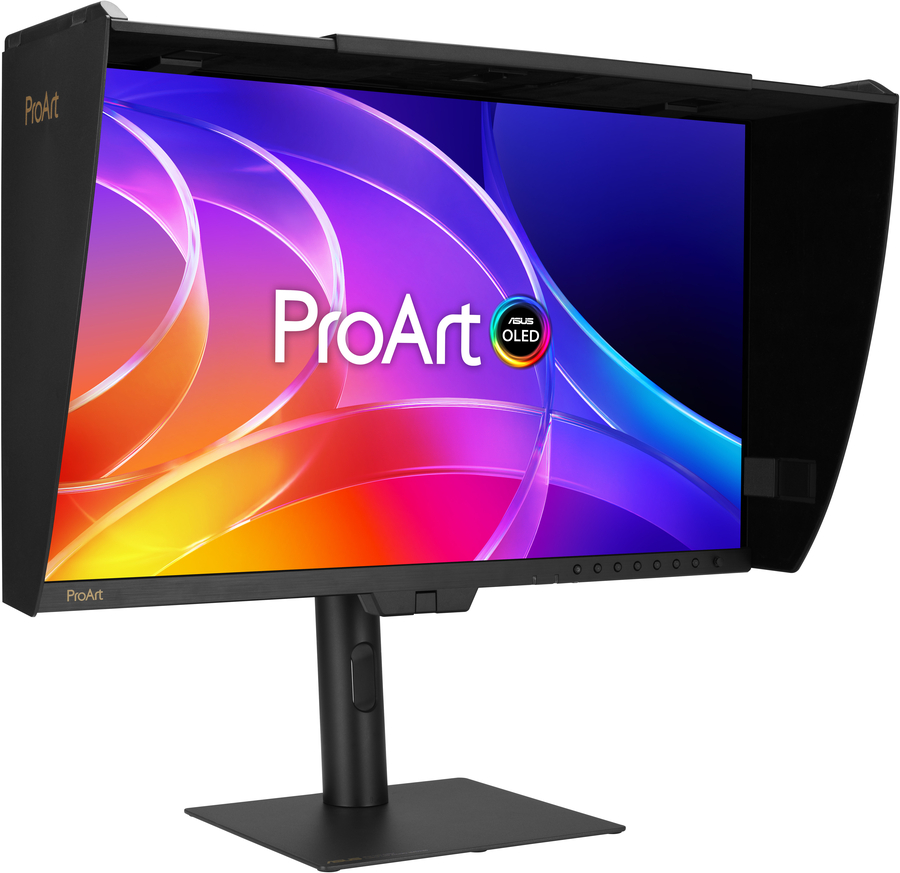

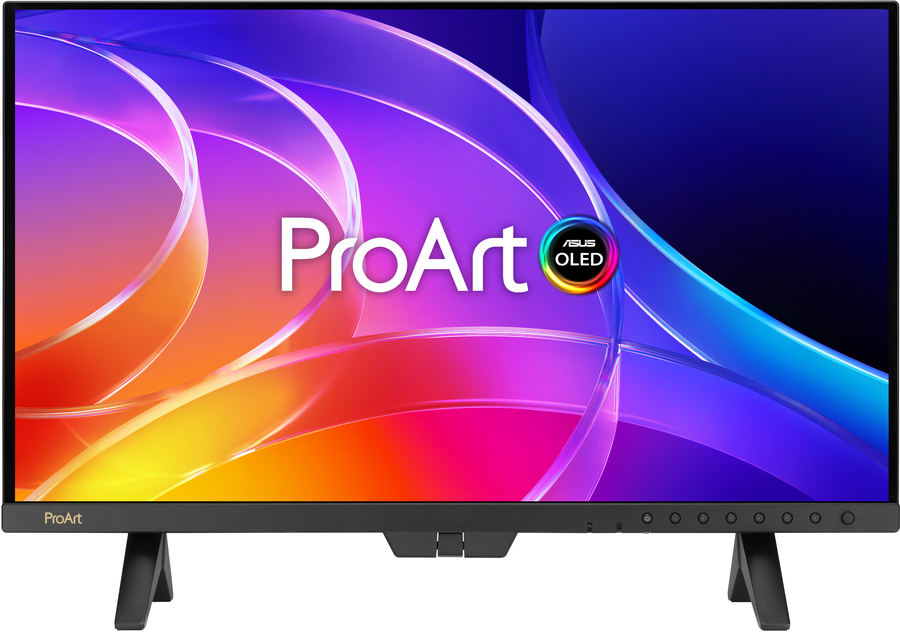

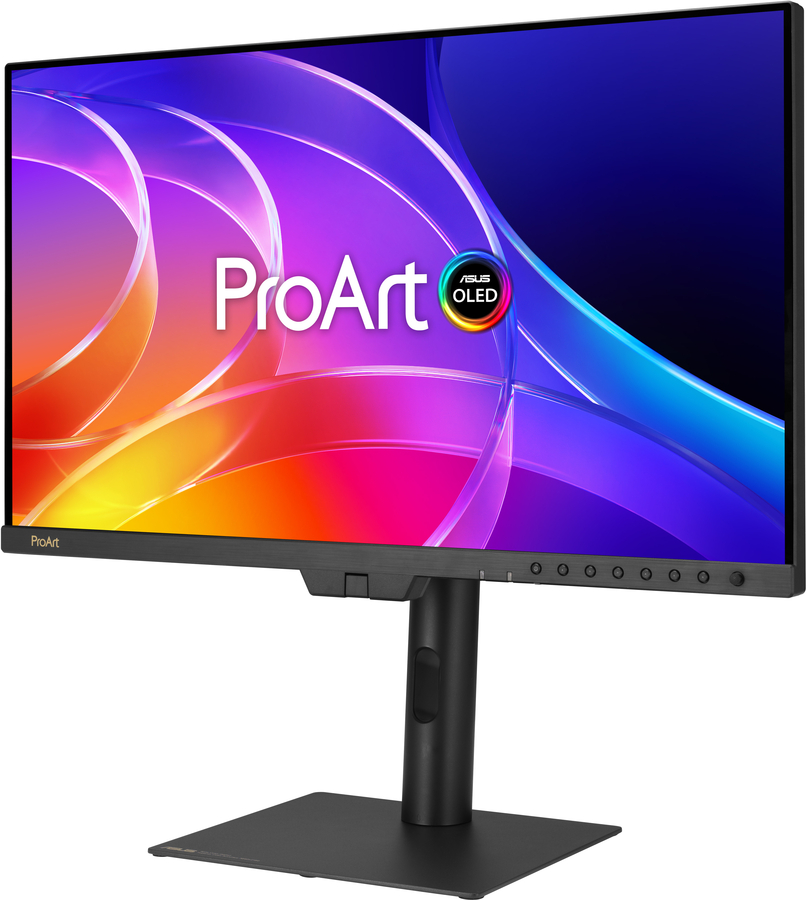

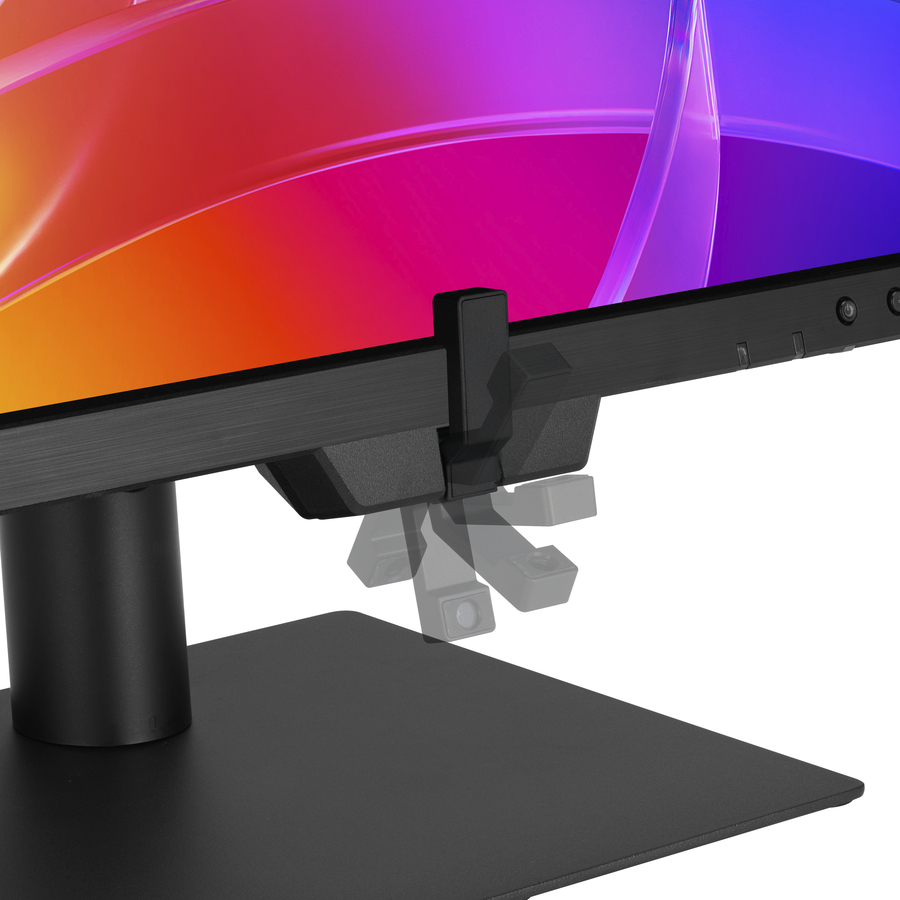

Designed for content creators, the ProArt Display OLED PA27USD is a professional monitor that features a cutting-edge 26.5-inch 4K HDR QD-OLED panel with 1000-nits brightness and 99% DCI-P3 coverage to deliver highly-accurate colors and exceptional visual detail. A built-in motorized flip colorimeter enables auto- and self-calibration for consistent, professional-grade color accuracy, and a 240Hz refresh rate allows creators to work on color-critical artwork as well as performance-driven game development — all on one monitor. In addition to the standard I/O interfaces, the PA27USD supports 12G-SDI connectivity to receive uncompressed video signals up to 4K@60Hz. |
|
Display |
|
Display diagonal |
67.3 cm (26.5") |
|
Display resolution |
3840 x 2160 pixels |
|
Native aspect ratio |
16:9 |
|
Display technology |
QD-OLED |
|
Touchscreen |
No |
|
HD type |
4K Ultra HD |
|
Panel type |
OLED |
|
Response time |
0.1 ms |
|
Screen shape |
Flat |
|
Contrast ratio (typical) |
1500000:1 |
|
Maximum refresh rate |
240 Hz |
|
Display number of colours |
1.073 billion colours |
|
Display brightness (peak) |
1000 cd/m² |
|
Display brightness (typical) |
250 cd/m² |
|
Response time measurement type |
GTG (Gray to Gray) |
|
Anti-glare screen |
Yes |
|
Viewing angle, horizontal |
178° |
|
Viewing angle, vertical |
178° |
|
Pixel pitch |
0.155 x 0.155 mm |
|
Viewable size, horizontal |
59 cm |
|
Viewable size, vertical |
33.3 cm |
|
Digital horizontal frequency |
15 - 583 kHz |
|
Digital vertical frequency |
48 - 240 Hz |
|
High Dynamic Range (HDR) supported |
Yes |
|
High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG), Dolby Vision, DisplayHDR 400 True Black |
|
Colour depth |
10 bit |
|
Colour gamut standard |
DCI-P3, sRGB |
|
sRGB coverage (typical) |
100% |
|
DCI-P3 coverage |
99% |
|
Performance |
|
NVIDIA G-SYNC |
No |
|
AMD FreeSync |
No |
|
VESA Adaptive Sync support |
Yes |
|
Flicker-free technology |
Yes |
|
Low Blue Light technology |
Yes |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
Built-in camera |
No |
|
Number of speakers |
2 |
|
RMS rated power |
4 W |
|
Design |
|
Market positioning |
Graphics design |
|
Product colour |
Black |
|
Detachable stand |
Yes |
|
Feet colour |
Black |
|

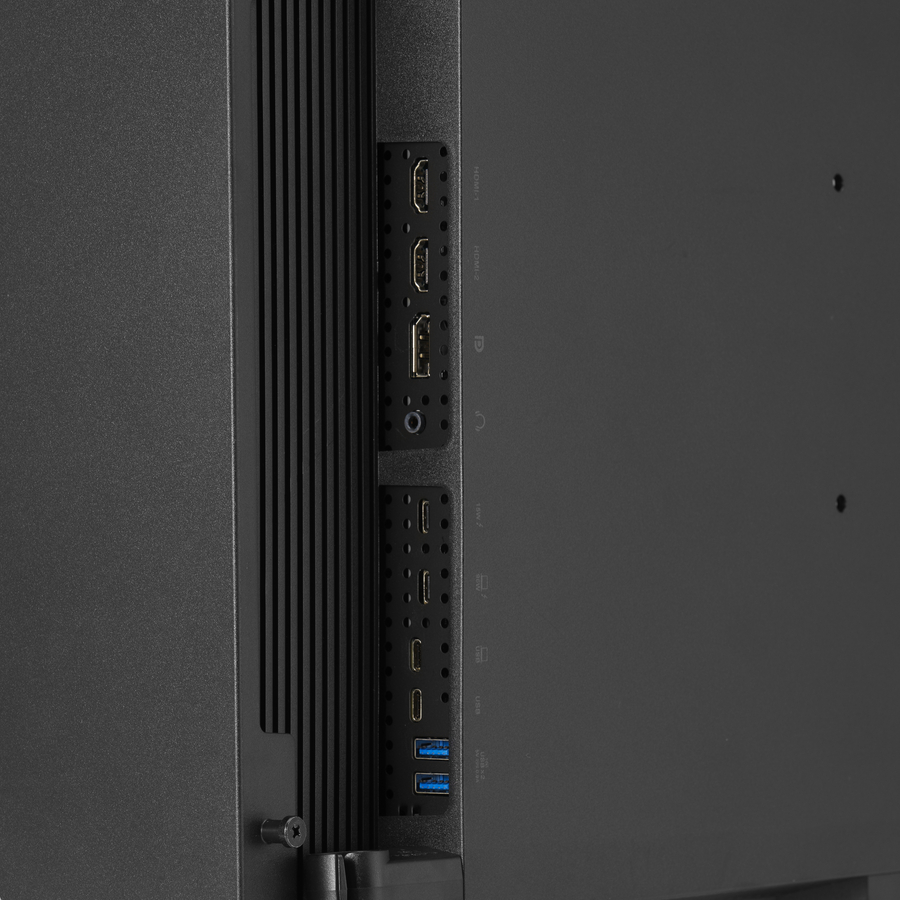

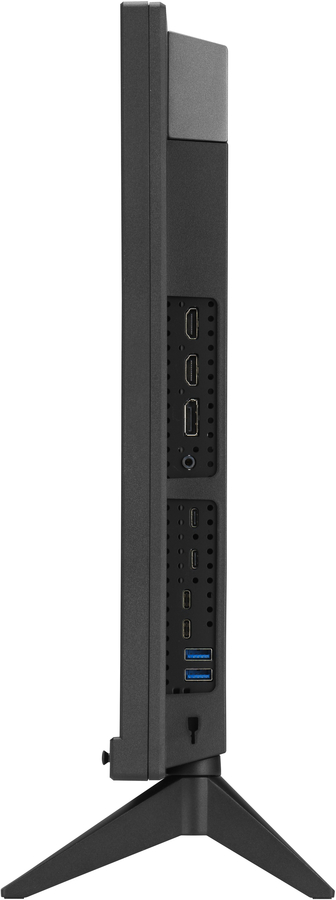

Ports & interfaces |
|
Built-in USB hub |
Yes |
|
HDMI |
Yes |
|
Headphone out |
Yes |
|
USB hub version |
3.2 Gen 2 (3.1 Gen 2) |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery up to |
96 W |
|
HDMI ports quantity |
2 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
2.1 |
|
Thunderbolt 4 ports quantity |
2 |
|
Headphone outputs |
1 |
|
Headphone connectivity |
3.5 mm |
|
Built-in KVM switch |
Yes |
|
HDCP |
Yes |
|
HDCP version |
2.3 |
|

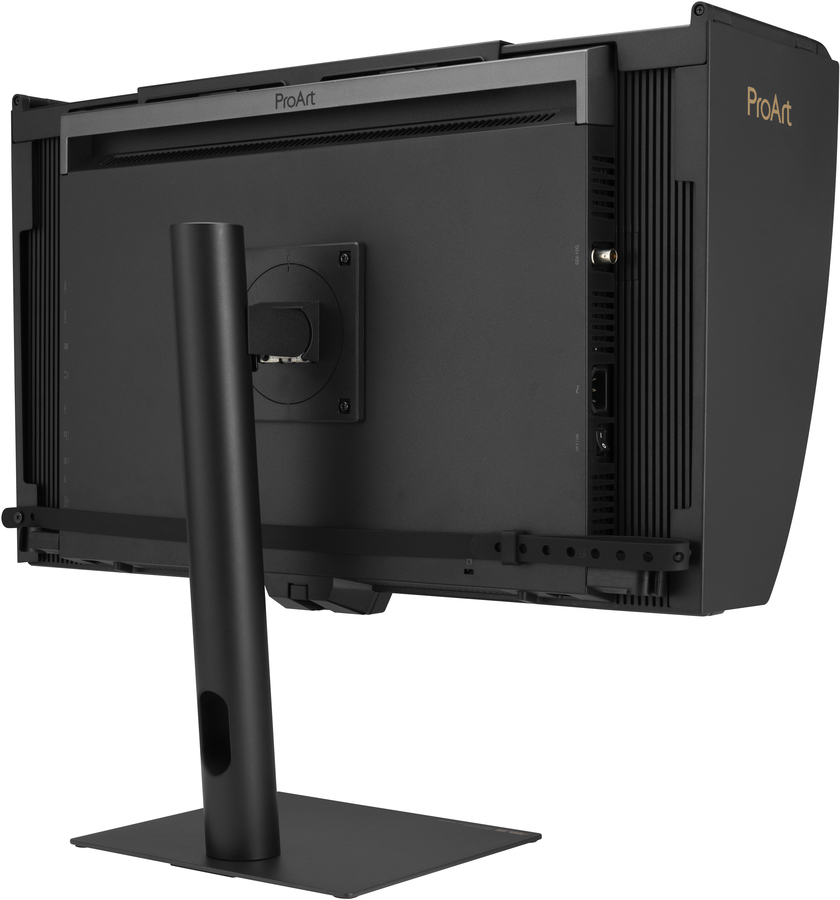

Ergonomics |
|

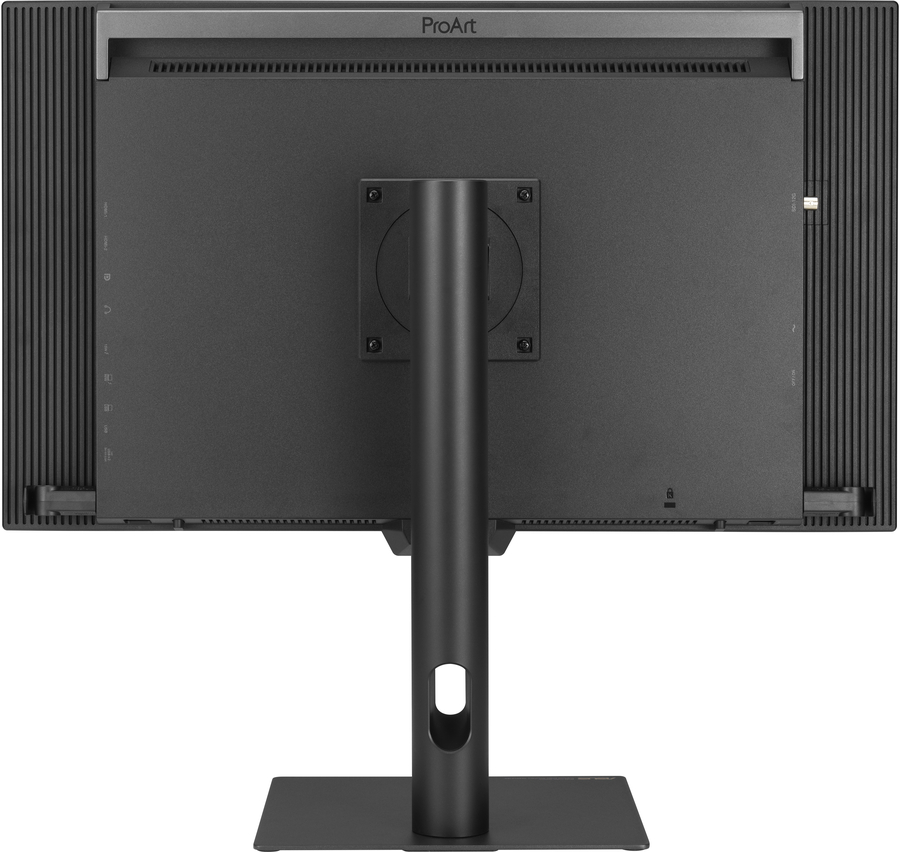

VESA mounting |
Yes |
|
Cable lock slot |
Yes |
|

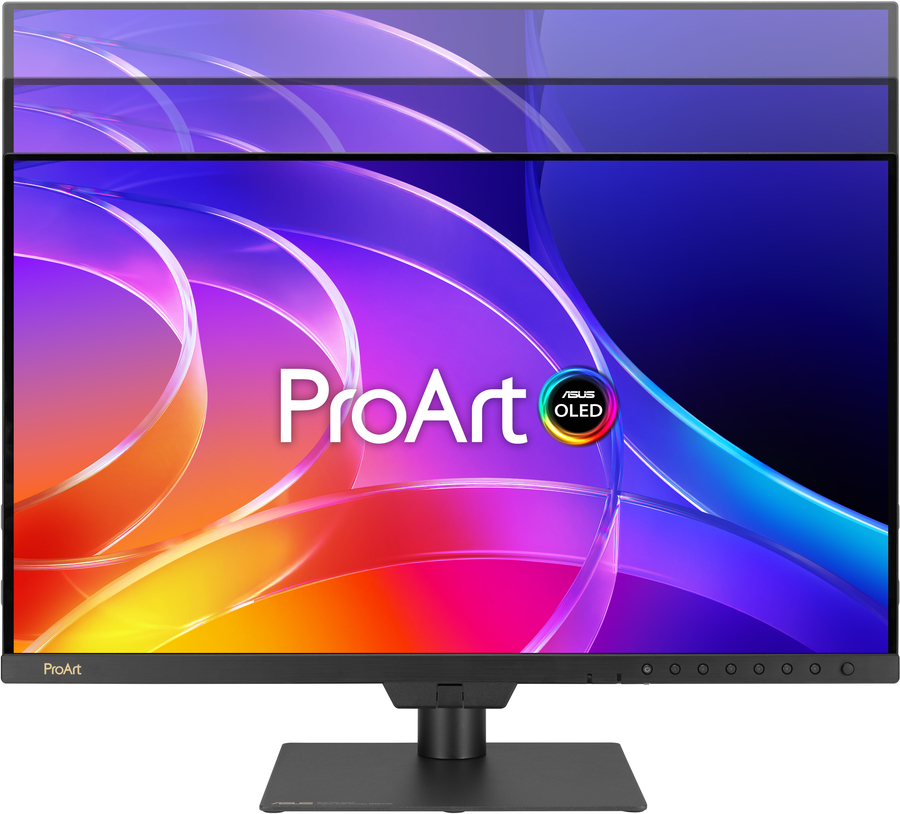

Height adjustment |
Yes |
|
Panel mounting interface |
100 x 100 mm |
|
Wall mountable |
Yes |
|
Cable lock slot type |
Kensington |
|
Adjustable height (max) |
13 cm |
|

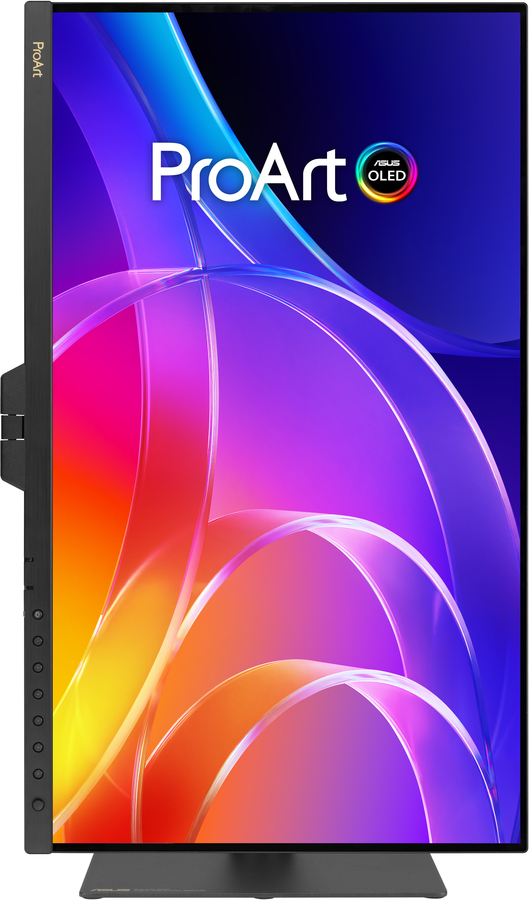

Pivot |
Yes |
|
Pivot angle |
-90 - 90° |
|
Swivelling |
Yes |
|
Swivel angle range |
-30 - 30° |
|

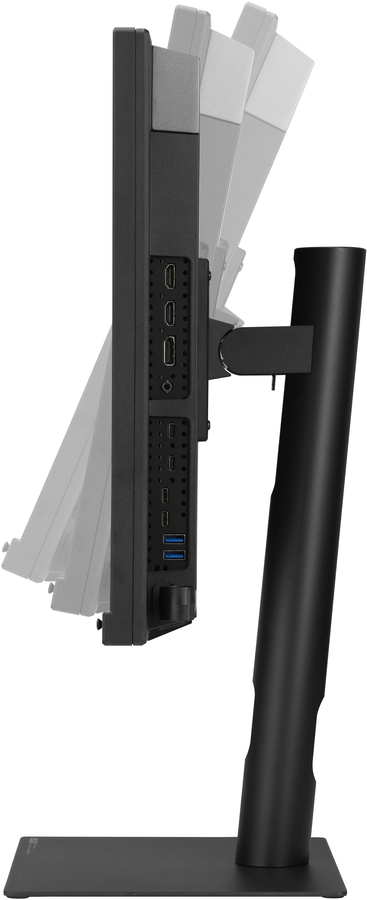

Tilt adjustment |
Yes |
|
Tilt angle range |
-5 - 23° |
|
Power |
|
Energy efficiency class (SDR) |
G |
|
Energy efficiency class (HDR) |
G |
|
Energy consumption (SDR) per 1000 hours |
45 kWh |
|
Energy consumption (HDR) per 1000 hours |
50 kWh |
|
Power consumption (typical) |
32 W |
|
Power consumption (off) |
0 W |
|
Power consumption (PowerSave) |
0.5 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Power supply type |
Internal |
|
Energy efficiency scale |
A to G |
|
Weight & dimensions |
|
Width (with stand) |
610.3 mm |
|
Depth (with stand) |
239.7 mm |
|
Height (with stand) |
584.9 mm |
|
Weight (with stand) |
7.5 kg |
|
Width (without stand) |
610.3 mm |
|
Depth (without stand) |
596 mm |
|
Height (without stand) |
378.8 mm |
|
Weight (without stand) |
4.96 kg |
|
Packaging data |
|
Package width |
884 mm |
|
Package depth |
196 mm |
|
Package height |
685 mm |
|
Package weight |
15.1 kg |
|
Package type |
Box |
|
Packaging content |
|
Stand included |
Yes |
|
Other features |
|
Certification |
Mac Compliance
FSC MIX
Calman Ready
VESA DisplayHDR 400 True Black
TÜV Low Blue Light
TÜV Flicker-free
EPEAT Silver
Energy Star |
