General Information |
|
Summary |

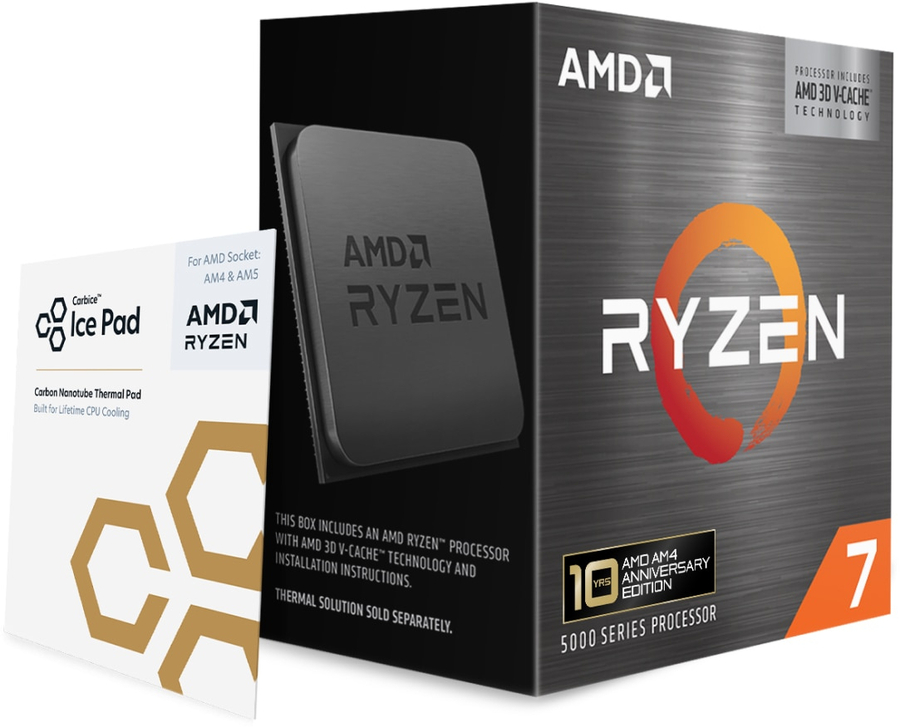

The AMD Ryzen™ 7 5800X3D is the ultimate gaming processor on any DDR4 platform. Every 10th Anniversary Edition AMD Ryzen™ 7 5800X3D Processor includes a Carbice® Ice Pad™.
|
|
Processor |
|
Processor family |
AMD Ryzen™ 7 |
|
Processor cores |
8 |
|
Processor socket |
Socket AM4 |
|
Processor lithography |
7 nm |
|
Package type |
Box |
|
Cooler included |
No |
|
Processor manufacturer |
AMD |
|
Processor model |
5800X3D |
|
Processor base frequency |
3.4 GHz |
|
Processor operating modes |
64-bit |
|
Processor generation |
AMD Ryzen 5000 Series |
|
Processor threads |
16 |
|
Processor boost frequency |
4.5 GHz |
|
Processor cache |
96 MB |
|
Processor cache type |
L3 |
|
Thermal Design Power (TDP) |
105 W |
|
Compatible chipsets |
AMD X470, AMD A520, AMD B450, AMD B550, AMD X570 |
|
Memory |
|
Memory channels |
Dual-channel |
|
Maximum internal memory supported by processor |
128 GB |
|
Memory types supported by processor |
DDR4-SDRAM |
|
Memory clock speeds supported by processor |
2667,2933,3200 MHz |
|
ECC |
Yes |
|
Graphics |
|
On-board graphics card |
No |
|
Discrete graphics card |
No |
|
On-board graphics card model |
Not available |
|
Discrete graphics card model |
Not available |
|
Features |
|
PCI Express slots version |
4.0 |
|
Processing Die size |
74 mm² |
|
Compatible operating systems |
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit |
|
Operational conditions |
|
Minimum operating temperature |
90 °C |
