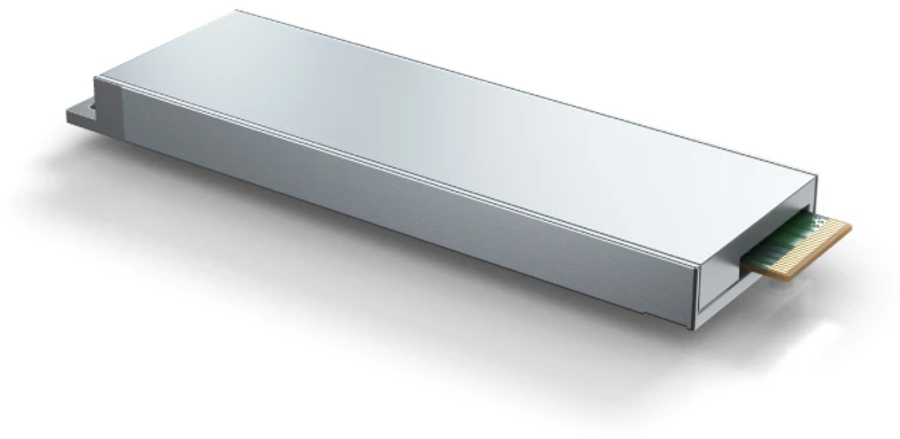

Solidigm D7-P5520 3.84TB E1.S 15mm PCIe 4.0 TLC Enterprise SSD
|
|
Price: $4016.00
Manufacturer:
Solidigm
7.68TB, EDSFF S 9.5mm PCIe 4.0 x4, 3D4, TLC
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60550584
|
AA001929T
|
840307303295 |
Active
|
Details
|
General Information |
|
Summary |
The Highest Performance for the Most Demanding Workloads
Our highest-performing SSD Series includes the Solidigm D7-P5520: one of the industry’s most advanced PCIe products, performance-tuned for the real world. Designed with the highest standard endurance and tested with zero tolerance for data errors, it delivers consistently durable performance.
Consolidate Mixed and Mainstream Random Workloads
For highly mixed and mainstream workload environments requiring low latency for improved user experience, the D7-P5520 delivers consistent, exceptional performance where it counts. For solutions such as AI/ML, database, and cloud applications, it provides substantial random and sequential read/writes, high random read IOPS, and sequential write throughput.
The Industry’s Broadest PCIe 4.0 Portfolio
Form factor and capacity expansion enable server modernization opportunities spanning a broad range of 1U and 2U configurations for compute and storage servers. The Solidigm D7-P5520 is available in U.2, E1.L, E1.S 9.5 mm and E1.S 15 mm form factors.
Deploy With Confidence
Solidigm D7 Series drives are designed and tested with a passion for—and a relentless focus on—quality and reliability. Our data reliability is enhanced on multiple levels with PLI testing that simulates real-world conditions. Consistency is key, and this SSD provides up to 90% IOPS consistency and <0.3% IOPS variability over the life of the drive. |
|
Features |
|
SSD capacity |
7.68 TB |
|
SSD form factor |
E1.S |
|
Interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
Memory type |
TLC 3D NAND |
|
Component for |
Server |
|
Read speed |
6600 MB/s |
|
Write speed |
4200 MB/s |
|
Random read (4KB) |
1100000 IOPS |
|
Random write (4KB) |
220000 IOPS |
|
Random latency - read (up to) |
75 µs |
|
Random latency - write (up to) |
15 µs |
|
Sequential latency - read (up to) |
10 µs |
|
Sequential latency - write (up to) |
13 µs |
|
PCI Express interface data lanes |
x4 |
|
Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
|
Mean time between failures (MTBF) |
2000000 h |
|
Power |
|
Power consumption (idle) |
5 W |
|
Weight & dimensions |
|
Weight |
72 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Operating vibration |
2.17 G |
|
Non-operating vibration |
3.13 G |
|
Operating shock |
1000 G |
|
Non-operating shock |
1000 G |
|
Other features |
|
Power consumption (active) |
13 W |
|
