General Information |
|
Summary |

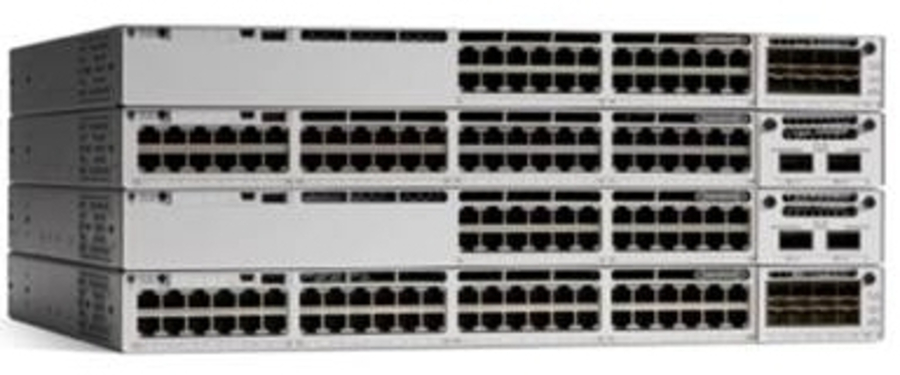

Catalyst 9300 48-port UPOE, Ne |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|
MIB support |
Y |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
48 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
|
Full duplex |
Yes |
|
Routing entries |
32000 |
|
VLAN support |
Yes |
|
Virtual LAN features |
VLAN Identifier ( VLAN ID) |
|
Number of VLANs |
4094 |
|
Data transmission |
|
MAC address table |
32000 entries |
|
Switching capacity |
256 Gbit/s |
|
Forwarding rate |
190.48 Mpps |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9198 |
|
Packet buffer memory |
16 MB |
|
Security |
|
DHCP features |
DHCP snooping |
|
Access Control List (ACL) |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Stackable |
Yes |
|
Product colour |
Grey |
|
Performance |
|
Internal memory |
8000 MB |
|
Flash memory |
16000 MB |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 40 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
445 mm |
|
Depth |
445 mm |
|
Height |
44 mm |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
