General Information |
|
Summary |

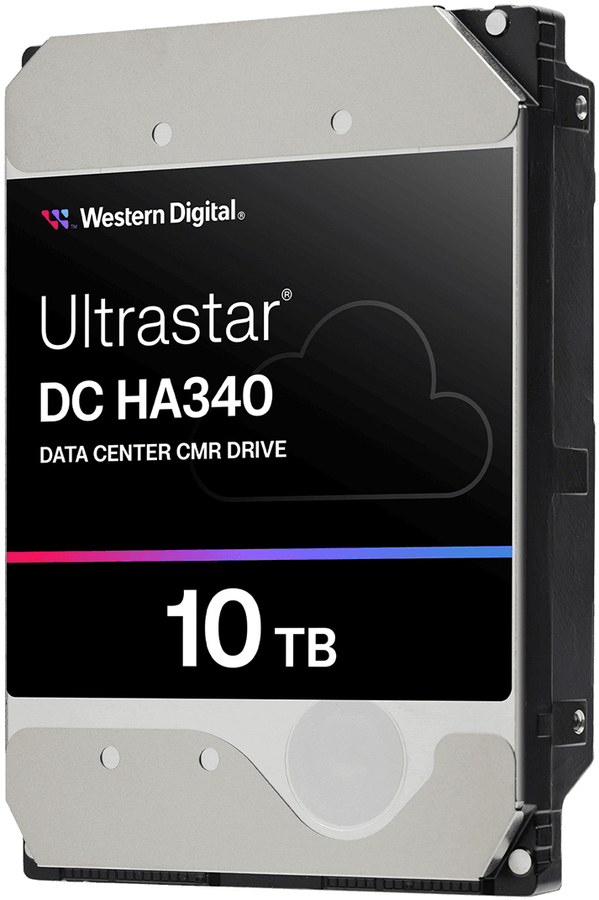

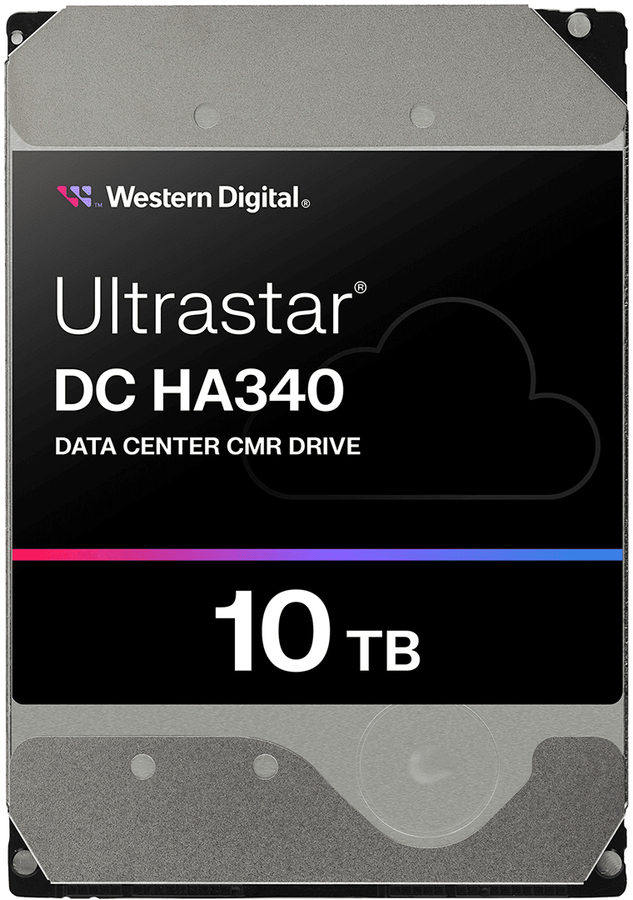

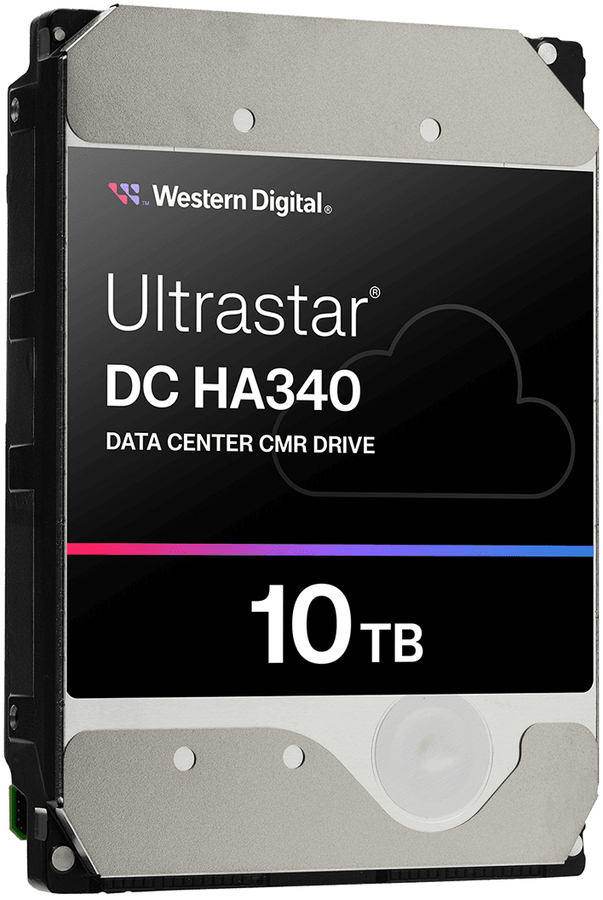

3.5in 26.1 10TB 512 7200RPM SATA ULTRA 512E SE NP3 DC HA340 |
|
Features |
|
HDD capacity |
10 TB |
|
HDD speed |
7200 RPM |
|
HDD size |
3.5" |
|
Interface |
Serial ATA |
|
Type |
HDD |
|
Component for |
Server/workstation |
|
Storage drive buffer size |
512 MB |
|
HDD interface transfer rate |
6 Gbit/s |
|
HDD sustained transfer rate |
255 MiB/s |
|
Average latency |
4.16 ms |
|
Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^15 bits read |
|
Advanced Format (AF) |
Yes |
|
24/7 operation |
Yes |
|
Start/stop cycles |
600000 |
|
Workload rate limit |
550 TB/year |
|
Mean time between failures (MTBF) |
2000000 h |
|
Power |
|
Power consumption (typical) |
9.2 W |
|
Power consumption (idle) |
8.4 W |
|
Operating voltage |
5 / 12 V |
|
Operational conditions |
|
Operating temperature (T-T) |
5 - 60 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating vibration |
0.67 G |
|
Non-operating vibration |
1.04 G |
|
Operating shock |
70 G |
|
Non-operating shock |
250 G |
|
Weight & dimensions |
|
Width |
101.6 mm |
|
Height |
147 mm |
|
Depth |
26.1 mm |
|
Weight |
750 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Other features |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
