General Information |
|
Summary |
Add an RS232 null modem serial adapter to a laptop or desktop, using an available USB-C port
Add RS-232 serial communication support to USB-C laptops or desktops using this 6.6ft (2m) USB-C to DB9 null modem serial adapter cable.
Serial Port Expansion

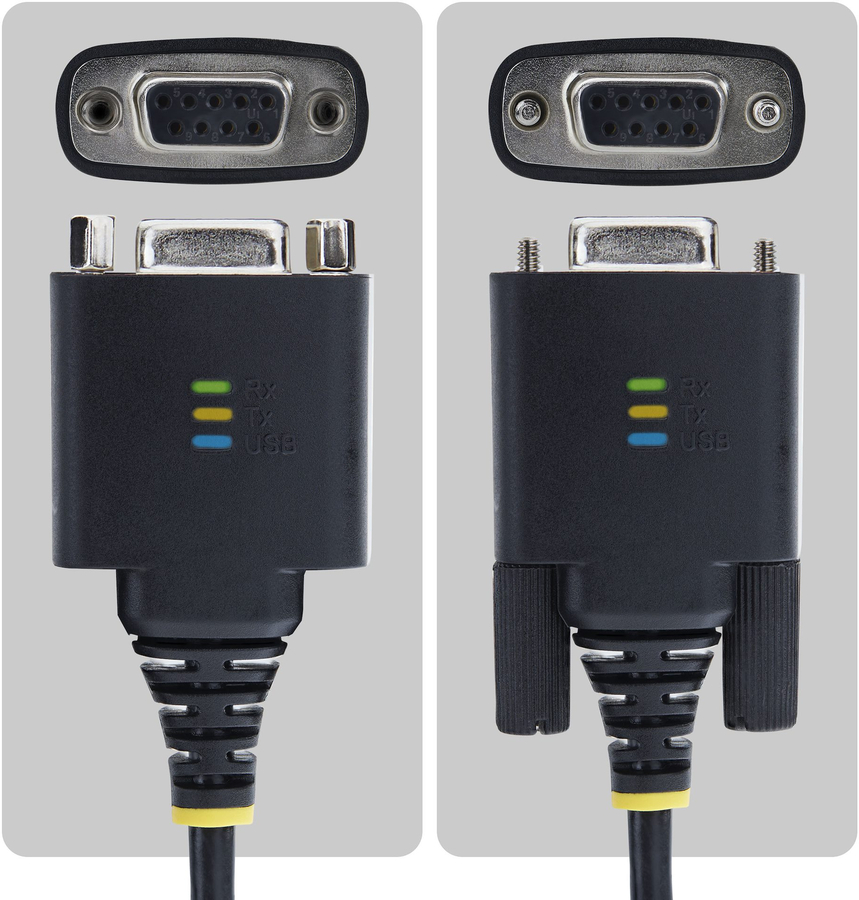

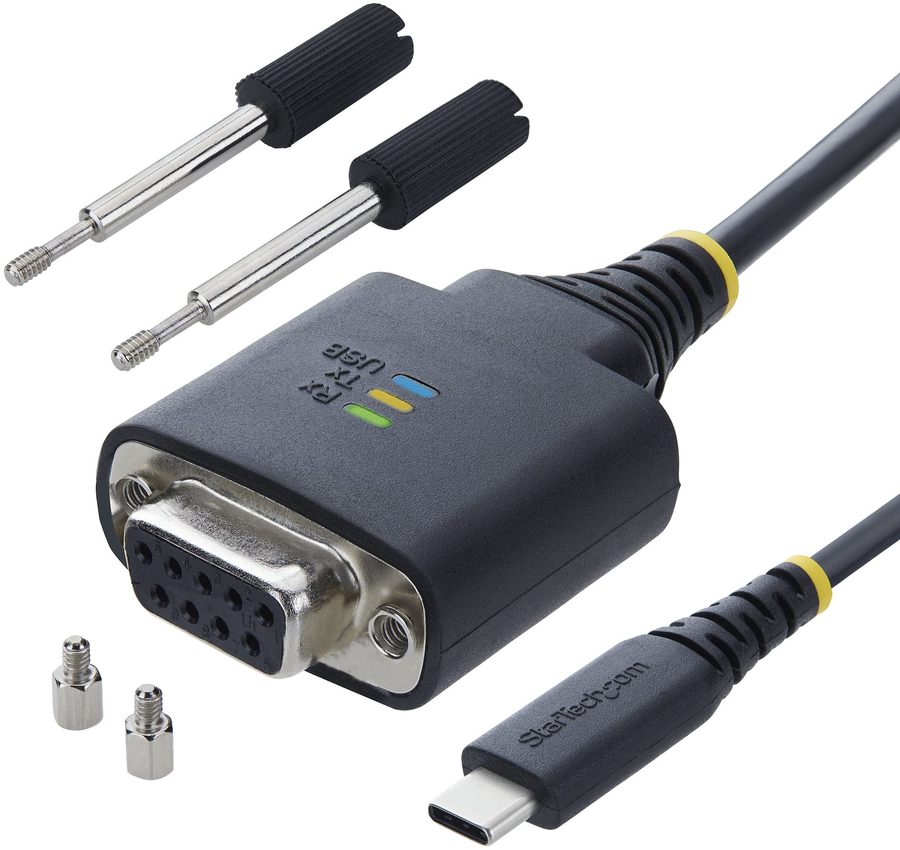

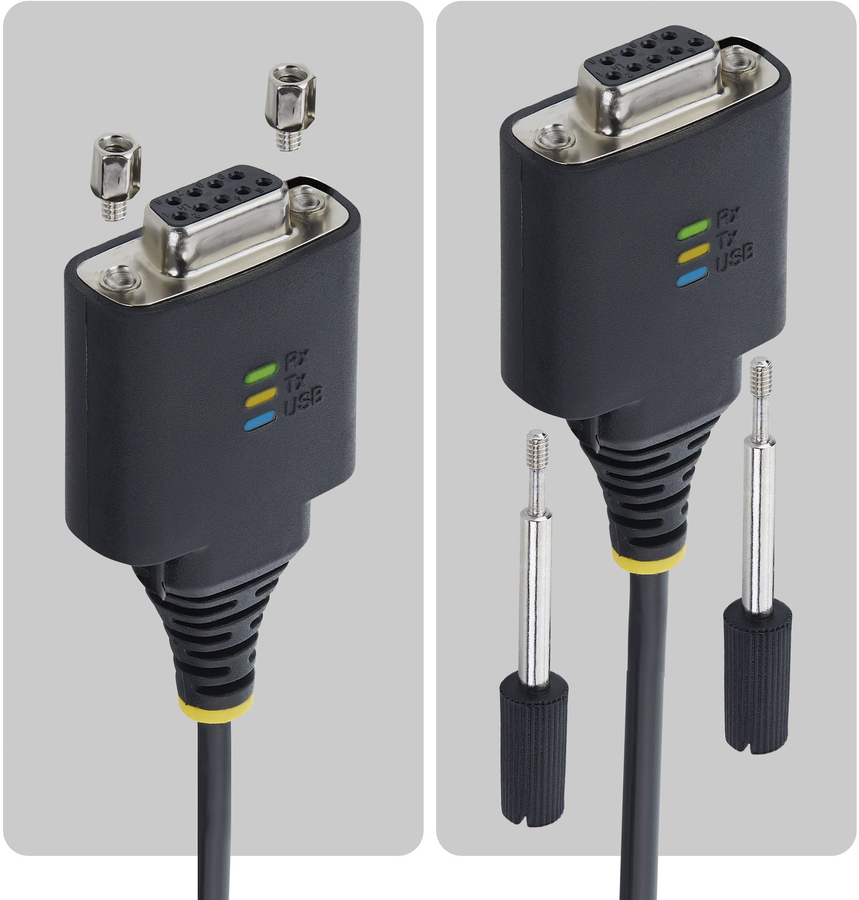

The adapter adds an RS-232 DB9 female connector through a USB Type-C port. The cable improves reach to serial equipment and supports cleaner routing behind desks, workstations, kiosks, or service benches. Secure it with pre-installed removable DB9 screws or install the included DB9 nuts for expanded compatibility with serial peripherals.

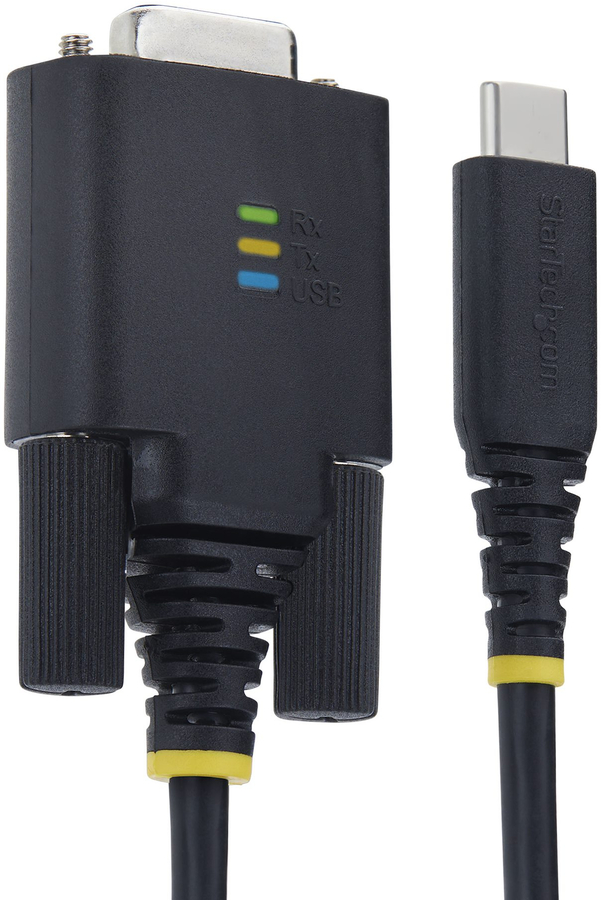

LED Indicators
Transmit, Receive, and USB LEDs show activity and host recognition for faster setup and at-a-glance troubleshooting.
Seamless Connectivity
The FTDI-based adapter supports Windows, macOS, ChromeOS, and Linux. Driver auto-install and COM retention help maintain serial access after reboots or reconnects.
Built To Last
Molded TPE housing adds rugged protection against flexing and wear, while the Level-4 ESD (15kV air/8kV contact) protection helps protect connected devices from static discharge. Copper shielding helps minimize interference for cleaner signal transmission, and gold-plated connectors resist corrosion for long-term connection reliability. Rated for -40°C to 80°C operation, the cable is built for dependable performance in demanding industrial and commercial environments. |
|
Features |
|
Product colour |
Black |
|
Cable length |
2 m |
|
Connector 1 |
USB Type-C |
|
Connector 2 |
RS-232 |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Female |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Chipset |
FTDI - FT232R |
|
Baud rate |
921.6 Kbit/s |
|
FIFO (First In, First Out) |
256 B |
|
Parity bit |
Even, Odd, No, Mark, Space |
|
Stop bits |
1, 2 |
|
Windows operating systems supported |
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|
Mac operating systems supported |
Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe |
|
Linux operating systems supported |
Yes |
|
Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows Server 2025 |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
190 mm |
|
Package depth |
110 mm |
|
Package height |
19 mm |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC) |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 80 °C |
|
Storage temperature (T-T) |
-40 - 80 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Weight |
92 g |
|
Packaging content |
|
Manual |
Yes |
|
Logistics data |
|
Master (outer) case width |
440 mm |
|
Master (outer) case length |
370 mm |
|
Master (outer) case height |
320 mm |
|
Products per master (outer) case |
60 pc(s) |
|
