General Information |
|
Summary |

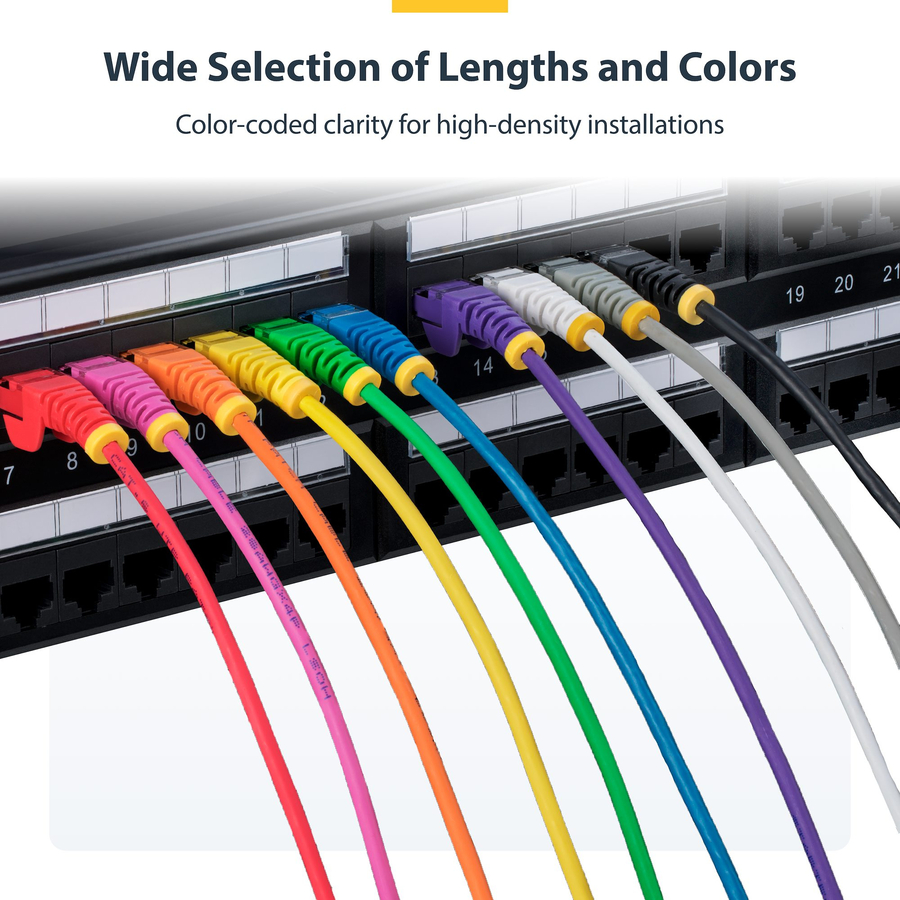

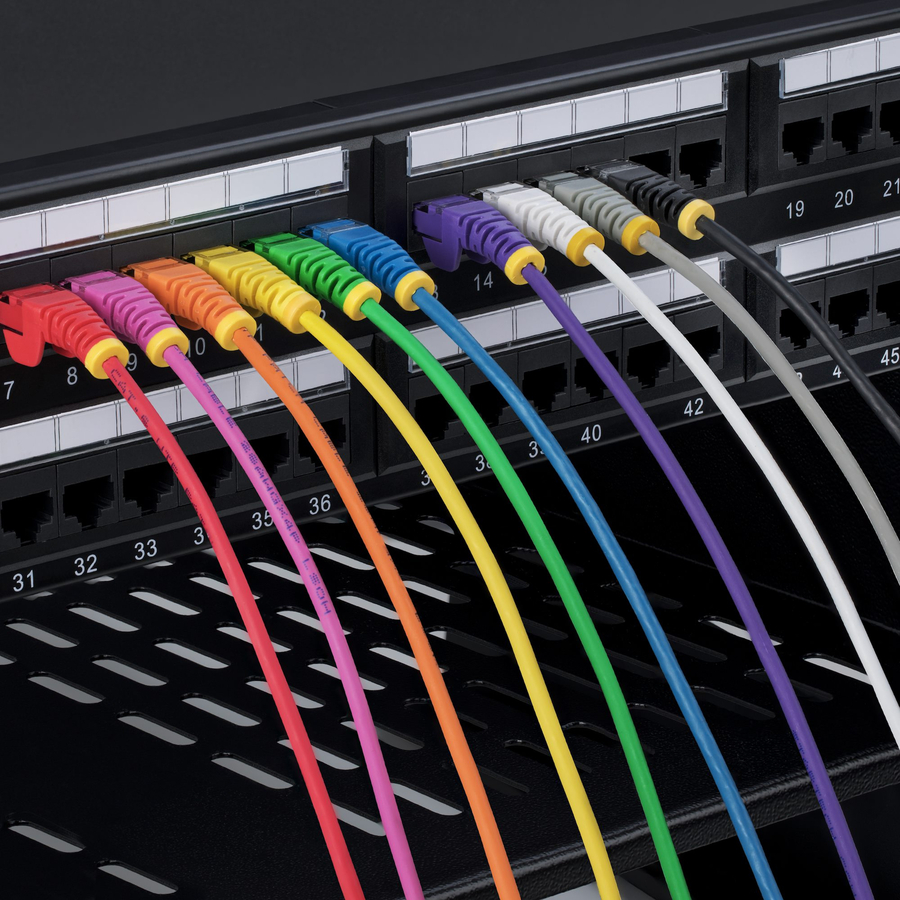

Route Slim Cat6 cables through high density installations for optimal flexibility and airflow

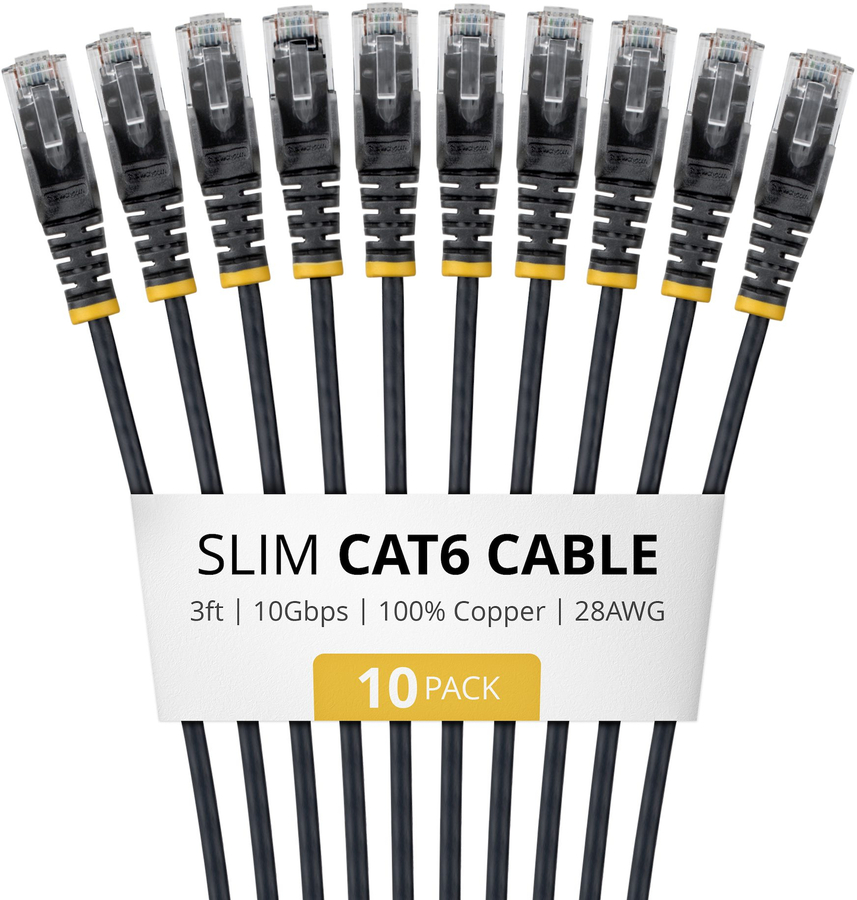

This 10-Pack of Slim Cat6 Cables is a convenient solution for supporting multiple installations. Deploy 10-Gigabit and 100W Power over Ethernet (PoE) connections in high-density enterprise networks.
Improved Airflow

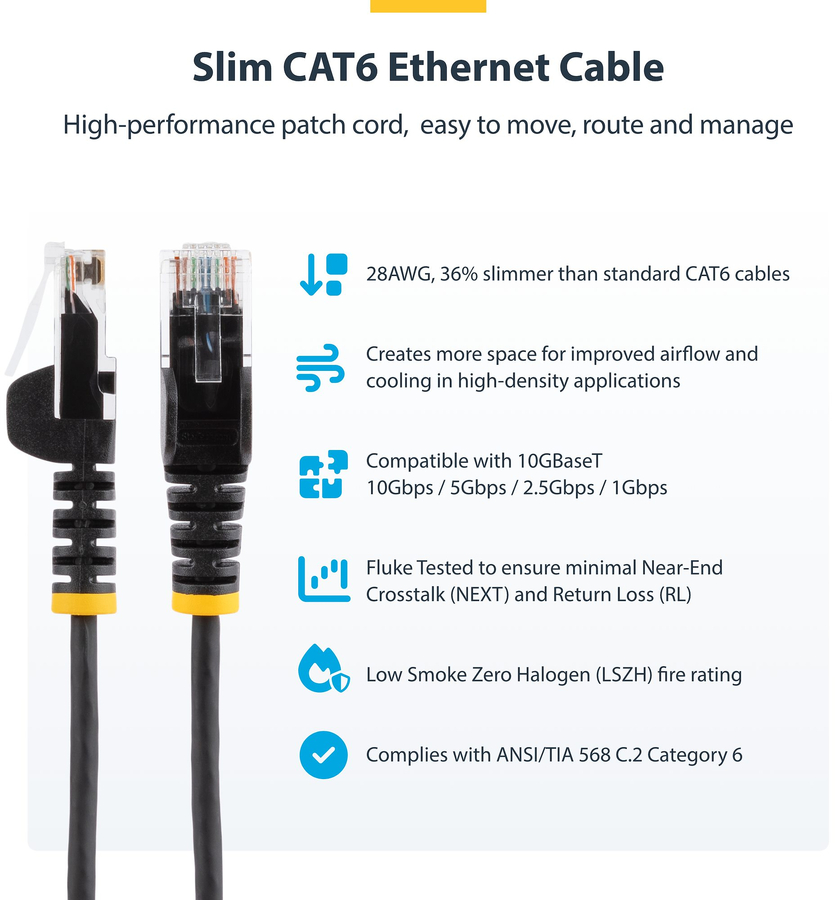

The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels.

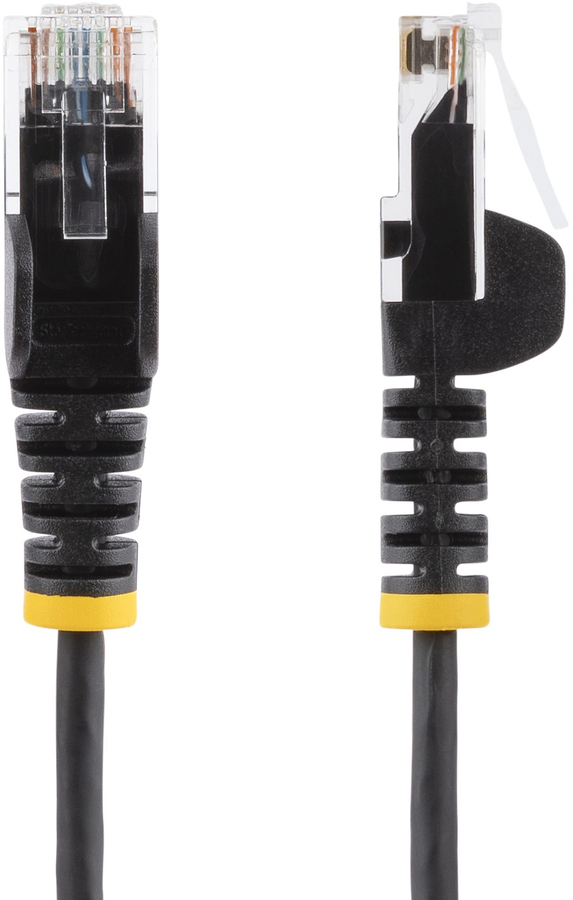

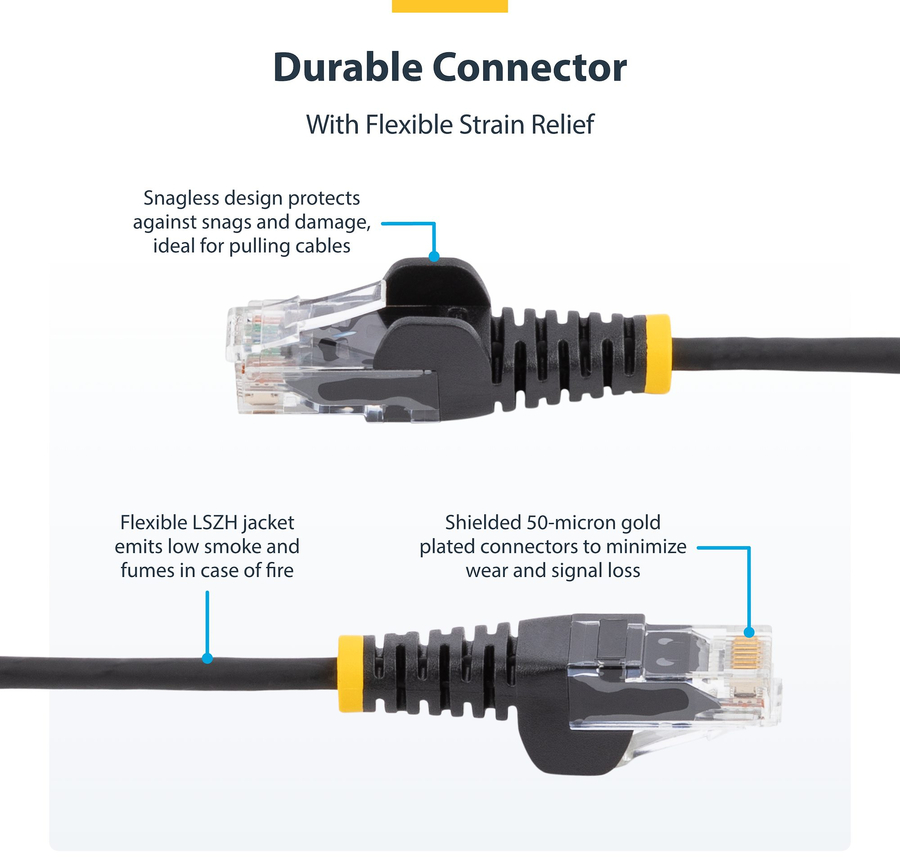

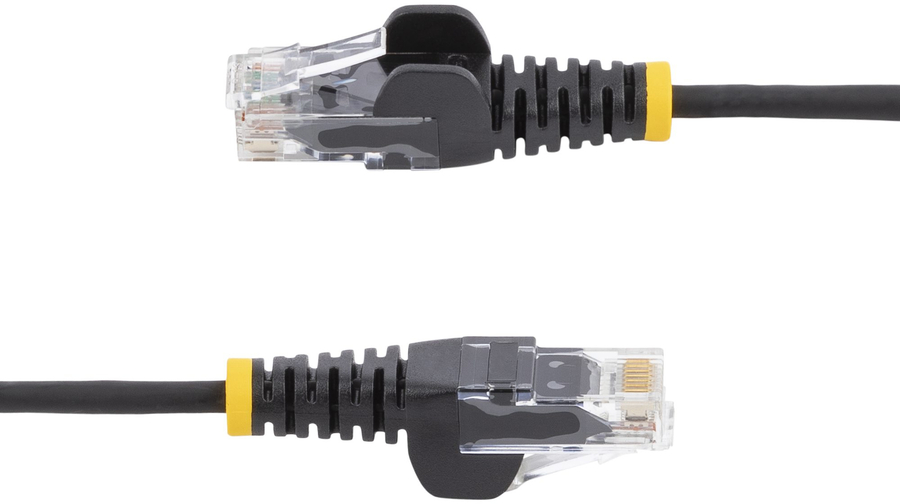

This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.
Durable Construction

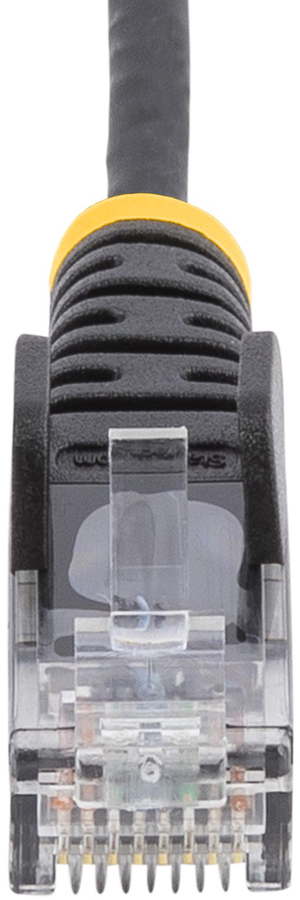

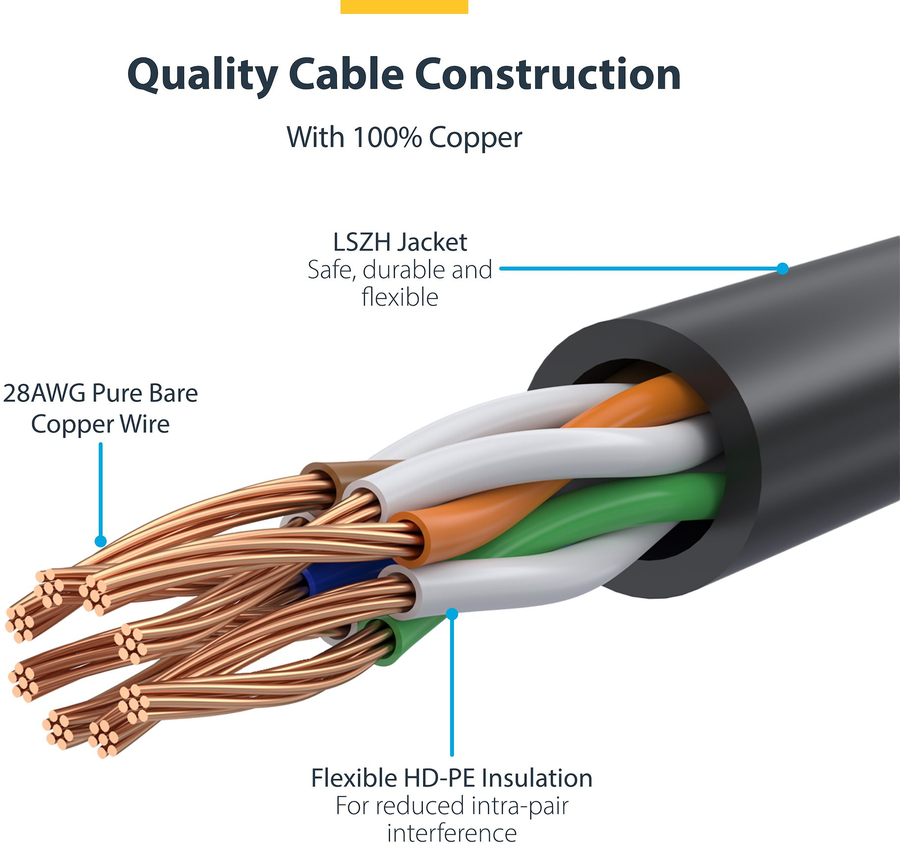

The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimize wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilizes 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Tested for Reliability

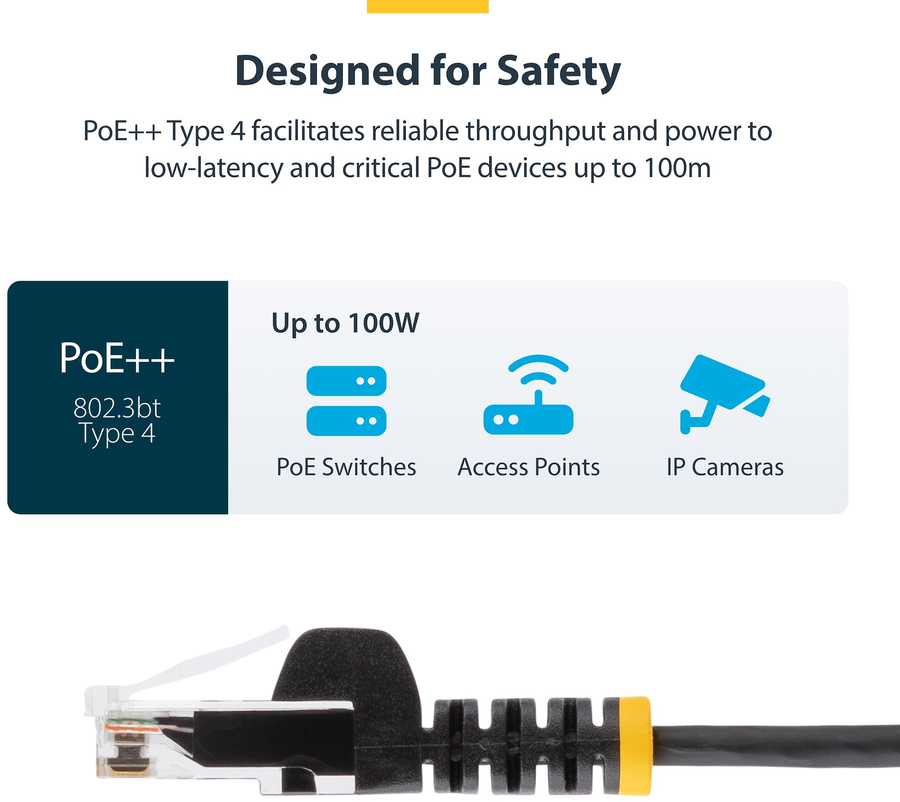

Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer™ to meet ANSI/TIA-568.2-D Category 6 specifications, ensuring consistent signal integrity with minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 100W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications. |
|
Features |
|
Cable length |
0.915 m |
|
Cable standard |
Cat6 |
|
Cable shielding |
U/UTP (UTP) |
|
Connector 1 |
RJ-45 |
|
Connector 2 |
RJ-45 |
|
Product colour |
Black |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Connector contacts plating |
Gold |
|
Jacket material |
Low smoke zero halogen (LSZH) |
|
Conductor type |
Stranded |
|
Cabling technology |
10GBase-T |
|
Ethernet interface type |
Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
|
Networking standards |
IEEE 802.3bt |
|
AWG wire size |
28 |
|
Data transfer rate |
10000 Mbit/s |
|
Frequency |
250 MHz |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
|
Total Power over Ethernet (PoE) budget |
100 W |
|
Snagless cable boot |
Yes |
|
Plug and Play |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 60 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 80% |
|
Certificates |
|
Compliance certificates |
CE |
|
Weight & dimensions |
|
Outer diameter |
3.6 mm |
|
Weight |
26 g |
|
Packaging content |
|
Quantity per pack |
10 pc(s) |
|
Packaging data |
|
Package width |
220 mm |
|
Package depth |
240 mm |
|
Package height |
20 mm |
|
Package weight |
281 g |
|
Logistics data |
|
Master (outer) case width |
420 mm |
|
Master (outer) case length |
500 mm |
|
Master (outer) case height |
230 mm |
|
Products per master (outer) case |
28 pc(s) |
