General Information |
|
Summary |

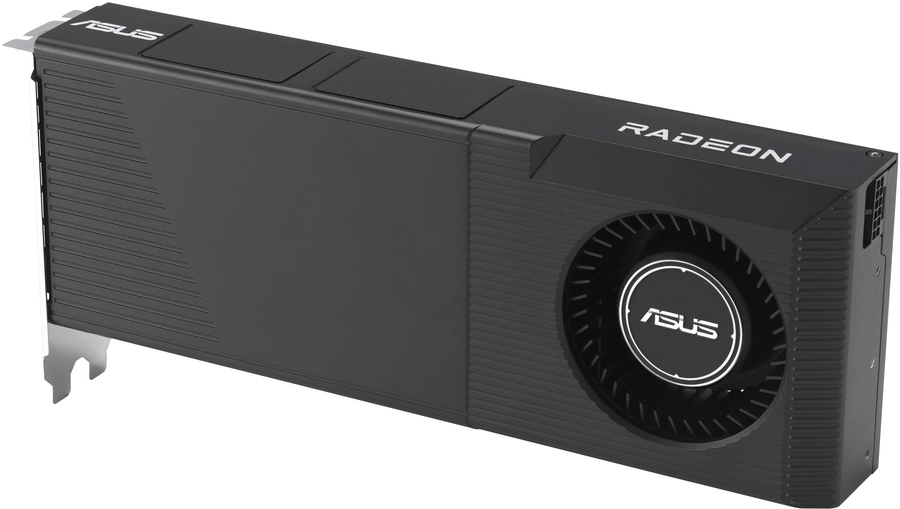

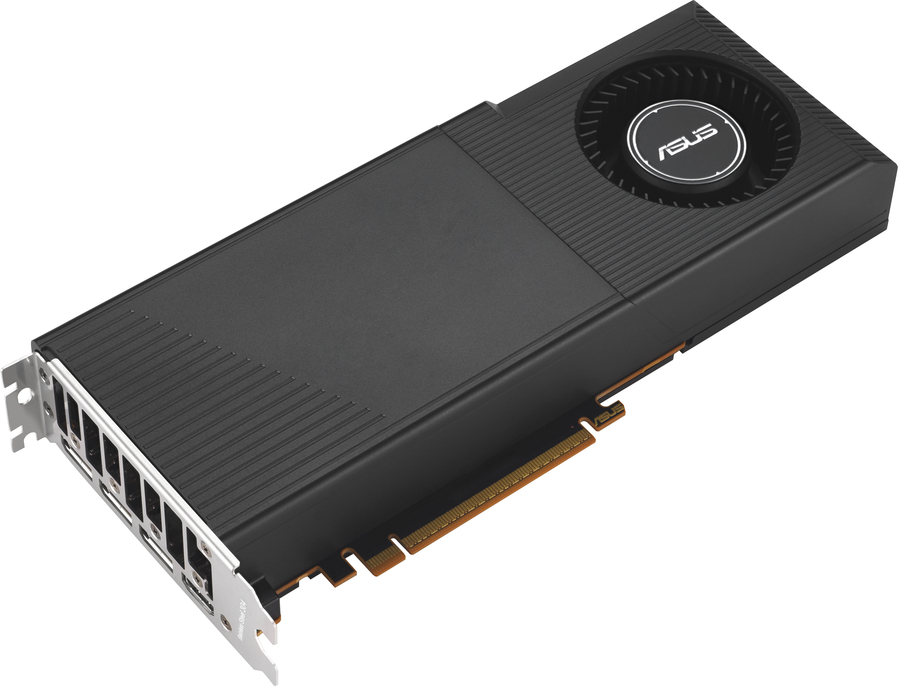

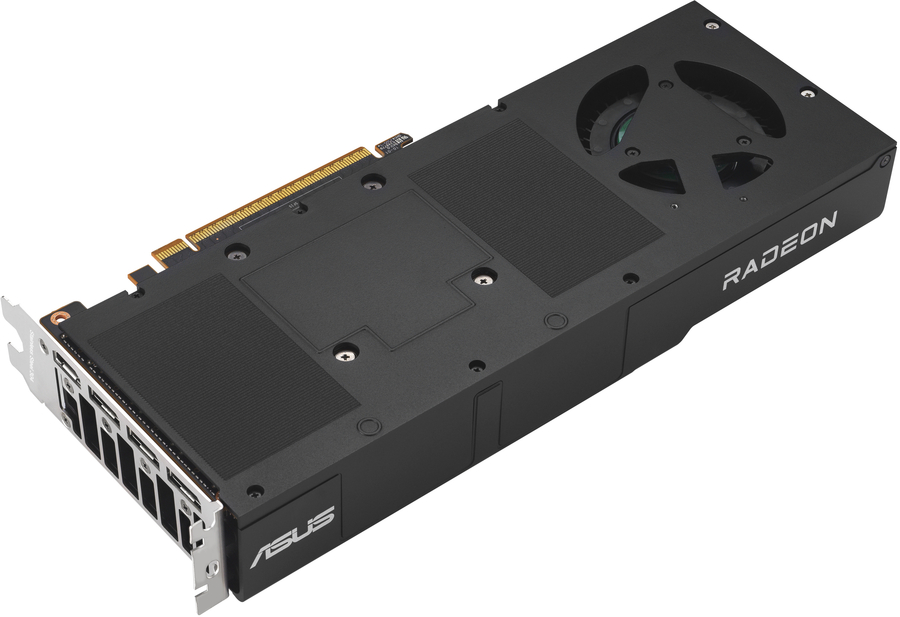

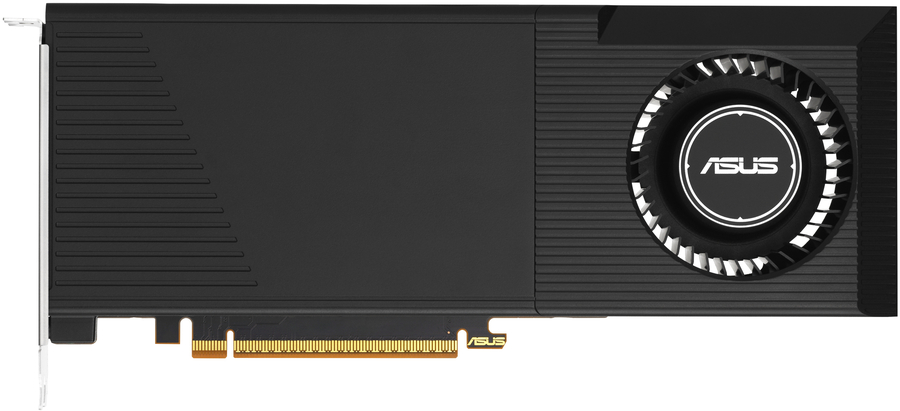

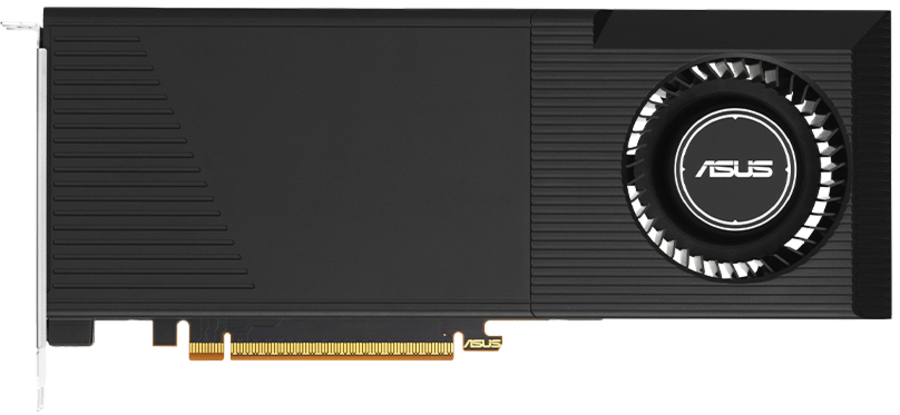

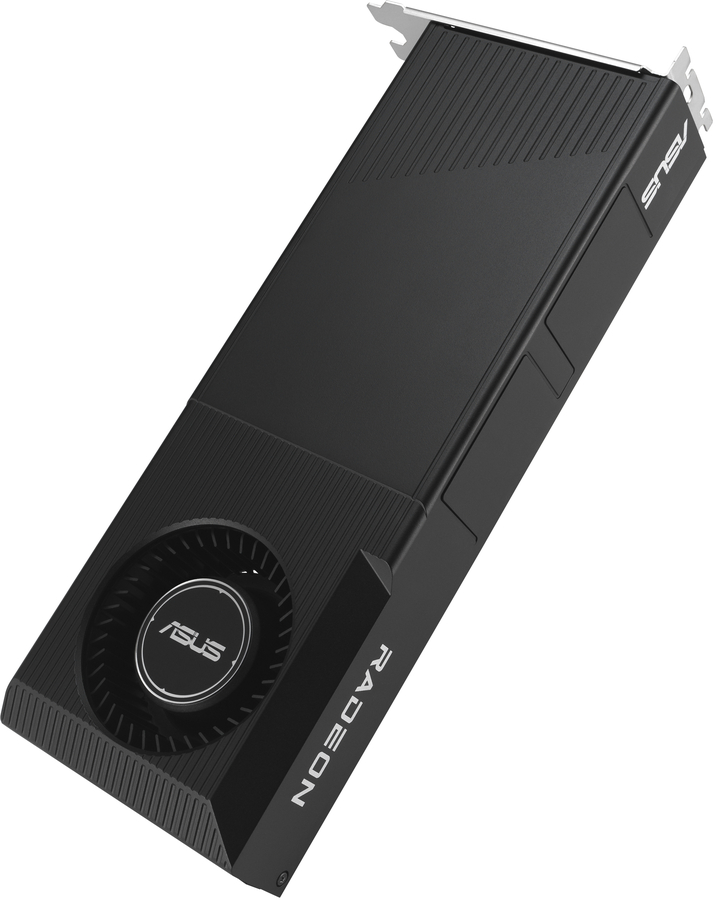

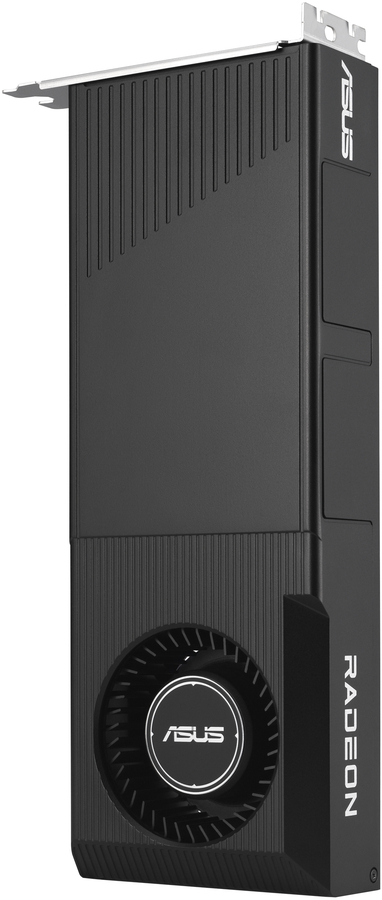

ASUS Turbo Radeon AI Pro R9700 Professional Graphics Card, AMD RDNA 4 architecture, 32GB GDDR6 memory, 4,096 stream processors, 128 AI accelerators, PCIe 5.0 interface, 1 HDMI 2.1b, 3 DisplayPort 2.1a, support for up to four displays and 8K resolution, dualfan cooling design, 2slot form factor. Intended for AI processing, professional content creation, visualization, rendering, and highperformance workstation applications. |
|
Processor |
|
Graphics processor family |
AMD |
|
Graphics processor |
Radeon AI PRO R9700 |
|
Maximum resolution |
7680 x 4320 pixels |
|
Parallel processing technology support |
Not supported |
|
Compute units |
64 |
|
Render Output Units (ROPs) |
128 |
|
Processor boost clock speed |
2920 MHz |
|
Processor boost clock speed (OC mode) |
2940 MHz |
|
Processor boost clock speed (Gaming mode) |
2350 MHz |
|
Stream processors |
4096 |
|
Maximum displays per videocard |
4 |
|
Ray accelerators |
64 |
|
AI accelerators |
128 |
|
Memory |
|
Discrete graphics card memory |
32 GB |
|
Graphics card memory type |
GDDR6 |
|
Memory bus |
256 bit |
|
Data transfer rate |
20 Gbit/s |
|
Ports & interfaces |
|
Interface type |
PCI Express 5.0 |
|

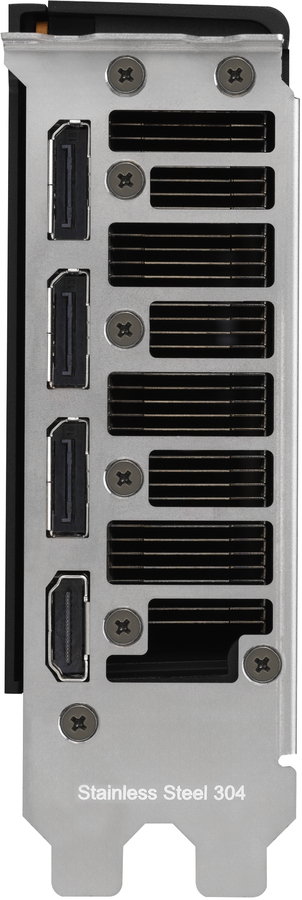

HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
3 |
|
Thunderbolt 3 ports quantity |
0 |
|
Mini HDMI ports quantity |
0 |
|
HDMI version |
2.1b |
|
Mini DisplayPorts quantity |
0 |
|
DisplayPort version |
2.1a |
|
Performance |
|
TV tuner integrated |
No |
|
OpenGL version |
4.6 |
|
Dual Link DVI |
No |
|
Peak Single Precision Matrix (FP32) performance |
47.8 TFLOPS |
|
Peak Half Precision (FP16) performance |
95.7 TFLOPS |
|
Peak INT4 performance |
1531 TOPs |
|
Peak INT8 Performance |
766 TOPs |
|
HDCP |
Yes |
|
HDCP version |
2.3 |
|
Design |
|
Cooling type |
Active |
|
Number of fans |
1 fan(s) |
|
Form factor |
Full-Height/Half-Length (FH/HL) |
|
Number of slots |
2 |
|
Product colour |
Grey |
|
Power |
|
Minimum system power supply |
750 W |
|
Supplementary power connectors |
1x 16-pin |
|
Weight & dimensions |
|
Weight |
1.04 kg |
|
Length |
266.7 mm |
|
Depth |
40 mm |
|
Height |
111.1 mm |
|
Packaging data |
|
Package width |
368 mm |
|
Package depth |
220.5 mm |
|
Package height |
68 mm |
|
Package weight |
1.5 kg |
|

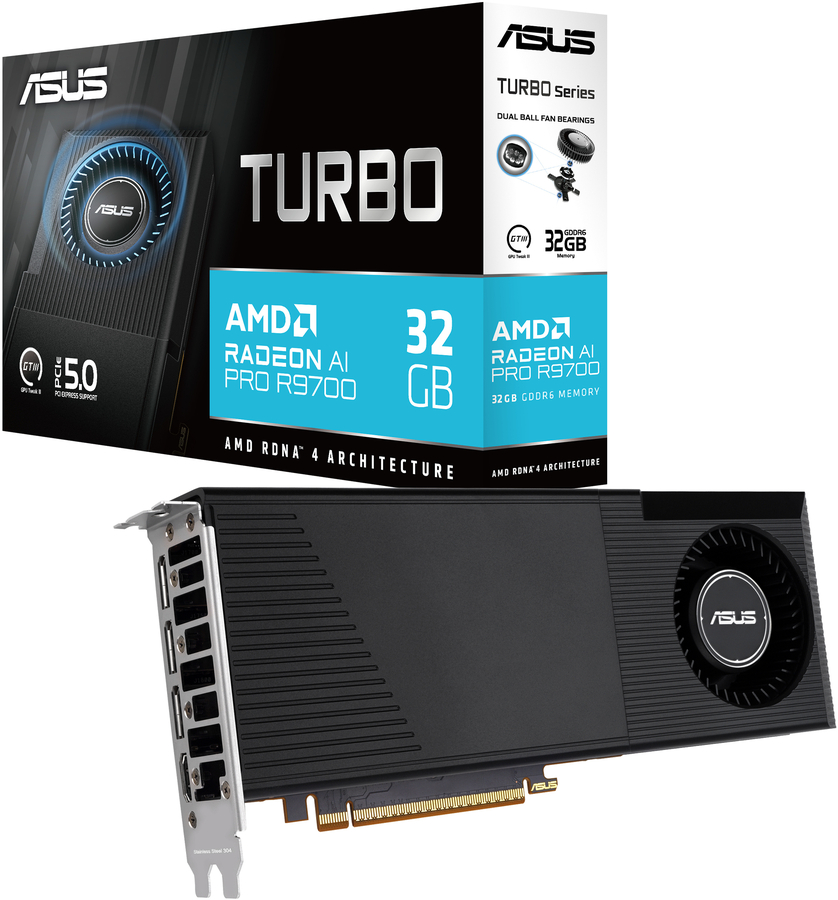

Package type |
Box |
|
Packaging content |
|
Manual |
Yes |
