Transform your Thunderbolt 5 laptop into a high-resolution, multi-monitor workstation

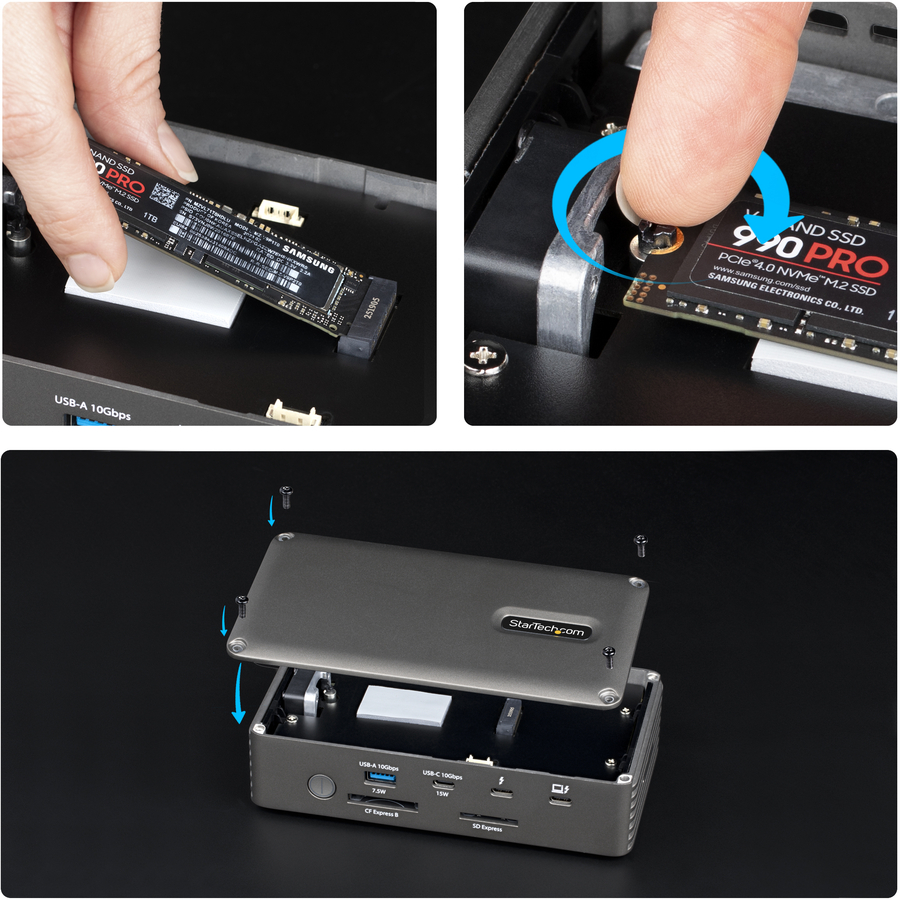

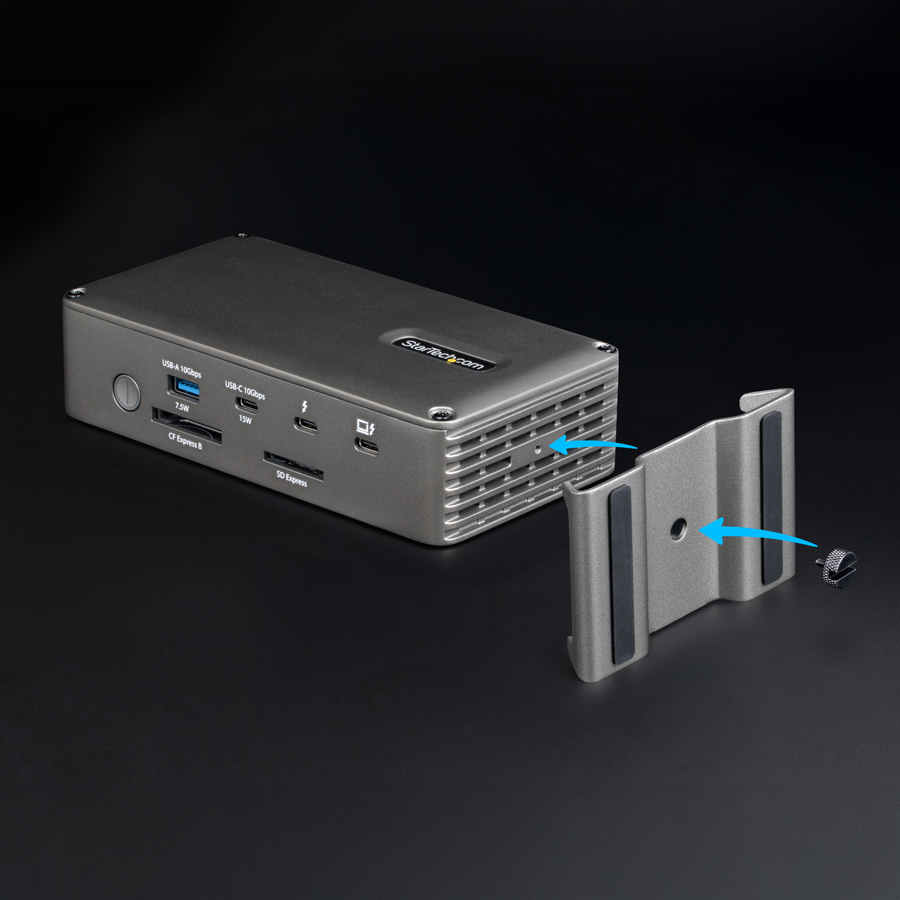

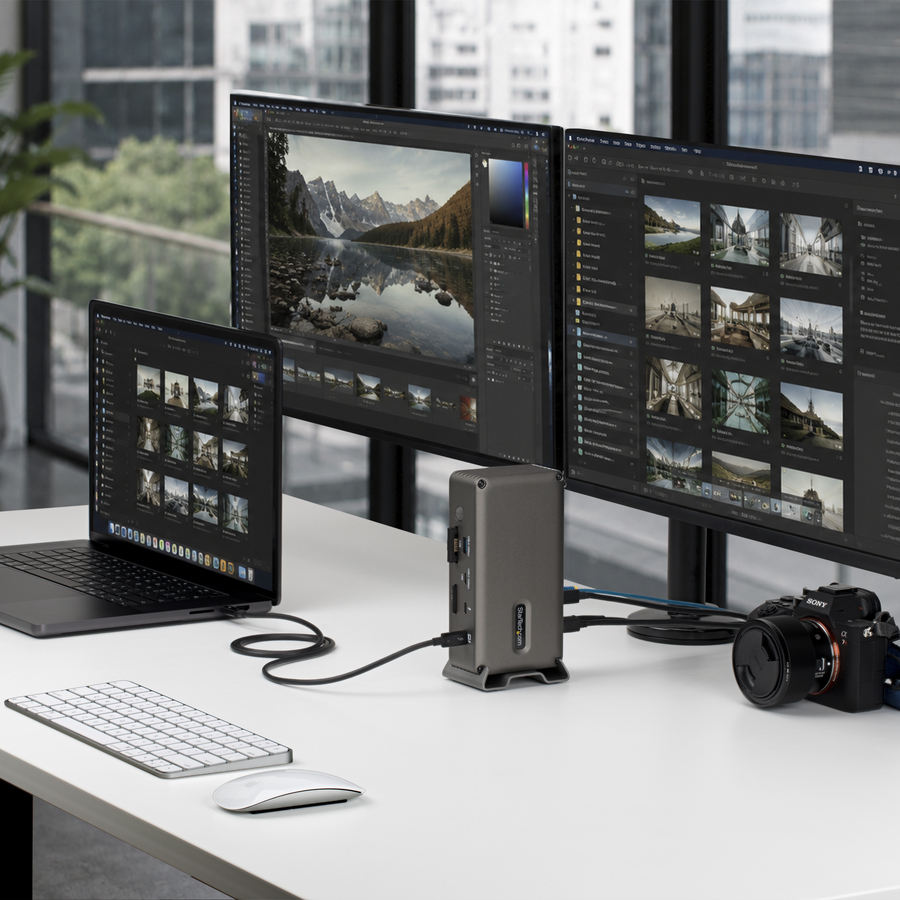

Connect high-performance storage, high-resolution displays, and essential peripherals through a single Thunderbolt dock that expands connectivity and streamlines multi-device workflows. Connect up to two 8K displays or three 4K displays to expand your workspace for video editing, design, and other content creation tasks. Eight USB ports and three Thunderbolt ports keep storage, input devices, and accessories connected, reducing cable clutter and simplifying workstation deployment. Silent passive cooling keeps the dock quiet during normal operation, while an active cooling fan automatically engages under full load to maintain reliable performance. Make upgrades easy with the integrated M.2 slot. Install an NVMe SSD for fast local storage and backups, or add an M.2 AI accelerator to boost on-device AI performance for demanding productivity and creative workflows. You can position the dock vertically using the included stand to free up valuable desk space and improve airflow for better cooling. Transfer media faster with integrated SD and CFexpress card readers that support simultaneous high-speed transfers. Included Thunderbolt™ Share software lets two PCs share a keyboard, mouse, and display over a single Thunderbolt connection while enabling file transfers and Windows PC migration-delivering a KVM-like experience without extra hardware. |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Host interface |
Thunderbolt 5 |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
HDMI ports quantity |
0 |
|
Microphone in |
No |
|
Headphone outputs |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
3 |
|
Thunderbolt 5 ports quantity |
3 |
|
DC-in jack |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Ethernet LAN data rates |
10,100,1000,2500,5000 Mbit/s |
|
Wake-on-LAN ready |
Yes |
|
Full duplex |
Yes |
|
Performance |
|
Product colour |
Grey |
|
Card reader integrated |
Yes |
|
Compatible memory cards |
CFexpress Type B, SD |
|
Data transfer rate |
120 Gbit/s |
|
HD type |
8K Ultra HD |
|
Maximum digital resolution |
7680 x 4320 pixels |
|
Number of displays supported |
3 |
|
Maximum refresh rate |
240 Hz |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington, Nano, Noble, Wedge |
|
UASP support |
Yes |
|
Housing material |
Aluminium |
|
Power |
|
AC input voltage |
100 - 240 V |
|
Input current |
3 A |
|
Output voltage |
20 V |
|
Output current |
12 A |
|
Power consumption (max) |
240 W |
|
Compatible power plug types |
US |
|
USB cable length |
1 m |
|
Software |
|
Windows operating systems supported |
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
|
Mac operating systems supported |
Mac OS X 15.0 Sequoia, Mac OS 26 Tahoe |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Width |
45 mm |
|
Depth |
168 mm |
|
Height |
90 mm |
|
Weight |
636 g |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Package width |
147 mm |
|
Package depth |
296 mm |
|
Package height |
113 mm |
|
Package weight |
1.52 kg |
|
Packaging content |
|
Cables included |
Thunderbolt |
|
Quick start guide |
Yes |
|
Technical details |
|
Compliance certificates |
Federal Communications Commission (FCC), CE |
|
Logistics data |
|
Products per master (outer) case |
10 pc(s) |
|
Master (outer) case width |
310 mm |
|
Master (outer) case length |
480 mm |
|
Master (outer) case height |
314 mm |
|
Other features |
|
Chipset |
Intel - JHL9480, Infineon - PMG1, Infineon - CCG8, Realtek - RTL8157CG, JMicron - JMS581LT, Texas Instruments - TPS2546, VIA Labs - VL822Q8, VIA Labs - VL822Q7, VIA Labs - VL817, Parade - FL5801, Terminus - FE1.1, STMicro - STM32C071F8 |
