General Information |
|
Summary |

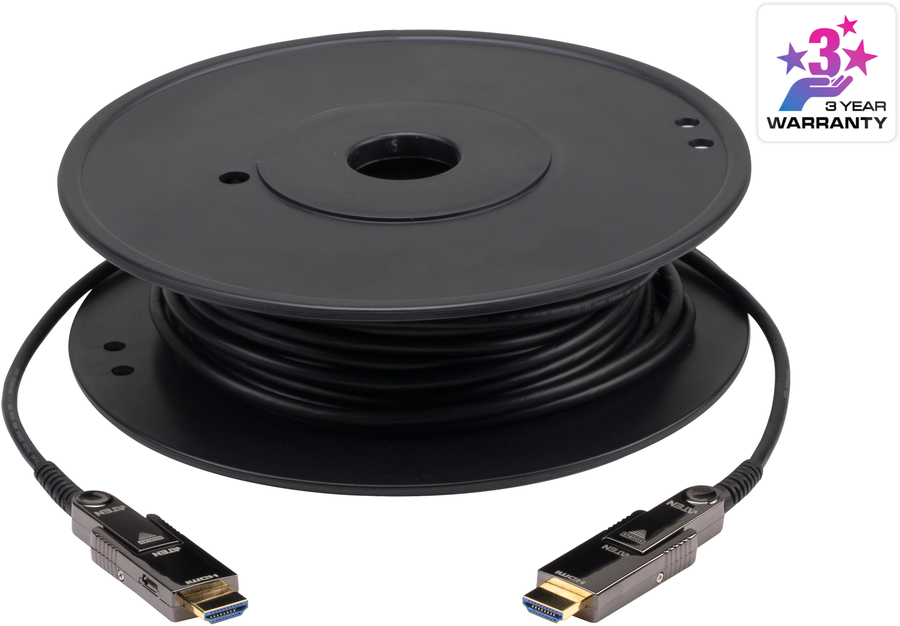

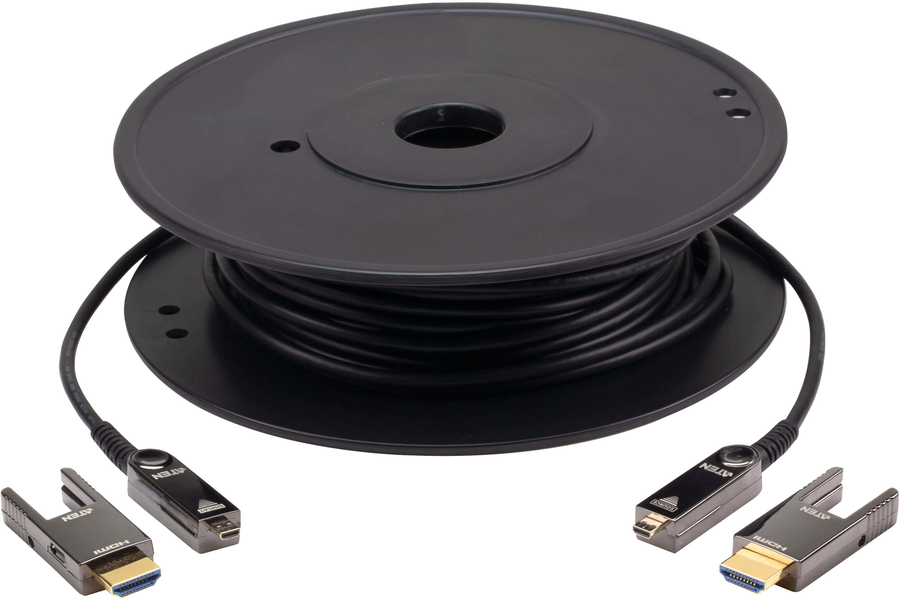

100m 328ft True 4K HDMI Active Optical cable |
|
Features |
|
Cable length |
100 m |
|
Connector 1 |
HDMI Type-A/HDMI Type-D |
|
Connector 2 |
HDMI Type-A/HDMI Type-D |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
Black |
|
Connector contacts plating |
Copper |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
3D |
Yes |
|
Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
|
Dolby technologies |
DTS-HD Master Audio, Dolby TrueHD |
|
Audio Return Channel (ARC) |
Yes |
|
HDMI Ethernet channel |
Yes |
|
HDCP |
Yes |
|
HDCP version |
2.2 |
|
Data transfer rate |
18 Gbit/s |
|
High Dynamic Range (HDR) supported |
Yes |
|
Bandwidth |
600 MHz |
|
AWG wire size |
30/24 |
|
Connector material |
Gold |
|
Cable material |
Fiber optic |
|
Cable jacket material |
Plenum (OFNP) |
|
Bend radius (min) |
2 cm |
|
Plug and Play |
Yes |
|
Colour sampling |
4:4:4, 4:2:0, 4:2:2 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Certificates |
|
Certification |
CE / FCC / RoHS2 / UL CMP-OF |
|
Weight & dimensions |
|
Cable diameter |
4.5 mm |
|
Weight |
2.7 kg |
|
Packaging data |
|
Quantity per pack |
1 pc(s) |
|
Logistics data |
|
Country of origin |
China |
