General Information |
|
Summary |

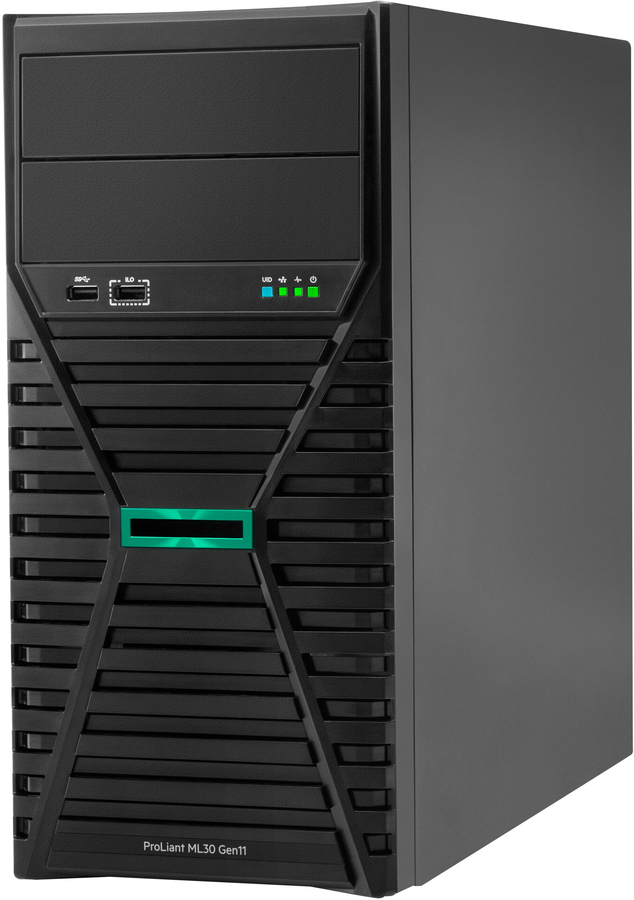

Do you need a reliable enterprise-class tower server that can easily meet your budget? The HPE ProLiant ML30 Gen11 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a low cost. Hewlett Packard Enterprise builds security right into the server with HPE iLO silicon root of trust. A redundant power supply option and up to four LFF or eight SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability, now including PCIe Gen5, allows you to upgrade with serial attached SCSI (SAS) controllers or networking cards as your business grows, which can give you an extra edge. Power your business now with an HPE ProLiant ML30 Gen11 server.
What is new supporting point:
Supports Intel Xeon E Processors up to 8 cores 95W.
4800 MT/s HPE DDR5 Standard Memory UDIMM offering: 16 GB and 32 GB, maximum 128 GB memory capacity.

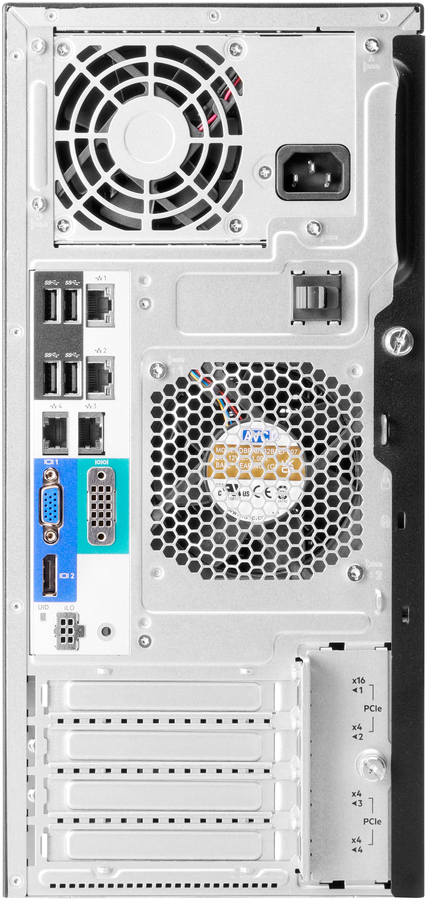

Four expansion slots for more flexible usage, including one PCIe Gen5 x16.
Onboard M.2 NVMe SSD support.
Dedicated HPE iLO port and serial port kit option. |
|
Processor |
|
Processor family |
Intel® Xeon® |
|
Processor manufacturer |
Intel |
|
Processor frequency |
3.5 GHz |
|
Processor cache |
12 MB |
|
Number of processors installed |
1 |
|
Processor cache type |
L3 |
|
Memory |
|
Internal memory |
32 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory clock speed |
4800 MHz |
|
Storage |
|
Optical drive type |
No |
|
Supported RAID controllers |
HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller |
|
Network |
|
LAN controller |
Broadcom BCM5719 |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
Expansion slots |
4, for detailed descriptions refer to the QuickSpecs |
|
Design |
|
Chassis type |
Tower (4U) |
|
Performance |
|
Management platform |
HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management (optional subscription available). Refer to the iLO 6 User Guide |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Power |
|
Power supply |
500 W |
|
Power supply type |
2x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
|
Number of main power supplies |
2 |
|
Other features |
|
Security features |
Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled. For full security features refer to the QuickSpecs. |
|
Number of processors supported |
1 |
|
Standard fans |
1x Non-hot plug non-redundant system fan |
|
Storage drive type |
None ship standard, 8 SFF supported |
