General Information |
|
Summary |

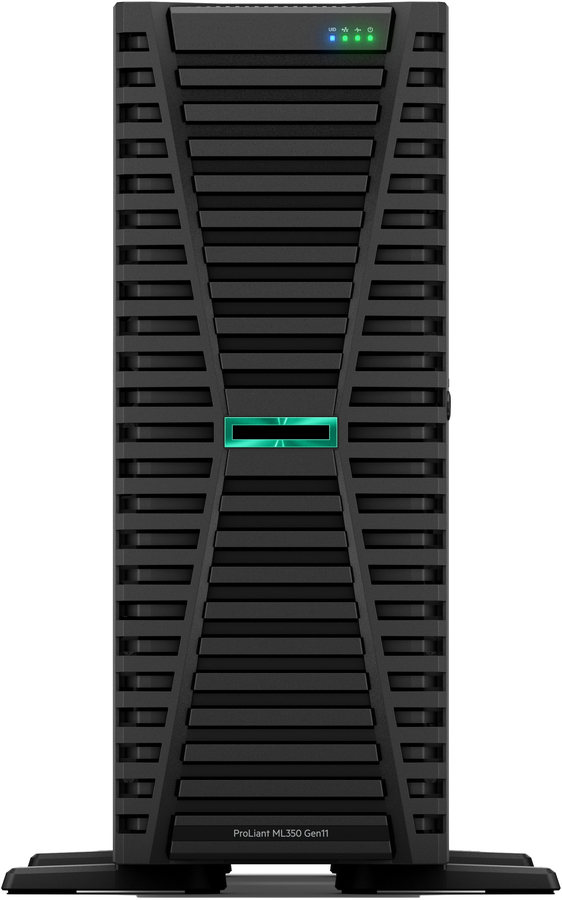

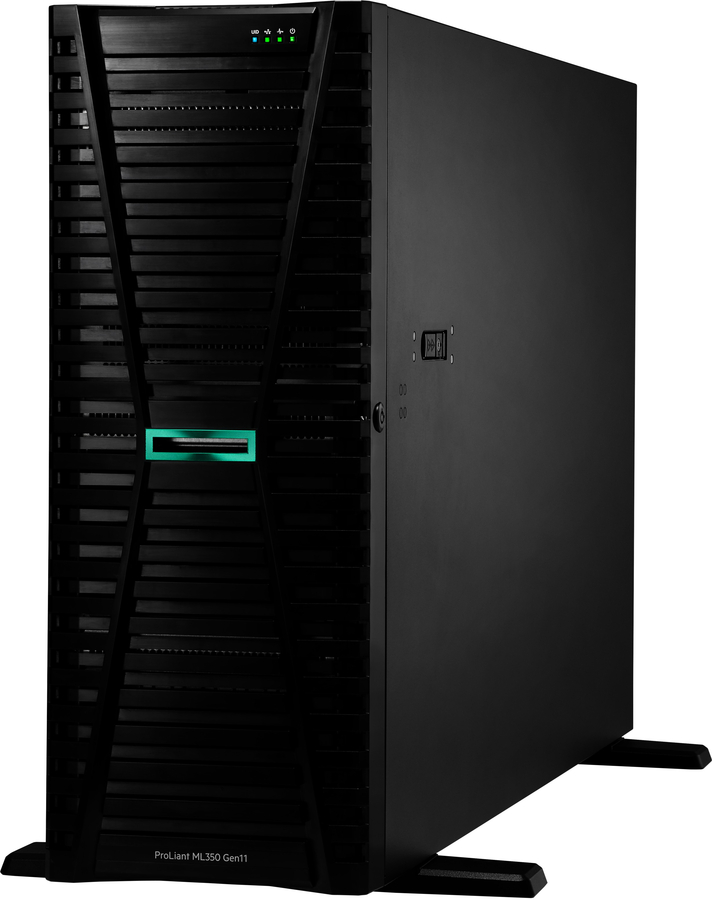

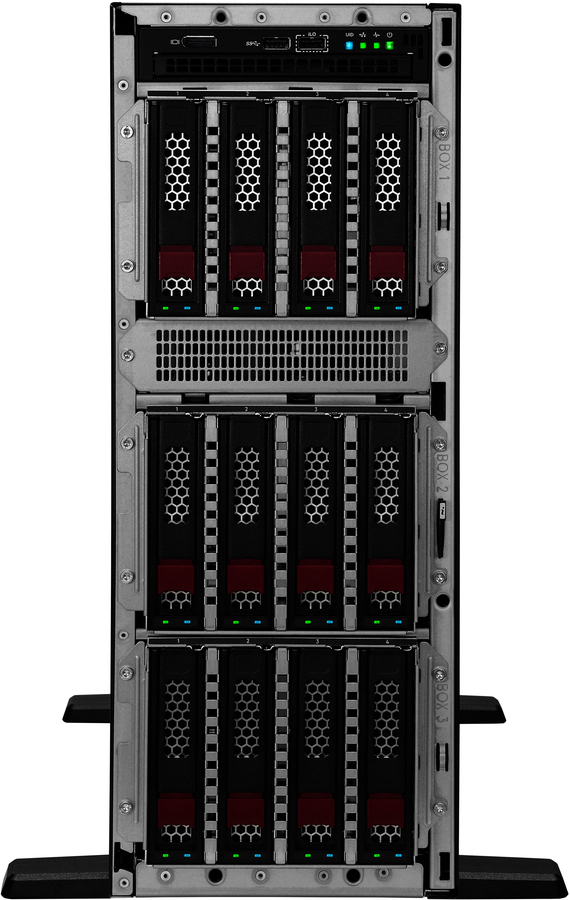

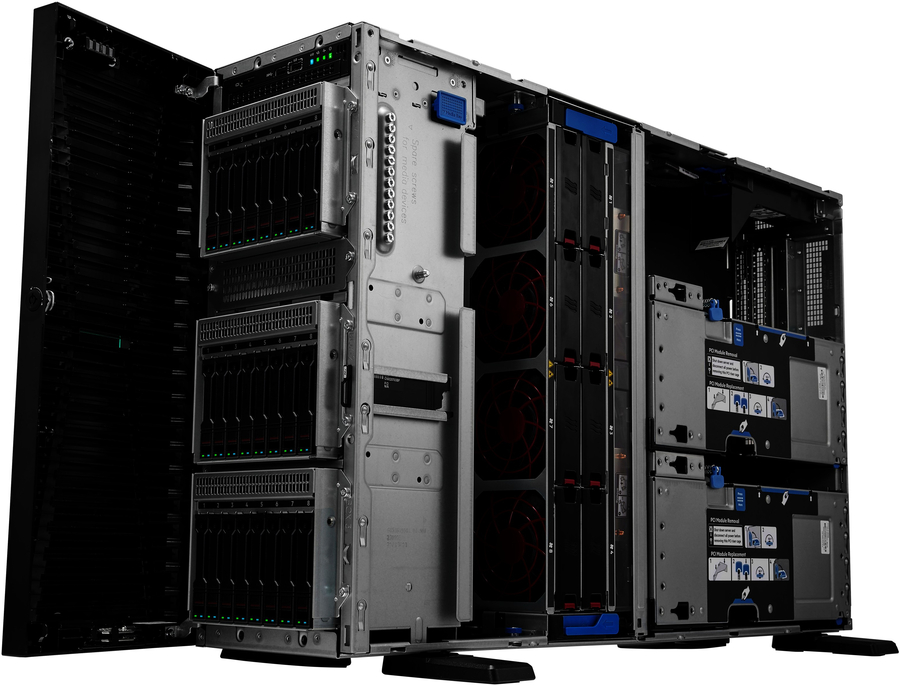

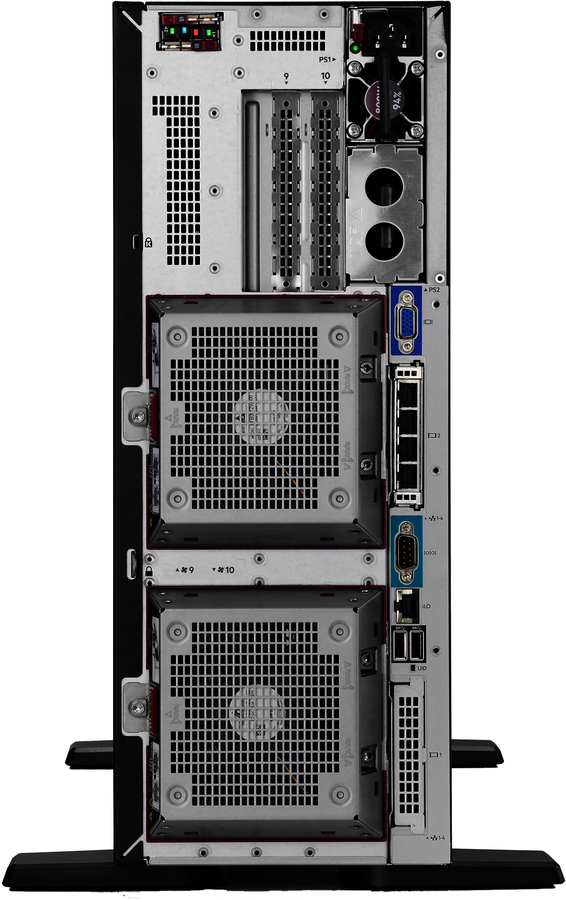

Are you looking for a robust and flexible tower optimized server for your SMB and remote offices? The HPE ProLiant ML350 Gen11 is a powerful 2P tower server with optional rackable chassis for various environments, and delivers exceptional compute performance, security, reliability, and expandability. Powered by 4th and 5th Gen Intel Xeon Scalable Processors up to 64 cores[1], up to 8 TB DDR5, PCIe Gen5, enhanced I/O and GPU support, and EDSFF storage, the HPE ProLiant ML350 Gen11 server fulfills a wide range of demanding workloads. The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating a fingerprint for the 4th and 5th Gen Intel Xeon Scalable processors that must be matched exactly before the server will boot. The HPE ProLiant ML350 Gen11 server is an excellent choice for diverse workloads such as IT infrastructure, Data Management, VDI, ERP/CRM. Scale and adapt to any environment with this server and accelerate your growing business.
What is new supporting point:
Support NVIDIA RTX 4000 Ada Graphics Accelerator, L40 48 GB Accelerator, A16 64 GB Accelerator and L4 24 GB Accelerator.
Powered by 4th and 5th Gen Intel Xeon Scalable Processors that support up to 64 cores[1] (128 cores per server) 350W TDP. Increased memory bandwidth to 5600 MT/s[2], up to 8 TB DDR5 memory capacity.
Supports new EDSFF E3.S NVMe form factor to enable higher-density servers and storage systems, optimization of PCIe lanes from CPUs, and ultra-high SSD performance.
Advanced data transfer rates from the PCIe Gen5 serial expansion bus, support up to 10 standard PCIe Gen5 slots and 2 OCP 3.0 slots [3].
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
Supports hot-pluggable, high-availability, RAID1 protected M.2 NVMe boot option. |
|
Processor |
|
Processor family |
Intel Xeon Silver |
|
Processor manufacturer |
Intel |
|
Processor model |
4410Y |
|
Processor frequency |
2 GHz |
|
Processor cache |
30 MB |
|
Number of processors installed |
1 |
|
Processor cache type |
L3 |
|
Memory |
|
Internal memory |
32 GB |
|
Memory clock speed |
4800 MHz |
|
Memory layout (slots x size) |
1 x 32 GB |
|
Storage |
|
Optical drive type |
No |
|
SSD interface |
PCI Express 4.0 |
|
Supported RAID controllers |
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
|
Network |
|
LAN controller |
Broadcom BCM5719 |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
Expansion slots |
Default with 4 x8 PCIe 5.0 slots. Refer to the Quickspecs for more detail. |
|
Design |
|
Chassis type |
Tower (4U) |
|
Performance |
|
Management platform |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE OneView Advanced (require licenses), and HPE Compute Ops Management. |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Power |
|
Power supply |
800 W |
|
Power supply type |
1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
|
Number of main power supplies |
1 |
|
Weight & dimensions |
|
Width |
584.2 mm |
|
Depth |
984.3 mm |
|
Height |
304.8 mm |
|
Weight |
31.8 kg |
|
Other features |
|
Security features |
UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. TPM (Trusted Platform Module) 2.0 support. Front bezel key-lock feature, Intrusion Cable (Optional), Padlock slot and Kensington Lock slot support. |
|
Number of processors supported |
1 |
|
Standard fans |
3x Standard Fans |
|
Dimensions (W x D x H) (imperial) |
584.2 x 984.2 x 304.8 mm (23 x 38.8 x 12") |
|
Storage drive type |
None ship standard, 8 SFF supported |
|
Weight (imperial) |
31.8 kg (70.2 lbs) |
