General Information |
|
Summary |

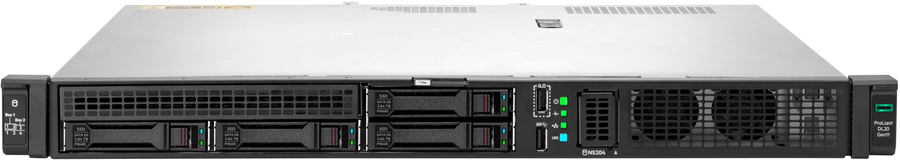

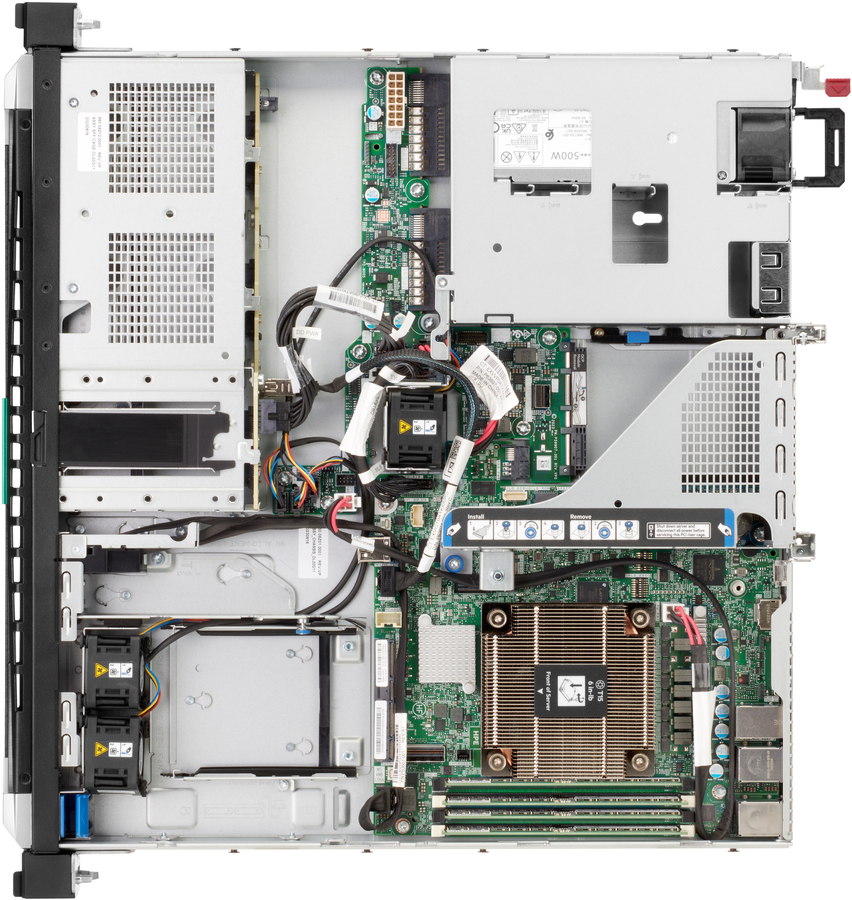

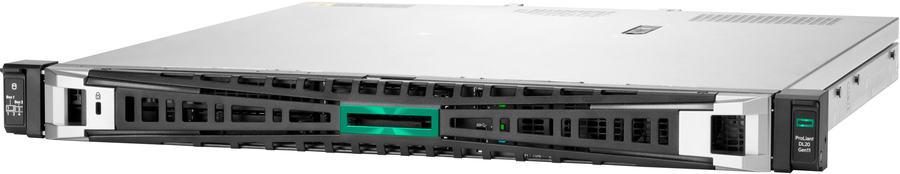

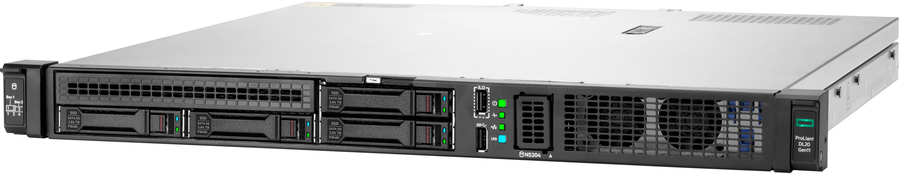

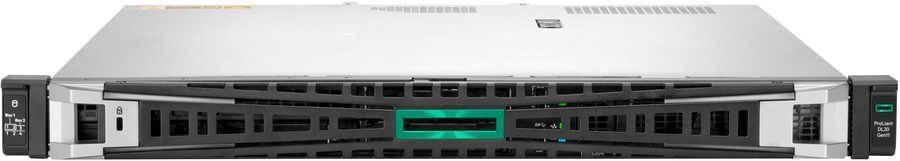

Are you looking for a compact and versatile 1U server that supports edge workloads like security monitoring in a variety of environments? The reliable HPE ProLiant DL20 Gen11 server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the short-depth rack form factor in small, remote, or branch offices, as a powerful point of sale platform in transport, retail, and hospitality environments or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this one-socket, 1U server featuring Intel Xeon E processors provide unique enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements and a wide range of qualified options fits a variety of needs.
What is new supporting point:
Supports Intel Xeon E-2400 Series processors, up to 8 cores.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Optional HPE iLO management port as an option kit for faster data transmission with enhanced security.
One PCIe Gen5 slot for greater I/O bandwidth.
One OCP slot for greater I/O bandwidth. |
|
Processor |
|
Processor family |
Intel® Xeon® |
|
Processor manufacturer |
Intel |
|
Processor frequency |
3.5 GHz |
|
Processor cache |
12 MB |
|
Number of processors installed |
1 |
|
Processor cache type |
L3 |
|
Memory |
|
Internal memory |
32 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory clock speed |
4800 MHz |
|
Storage |
|
Supported RAID controllers |
Embedded Intel VROC SATA (formerly known as Intel RSTe) |
|
Network |
|
LAN controller |
Broadcom BCM5719 |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
4 |
|
Expansion slots |
Two maximum, for detailed descriptions refer to the QuickSpecs. |
|
Design |
|
Chassis type |
Rack (1U) |
|
Performance |
|
Management platform |
HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management (optional subscription available) Refer to the HPE iLO 6 User Guide |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Power |
|
Power supply |
500 W |
|
Power supply type |
2x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
|
Number of main power supplies |
2 |
|
Other features |
|
Security features |
Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled. For full security features refer to the QuickSpecs. |
|
Number of processors supported |
1 |
|
Standard fans |
3x High Performance Fans |
|
Storage drive type |
None ship standard, 4 SFF supported |
